SINFONI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:01:09 (UT)
  | now: 2024-11-13T11:26:54 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
same group: lamp_eff   lamp_badpix lamp_off lamp_fpn1 lamp_fpn2 vignetting_check_sl1 vignetting_check_sl32
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
SINFONI news: 2019-06-26: SINFONI taken out of operations
Report news:
DATE*: [?] 2019-06-24
report | NLT
2019-06-25
report | NLT
2019-06-26
no data | NLT
2019-06-27
no data | NLT
2019-06-28
no data | NLT
2019-06-29
no data | NLT
2019-06-30
no data | NLT
r...
Raw CAL displays:
raw raw no CAL raw files no CAL raw files no CAL raw files no CAL raw files no CAL raw files
P...
CAL product quality:
products products no CAL products no CAL products no CAL products no CAL products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN -0.263 ADU VAL-2.,2. 34 qc_specflux_coff this | last_yr | all median OFF-lamp counts: J-band/250 mas camera scale
(only this data set is scored)
1 QC1DB none   ADU none  17 qc_specflux_coff this | last_yr | all median OFF-lamp counts: J-band/100 mas scale
1 QC1DB none   ADU none  18 qc_specflux_coff this | last_yr | all median OFF-lamp counts: J-band/ 25 mas scale

2 QC1DB MEDIAN -0.075 ADU VAL-2.,2. 33 qc_specflux_coff this | last_yr | all median OFF-lamp counts: H-band/250 mas camera scale
(only this data set is scored)
2 QC1DB none   ADU none  22 qc_specflux_coff this | last_yr | all median OFF-lamp counts: H-band/100 mas scale
2 QC1DB none   ADU none  18 qc_specflux_coff this | last_yr | all median OFF-lamp counts: H-band/ 25 mas scale

3 QC1DB MEDIAN 4.2 ADU VAL0.,7. 46 qc_specflux_coff this | last_yr | all median OFF-lamp counts: K-band/250 mas camera scale
(only this data set is scored)
3 QC1DB none   ADU none  28 qc_specflux_coff this | last_yr | all median OFF-lamp counts: K-band/100 mas scale
3 QC1DB none   ADU none  31 qc_specflux_coff this | last_yr | all median OFF-lamp counts: K-band/ 25 mas scale

4 QC1DB MEDIAN 3.36 ADU VAL0.,7. 30 qc_specflux_coff this | last_yr | all median OFF-lamp counts: H+K-band/250 mas camera scale
(only this data set is scored)
4 QC1DB none   ADU none  20 qc_specflux_coff this | last_yr | all median OFF-lamp counts: H+K-band/100 mas scale
4 QC1DB none   ADU none  27 qc_specflux_coff this | last_yr | all median OFF-lamp counts: H+K-band/ 25 mas scale

*Data sources: QC1DB: QC1 database; LOCAL: local data source

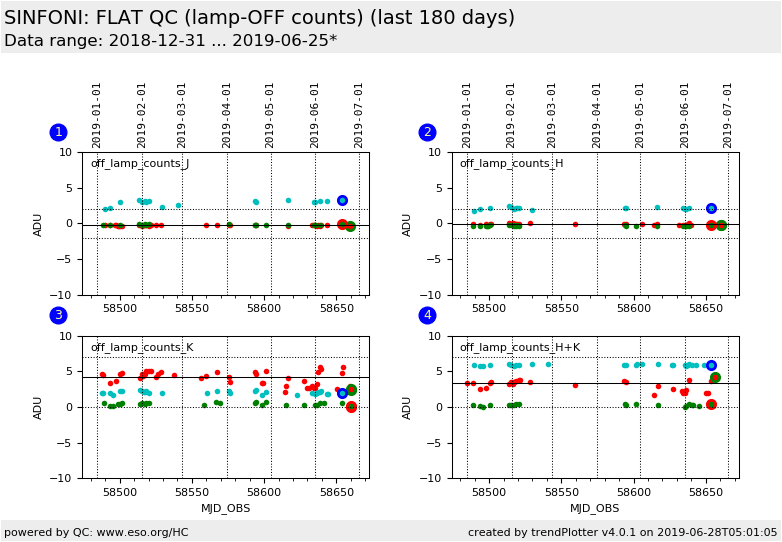

Plot 1
scores: 2|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_coff
median:-0.263ADU
fixed thresholds:-2.0...2.0ADU
N_data plotted:34
[click plot for closeup]
Plot 2
scores: 5|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_coff
median:-0.075ADU
fixed thresholds:-2.0...2.0ADU
N_data plotted:33
[click plot for closeup]
Plot 3
scores: 5|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_coff
median:4.2ADU
fixed thresholds:0.0...7.0ADU
N_data plotted:46
[click plot for closeup]
Plot 4
scores: 4|
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)
qc_specflux_coff
median:3.36ADU
fixed thresholds:0.0...7.0ADU
N_data plotted:30
[click plot for closeup]
This plot

These are the trending plots for the SINFONI QC parameters derived from the LAMP FLATs.

These plots describe:
Day-time FLAT calibrations come in at least five pairs of lamp on/off frames. For each
raw lamp-off frames the corresponding dark frame is subtracted and the median is calculated.
The lamp-off counts are the average of these 5 (or more) values.
1. the median OFF-lamp counts in the J-band for the camera scales: 250, 100, and 25 mas
2. the median OFF-lamp counts in the H-band for the camera scales: 250, 100, and 25 mas
3. the median OFF-lamp counts in the K-band for the camera scales: 250, 100, and 25 mas
4. the median OFF-lamp counts in the H+K-band for the camera scales: 250, 100, and 25 mas
Find more information about SINFONI FLAT frames here.

Other QC parameters related to detector properties (like contamination, linearity, gain) are trended here.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
