sensor Configuration class More...

#include <iodevConfig.hpp>

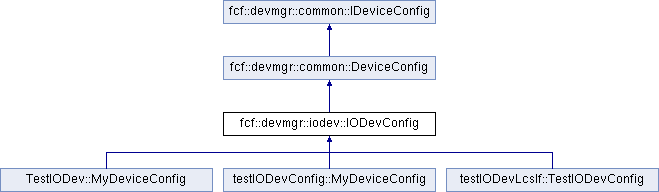

Inheritance diagram for fcf::devmgr::iodev::IODevConfig:

Public Member Functions
	IODevConfig (const std::string filename, const std::string name)
	IODevConfig constructor. More...

	IODevConfig (const std::string name)
	DeviceConfig constructor. More...

virtual	~IODevConfig ()=default
	DeviceConfig destructor. More...

virtual void	Init ()
	Read the configuration. More...

virtual void	GetConfig (protocol::base::VectorVariant &params) const override
	Obtain the list of configuration parameters. More...

virtual void	GetConfigList (utils::bat::DbVector &cfg_list, std::string prefix) const override
	Get configuration list. More...

virtual void	GetInputList (std::vector< std::string > &channel_list) const
	Get input channel list. More...

virtual void	GetOutputList (std::vector< std::pair< std::string, std::string >> &channel_list) const
	Get output channel list. More...

bool	IsNoRpc () const
	Get NO RPC flag. More...

bool	IsSensor () const
	Get Sensor flag. More...

std::string	GetChannelType (const std::string &channel) const

std::string	GetChannelDescription (const std::string &channel) const

std::string	GetChannelNamedValue (const std::string &channel, const std::string &value) const

std::optional< IODevChannel >	GetChannelConfig (const std::string &channel) const

Public Member Functions inherited from fcf::devmgr::common::DeviceConfig
	DeviceConfig (const std::string &filename, const std::string &name)
	DeviceConfig constructor. More...

	DeviceConfig (const std::string &name)
	DeviceConfig constructor. More...

virtual	~DeviceConfig ()
	DeviceConfig destructor. More...

bool	Init ()
	Initialises a device. More...

void	InitFromString (std::string config)
	Init the internal configuration from a string. More...

void	InitFromFile (const std::string &filename)
	Init the internal configuration from a given file. More...

std::string	GetIdentifier () const

std::string	GetPrefix () const

std::string	GetAddress () const

std::string	GetSimAddress () const

std::string	GetFitsPrefix () const
	Get Fits Prefix. More...

std::string	GetType () const

int	GetNamespace () const

std::string	GetAlias () const

std::string	GetId () const

std::string	GetOverview () const

std::string	GetDescription () const

std::string	GetName () const noexcept

std::string	GetLogName () const noexcept

std::string	GetNodeId (const std::string &attrib) const
	Get node id. More...

std::string	GetProcId (const std::string &attrib) const
	Get procedure id. More...

std::string	GetObjId () const
	Get object id. More...

std::string	GetCfgFile () const
	GetCfgFile. More...

std::string	GetCfgAsString () const
	GetCfgAsString. More...

virtual void	SetSimulateFlag (const bool flag)
	Set simulation flag. More...

virtual void	SetIgnoreFlag (const bool flag)
	Set ignore flag. More...

virtual bool	GetIgnored () const
	Get ignored flag. More...

virtual bool	GetSimulated () const
	Get simulated flag. More...

virtual std::string	GetMapFile () const
	Get name of the device mapping file. More...

void	CheckConfig () const
	Validates the document configuration. More...

Friends
class	IODev

class	IODevLcsIf

Additional Inherited Members
Protected Member Functions inherited from fcf::devmgr::common::DeviceConfig
void	MergeConfig (const elt::configng::CiiConfigDocument &doc, bool check=true)
	Merges a configuration file. More...

bool	GetVariantValue (const elt::configng::CiiConfigInstanceNode node, protocol::base::Variant &value) const
	Obtain the variant value with the correct type. More...

Protected Attributes inherited from fcf::devmgr::common::DeviceConfig
std::string	m_filename
	filename of device configuration file More...

std::string	m_name
	device identifier More...

std::string	m_identifier
	Address space identifier. More...

std::string	m_type
	Device type. More...

std::string	m_fits_prefix

bool	m_simulated

bool	m_ignored

std::string	m_lcs_prefix

std::string	m_address

std::string	m_sim_address

std::string	m_map_file

std::string	m_alias

int	m_lcs_namespace

std::unique_ptr< elt::configng::CiiConfigDocument >	m_config_doc
	Internal configuration document object. More...

Detailed Description

sensor Configuration class

This class manages the configuration of a sensor. It reads the configuration file and provides the methods to obtain the parameters used by the auxiliary classes.

Constructor & Destructor Documentation

◆ IODevConfig() [1/2]

fcf::devmgr::iodev::IODevConfig::IODevConfig	(	const std::string	filename,
		const std::string	name
	)

IODevConfig constructor.

Parameters

[in]	filename	filename of the device configuration file.
[in]	name	Device identifier.std::nullopt;

◆ IODevConfig() [2/2]

fcf::devmgr::iodev::IODevConfig::IODevConfig ( const std::string name )

DeviceConfig constructor.

Parameters

[in] name Device identifier.

◆ ~IODevConfig()

virtual fcf::devmgr::iodev::IODevConfig::~IODevConfig ( )

virtualdefault

DeviceConfig destructor.

Member Function Documentation

◆ GetChannelConfig()

std::optional< IODevChannel > fcf::devmgr::iodev::IODevConfig::GetChannelConfig ( const std::string & channel ) const

◆ GetChannelDescription()

std::string fcf::devmgr::iodev::IODevConfig::GetChannelDescription ( const std::string & channel ) const

◆ GetChannelNamedValue()

std::string fcf::devmgr::iodev::IODevConfig::GetChannelNamedValue	(	const std::string &	channel,
		const std::string &	value
	)		const

◆ GetChannelType()

std::string fcf::devmgr::iodev::IODevConfig::GetChannelType ( const std::string & channel ) const

◆ GetConfig()

void fcf::devmgr::iodev::IODevConfig::GetConfig ( protocol::base::VectorVariant & params ) const

overridevirtual

Obtain the list of configuration parameters.

Parameters

[in,out] params output vector with the list of config parameters

This methods prepare a vector with all the configuration parameters of a sensor with the purpose to keep it in memory.

Reimplemented from fcf::devmgr::common::DeviceConfig.

◆ GetConfigList()

void fcf::devmgr::iodev::IODevConfig::GetConfigList	(	utils::bat::DbVector &	cfg_list,
		std::string	prefix
	)		const

overridevirtual

Get configuration list.

Parameters

cfg_list	List of all configuration parameters.
prefix	Prefix to be added to the attributes names.

This method returs the complete of configuration parameters handled by this class. This method is used to dump the list into the DB.

Reimplemented from fcf::devmgr::common::DeviceConfig.

◆ GetInputList()

void fcf::devmgr::iodev::IODevConfig::GetInputList ( std::vector< std::string > & channel_list ) const

virtual

Get input channel list.

Parameters

[in,out] channel_list List of input channels

This method returs the complete list of input channels in the configuration.

◆ GetOutputList()

void fcf::devmgr::iodev::IODevConfig::GetOutputList ( std::vector< std::pair< std::string, std::string >> & channel_list ) const

virtual

Get output channel list.

Parameters

[in,out] channel_list List of output channels

This method returs the complete list of output channels in the configuration.

◆ Init()

void fcf::devmgr::iodev::IODevConfig::Init ( )

virtual

Read the configuration.

This reads the sensor configuration attributes in memory and check the presence of all attributes that are mandatory.

Exceptions

std::runtime_error in case of an error

◆ IsNoRpc()

bool fcf::devmgr::iodev::IODevConfig::IsNoRpc ( ) const

Get NO RPC flag.

This method returns the flag that disables the execution of RPCs. When this flag is active, it means all RPC calls will be skipped and the server assumes the controller is Operational/Monitoring.

This flag shall be used for commercial controllers with embedded OPCUA servers like the Rittal PDUs.

◆ IsSensor()

bool fcf::devmgr::iodev::IODevConfig::IsSensor ( ) const

Get Sensor flag.

This method returns the flag that indicates IODev behaves like a sensor device and therfore only input channels are allowed.

Friends And Related Function Documentation

◆ IODev

friend class IODev

friend

◆ IODevLcsIf

friend class IODevLcsIf

friend

The documentation for this class was generated from the following files:

devmgr/devices/src/include/fcf/devmgr/devices/iodevConfig.hpp
devmgr/devices/src/iodevConfig.cpp
