Device Configuration class. More...

#include <deviceConfig.hpp>

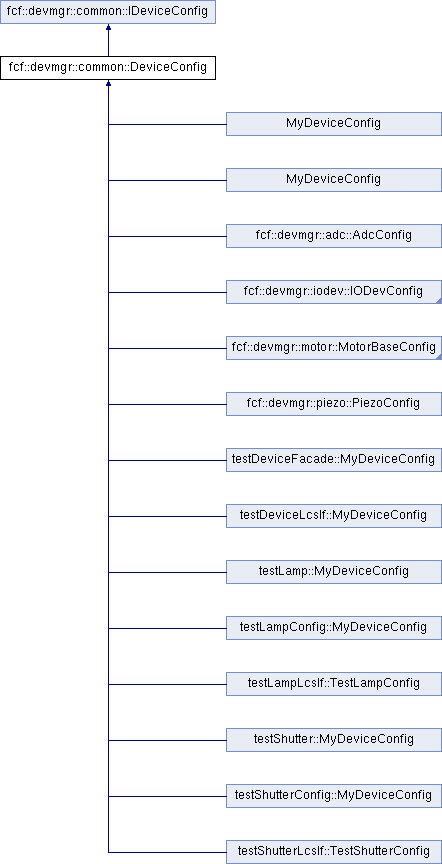

Inheritance diagram for fcf::devmgr::common::DeviceConfig:

Public Member Functions
	DeviceConfig (const std::string &filename, const std::string &name)
	DeviceConfig constructor. More...

	DeviceConfig (const std::string &name)
	DeviceConfig constructor. More...

virtual	~DeviceConfig ()
	DeviceConfig destructor. More...

bool	Init ()
	Initialises a device. More...

void	InitFromString (std::string config)
	Init the internal configuration from a string. More...

void	InitFromFile (const std::string &filename)
	Init the internal configuration from a given file. More...

virtual void	GetConfig (protocol::base::VectorVariant &params) const
	Obtain the list of configuration parameters. More...

std::string	GetIdentifier () const

std::string	GetPrefix () const

std::string	GetAddress () const

std::string	GetSimAddress () const

std::string	GetFitsPrefix () const
	Get Fits Prefix. More...

std::string	GetType () const

int	GetNamespace () const

std::string	GetAlias () const

std::string	GetId () const

std::string	GetOverview () const

std::string	GetDescription () const

std::string	GetName () const noexcept

std::string	GetLogName () const noexcept

std::string	GetNodeId (const std::string &attrib) const
	Get node id. More...

std::string	GetProcId (const std::string &attrib) const
	Get procedure id. More...

std::string	GetObjId () const
	Get object id. More...

virtual void	GetConfigList (utils::bat::DbVector &cfg_list, std::string prefix) const
	Get configuration list. More...

std::string	GetCfgFile () const
	GetCfgFile. More...

std::string	GetCfgAsString () const
	GetCfgAsString. More...

virtual void	SetSimulateFlag (const bool flag)
	Set simulation flag. More...

virtual void	SetIgnoreFlag (const bool flag)
	Set ignore flag. More...

virtual bool	GetIgnored () const
	Get ignored flag. More...

virtual bool	GetSimulated () const
	Get simulated flag. More...

virtual std::string	GetMapFile () const
	Get name of the device mapping file. More...

void	CheckConfig () const
	Validates the document configuration. More...

Protected Member Functions
void	MergeConfig (const elt::configng::CiiConfigDocument &doc, bool check=true)
	Merges a configuration file. More...

bool	GetVariantValue (const elt::configng::CiiConfigInstanceNode node, protocol::base::Variant &value) const
	Obtain the variant value with the correct type. More...

Protected Attributes
std::string	m_filename
	filename of device configuration file More...

std::string	m_name
	device identifier More...

std::string	m_identifier
	Address space identifier. More...

std::string	m_type
	Device type. More...

std::string	m_fits_prefix

bool	m_simulated

bool	m_ignored

std::string	m_lcs_prefix

std::string	m_address

std::string	m_sim_address

std::string	m_map_file

std::string	m_alias

int	m_lcs_namespace

std::unique_ptr< elt::configng::CiiConfigDocument >	m_config_doc
	Internal configuration document object. More...

Detailed Description

Device Configuration class.

This class manages the configuration of a device. It reads the configuration file and provides the methods to obtain the parameters used by the various classes.

Constructor & Destructor Documentation

◆ DeviceConfig() [1/2]

fcf::devmgr::common::DeviceConfig::DeviceConfig	(	const std::string &	filename,
		const std::string &	name
	)

DeviceConfig constructor.

Parameters

[in]	filename	filename of the device configuration file.
[in]	name	Device identifier.

◆ DeviceConfig() [2/2]

fcf::devmgr::common::DeviceConfig::DeviceConfig ( const std::string & name )

DeviceConfig constructor.

Special constructor to be used for special cases, e.g. in GUIs.

See also: InitFromString

◆ ~DeviceConfig()

fcf::devmgr::common::DeviceConfig::~DeviceConfig ( )

virtual

DeviceConfig destructor.

Member Function Documentation

◆ CheckConfig()

void fcf::devmgr::common::DeviceConfig::CheckConfig ( ) const

Validates the document configuration.

Exceptions

std::runtime_error in case check reported issues.

◆ GetAddress()

std::string fcf::devmgr::common::DeviceConfig::GetAddress ( ) const

virtual

Returns: device address

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetAlias()

std::string fcf::devmgr::common::DeviceConfig::GetAlias ( ) const

virtual

Returns: namespace

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetCfgAsString()

std::string fcf::devmgr::common::DeviceConfig::GetCfgAsString ( ) const

virtual

GetCfgAsString.

Returns

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetCfgFile()

std::string fcf::devmgr::common::DeviceConfig::GetCfgFile ( ) const

GetCfgFile.

Returns

◆ GetConfig()

void fcf::devmgr::common::DeviceConfig::GetConfig ( protocol::base::VectorVariant & params ) const

virtual

Obtain the list of configuration parameters.

Parameters

[in,out] params output vector with the list of config parameters

This methods prepare a vector with all the configuration parameters of a device with the purpose to write it into the controller. Only attributes that are scalars are considered here.

Warning: : vectors are ignored since they are still not supported in the OPCUA interface

Exceptions

runtime error in case of bad casting.

Implements fcf::devmgr::common::IDeviceConfig.

Reimplemented in fcf::devmgr::motor::MotorConfig, fcf::devmgr::iodev::IODevConfig, and fcf::devmgr::adc::AdcConfig.

◆ GetConfigList()

void fcf::devmgr::common::DeviceConfig::GetConfigList	(	utils::bat::DbVector &	cfg_list,
		std::string	prefix
	)		const

virtual

Get configuration list.

Parameters

cfg_list	List of all configuration parameters.
prefix	Prefix to be added to the attributes names.

This method returs the complete of configuration parameters handled by this class. This method is used to dump the list into the DB.

Reimplemented in fcf::devmgr::motor::MotorConfig, fcf::devmgr::motor::MotorBaseConfig, fcf::devmgr::iodev::IODevConfig, and fcf::devmgr::adc::AdcConfig.

◆ GetDescription()

std::string fcf::devmgr::common::DeviceConfig::GetDescription ( ) const

Returns: namespace

◆ GetFitsPrefix()

std::string fcf::devmgr::common::DeviceConfig::GetFitsPrefix ( ) const

Get Fits Prefix.

◆ GetId()

std::string fcf::devmgr::common::DeviceConfig::GetId ( ) const

Returns: namespace

◆ GetIdentifier()

std::string fcf::devmgr::common::DeviceConfig::GetIdentifier ( ) const

virtual

Returns: addres space identifier

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetIgnored()

bool fcf::devmgr::common::DeviceConfig::GetIgnored ( ) const

virtual

Get ignored flag.

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetLogName()

std::string fcf::devmgr::common::DeviceConfig::GetLogName ( ) const

inlinenoexcept

Returns: device name for logging purposes

◆ GetMapFile()

std::string fcf::devmgr::common::DeviceConfig::GetMapFile ( ) const

virtual

Get name of the device mapping file.

Returns

Implements fcf::devmgr::common::IDeviceConfig.

Reimplemented in testShutterLcsIf::TestShutterConfig, testShutterConfig::MyDeviceConfig, testMotorLcsIf::TestMotorConfig, testMotorConfig::MyDeviceConfig, testLampLcsIf::TestLampConfig, and testLampConfig::MyDeviceConfig.

◆ GetName()

std::string fcf::devmgr::common::DeviceConfig::GetName ( ) const

inlinevirtualnoexcept

Returns: device name

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetNamespace()

int fcf::devmgr::common::DeviceConfig::GetNamespace ( ) const

virtual

Returns: namespace

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetNodeId()

std::string fcf::devmgr::common::DeviceConfig::GetNodeId ( const std::string & attrib ) const

virtual

Get node id.

Parameters

[in] attrib attribute to build the node id

Returns: Node id of the attribute given

The NodeId is composed by the following: <namespace>,<prefix>.<attribute>

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetObjId()

std::string fcf::devmgr::common::DeviceConfig::GetObjId ( ) const

virtual

Get object id.

Returns: string with object id

This method returns the address space prefix for executing RPC calls.

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetOverview()

std::string fcf::devmgr::common::DeviceConfig::GetOverview ( ) const

Returns: namespace

◆ GetPrefix()

std::string fcf::devmgr::common::DeviceConfig::GetPrefix ( ) const

virtual

Returns: device prefix

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetProcId()

std::string fcf::devmgr::common::DeviceConfig::GetProcId ( const std::string & attrib ) const

virtual

Get procedure id.

Parameters

[in] attrib attribute to build the node id

Returns: string with procedure id

The procedure id is the NodeId for RPC calls and it is composed by the following:

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetSimAddress()

std::string fcf::devmgr::common::DeviceConfig::GetSimAddress ( ) const

virtual

Returns: device simulation address

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetSimulated()

bool fcf::devmgr::common::DeviceConfig::GetSimulated ( ) const

virtual

Get simulated flag.

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetType()

std::string fcf::devmgr::common::DeviceConfig::GetType ( ) const

virtual

Returns: device type

Implements fcf::devmgr::common::IDeviceConfig.

◆ GetVariantValue()

bool fcf::devmgr::common::DeviceConfig::GetVariantValue	(	const elt::configng::CiiConfigInstanceNode	node,
		protocol::base::Variant &	value
	)		const

protected

Obtain the variant value with the correct type.

Parameters

[in]	node	Configuration node
[in]	value	Variant value to be filled up

This methods fill the variant with the value obtained from the node according to the respective type.

Warning: : ONLY few data types are considered due to the current limitation of the interface with OPCUA.

Exceptions

runtime error in case of bad casting.

◆ Init()

bool fcf::devmgr::common::DeviceConfig::Init ( )

Initialises a device.

Returns: true if initialisation finished without error, false otherwise.

◆ InitFromFile()

void fcf::devmgr::common::DeviceConfig::InitFromFile ( const std::string & filename )

Init the internal configuration from a given file.

Parameters

filename This method is to be used in special cases only. The standard way is to use the proper constructor that will initialize automaticaly the internal configuration with the configuration file using method Init.

See also: Init

◆ InitFromString()

void fcf::devmgr::common::DeviceConfig::InitFromString ( std::string config )

Init the internal configuration from a string.

Parameters

config This method is to be used in special cases, for instance by GUIs where the configuration can be obtained from the server as a string. With this method you can avoid accessing directly to the filesystem which might be hidden by Nomad.

◆ MergeConfig()

void fcf::devmgr::common::DeviceConfig::MergeConfig	(	const elt::configng::CiiConfigDocument &	doc,
		bool	check = `true`
	)

protected

Merges a configuration file.

Parameters

doc	Config document object to be validated.
check	Flag to verify after the merge.

Exceptions

std::runtime_error in case check reported issues.

◆ SetIgnoreFlag()

void fcf::devmgr::common::DeviceConfig::SetIgnoreFlag ( const bool flag )

virtual

Set ignore flag.

Implements fcf::devmgr::common::IDeviceConfig.

◆ SetSimulateFlag()

void fcf::devmgr::common::DeviceConfig::SetSimulateFlag ( const bool flag )

virtual

Set simulation flag.

Implements fcf::devmgr::common::IDeviceConfig.

Member Data Documentation

◆ m_address

std::string fcf::devmgr::common::DeviceConfig::m_address

protected

◆ m_alias

std::string fcf::devmgr::common::DeviceConfig::m_alias

protected

◆ m_config_doc

std::unique_ptr<elt::configng::CiiConfigDocument> fcf::devmgr::common::DeviceConfig::m_config_doc

protected

Internal configuration document object.

◆ m_filename

std::string fcf::devmgr::common::DeviceConfig::m_filename

protected

filename of device configuration file

◆ m_fits_prefix

std::string fcf::devmgr::common::DeviceConfig::m_fits_prefix

protected

◆ m_identifier

std::string fcf::devmgr::common::DeviceConfig::m_identifier

protected

Address space identifier.

◆ m_ignored

bool fcf::devmgr::common::DeviceConfig::m_ignored

protected

◆ m_lcs_namespace

int fcf::devmgr::common::DeviceConfig::m_lcs_namespace

protected

◆ m_lcs_prefix

std::string fcf::devmgr::common::DeviceConfig::m_lcs_prefix

protected

◆ m_map_file

std::string fcf::devmgr::common::DeviceConfig::m_map_file

protected

◆ m_name

std::string fcf::devmgr::common::DeviceConfig::m_name

protected

device identifier

◆ m_sim_address

std::string fcf::devmgr::common::DeviceConfig::m_sim_address

protected

◆ m_simulated

bool fcf::devmgr::common::DeviceConfig::m_simulated

protected

◆ m_type

std::string fcf::devmgr::common::DeviceConfig::m_type

protected

Device type.

The documentation for this class was generated from the following files:

devmgr/common/src/include/fcf/devmgr/common/deviceConfig.hpp
devmgr/common/src/deviceConfig.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DeviceConfig() [1/2]

◆ DeviceConfig() [2/2]

◆ ~DeviceConfig()

Member Function Documentation

◆ CheckConfig()

◆ GetAddress()

◆ GetAlias()

◆ GetCfgAsString()

◆ GetCfgFile()

◆ GetConfig()

◆ GetConfigList()

◆ GetDescription()

◆ GetFitsPrefix()

◆ GetId()

◆ GetIdentifier()

◆ GetIgnored()

◆ GetLogName()

◆ GetMapFile()

◆ GetName()

◆ GetNamespace()

◆ GetNodeId()

◆ GetObjId()

◆ GetOverview()

◆ GetPrefix()

◆ GetProcId()

◆ GetSimAddress()

◆ GetSimulated()

◆ GetType()

◆ GetVariantValue()

◆ Init()

◆ InitFromFile()

◆ InitFromString()

◆ MergeConfig()

◆ SetIgnoreFlag()

◆ SetSimulateFlag()

Member Data Documentation

◆ m_address

◆ m_alias

◆ m_config_doc

◆ m_filename

◆ m_fits_prefix

◆ m_identifier

◆ m_ignored

◆ m_lcs_namespace

◆ m_lcs_prefix

◆ m_map_file

◆ m_name

◆ m_sim_address

◆ m_simulated

◆ m_type
