fcf::devmgr::common::Device Class Reference

#include <device.hpp>

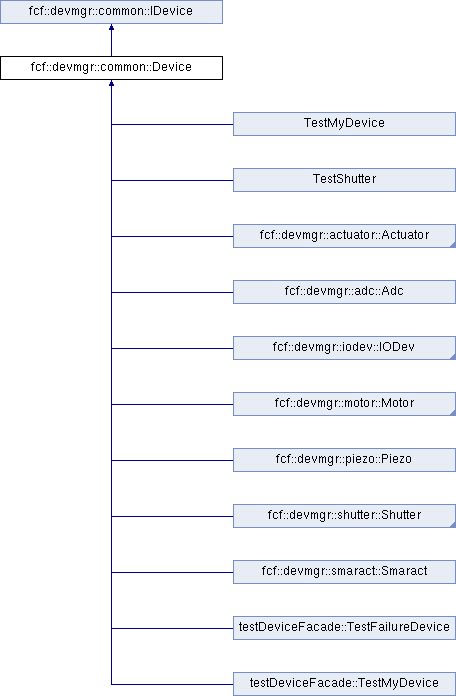

Inheritance diagram for fcf::devmgr::common::Device:

Public Member Functions
	Device (const std::string filename, const std::string name, DataContext &data_ctx)
	Device abstract class constructor. More...
virtual	~Device ()
	Default destructor. More...
virtual bool	IsNotReady () const override
	Check if device is Standby/NotReady. More...
virtual bool	IsReady () const override
	Check if device is Standby/Ready. More...
virtual bool	IsOperational () const override
	Check if device is Operational. More...
virtual void	CheckHwFailure () const override
	Check if device is in failure state. More...
virtual bool	IsDisabling () const override
	Check if device is disablig. More...
virtual void	Init () override
	Executes a Init command. More...
virtual void	Enable () override
	Executes a Enable command. More...
virtual void	Disable () override
	Executes a Disable command. More...
virtual void	Stop () override
	Executes a Stop command. More...
virtual void	Reset () override
	Executes a Reset command. More...
virtual void	GetStatusBuffer (const std::string &stat_prefix, const DeviceControllerData *const data, std::string &buffer)
void	GetStatusHeader (const std::string &prefix, const core::dit::did::Did &dictionary, std::shared_ptr< CCfits::FITS > &fits_handle)
	Obtain the status of the device. More...
virtual void	Simulate (rad::AnyEvent const &last_event) override
	Executes a Simulat. More...
virtual void	StopSim (rad::AnyEvent const &last_event) override
	Executes a StopSim. More...
virtual void	Ignore (rad::AnyEvent const &last_event) override
	Executes a Ignore. More...
virtual void	StopIgn (rad::AnyEvent const &last_event) override
	Executes a StopIgn. More...
virtual void	HwReset (rad::AnyEvent const &last_event) override
	Executes a hardware reset command. More...
virtual void	HwInit (rad::AnyEvent const &last_event) override
	Executes a hardware init command. More...
virtual void	HwEnable (rad::AnyEvent const &last_event) override
	Executes a hardware enable command. More...
virtual void	HwDisable (rad::AnyEvent const &last_event) override
	Executes a hardware disable command. More...
virtual void	StartMonitoring () override
	Start device monitoring via OPCUA subscriptions. More...
virtual void	StopMonitoring () override
	Stop device monitoring. More...
virtual std::string	GetName () const noexcept override
	Get device id. More...
virtual std::string	GetLogName () const noexcept
	Get device id for logging purposes. More...
virtual std::shared_ptr< fcf::devmgr::common::DeviceLcsIf >	GetLcsIf () const noexcept
virtual std::shared_ptr< fcf::devmgr::common::IDeviceConfig >	GetConfig () const noexcept
	Get a pointer of device configuration. More...
void	RegisterComm (std::shared_ptr< protocol::base::IComm > comm_if, protocol::base::Dispatcher<> &failure, protocol::base::Dispatcher<> &normal)
	Register a communication interface object. More...
Public Member Functions inherited from fcf::devmgr::common::IDevice
virtual void	CreateObjects (std::shared_ptr< fcf::devmgr::common::IDeviceConfig > config=nullptr)=0
	Create basic objects needed by the device class. More...
virtual void	UpdateStatus ()=0
	Update internal status by connecting to the LCS. More...
virtual void	Setup (const std::any &payload)=0
	Executes a setup. More...
virtual bool	IsSetupActive (const std::any &payload) const =0
	Check if setup is still active. More...
virtual void	Status (const std::any &payload, std::string &buffer)=0
	Obtain the status of the device. More...
virtual void	Status (bool end_acq, const core::dit::did::Did &dictionary, std::shared_ptr< CCfits::FITS > &fits_handle)=0
	Obtain the status of the device. More...

Protected Member Functions
bool	IsMsgForMe (const std::string &id) const noexcept
	Check if received message id is addressed to me. More...
void	UpdateDb (utils::bat::DbVector &vec)
	Update device database. More...
void	SetIgnore (bool flag)
	SetIgnore. More...
void	SetSimulation (bool flag)
	SetSimulation. More...
void	GetPrefix (const std::vector< std::string > prefix_list, std::string &prefix) const
	Get prefix for writing attributes to the DB. More...
std::string	GetCfgPrefix (const std::vector< std::string > prefix_list) const
std::string	GetStatPrefix (const std::vector< std::string > prefix_list) const
bool	CheckNameParam (const std::any &payload)
	Determine whether paramater is included (device name). More...
void	GetStatusList (utils::bat::DbVector &cfg_list, const DeviceControllerData &status)
virtual void	WriteConfig ()
	Write configuration into OLDB. More...

Protected Attributes
std::string	m_filename
	device configuration filename. More...
std::string	m_name
	device ID. More...
DataContext &	m_data_ctx
	reference to the data context object. More...
protocol::base::Dispatcher	m_failure
	Dispatcher for managing failures. More...
protocol::base::Dispatcher	m_normal
	Dispatcher for managing positive events. More...
std::shared_ptr< DeviceConfig >	m_config
	Pointer to configuration object. More...
std::shared_ptr< DeviceLcsIf >	m_lcs_if
	Local Control System Interface. More...

Detailed Description

Device abstract class. This class represents the basic implementation of a device class. Most of the device share common properties and behavioural aspects. This class is implementing the common behaviour and defining the basic properties of all device classes.

Constructor & Destructor Documentation

Device()

fcf::devmgr::common::Device::Device	(	const std::string	filename,
		const std::string	name,
		DataContext &	data_ctx
	)

Device abstract class constructor.

Parameters

[in]	filename	Filename of device configuration
[in]	name	Device ID
[in,out]	data_ctx	Reference to the data context object

~Device()

fcf::devmgr::common::Device::~Device ( )

virtual

Default destructor.

Member Function Documentation

CheckHwFailure()

void fcf::devmgr::common::Device::CheckHwFailure ( ) const

overridevirtual

Check if device is in failure state.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice.

CheckNameParam()

bool fcf::devmgr::common::Device::CheckNameParam ( const std::any &  payload )

protected

Determine whether paramater is included (device name).

Parameters

payload

Payload of the command, a vector of strings.

If the vector is empty, it will return true. If the vector contains the the id of the device it will also return true otherwise it will return false.

Disable()

void fcf::devmgr::common::Device::Disable ( )

overridevirtual

Executes a Disable command.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

Reimplemented in testDeviceFacade::TestFailureDevice, and testDeviceFacade::TestMyDevice.

Enable()

void fcf::devmgr::common::Device::Enable ( )

overridevirtual

Executes a Enable command.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

Reimplemented in testDeviceFacade::TestFailureDevice, and testDeviceFacade::TestMyDevice.

GetCfgPrefix()

std::string fcf::devmgr::common::Device::GetCfgPrefix ( const std::vector< std::string >  prefix_list ) const

protected

GetConfig()

virtual std::shared_ptr<fcf::devmgr::common::IDeviceConfig> fcf::devmgr::common::Device::GetConfig ( ) const

inlinevirtualnoexcept

Get a pointer of device configuration.

Returns

shared pointer of internal configuration object

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice, testDeviceFacade::TestFailureDevice, testDeviceFacade::TestMyDevice, and TestShutter.

GetLcsIf()

virtual std::shared_ptr<fcf::devmgr::common::DeviceLcsIf> fcf::devmgr::common::Device::GetLcsIf ( ) const

inlinevirtualnoexcept

Returns

pointer to lcs interface object.

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice, testDeviceFacade::TestFailureDevice, testDeviceFacade::TestMyDevice, and TestShutter.

GetLogName()

virtual std::string fcf::devmgr::common::Device::GetLogName ( ) const

inlinevirtualnoexcept

Get device id for logging purposes.

GetName()

virtual std::string fcf::devmgr::common::Device::GetName ( ) const

inlineoverridevirtualnoexcept

Get device id.

Implements fcf::devmgr::common::IDevice.

GetPrefix()

void fcf::devmgr::common::Device::GetPrefix ( const std::vector< std::string >  prefix_list, std::string &  prefix  ) const

protected

Get prefix for writing attributes to the DB.

Parameters

prefix_list	List of intermediate prefix values.
prefix	String containing the formatted prefix.

GetStatPrefix()

std::string fcf::devmgr::common::Device::GetStatPrefix ( const std::vector< std::string >  prefix_list ) const

protected

GetStatusBuffer()

void fcf::devmgr::common::Device::GetStatusBuffer ( const std::string &  stat_prefix, const DeviceControllerData *const  data, std::string &  buffer  )

virtual

GetStatusHeader()

void fcf::devmgr::common::Device::GetStatusHeader	(	const std::string &	prefix,
		const core::dit::did::Did &	dictionary,
		std::shared_ptr< CCfits::FITS > &	fits_handle
	)

Obtain the status of the device.

Parameters

prefix	Prefix for the status
dictionary	Reference to the dictionary object
fits_handle	Pointer to the CCFITS object

This method will obtain the data from each device and add the corresponding meta-data to the CCfits object. If the end_acq is not true it will just register the start of the acquisition.

GetStatusList()

void fcf::devmgr::common::Device::GetStatusList ( utils::bat::DbVector &  cfg_list, const DeviceControllerData &  status  )

protected

HwDisable()

void fcf::devmgr::common::Device::HwDisable ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a hardware disable command.

Parameters

[in]

last_event

payload of the hw disable message

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

HwEnable()

void fcf::devmgr::common::Device::HwEnable ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a hardware enable command.

Parameters

[in]

last_event

payload of the hw enable message

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

HwInit()

void fcf::devmgr::common::Device::HwInit ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a hardware init command.

Parameters

[in]

last_event

payload of the hw init message

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

HwReset()

void fcf::devmgr::common::Device::HwReset ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a hardware reset command.

Parameters

[in]

last_event

payload of the hw reset message

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

Ignore()

void fcf::devmgr::common::Device::Ignore ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a Ignore.

Parameters

[in]

last_event

contains the payload of the Ignore message.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

Init()

void fcf::devmgr::common::Device::Init ( )

overridevirtual

Executes a Init command.

Returns

true if command is successfully executed, false otherwise.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

Reimplemented in testDeviceFacade::TestFailureDevice, and testDeviceFacade::TestMyDevice.

IsDisabling()

bool fcf::devmgr::common::Device::IsDisabling ( ) const

overridevirtual

Check if device is disablig.

Returns

true if device is disabling, false otherwise

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice, and testDeviceFacade::TestMyDevice.

IsMsgForMe()

bool fcf::devmgr::common::Device::IsMsgForMe ( const std::string &  id ) const

inlineprotectednoexcept

Check if received message id is addressed to me.

Parameters

[in]

id

message id

Returns

true is message id matches own device id, false otherwise.

IsNotReady()

bool fcf::devmgr::common::Device::IsNotReady ( ) const

overridevirtual

Check if device is Standby/NotReady.

Returns

true is device is Standby/NotReady, false otherwise

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice, testDeviceFacade::TestFailureDevice, and testDeviceFacade::TestMyDevice.

IsOperational()

bool fcf::devmgr::common::Device::IsOperational ( ) const

overridevirtual

Check if device is Operational.

Returns

true is device is Operational, false otherwise

Implements fcf::devmgr::common::IDevice.

IsReady()

bool fcf::devmgr::common::Device::IsReady ( ) const

overridevirtual

Check if device is Standby/Ready.

Returns

true is device is Standby/Ready, false otherwise

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice, testDeviceFacade::TestFailureDevice, and testDeviceFacade::TestMyDevice.

RegisterComm()

void fcf::devmgr::common::Device::RegisterComm ( std::shared_ptr< protocol::base::IComm >  comm_if, protocol::base::Dispatcher<> &  failure, protocol::base::Dispatcher<> &  normal  )

virtual

Register a communication interface object.

Parameters

[in]	comm_if	shared pointer to the communication interface object
[in]	failure	dispatcher object for failure events
[in]	normal	dispatcher object for recovery of failure events.

This method register a particular communication interface. Most of the devices will use OPCUA but there might be several implementations so with this method one can register an interface that has been created previously and registered in the communication factory.

See also

iComm

commFactory

commMaker

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice, testDeviceFacade::TestFailureDevice, testDeviceFacade::TestMyDevice, and TestShutter.

Reset()

void fcf::devmgr::common::Device::Reset ( )

overridevirtual

Executes a Reset command.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

Reimplemented in TestMyDevice, testDeviceFacade::TestFailureDevice, testDeviceFacade::TestMyDevice, and TestShutter.

SetIgnore()

void fcf::devmgr::common::Device::SetIgnore ( bool  flag )

protected

SetIgnore.

Parameters

flag

SetSimulation()

void fcf::devmgr::common::Device::SetSimulation ( bool  flag )

protected

SetSimulation.

Parameters

flag

Simulate()

void fcf::devmgr::common::Device::Simulate ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a Simulat.

Parameters

[in]

last_event

contains the payload of the Simulat message.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

StartMonitoring()

void fcf::devmgr::common::Device::StartMonitoring ( )

overridevirtual

Start device monitoring via OPCUA subscriptions.

Implements fcf::devmgr::common::IDevice.

Stop()

void fcf::devmgr::common::Device::Stop ( )

overridevirtual

Executes a Stop command.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

StopIgn()

void fcf::devmgr::common::Device::StopIgn ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a StopIgn.

Parameters

[in]

last_event

contains the payload of the StopIgn message.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

StopMonitoring()

void fcf::devmgr::common::Device::StopMonitoring ( )

overridevirtual

Stop device monitoring.

Implements fcf::devmgr::common::IDevice.

StopSim()

void fcf::devmgr::common::Device::StopSim ( rad::AnyEvent const &  last_event )

overridevirtual

Executes a StopSim.

Parameters

[in]

last_event

contains the payload of the StopSim message.

Exceptions

an	exception if an error ocurrs.

Implements fcf::devmgr::common::IDevice.

UpdateDb()

void fcf::devmgr::common::Device::UpdateDb ( utils::bat::DbVector &  vec )

protected

Update device database.

Parameters

attr_vector

List of attributes with their values.

WriteConfig()

void fcf::devmgr::common::Device::WriteConfig ( )

protectedvirtual

Write configuration into OLDB.

Implements fcf::devmgr::common::IDevice.

Member Data Documentation

m_config

std::shared_ptr<DeviceConfig> fcf::devmgr::common::Device::m_config

protected

Pointer to configuration object.

m_data_ctx

DataContext& fcf::devmgr::common::Device::m_data_ctx

protected

reference to the data context object.

m_failure

protocol::base::Dispatcher fcf::devmgr::common::Device::m_failure

protected

Dispatcher for managing failures.

m_filename

std::string fcf::devmgr::common::Device::m_filename

protected

device configuration filename.

m_lcs_if

std::shared_ptr<DeviceLcsIf> fcf::devmgr::common::Device::m_lcs_if

protected

Local Control System Interface.

m_name

std::string fcf::devmgr::common::Device::m_name

protected

device ID.

m_normal

protocol::base::Dispatcher fcf::devmgr::common::Device::m_normal

protected

Dispatcher for managing positive events.

---

The documentation for this class was generated from the following files:

• devmgr/common/src/include/fcf/devmgr/common/device.hpp
• devmgr/common/src/device.cpp
