#include <deviceLcsIf.hpp>

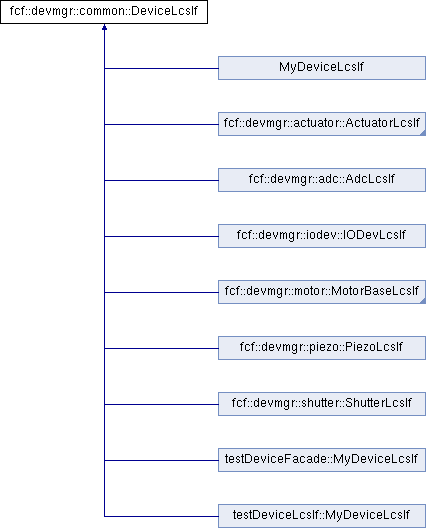

Inheritance diagram for fcf::devmgr::common::DeviceLcsIf:

Public Types
enum	{ STAT_LOCAL = 1 , STAT_ERROR = 2 , STAT_HW_STATUS = 3 , STAT_STATE = 4 , STAT_SUBSTATE = 5 }

Public Member Functions
	DeviceLcsIf (std::shared_ptr< IDeviceConfig > config, DataContext &data_ctx)
	DeviceLcsIf constructor. More...

virtual void	InitObject ()
	Initialize object. More...

virtual void	RegisterComm (std::shared_ptr< protocol::base::IComm > comm_if, protocol::base::Dispatcher<> &failure, protocol::base::Dispatcher<> &normal)
	Register a communication interface. More...

virtual void	Connect ()
	Connect to the controller or simulator. More...

virtual void	Disconnect ()
	Disconnect from the controller of simulator. More...

virtual bool	IsNotReady () const
	Check if controller is in Standby/NotReady state. More...

virtual bool	IsReady () const
	Check if controller is in Standby/Ready state. More...

virtual bool	IsDisabling () const
	Check if controller is in Disabling state. More...

virtual bool	IsOperational () const
	Check if controller is in Operational. More...

virtual bool	IsHwFailure () const
	Check if controller is in Hardware Failure. More...

virtual void	Init ()
	Executes the Init RPC. More...

virtual void	Enable ()
	Executes the Enable RPC. More...

virtual void	Disable ()
	Executes the Disable RPC. More...

virtual void	Stop ()
	Executes the Stop RPC. More...

virtual void	Reset ()
	Executes the Reset RPC. More...

virtual void	StartMonitoring ()
	Start monitoring of controller attributes. More...

virtual void	StopMonitoring ()
	Stop monitoring of controller attributes. More...

virtual void	ReadStatus (DeviceControllerData &status)
	ReadStatus. More...

virtual void	Listener (protocol::base::VectorVariant &params)
	Callback for listening controller events. More...

virtual std::string	GetRpcError (const short error_code) const =0
	Get associated message from the RPC error code. More...

virtual std::string	GetHwError (int &error_code, const bool update=false)
	Get error message. More...

std::string	GetMapValue (const std::string &category, const std::string &key) const
	Get mapping value. More...

protocol::base::Dispatcher< protocol::base::VectorVariant & > &	GetDispatcher ()

bool	IsConfigLoaded () const
	Check if configuration was loaded. More...

bool	IsConnected () const
	Check is the communication was established. More...

virtual std::shared_ptr< IDeviceConfig >	GetDeviceConfig () const
	Get a pointer of device configuration. More...

const elt::configng::CiiConfigInstanceNamespace &	GetCfgInstance () const

virtual void	GetStates (int &state, int &substate)
	Get states (state and substate) of the controller. More...

Protected Member Functions
void	LoadConfig ()
	Load the YAML configuration. More...

void	ExecuteRpc (const std::string &obj, const std::string &proc, protocol::base::VectorVariant &attr_list)

int	ReadErrorCode ()

void	StoreUaNames (const std::vector< std::pair< std::string, unsigned int >> &ualist)
	StoreUaNames. More...

void	StoreAttribute (const std::string key, const protocol::base::Variant &value, int attribute)
	Store the updated into the DB. More...

Protected Attributes
std::unique_ptr< elt::configng::CiiConfigDocument >	m_config_doc
	Config document for mapping file. More...

std::shared_ptr< protocol::base::IComm >	m_comm
	Shared pointer to the communication object. More...

std::shared_ptr< IDeviceConfig >	m_config
	Shared pointer to the device config object. More...

protocol::base::Dispatcher< protocol::base::VectorVariant & >	m_dispatcher
	Dispatcher for managing subscription events. More...

protocol::base::Dispatcher	m_failure
	Dispatcher for managing failures in the communication. More...

protocol::base::Dispatcher	m_normal
	Dispatcher for managing recovery of communication failures. More...

int	m_state {}
	Actual controller state. More...

int	m_substate {}
	Actual controller substate. More...

bool	m_local {false}
	Actual local flag. More...

bool	m_error_code {false}
	Actual error code. More...

bool	m_config_loaded {false}
	Flag indicating whether the configuration was successfully loaded. More...

bool	m_connected {false}
	Flag indicating whether the LCS is connected. More...

fcf::devmgr::common::DataContext &	m_data_ctx

std::string	m_lcs_prefix
	Store the prefix for storing keys in the database. More...

std::unordered_map< std::string, short >	m_ua_status_map

std::vector< std::string >	m_ua_monitor_vector

std::unordered_map< short, std::string >	m_hw_errors

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
STAT_LOCAL
STAT_ERROR
STAT_HW_STATUS
STAT_STATE
STAT_SUBSTATE

Constructor & Destructor Documentation

◆ DeviceLcsIf()

fcf::devmgr::common::DeviceLcsIf::DeviceLcsIf	(	std::shared_ptr< IDeviceConfig >	config,
		DataContext &	data_ctx
	)

explicit

DeviceLcsIf constructor.

Parameters

config	Shared pointer to the device configuration.
data_ctx	Data contex

Member Function Documentation

◆ Connect()

void fcf::devmgr::common::DeviceLcsIf::Connect ( )

virtual

Connect to the controller or simulator.

Exceptions

an	exception if an error ocurrs.

This method uses the registered communication interface to establish the connection.

◆ Disable()

void fcf::devmgr::common::DeviceLcsIf::Disable ( )

virtual

Executes the Disable RPC.

Exceptions

an	exception if an error ocurrs.

This RPC call shall bring the controller to Standby/Ready state.

Reimplemented in MyDeviceLcsIf, and testDeviceFacade::MyDeviceLcsIf.

◆ Disconnect()

void fcf::devmgr::common::DeviceLcsIf::Disconnect ( )

virtual

Disconnect from the controller of simulator.

This method tries to disconnect from the controller or simulator. In case of error, the class will consider anyway the connection closed.

◆ Enable()

void fcf::devmgr::common::DeviceLcsIf::Enable ( )

virtual

Executes the Enable RPC.

Exceptions

an	exception if an error ocurrs.

This RPC call shall bring the controller to Operational state.

Reimplemented in fcf::devmgr::iodev::IODevLcsIf, MyDeviceLcsIf, and testDeviceFacade::MyDeviceLcsIf.

◆ ExecuteRpc()

void fcf::devmgr::common::DeviceLcsIf::ExecuteRpc	(	const std::string &	obj,
		const std::string &	proc,
		protocol::base::VectorVariant &	attr_list
	)

protected

◆ GetCfgInstance()

const elt::configng::CiiConfigInstanceNamespace & fcf::devmgr::common::DeviceLcsIf::GetCfgInstance ( ) const

◆ GetDeviceConfig()

std::shared_ptr< IDeviceConfig > fcf::devmgr::common::DeviceLcsIf::GetDeviceConfig ( ) const

virtual

Get a pointer of device configuration.

Returns: shared pointer of internal configuration object

◆ GetDispatcher()

protocol::base::Dispatcher< protocol::base::VectorVariant & > & fcf::devmgr::common::DeviceLcsIf::GetDispatcher ( )

◆ GetHwError()

std::string fcf::devmgr::common::DeviceLcsIf::GetHwError	(	int &	error_code,
		const bool	update = `false`
	)

virtual

Get error message.

Parameters

error_code	Input error code
update	Flag that indicate to read the error code.

Returns: error message associated to the error code read from the PLC.

This methods does a read to the PLC to obtain the error code.

Reimplemented in testDeviceLcsIf::MyDeviceLcsIf, MyDeviceLcsIf, and testDeviceFacade::MyDeviceLcsIf.

◆ GetMapValue()

std::string fcf::devmgr::common::DeviceLcsIf::GetMapValue	(	const std::string &	category,
		const std::string &	key
	)		const

Get mapping value.

Parameters

category	attribute category
key	attribute key

Returns: string contaning the mapping value

This method delivers the attribute name at the controller (mapping). This is obtained from the mapping file and based on the category and key given. This mapping string represents the OPCUA name in the address space of the device.

The mapping file is a generalization of the address space of a particular type of device.

◆ GetRpcError()

virtual std::string fcf::devmgr::common::DeviceLcsIf::GetRpcError ( const short error_code ) const

pure virtual

Get associated message from the RPC error code.

Parameters

[in] error_code

Returns: string with the associated error message.

Implemented in testDeviceLcsIf::MyDeviceLcsIf, MyDeviceLcsIf, testDeviceFacade::MyDeviceLcsIf, fcf::devmgr::smaract::SmaractLcsIf, fcf::devmgr::piezo::PiezoLcsIf, fcf::devmgr::motor::MotorLcsIf, fcf::devmgr::lamp::LampLcsIf, fcf::devmgr::iodev::IODevLcsIf, fcf::devmgr::drot::DrotLcsIf, fcf::devmgr::adc::AdcLcsIf, fcf::devmgr::actuator::ActuatorLcsIf, and fcf::devmgr::shutter::ShutterLcsIf.

◆ GetStates()

void fcf::devmgr::common::DeviceLcsIf::GetStates	(	int &	state,
		int &	substate
	)

virtual

Get states (state and substate) of the controller.

Parameters

[in,out]	state	state of the controller
[in,out]	substate	substate of the controller

This is a generic method to read the state and substate attributes of the controller. The value of these attributes might be different depending of the device.

Reimplemented in fcf::devmgr::iodev::IODevLcsIf.

◆ Init()

void fcf::devmgr::common::DeviceLcsIf::Init ( )

virtual

Executes the Init RPC.

Exceptions

an	exception if an error ocurrs.

Reimplemented in fcf::devmgr::adc::AdcLcsIf, MyDeviceLcsIf, and testDeviceFacade::MyDeviceLcsIf.

◆ InitObject()

void fcf::devmgr::common::DeviceLcsIf::InitObject ( )

virtual

Initialize object.

Exceptions

an	exception if an error ocurrs.

This method carries out basic object initialization. It is done in a separate method to allow overriden this functionality in children classes.

Reimplemented in fcf::devmgr::smaract::SmaractLcsIf, fcf::devmgr::shutter::ShutterLcsIf, fcf::devmgr::piezo::PiezoLcsIf, fcf::devmgr::motor::MotorLcsIf, fcf::devmgr::lamp::LampLcsIf, fcf::devmgr::iodev::IODevLcsIf, fcf::devmgr::drot::DrotLcsIf, fcf::devmgr::adc::AdcLcsIf, and fcf::devmgr::actuator::ActuatorLcsIf.

◆ IsConfigLoaded()

bool fcf::devmgr::common::DeviceLcsIf::IsConfigLoaded ( ) const

Check if configuration was loaded.

Returns: true when configuration was loaded, false otherwise.

◆ IsConnected()

bool fcf::devmgr::common::DeviceLcsIf::IsConnected ( ) const

Check is the communication was established.

Returns: true when is connected, false otherwise.

◆ IsDisabling()

bool fcf::devmgr::common::DeviceLcsIf::IsDisabling ( ) const

virtual

Check if controller is in Disabling state.

Returns: true if condit// System headersion is met, false otherwise.

This is method is needed when Enabling a device. Sometimes a device is still disabling from the previous action and device must wait before attempting to enable again.

◆ IsHwFailure()

bool fcf::devmgr::common::DeviceLcsIf::IsHwFailure ( ) const

virtual

Check if controller is in Hardware Failure.

Returns: true if condition is met, false otherwise.

Sometimes the controller may enter into a failure state triggerd by a hardware error. The controller will enter into a specific state to signal this condition. This method is checking if this condition is met.

This method reads the substate attribute from the PLC.

Reimplemented in fcf::devmgr::iodev::IODevLcsIf.

◆ IsNotReady()

bool fcf::devmgr::common::DeviceLcsIf::IsNotReady ( ) const

virtual

Check if controller is in Standby/NotReady state.

Returns: true if condition is met, false otherwise.

Reimplemented in fcf::devmgr::lamp::LampLcsIf, fcf::devmgr::actuator::ActuatorLcsIf, and fcf::devmgr::iodev::IODevLcsIf.

◆ IsOperational()

bool fcf::devmgr::common::DeviceLcsIf::IsOperational ( ) const

virtual

Check if controller is in Operational.

Returns: true if condition is met, false otherwise.

Reimplemented in fcf::devmgr::actuator::ActuatorLcsIf, fcf::devmgr::shutter::ShutterLcsIf, and fcf::devmgr::iodev::IODevLcsIf.

◆ IsReady()

bool fcf::devmgr::common::DeviceLcsIf::IsReady ( ) const

virtual

Check if controller is in Standby/Ready state.

Returns: true if condition is met, false otherwise.

Reimplemented in fcf::devmgr::actuator::ActuatorLcsIf, fcf::devmgr::shutter::ShutterLcsIf, and fcf::devmgr::iodev::IODevLcsIf.

◆ Listener()

void fcf::devmgr::common::DeviceLcsIf::Listener ( protocol::base::VectorVariant & params )

virtual

Callback for listening controller events.

Parameters

params list of paramaters to be monitored.

Abstract method to be implemented by specific classes.

Reimplemented in fcf::devmgr::smaract::SmaractLcsIf, fcf::devmgr::piezo::PiezoLcsIf, fcf::devmgr::motor::MotorLcsIf, fcf::devmgr::lamp::LampLcsIf, fcf::devmgr::iodev::IODevLcsIf, fcf::devmgr::drot::DrotLcsIf, fcf::devmgr::adc::AdcLcsIf, fcf::devmgr::actuator::ActuatorLcsIf, MyDeviceLcsIf, and testDeviceFacade::MyDeviceLcsIf.

◆ LoadConfig()

void fcf::devmgr::common::DeviceLcsIf::LoadConfig ( )

protected

Load the YAML configuration.

Exceptions

std::runtime_error in case of error

◆ ReadErrorCode()

int fcf::devmgr::common::DeviceLcsIf::ReadErrorCode ( )

protected

◆ ReadStatus()

void fcf::devmgr::common::DeviceLcsIf::ReadStatus ( DeviceControllerData & status )

virtual

ReadStatus.

Parameters

status

◆ RegisterComm()

void fcf::devmgr::common::DeviceLcsIf::RegisterComm	(	std::shared_ptr< protocol::base::IComm >	comm_if,
		protocol::base::Dispatcher<> &	failure,
		protocol::base::Dispatcher<> &	normal
	)

virtual

Register a communication interface.

Parameters

comm_if	shared pointer to the communication interface
failure	dispatcher for failure events
normal	dispatcher for recovering failure events

The communication object have to be created before using this class and registered using this method.

The constructor create a callback for the internal dispatcher and loads the configuration.

◆ Reset()

void fcf::devmgr::common::DeviceLcsIf::Reset ( )

virtual

Executes the Reset RPC.

Exceptions

an	exception if an error ocurrs.

This RPC call shall bring the controller to Standby/NotReady state.

◆ StartMonitoring()

void fcf::devmgr::common::DeviceLcsIf::StartMonitoring ( )

virtual

Start monitoring of controller attributes.

Exceptions

an	exception if an error ocurrs.

This methods take cares of registering the attributes that will be monitored by the communication class. Most of the communication will be OPCUA and this monitoring means OPCUA subscription.

Reimplemented in fcf::devmgr::iodev::IODevLcsIf, testDeviceLcsIf::MyDeviceLcsIf, MyDeviceLcsIf, and testDeviceFacade::MyDeviceLcsIf.

◆ Stop()

void fcf::devmgr::common::DeviceLcsIf::Stop ( )

virtual

Executes the Stop RPC.

Exceptions

an	exception if an error ocurrs.

This RPC call stop any ongoing action of the controller.

The specific behaviour will depend on the controller.

Reimplemented in fcf::devmgr::iodev::IODevLcsIf.

◆ StopMonitoring()

void fcf::devmgr::common::DeviceLcsIf::StopMonitoring ( )

virtual

Stop monitoring of controller attributes.

Exceptions

an	exception if an error ocurrs.

This method will inform the communication interface to stop monitoring the shutter attributes. All OPCUA subscriptions will be removed.

Reimplemented in fcf::devmgr::iodev::IODevLcsIf, testDeviceLcsIf::MyDeviceLcsIf, MyDeviceLcsIf, and testDeviceFacade::MyDeviceLcsIf.

◆ StoreAttribute()

void fcf::devmgr::common::DeviceLcsIf::StoreAttribute	(	const std::string	key,
		const protocol::base::Variant &	value,
		int	attribute
	)

protected

Store the updated into the DB.

Parameters

key	Key used to store the new value.
value	Variant value to be published.
attribute	Code of the attribute changed

This method store the value into the OLDB.

◆ StoreUaNames()

void fcf::devmgr::common::DeviceLcsIf::StoreUaNames ( const std::vector< std::pair< std::string, unsigned int >> & ualist )

protected

StoreUaNames.

Parameters

ualist Build a map with the real OPCUA names. The purpose of this map is know which attributes are associate with events received from the PLC. These events are generated from the NodeId.

Member Data Documentation

◆ m_comm

std::shared_ptr<protocol::base::IComm> fcf::devmgr::common::DeviceLcsIf::m_comm

protected

Shared pointer to the communication object.

◆ m_config

std::shared_ptr<IDeviceConfig> fcf::devmgr::common::DeviceLcsIf::m_config

protected

Shared pointer to the device config object.

◆ m_config_doc

std::unique_ptr<elt::configng::CiiConfigDocument> fcf::devmgr::common::DeviceLcsIf::m_config_doc

protected

Config document for mapping file.

◆ m_config_loaded

bool fcf::devmgr::common::DeviceLcsIf::m_config_loaded {false}

protected

Flag indicating whether the configuration was successfully loaded.

◆ m_connected

bool fcf::devmgr::common::DeviceLcsIf::m_connected {false}

protected

Flag indicating whether the LCS is connected.

◆ m_data_ctx

fcf::devmgr::common::DataContext& fcf::devmgr::common::DeviceLcsIf::m_data_ctx

protected

◆ m_dispatcher

protocol::base::Dispatcher<protocol::base::VectorVariant&> fcf::devmgr::common::DeviceLcsIf::m_dispatcher

protected

Dispatcher for managing subscription events.

◆ m_error_code

bool fcf::devmgr::common::DeviceLcsIf::m_error_code {false}

protected

Actual error code.

◆ m_failure

protocol::base::Dispatcher fcf::devmgr::common::DeviceLcsIf::m_failure

protected

Dispatcher for managing failures in the communication.

◆ m_hw_errors

std::unordered_map<short, std::string> fcf::devmgr::common::DeviceLcsIf::m_hw_errors

protected

◆ m_lcs_prefix

std::string fcf::devmgr::common::DeviceLcsIf::m_lcs_prefix

protected

Store the prefix for storing keys in the database.

this map is used to convert NodeId received by the OPCUA notifications to an index value to avoid comparing strings to each notification.

◆ m_local

bool fcf::devmgr::common::DeviceLcsIf::m_local {false}

protected

Actual local flag.

◆ m_normal

protocol::base::Dispatcher fcf::devmgr::common::DeviceLcsIf::m_normal

protected

Dispatcher for managing recovery of communication failures.

◆ m_state

int fcf::devmgr::common::DeviceLcsIf::m_state {}

protected

Actual controller state.

◆ m_substate

int fcf::devmgr::common::DeviceLcsIf::m_substate {}

protected

Actual controller substate.

◆ m_ua_monitor_vector

std::vector<std::string> fcf::devmgr::common::DeviceLcsIf::m_ua_monitor_vector

protected

◆ m_ua_status_map

std::unordered_map<std::string, short> fcf::devmgr::common::DeviceLcsIf::m_ua_status_map

protected

This vector is used to prepare in advance the list of node_ids that will be monitored per device.

The documentation for this class was generated from the following files:

devmgr/common/src/include/fcf/devmgr/common/deviceLcsIf.hpp
devmgr/common/src/deviceLcsIf.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ DeviceLcsIf()

Member Function Documentation

◆ Connect()

◆ Disable()

◆ Disconnect()

◆ Enable()

◆ ExecuteRpc()

◆ GetCfgInstance()

◆ GetDeviceConfig()

◆ GetDispatcher()

◆ GetHwError()

◆ GetMapValue()

◆ GetRpcError()

◆ GetStates()

◆ Init()

◆ InitObject()

◆ IsConfigLoaded()

◆ IsConnected()

◆ IsDisabling()

◆ IsHwFailure()

◆ IsNotReady()

◆ IsOperational()

◆ IsReady()

◆ Listener()

◆ LoadConfig()

◆ ReadErrorCode()

◆ ReadStatus()

◆ RegisterComm()

◆ Reset()

◆ StartMonitoring()

◆ Stop()

◆ StopMonitoring()

◆ StoreAttribute()

◆ StoreUaNames()

Member Data Documentation

◆ m_comm

◆ m_config

◆ m_config_doc

◆ m_config_loaded

◆ m_connected

◆ m_data_ctx

◆ m_dispatcher

◆ m_error_code

◆ m_failure

◆ m_hw_errors

◆ m_lcs_prefix

◆ m_local

◆ m_normal

◆ m_state

◆ m_substate

◆ m_ua_monitor_vector

◆ m_ua_status_map
