ddt::DdtDataTransferLib Class Reference

#include <ddtDataTransferLib.hpp>

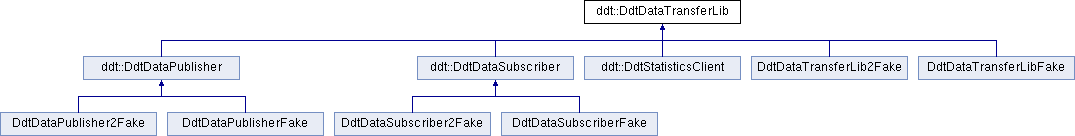

Inheritance diagram for ddt::DdtDataTransferLib:

Public Member Functions
	DdtDataTransferLib (DdtLogger *ddt_logger)
	DdtDataTransferLib (log4cplus::Logger const &log4cplusLogger)
virtual	~DdtDataTransferLib ()
void	SetQoS (const int ddt_latency, const int ddt_deadline)
virtual int	RegisterPublisher (const std::string uri, const std::string dsi, const bool compute_crc)
virtual int	UnregisterPublisher ()
virtual void	PublishData ()
virtual int	RegisterSubscriber (const std::string uri, const std::string dsi, const std::string remote_uri, const int32_t interval=10)
virtual int	UnregisterSubscriber ()
virtual DataSample *	ReadData ()

Protected Member Functions
void	StartHeartbeat (const int32_t interval, const std::string id)
void	StopHeartbeat ()
int	InitMAL (const std::string broker_uri)
void	CheckHeartbeatTimeout (int32_t &new_reply_time)
const std::string	VerifyPathInBrokerUri (std::string broker_uri)
const std::string	GetConfigFilePath ()

Protected Attributes
int	latency
int	deadline
int32_t	reply_time
int32_t	heartbeat_interval
std::promise< void >	exit_signal_heartbeat
std::future< void >	future_object_heartbeat
std::atomic< bool >	heartbeat_active
std::unique_ptr< datatransfer::DataBrokerRegistrationSync, std::default_delete< datatransfer::DataBrokerRegistrationSync > >	client
std::atomic< bool >	connected_to_broker
elt::mal::rr::ListenerRegistration	connection_listener
DdtLogger *	logger
DdtLogger *	myLogger = nullptr
const int32_t	REPLY_TIME_DEFAULT = 6
const int32_t	REPLY_TIME_MIN = 2

Detailed Description

Base class for DdtDataPublishers and DdtDataSubscribers.

Constructor & Destructor Documentation

DdtDataTransferLib() [1/2]

DdtDataTransferLib::DdtDataTransferLib ( DdtLogger *  ddt_logger )

explicit

Constructor

DdtDataTransferLib() [2/2]

DdtDataTransferLib::DdtDataTransferLib ( log4cplus::Logger const &  log4cplusLogger )

explicit

Constructor, taking a log4cplus logger as input

~DdtDataTransferLib()

DdtDataTransferLib::~DdtDataTransferLib ( )

virtual

Destructor

Member Function Documentation

CheckHeartbeatTimeout()

void DdtDataTransferLib::CheckHeartbeatTimeout ( int32_t &  new_reply_time )

protected

Verifies that the heartbeat timeout retrieved from the broker is greater than reply time.

Make sure the heartbeat timeout is greater than the reply time! If not, recreate MAL client with new reply time.

reset reply_time (the connection manager makes sure that the heartbeat timeout has a valid value (at least 3s)

GetConfigFilePath()

const std::string DdtDataTransferLib::GetConfigFilePath ( )

protected

This function reads the environment variable DDT_TRANSFERCONFIG_PATH and returns path and name of the configuration file.

Returns

A string containing the path to the configuration file.

check if DDT_TRANSFERCONFIG_PATH is set use default path otherwise

InitMAL()

int DdtDataTransferLib::InitMAL ( const std::string  broker_uri )

protected

Initializes the MAL.

determine MAL mapping from uri and load it obtain reference to CiiFactory

Synchronous client example w/ ReplyTime QoS set. DataBrokerRegistrationSync interface is requested.

PublishData()

virtual void ddt::DdtDataTransferLib::PublishData ( )

inlinevirtual

Function for triggering the local broker to publish data over the network.

Reimplemented in ddt::DdtDataPublisher.

ReadData()

virtual DataSample* ddt::DdtDataTransferLib::ReadData ( )

inlinevirtual

Function for receiving data.

Reimplemented in ddt::DdtDataSubscriber.

RegisterPublisher()

virtual int ddt::DdtDataTransferLib::RegisterPublisher ( const std::string  uri, const std::string  dsi, const bool  compute_crc  )

inlinevirtual

Function for registering a publisher at the local broker using a MAL client.

Reimplemented in ddt::DdtDataPublisher.

RegisterSubscriber()

virtual int ddt::DdtDataTransferLib::RegisterSubscriber ( const std::string  uri, const std::string  dsi, const std::string  remote_uri, const int32_t  interval = 10  )

inlinevirtual

Function for registering a subscriber at the local broker using a MAL client.

Reimplemented in ddt::DdtDataSubscriber.

SetQoS()

void DdtDataTransferLib::SetQoS	(	const int	ddt_latency,
		const int	ddt_deadline
	)

Sets quality of service parameters (latency [ms], deadline [s]).

StartHeartbeat()

void DdtDataTransferLib::StartHeartbeat ( const int32_t  interval, const std::string  id  )

protected

Starts the heartbeat thread.

StopHeartbeat()

void DdtDataTransferLib::StopHeartbeat ( )

protected

Stops the heartbeat thread.

UnregisterPublisher()

virtual int ddt::DdtDataTransferLib::UnregisterPublisher ( )

inlinevirtual

Function for unregistering a publisher from the local broker.

Reimplemented in ddt::DdtDataPublisher.

UnregisterSubscriber()

virtual int ddt::DdtDataTransferLib::UnregisterSubscriber ( )

inlinevirtual

Function for unregistering a subscriber from the local broker.

Reimplemented in ddt::DdtDataSubscriber.

VerifyPathInBrokerUri()

const std::string DdtDataTransferLib::VerifyPathInBrokerUri ( std::string  broker_uri )

protected

This function verifies if the broker uri contains the path element. If not specified by the user the path element is added.

Member Data Documentation

client

std::unique_ptr< datatransfer::DataBrokerRegistrationSync, std::default_delete<datatransfer::DataBrokerRegistrationSync> > ddt::DdtDataTransferLib::client

protected

MAL client used to connect to data brokers.

connected_to_broker

std::atomic<bool> ddt::DdtDataTransferLib::connected_to_broker

protected

Stores connection state to broker.

connection_listener

elt::mal::rr::ListenerRegistration ddt::DdtDataTransferLib::connection_listener

protected

Observes the connection to the broker.

deadline

int ddt::DdtDataTransferLib::deadline

protected

maximum age of a sample [s]

exit_signal_heartbeat

std::promise<void> ddt::DdtDataTransferLib::exit_signal_heartbeat

protected

std::promise object used to stop the HeartbeatThread.

future_object_heartbeat

std::future<void> ddt::DdtDataTransferLib::future_object_heartbeat

protected

std::future object associated with exit_signal_heartbeat.

heartbeat_active

std::atomic<bool> ddt::DdtDataTransferLib::heartbeat_active

protected

When the HearbeatThread is stopped it waits until heartbeat_active is set to false.

heartbeat_interval

int32_t ddt::DdtDataTransferLib::heartbeat_interval

protected

interval for the heartbeat in [s] retrieved from the data broker

latency

int ddt::DdtDataTransferLib::latency

protected

duration between send and receive cannot be greater than 'latency' [ms]

logger

DdtLogger* ddt::DdtDataTransferLib::logger

protected

Logger object

myLogger

DdtLogger* ddt::DdtDataTransferLib::myLogger = nullptr

protected

reply_time

int32_t ddt::DdtDataTransferLib::reply_time

protected

configurable reply time for MAL clients in [s]

REPLY_TIME_DEFAULT

const int32_t ddt::DdtDataTransferLib::REPLY_TIME_DEFAULT = 6

protected

Default value for the reply time.

REPLY_TIME_MIN

const int32_t ddt::DdtDataTransferLib::REPLY_TIME_MIN = 2

protected

Minimum value for the reply time.

---

The documentation for this class was generated from the following files:

• datatransfer/datatransferlib/src/include/ddt/ddtDataTransferLib.hpp
• datatransfer/datatransferlib/src/ddtDataTransferLib.cpp
