ddt::DdtDataSubscriber Class Reference

#include <ddtDataSubscriber.hpp>

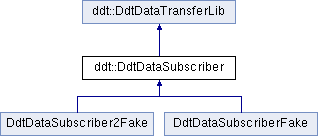

Inheritance diagram for ddt::DdtDataSubscriber:

Public Member Functions
	DdtDataSubscriber (DdtLogger *logger)
	DdtDataSubscriber (log4cplus::Logger const &log4cplusLogger)
	~DdtDataSubscriber () override
int	RegisterSubscriber (const std::string uri, const std::string dsi, const std::string remote_uri, const int32_t interval=10) override
int	UnregisterSubscriber () override
DataSample *	ReadData () override
void	StartNotificationSubscription ()
void	StopNotificationSubscription ()
DdtStatistics	get_statistics ()
boost::signals2::connection	connect (const signal_t::slot_type &event_listener)
Public Member Functions inherited from ddt::DdtDataTransferLib
	DdtDataTransferLib (DdtLogger *ddt_logger)
	DdtDataTransferLib (log4cplus::Logger const &log4cplusLogger)
virtual	~DdtDataTransferLib ()
void	SetQoS (const int ddt_latency, const int ddt_deadline)
virtual int	RegisterPublisher (const std::string uri, const std::string dsi, const bool compute_crc)
virtual int	UnregisterPublisher ()
virtual void	PublishData ()

Protected Member Functions
void	LoadDefaults ()
void	ReadIni ()
Protected Member Functions inherited from ddt::DdtDataTransferLib
void	StartHeartbeat (const int32_t interval, const std::string id)
void	StopHeartbeat ()
int	InitMAL (const std::string broker_uri)
void	CheckHeartbeatTimeout (int32_t &new_reply_time)
const std::string	VerifyPathInBrokerUri (std::string broker_uri)
const std::string	GetConfigFilePath ()

Protected Attributes
int32_t	max_age_data_sample
const int32_t	MAX_AGE_DATA_SAMPLE_DEFAULT = 10000
Protected Attributes inherited from ddt::DdtDataTransferLib
int	latency
int	deadline
int32_t	reply_time
int32_t	heartbeat_interval
std::promise< void >	exit_signal_heartbeat
std::future< void >	future_object_heartbeat
std::atomic< bool >	heartbeat_active
std::unique_ptr< datatransfer::DataBrokerRegistrationSync, std::default_delete< datatransfer::DataBrokerRegistrationSync > >	client
std::atomic< bool >	connected_to_broker
elt::mal::rr::ListenerRegistration	connection_listener
DdtLogger *	logger
DdtLogger *	myLogger = nullptr
const int32_t	REPLY_TIME_DEFAULT = 6
const int32_t	REPLY_TIME_MIN = 2

Detailed Description

This class provides the functionality for subscriber applications to register / unregister at a local broker and to receive data for a specified data stream.

Constructor & Destructor Documentation

DdtDataSubscriber() [1/2]

DdtDataSubscriber::DdtDataSubscriber ( DdtLogger *  logger )

explicit

Constructor

DdtDataSubscriber() [2/2]

DdtDataSubscriber::DdtDataSubscriber ( log4cplus::Logger const &  log4cplusLogger )

explicit

Constructor, taking a log4cplus logger as input

~DdtDataSubscriber()

DdtDataSubscriber::~DdtDataSubscriber ( )

override

Destructor

Member Function Documentation

connect()

boost::signals2::connection DdtDataSubscriber::connect

(

const signal_t::slot_type &

event_listener

)

Connects the event_listener with the DataAvailableSignal from the memory accessor.

get_statistics()

DdtStatistics DdtDataSubscriber::get_statistics

(

)

Returns the statistics.

LoadDefaults()

void DdtDataSubscriber::LoadDefaults ( )

protected

Loads default values for configuration parameters.

ReadData()

DataSample * DdtDataSubscriber::ReadData ( )

overridevirtual

Function for receiving data.

Reimplemented from ddt::DdtDataTransferLib.

ReadIni()

void DdtDataSubscriber::ReadIni ( )

protected

Reads the datatransferlib configuration file.

An exception is thrown if the config file does not exist. In that case the default values are used instead.

make sure max_age_data_sample is at least MAX_AGE_DATA_SAMPLE_MIN set to default value otherwise

make sure reply_time is at least REPLY_TIME_MIN set to default value otherwise

RegisterSubscriber()

int DdtDataSubscriber::RegisterSubscriber ( const std::string  uri, const std::string  dsi, const std::string  remote_uri, const int32_t  interval = 10  )

overridevirtual

Function for registering a subscriber at the local broker using a MAL client.

Reimplemented from ddt::DdtDataTransferLib.

StartNotificationSubscription()

void DdtDataSubscriber::StartNotificationSubscription

(

)

Starts MAL subscription for notifications as a separate thread.

StopNotificationSubscription()

void DdtDataSubscriber::StopNotificationSubscription

(

)

Stops MAL subscription.

UnregisterSubscriber()

int DdtDataSubscriber::UnregisterSubscriber ( )

overridevirtual

Function for unregistering a subscriber from the local broker.

Reimplemented from ddt::DdtDataTransferLib.

Member Data Documentation

max_age_data_sample

int32_t ddt::DdtDataSubscriber::max_age_data_sample

protected

configurable time window for dropping data samples in [ms]

MAX_AGE_DATA_SAMPLE_DEFAULT

const int32_t ddt::DdtDataSubscriber::MAX_AGE_DATA_SAMPLE_DEFAULT = 10000

protected

---

The documentation for this class was generated from the following files:

• datatransfer/datatransferlib/src/include/ddt/ddtDataSubscriber.hpp
• datatransfer/datatransferlib/src/ddtDataSubscriber.cpp
