ddt::DdtDataPublisher Class Reference

#include <ddtDataPublisher.hpp>

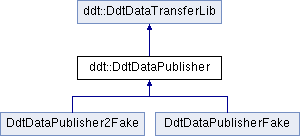

Inheritance diagram for ddt::DdtDataPublisher:

Public Member Functions
	DdtDataPublisher (DdtLogger *logger)
	DdtDataPublisher (log4cplus::Logger const &log4cplusLogger)
	~DdtDataPublisher () override
int	RegisterPublisher (const std::string uri, const std::string dsi, const bool compute_crc) override
int	UnregisterPublisher () override
void	PublishData () override
void	SetBufferSize (const int max_sample_size, const int number_samples)
void	WriteData (const int32_t sample_id, const std::vector< uint8_t > &datavec, const std::vector< uint8_t > &metadatavec)
void	WriteData (const int32_t sample_id, const uint8_t *const data, const int32_t data_size, const uint8_t *const metadata, const int32_t metadata_size)
void	set_topic_id (const int id)
bool	get_connected_to_broker () const
Public Member Functions inherited from ddt::DdtDataTransferLib
	DdtDataTransferLib (DdtLogger *ddt_logger)
	DdtDataTransferLib (log4cplus::Logger const &log4cplusLogger)
virtual	~DdtDataTransferLib ()
void	SetQoS (const int ddt_latency, const int ddt_deadline)
virtual int	RegisterSubscriber (const std::string uri, const std::string dsi, const std::string remote_uri, const int32_t interval=10)
virtual int	UnregisterSubscriber ()
virtual DataSample *	ReadData ()

Protected Member Functions
void	LoadDefaults ()
void	ReadIni ()
Protected Member Functions inherited from ddt::DdtDataTransferLib
void	StartHeartbeat (const int32_t interval, const std::string id)
void	StopHeartbeat ()
int	InitMAL (const std::string broker_uri)
void	CheckHeartbeatTimeout (int32_t &new_reply_time)
const std::string	VerifyPathInBrokerUri (std::string broker_uri)
const std::string	GetConfigFilePath ()

Protected Attributes
int	topic_id
Protected Attributes inherited from ddt::DdtDataTransferLib
int	latency
int	deadline
int32_t	reply_time
int32_t	heartbeat_interval
std::promise< void >	exit_signal_heartbeat
std::future< void >	future_object_heartbeat
std::atomic< bool >	heartbeat_active
std::unique_ptr< datatransfer::DataBrokerRegistrationSync, std::default_delete< datatransfer::DataBrokerRegistrationSync > >	client
std::atomic< bool >	connected_to_broker
elt::mal::rr::ListenerRegistration	connection_listener
DdtLogger *	logger
DdtLogger *	myLogger = nullptr
const int32_t	REPLY_TIME_DEFAULT = 6
const int32_t	REPLY_TIME_MIN = 2

Detailed Description

This class provides the functionality for publisher applications to register / unregister at a local broker and to publish data for a specified data stream.

Constructor & Destructor Documentation

DdtDataPublisher() [1/2]

DdtDataPublisher::DdtDataPublisher ( DdtLogger *  logger )

explicit

Constructor

DdtDataPublisher() [2/2]

DdtDataPublisher::DdtDataPublisher ( log4cplus::Logger const &  log4cplusLogger )

explicit

Constructor, taking a log4cplus logger as input

~DdtDataPublisher()

DdtDataPublisher::~DdtDataPublisher ( )

override

Destructor

Member Function Documentation

get_connected_to_broker()

bool DdtDataPublisher::get_connected_to_broker

(

)

const

Returns connected_to_broker.

LoadDefaults()

void DdtDataPublisher::LoadDefaults ( )

protected

Loads default values for configuration parameters.

PublishData()

void DdtDataPublisher::PublishData ( )

overridevirtual

Function for triggering the local broker to publish data over the network.

Reimplemented from ddt::DdtDataTransferLib.

ReadIni()

void DdtDataPublisher::ReadIni ( )

protected

Reads the datatransferlib configuration file.

An exception is thrown if the config file does not exist. In that case the default values are used instead.

make sure configured reply time is at least REPLY_TIME_MIN set to default value otherwise

RegisterPublisher()

int DdtDataPublisher::RegisterPublisher ( const std::string  uri, const std::string  dsi, const bool  compute_crc  )

overridevirtual

Function for registering a publisher at the local broker using a MAL client.

Reimplemented from ddt::DdtDataTransferLib.

set_topic_id()

void DdtDataPublisher::set_topic_id

(

const int

id

)

Sets the topic_id.

SetBufferSize()

void DdtDataPublisher::SetBufferSize	(	const int	max_sample_size,
		const int	number_samples
	)

Specifies the maximum data sample size and the number of samples.

UnregisterPublisher()

int DdtDataPublisher::UnregisterPublisher ( )

overridevirtual

Function for unregistering a publisher from the local broker.

Reimplemented from ddt::DdtDataTransferLib.

WriteData() [1/2]

void DdtDataPublisher::WriteData	(	const int32_t	sample_id,
		const std::vector< uint8_t > &	datavec,
		const std::vector< uint8_t > &	metadatavec
	)

Writes the data packet into shared memory using a memory accessor.

WriteData() [2/2]

void DdtDataPublisher::WriteData	(	const int32_t	sample_id,
		const uint8_t *const	data,
		const int32_t	data_size,
		const uint8_t *const	metadata,
		const int32_t	metadata_size
	)

Writes the data packet into shared memory using a memory accessor. The data is passed as a pointer.

Member Data Documentation

topic_id

int ddt::DdtDataPublisher::topic_id

protected

Topic ID of the data

---

The documentation for this class was generated from the following files:

• datatransfer/datatransferlib/src/include/ddt/ddtDataPublisher.hpp
• datatransfer/datatransferlib/src/ddtDataPublisher.cpp
