ACS::PfloatSeq Interface Reference

import "baci.idl";

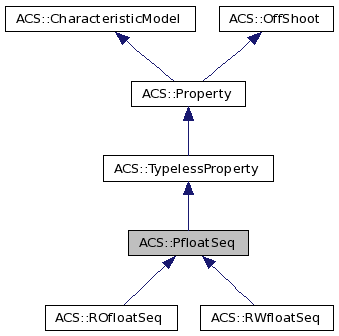

Inheritance diagram for ACS::PfloatSeq:

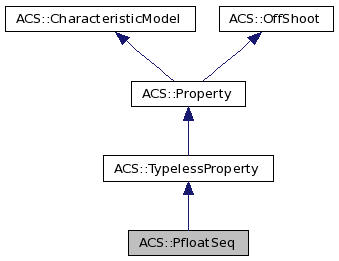

Collaboration diagram for ACS::PfloatSeq:

List of all members.

Public Member Functions
floatSeq	get_sync (out ACSErr::Completion c)
void	get_async (in CBfloatSeq cb, in CBDescIn desc)
long	get_history (in long n_last_values, out floatSeqSeq vs, out TimeSeq ts)
Monitorfloat	create_monitor (in CBfloatSeq cb, in CBDescIn desc)
Monitorfloat	create_postponed_monitor (in Time start_time, in CBfloatSeq cb, in CBDescIn desc)
Public Attributes
readonly attribute TimeInterval	default_timer_trigger
readonly attribute TimeInterval	min_timer_trigger
readonly attribute float	min_delta_trigger
readonly attribute float	default_value
readonly attribute float	graph_min
readonly attribute float	graph_max
readonly attribute float	min_step

---

Detailed Description

The PfloatSeq Property manages sequences of float values. All methods and callbacks that return those sequences have modified signatures with respect to the Pfloat Property. The characteristics, however, remain simple floats, as they apply to all elements in the sequence. Also the monitor is a simple Monitorfloat. The pattern of the interface is equivalent to the Pfloat property.

---

Member Function Documentation

Monitorfloat ACS::PfloatSeq::create_monitor	(	in CBfloatSeq	cb,
		in CBDescIn	desc
	)

3AC90A270200

Monitorfloat ACS::PfloatSeq::create_postponed_monitor	(	in Time	start_time,
		in CBfloatSeq	cb,
		in CBDescIn	desc
	)

3AC90A270209

void ACS::PfloatSeq::get_async	(	in CBfloatSeq	cb,
		in CBDescIn	desc
	)

3AC90A2701EC

long ACS::PfloatSeq::get_history	(	in long	n_last_values,
		out floatSeqSeq	vs,
		out TimeSeq	ts
	)

3AC90A2701F6

floatSeq ACS::PfloatSeq::get_sync

(

out ACSErr::Completion

c

)

3AC90A2701EA

---

Member Data Documentation

readonly attribute TimeInterval ACS::PfloatSeq::default_timer_trigger

readonly attribute float ACS::PfloatSeq::default_value

readonly attribute float ACS::PfloatSeq::graph_max

readonly attribute float ACS::PfloatSeq::graph_min

readonly attribute float ACS::PfloatSeq::min_delta_trigger

readonly attribute float ACS::PfloatSeq::min_step

readonly attribute TimeInterval ACS::PfloatSeq::min_timer_trigger

---

The documentation for this interface was generated from the following file:

• baci.idl
