import "baci.idl";

Inheritance diagram for ACS::Pfloat:

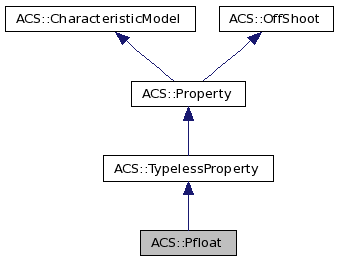

Collaboration diagram for ACS::Pfloat:

Public Member Functions
float	get_sync (out ACSErr::Completion c)
void	get_async (in CBfloat cb, in CBDescIn desc)
long	get_history (in long n_last_values, out floatSeq vs, out TimeSeq ts)
Monitorfloat	create_monitor (in CBfloat cb, in CBDescIn desc)
Monitorfloat	create_postponed_monitor (in Time start_time, in CBfloat cb, in CBDescIn desc)
Public Attributes
readonly attribute TimeInterval	default_timer_trigger
readonly attribute TimeInterval	min_timer_trigger
readonly attribute float	min_delta_trigger
readonly attribute float	default_value
readonly attribute float	graph_min
readonly attribute float	graph_max
readonly attribute float	min_step

Detailed Description

See Pdouble.

Member Function Documentation

Monitorfloat ACS::Pfloat::create_monitor	(	in CBfloat	cb,
		in CBDescIn	desc
	)

Start continuous monitoring (with default time interval). As in all asynchronous requests, a callback object cb and its descriptor desc have to be provided. See Callback for more details. 3AC90A260281

Monitorfloat ACS::Pfloat::create_postponed_monitor	(	in Time	start_time,
		in CBfloat	cb,
		in CBDescIn	desc
	)

Register a monitor whose beginning will be postponed until the specified start_time, which is given in absolute time. See create_monitor for more details on monitors. 3AC90A2602B2

void ACS::Pfloat::get_async	(	in CBfloat	cb,
		in CBDescIn	desc
	)

Request one value through callback. The callback cb and its desciptor desc have to be created by the client. The callback is of type CBfloat, because it explicitely carries a value of type float. 3AC90A26024D

long ACS::Pfloat::get_history	(	in long	n_last_values,
		out floatSeq	vs,
		out TimeSeq	ts
	)

Read n_last_lalues or all values (whichever is less) from the server�s local archive. If n_last_values is 0, then read complete local archive. Method returns number of actually transmitted values. 3AC90A260262

float ACS::Pfloat::get_sync ( out ACSErr::Completion c )

Synchronous call that returns the value of the property in the correct type, no casting is required. 3AC90A26022F
