| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||
|
|||||||||||||||
| bottom plots | contact | |||||||||||||||
| NAME | qc_TWIL.sh | ||||||||||||||
| VERSION |
1.0 -- 2006-10-11 2.0 -- 2008-06-10 3.0 -- 2010-01-28, updated for qcDocu 1.2.3 3.1 -- 2017-08-30, docu reviewed | ||||||||||||||
| SYNTAX | SHELL | ||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/TWIL/$DATE as CALL_SYNTAX TWIL 0000.fits &&qc_TWIL -a $AB -u vircam -e 0 -level 3 2\>\&1 \> $DFS_LOG/$AB.qclog&& meaning output is logges to $DFS_LOG/$AB.qclog !!! | ||||||||||||||
| INSTRUMENT | VIRCAM | ||||||||||||||
| RAWTYPE | TWIL | ||||||||||||||
| PURPOSE |
quality control script for VIRCAM TWIL product frames level 0 : writeQC scoreQC. level 1 : calls gen_pipe_suppl_histofit_I.py -a $AB -e $extension level 1 : calls gen_pipe_raw_stat_IV.py -a $AB -e $extension level 2 : calls twil_qc_report_VI.py -a $AB -e $extension level 3 : calls twil_pipe_suppl_raw_II.py -a $AB -e $extension | ||||||||||||||
| PROCINPUT |
-a AB -e extension -level level | ||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: vircam_twilight | ||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_TWILRAWAVG_K_AVG_HC.html | trend_report_RATIOTWILRMS_K_AVG_HC.html | trend_report_TWILRMS_K_AVG_HC.html | trend_report_TWILSN_K_AVG_HC.html | trend_report_TWILRAWRANGE_K_AVG_HC.html | ||||||||||||||
| QC1PAGE |
trending | associated documentation: qc_VC_twil.html | ||||||||||||||
| QC1PLOTS top |

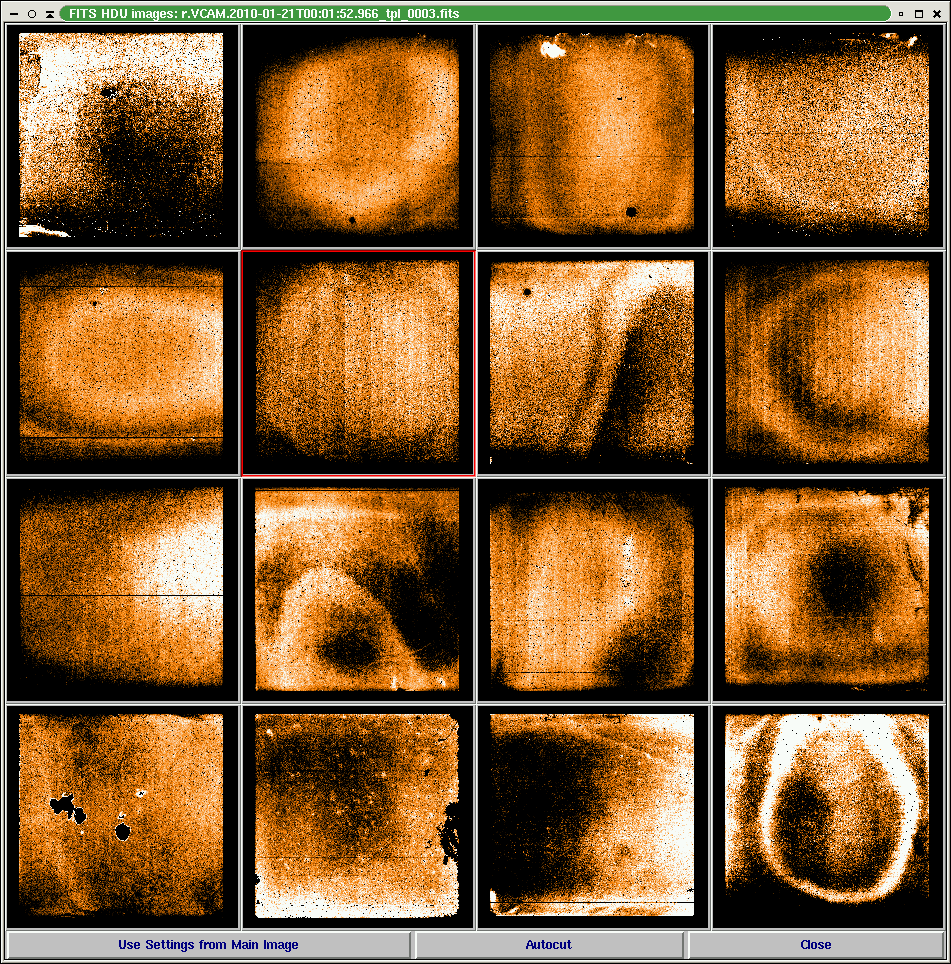

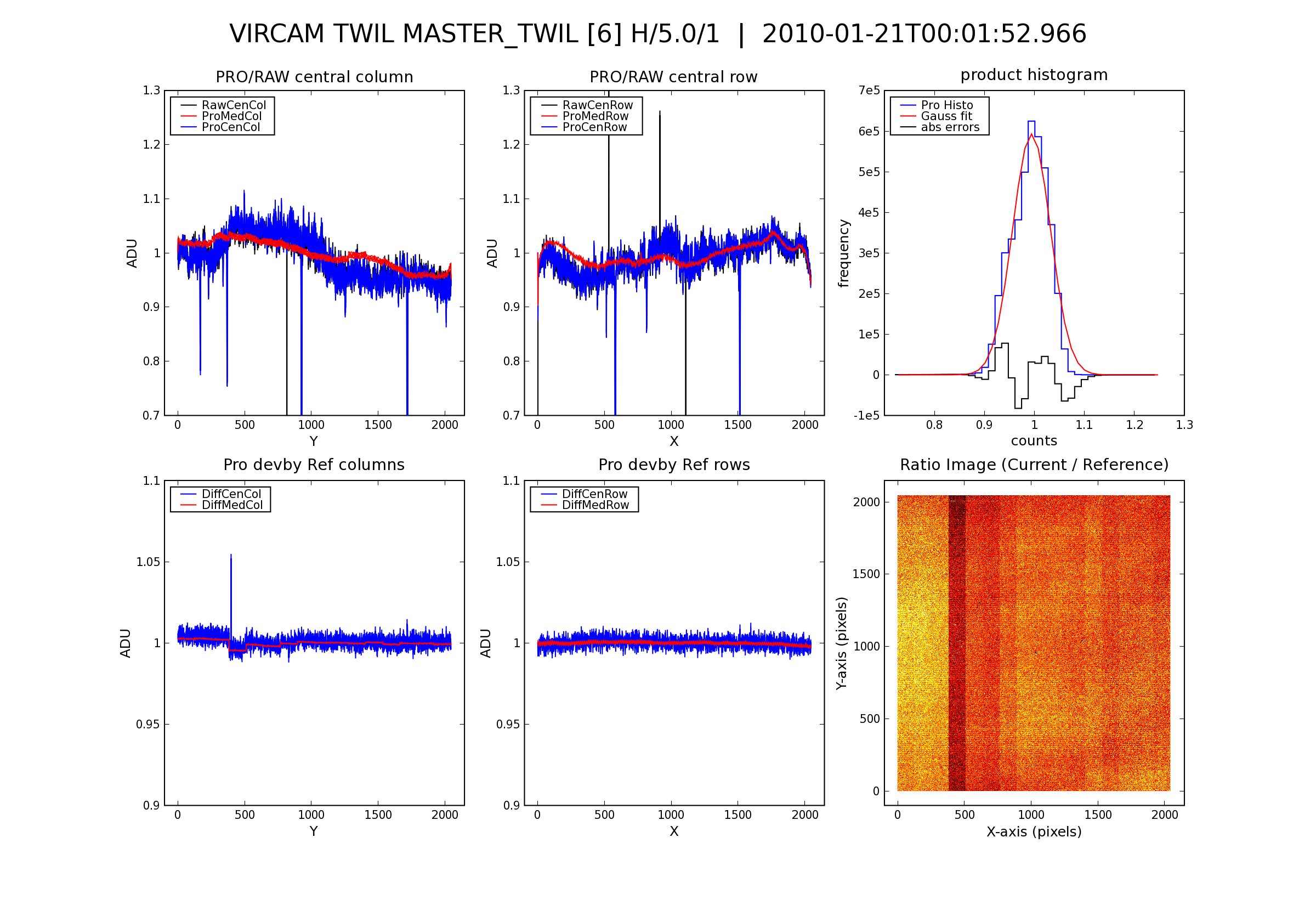

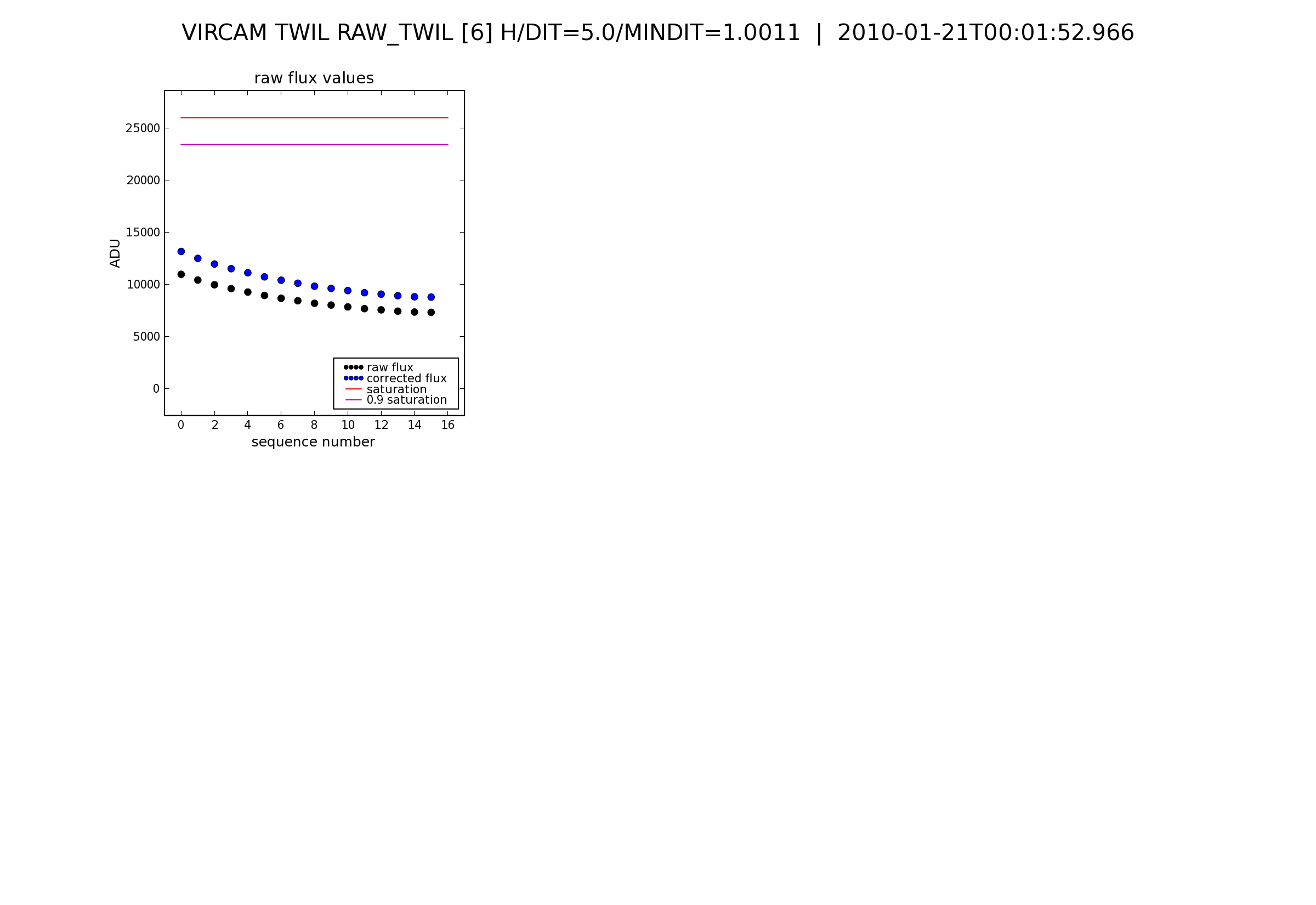

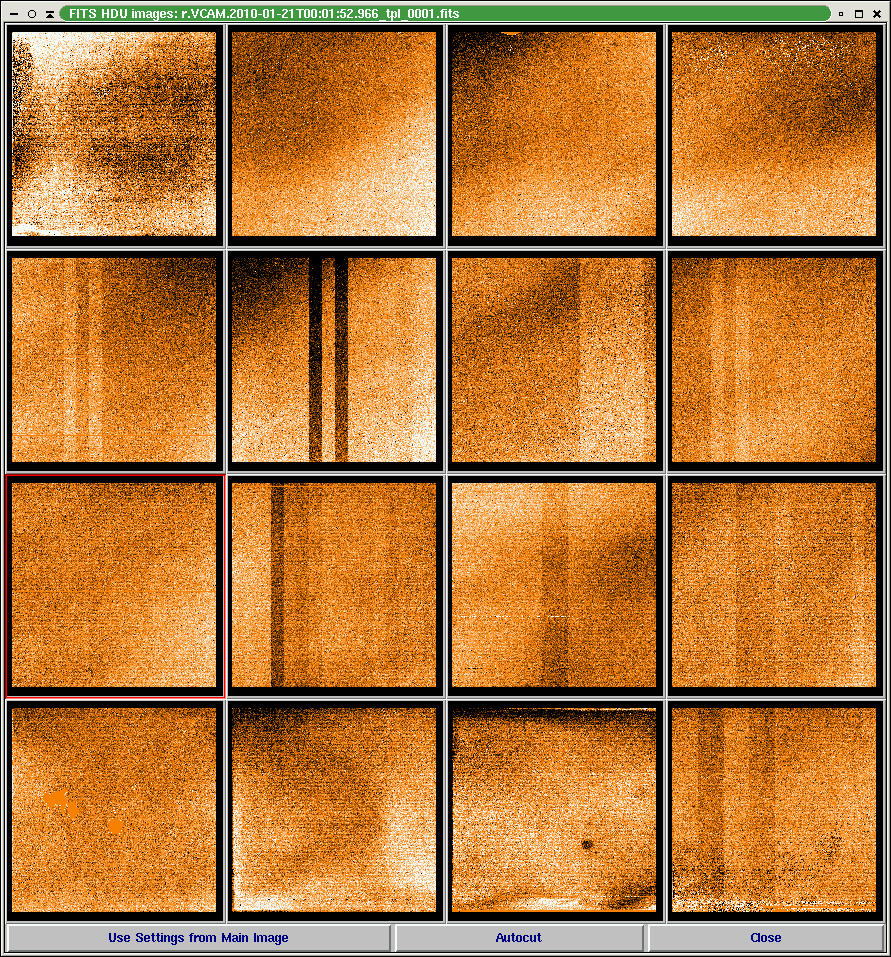

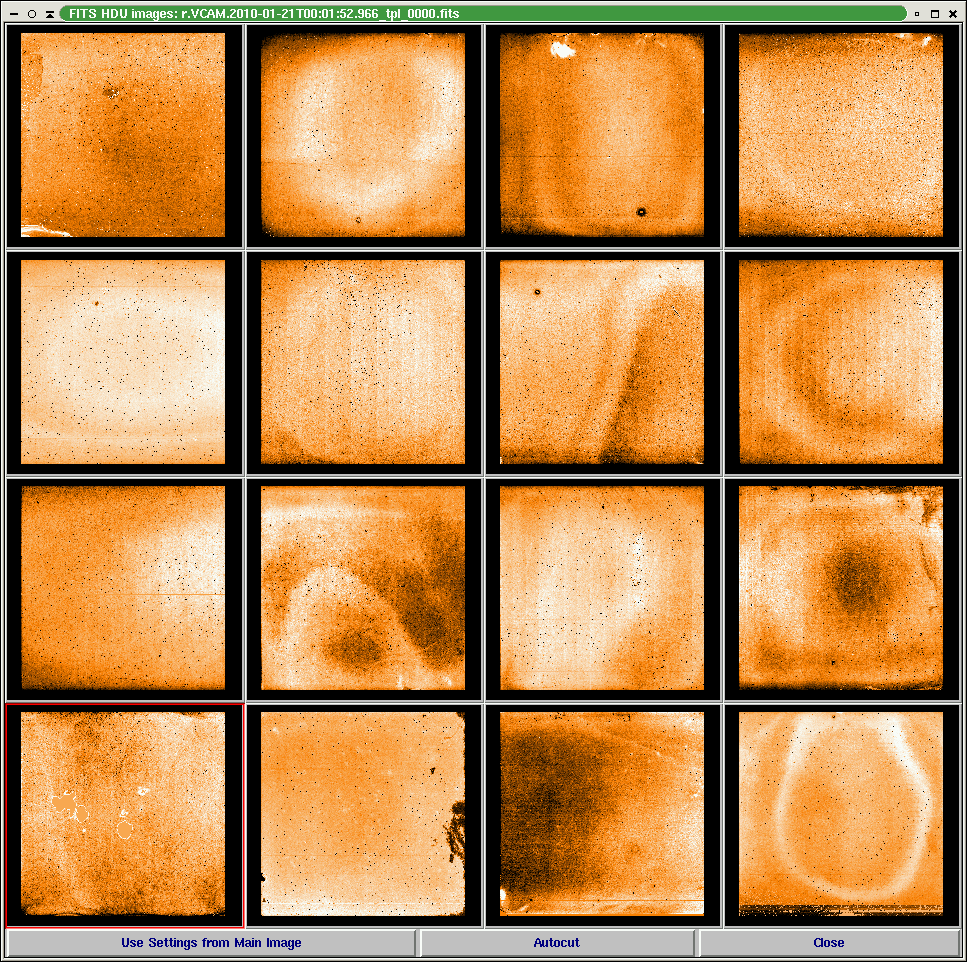

mastertwilightflat.png master twilight flat (snapshot from SkyCat) ratiotwilightflat.png ratio product. Ratio between current master twilight flat and history reference twilight flat. twilightconfidencemap.png confidence map for the master twilight flat twil_qcreport_0.png from upper left to lower right: vertifcal cross section of master twilight flat, horizontal cross section of master twilight flat, histogram and fit of master twilight flat. vertical cross section of ratio product, horizontal cross section of ratio product, image of the ratio product twil_qcreport_1.png twilight flat raw flux and detectror reset corrected flux | ||||||||||||||
| QC1PARAM |
pipeline generated QC1 parameters written into QC1 table: QC.FLATRMS, qc_twil_rms rms of master twlight flat QC.FLATRATIO_MED, qc_ratiotwil_med median of ratio product QC.FLATRATIO_RMS, qc_ratiotwil_rms rms of ratio product script based QC1 parameters written into QC1 table: qc_post_man , center of master twilight flat histogram qc_post_mdm , sigma of histogram fit qc_twflat_medmin , minimum of all raw twilight flat medians qc_twflat_medmax , maximum of all raw twilight flat medians qc_twflat_medavg , average of all raw twilight flat medians qc_twflat_medstd , standard deviation of all raw twilight flat medians qc_twflat_medrng , range of all raw twilight flat medians qc_twflat_raw_avg , qc_twflat_raw_std , qc_phot_noise , photon noise from raw frame central in sequence qc_phot_SN , signal to (photon) noise qc_twflat_fracsat , qc_twflat_medmax corrected for detector reset in units of saturation level qc_twflat_fluxdep , master twilight flat flux in the box x1,y1=1,1500 x2,y2=2048,2048 | ||||||||||||||
| ALGORITHM |
RMS: rms of the master flat product frame FLATRATIO_MED: median of ratio flat (ratio flat = current flat divided by reference flat) FLATRATIO_RMS: rms of ratio flat algorithms of script based QC1 parameters are already mentioned above. | ||||||||||||||
| CERTIF | twilight flat frames can be saturated or can be under-exposed | ||||||||||||||
| COMMENTS |
REFERENCE_TWILIGHT_FLAT are read from the AB (since 2009-11-01) please watch the variable lower part of chip #16 | ||||||||||||||
