| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||
|
|||||||||||||||
| bottom plots | contact | |||||||||||||||
| NAME | qc_CURRENT.sh | ||||||||||||||
| VERSION |
1.0 -- 2006-10-11 2.0 -- 2008-06-10 2.1 -- 2010-01-28, docu updated for qcDocu 1.1.2 2.2 -- 2017-08-30, docu updated | ||||||||||||||
| SYNTAX | SHELL | ||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/CURRENT/$DATE: qc_CURRENT -a $AB -e -1,0,1..16 -level 0..3 | ||||||||||||||
| INSTRUMENT | VIRCAM | ||||||||||||||
| RAWTYPE | CURRENT | ||||||||||||||
| PURPOSE |
quality control script for VIRCAM CURRENT product frames level 0 : writeQC and scoreQC. level 1 : get DIT_MIN and DIT_MAX. level 0 : calls current_pipe_suppl_raw_I.py for qc report. | ||||||||||||||
| PROCINPUT |
-a AB -e extension -level level See qc_DARK for further details on unput parameters | ||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: vircam_current | ||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_DARKCURRENT_AVG_HC.html | ||||||||||||||
| QC1PAGE |
trending | associated documentation: qc_VC_current.html | ||||||||||||||
| QC1PLOTS top |

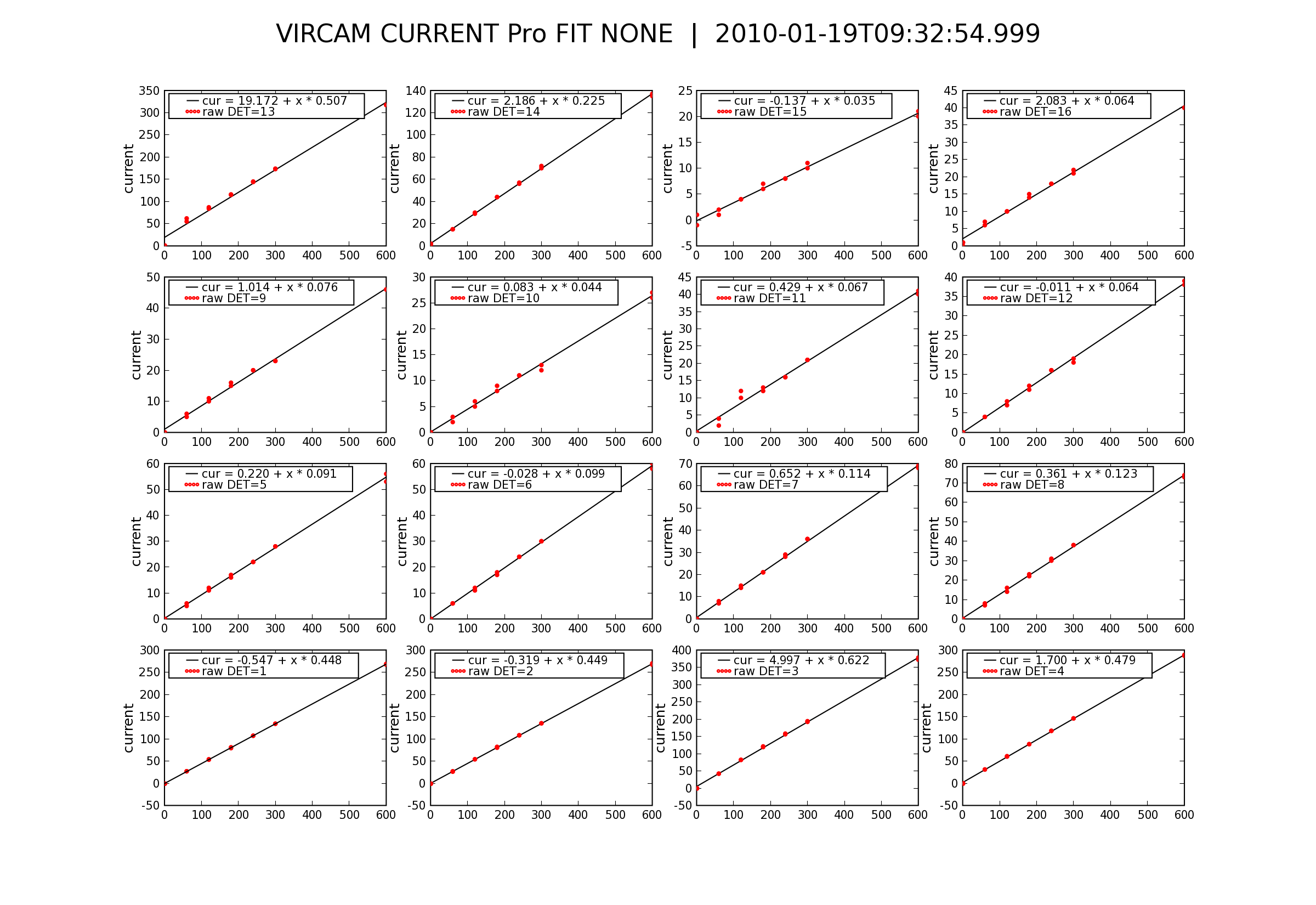

darkcurrent.png MASTER_DARKCURRENT, snapshor from SkyCatTool darkcurrent_qcreport_0.png dark level values for each DIT of the series and linear fit | ||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 table: FITSNAME, DBNAME , typical value, description: QC.DARKCURRENT, qc_darkcurrent, dark current in ADU/sec QC_DIT_MIN, qc_ditmin, minumum DIT of the sequence QC_DIT_MAX, qc_ditmax, maximum DIT of the sequence | ||||||||||||||
| ALGORITHM |
Description of algorithms: measure the dark level for each DIT and obtain the dark current by a linear fit to a series of dark frames with incerasing DIT | ||||||||||||||
| CERTIF | This is a technical calibration. All frames should be accepted. | ||||||||||||||
| COMMENTS | There is a characteristic crescent like shape reagion in each chip with slightly higher dark current. | ||||||||||||||
| top | [2022-02-28T08:09:46] created by qcDocu v1.1.2, a tqs tool | ||||||||||||||
