| NAME | qc_RESET.sh | ||||||||||||||
| VERSION |
1.0 -- 2006-10-11 2.0 -- 2008-06-10 2.2 -- 2001-12-15, reference reset frame read from AB 3.0 -- 2010-01-27, docu updated for start of operations 3.1 -- 2017-08-30, docu updated | ||||||||||||||
| SYNTAX | SHELL | ||||||||||||||
| CALL |
called by processQC from $DFS_PRODUCT/RESET/$DATE: CALL_SYNTAX RESET 0000.fits &&qc_RESET -a $AB -u vircam -e 0 -level 3 2\>\&1 \> $DFS_LOG/$AB.qclog&& | ||||||||||||||
| INSTRUMENT | VIRCAM | ||||||||||||||
| RAWTYPE | RESET | ||||||||||||||
| PURPOSE |
quality control script for VIRCAM RESET product frames -level 0 : Reads QC parameters from product fits headers and writes them into the QC1 DB. -level 1 : Fits a Gaussian to the histogram of the product to obtain robust median and rms. -level 2 : Generates a QC graphical report. -level 3 : Generates a hot pixel map, a cold pixel map, a deviant pixel map, and a deviant product. level 3 includes all steps of level 2, level {n} includes all steps of level {n-1}. This shell script calls a number of python scripts. | ||||||||||||||
| PROCINPUT |
There are three command line paramaters: -a {AB} -e {extensions} -level {processing category} use -e -1 for final QC processing requirering all detectors (equivalent to joinAB) use -e 0 to process all extension sequentially (1..16) and thereafter the QC that requires all extension This means using -e 0 is the same as calling one after the other with -e 1 .. -e 16 and thereafter one call with -e -1 a) -e 1..16 -level 0 : for an individual extension do : writeQC b) -e 1..16 -level 1 : for an individual extension do : writeQC + histogram fit c) -e 1..16 -level 2 : for an individual extension do : writeQC + histogram fit + QC report d) -e 1..16 -level 3 : for an individual extension do : writeQC + histogram fit + QC report + extras where extras are the number of hot pixels, the number of cold pixel and th the number of deviant pixel e) -e -1 -level 0 : writeQC -m AVERAGE f) -e -1 -level 1 : writeQC -m AVERAGE g) -e -1 -level 2 : writeQC -m AVERAGE h) -e -1 -level 3 : writeQC -m AVERAGE + extras where extras are : generate a hot a cold and a deviant pixel map as fits product Reference MASTER_BIAS and DIFFIMG_BIAS are implicitely read from the AB. | ||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: vircam_reset | ||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_RESETMED_AVG_HC.html | trend_report_RESETRMS_AVG_HC.html | trend_report_RESETDIFFRMS_AVG_HC.html | ||||||||||||||
| QC1PAGE |
trending | associated documentation: qc_VC_reset.html | ||||||||||||||
| QC1PLOTS top |

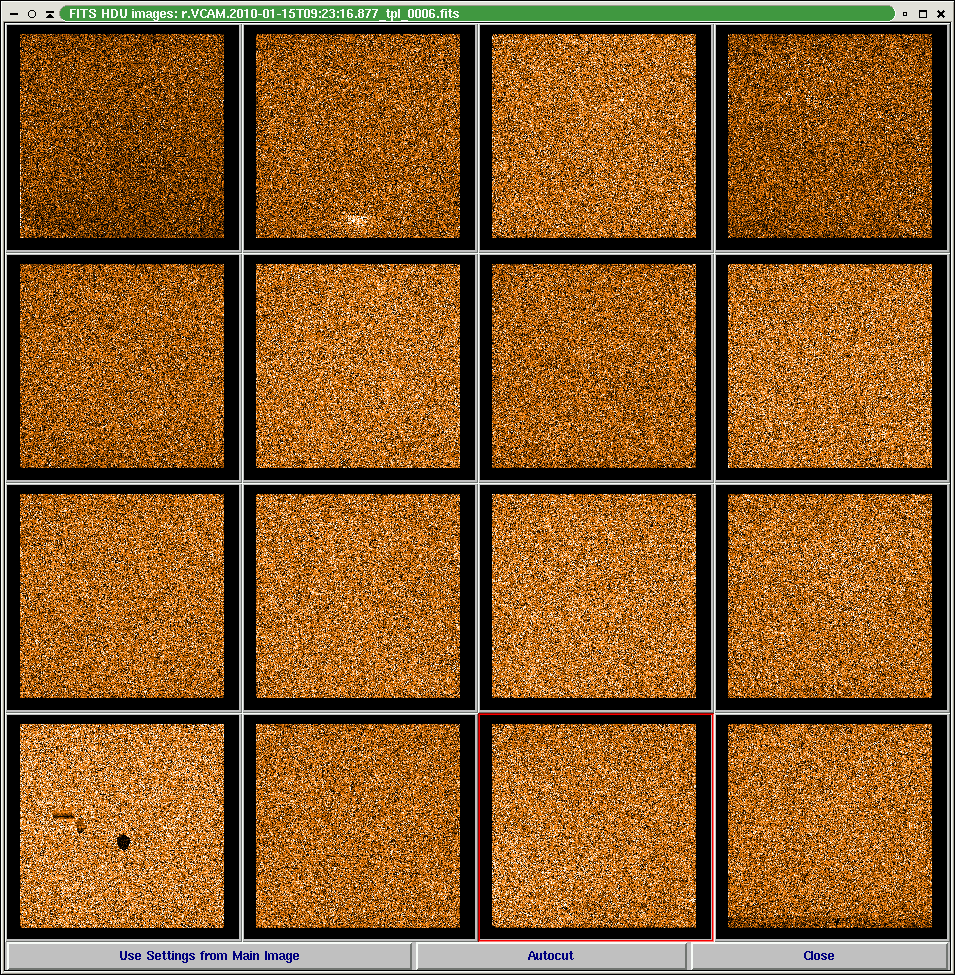

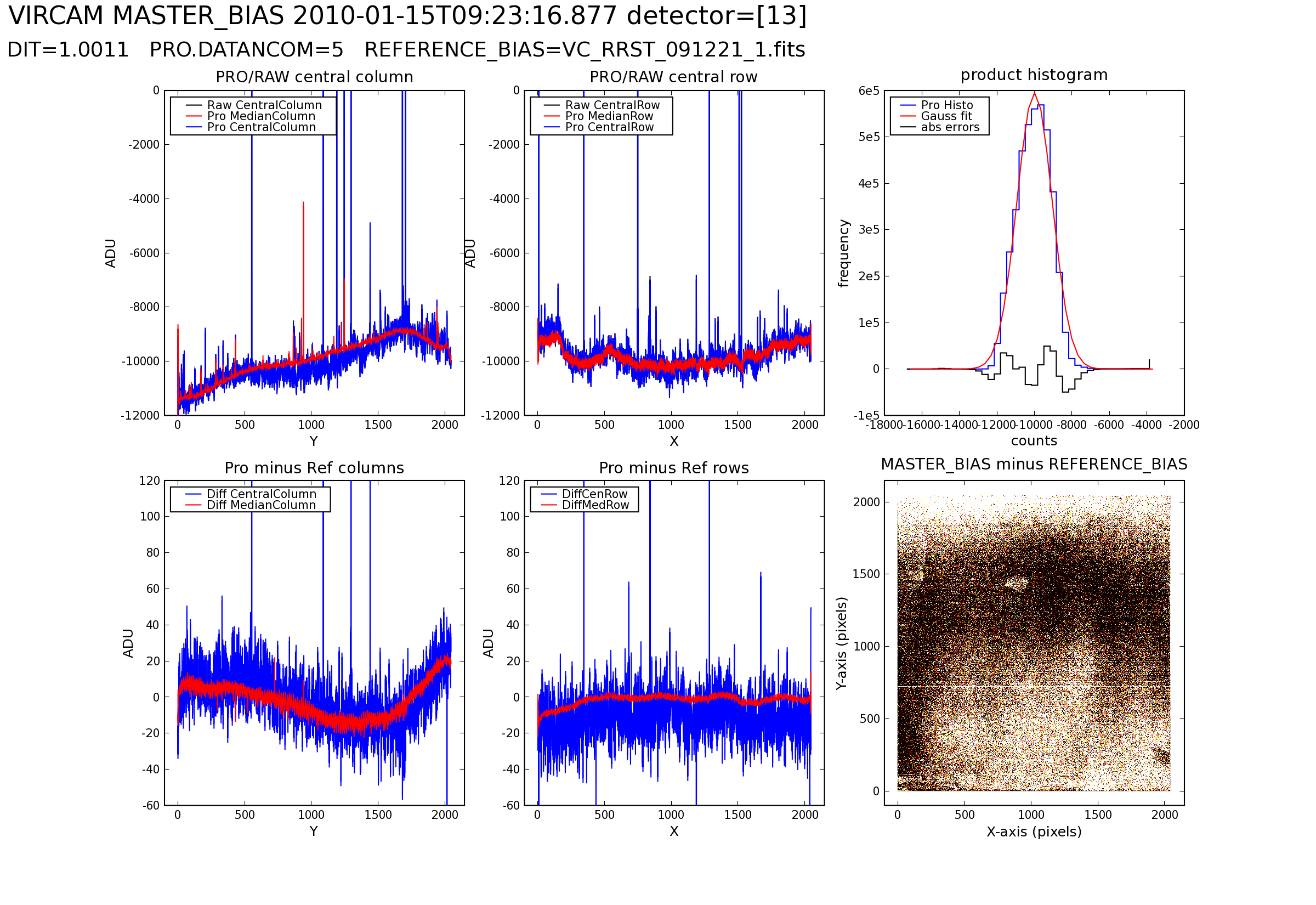

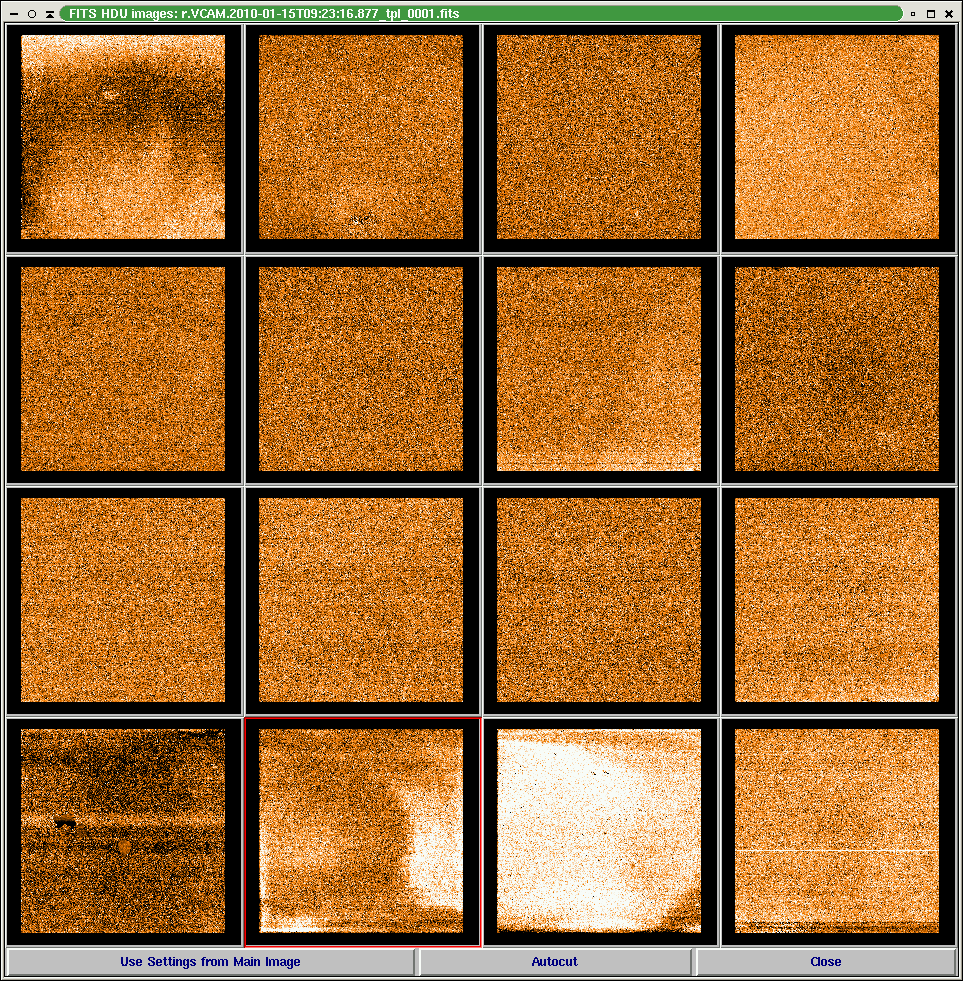

masterreset.png master bias product, snapshot from SkyCat differencereset.png difference bias product, snapshot from SkyCat resetdeviant.png standard deviation product based on 5 raw frames, snapshot from SkyCat reset_qcreport_0.png QC report for individual detector UL: cross sections of the MASTER_BIAS UC: cross section of the MASTER_BIAS UR: histogram and fit of the MASTER_BIAS LL: cross section of the DIFFIMG_BIAS LC: cross section of the DIFFIMG_BIAS LR: image of the DIFFIMG_BIAS | ||||||||||||||
| QC1PARAM |
QC1 parameters generated by pipeline and written into QC1 table: NameInHeader, DBNAME , typical value, description: QC.RESETMED qc_resetmed (pipeline) QC.RESETRMS qc_resetrms (pipeline) QC.RESETDIFF_MED qc_resetdiff_med (pipeline) QC.RESETDIFF_RMS qc_resetdiff_rms (pipeline) QC1 parameters generated by qc_RESET and written into QC1 table: DBNAME , typical value, description: qc_post_man , dark median from histogram fit (QC script) qc_post_mdm , dark stddev from histogram fit (QC script) qc_num_hp , number of cold pixel (QC script) qc_num_cp , number of cold pixel (QC script) qc_num_dp , number of deviant pixel (QC script) qc_dev_mean , mean of all pixel deviations (QC script) qc_dev_std , stdev of all pixel deviations (QC script) qc_ron12 , RON from (raw2 minus raw1) (pipeline) qc_ron23 , RON from (raw3 minus raw2) (pipeline) qc_ron34 , RON from (raw4 minus raw3) (pipeline) qc_ron45 , RON from (raw5 minus raw4) (pipeline) | ||||||||||||||
| ALGORITHM |
Description of algorithms: qc_resetmed, see pipeline manual qc_resetrms, see pipeline manual qc_postman, fit MASTER_BIAS density histogram by Gaussian, get mu qc_postmdm, fit MASTER_BIAS density histogram by Gaussian, get sigma qc_num_hp, qc_num_cp, qc_num_dp, number of hot cold and deviant pixel qc_dev_mean, fit DEVIANT product density histogram by Gaussian, get mu qc_dev_std, fit DEVIANT product density histogram by Gaussian, get sigma qc_ron12, qc_ron23, qc_ron34, qc_ron45, read noise from consecutive raw frames | ||||||||||||||
| CERTIF |
As a technical health check, all reset products are accepted | ||||||||||||||
| COMMENTS | The RESETDIFF QC parameters depend on the associated REFERENCE_BIAS calibration product. RESET, BIAS are dark frames in uncorrelated read mode with MINDIT (reset-read) The reset levels show a long-term | ||||||||||||||
