NAME QCsinfo_dark.py
VERSION 1.0 -- 2006-06-15 fill template by handbook
1.1 -- 2006-07-07 certified
2.0 -- 2009.05.05 completely re-written in Python with added QC functions and images
SYNTAX PYTHON
CALL measureQuality
from $DFS_PRODUCT/DARK/$DATE:
 QCsinfo_dark.py -a $AB_name -i $level_of_interaction: 0-2
INSTRUMENT SINFONI
RAWTYPE DARK
PURPOSE a) calculates post-pipeline FPN and odd/even column effect in slitlet #25 (OES) QC1 parameters
b) generates QC report
c) writes QC1 parameters into local list
PROCINPUT No input is required:
a) $DATE is now read from the input AB
b) primary file is set in QCsinfo_dark.py and is the PRO.CATG=MASTER_DARK product with the _0000.fits extension.
c) raw frames are implicitly read from the AB.
d) reference MASTER_DARK and BP_MAP_HP are found and read from $DFO_QC_DIR/references/DARK.
QC1TABLE trending | table(s) in QC1 database:
sinfoni_dark
TRENDPLOT trending | HealthCheck plot(s) associated to this procedure:
trend_report_DARK_300_HC.html
QC1PAGE trending | associated documentation:
dark_QC1.html
QC1PLOTS
top

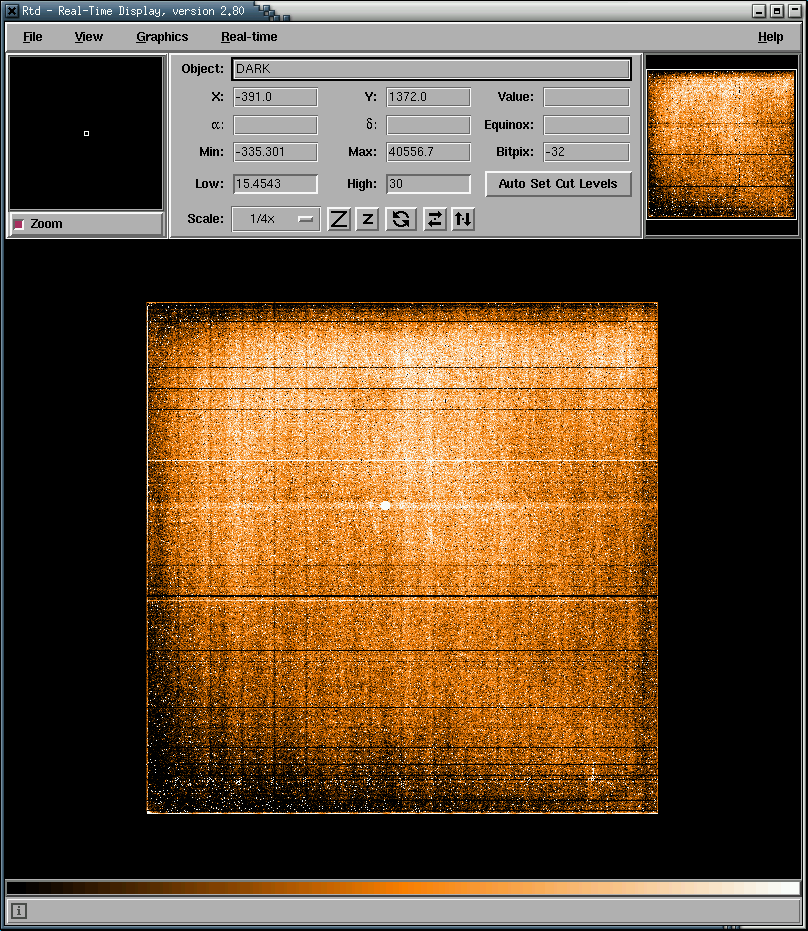

display MASTER_DARK on RealTimeDisplay

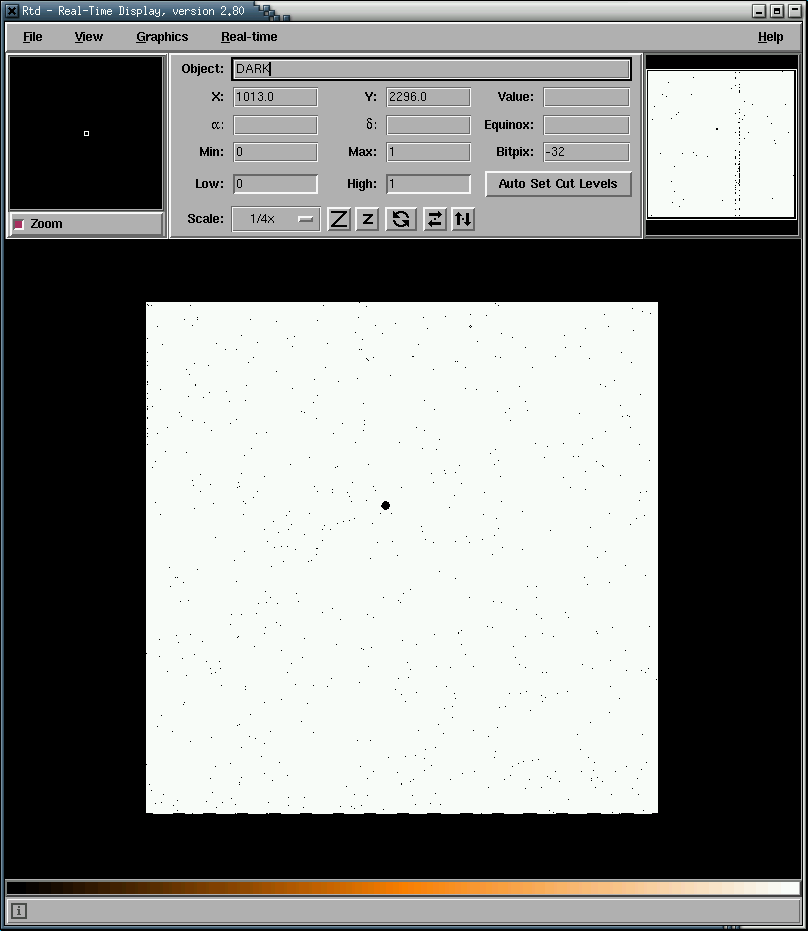

display BP_MAP_HP (hot pixel map) on RealTime Display

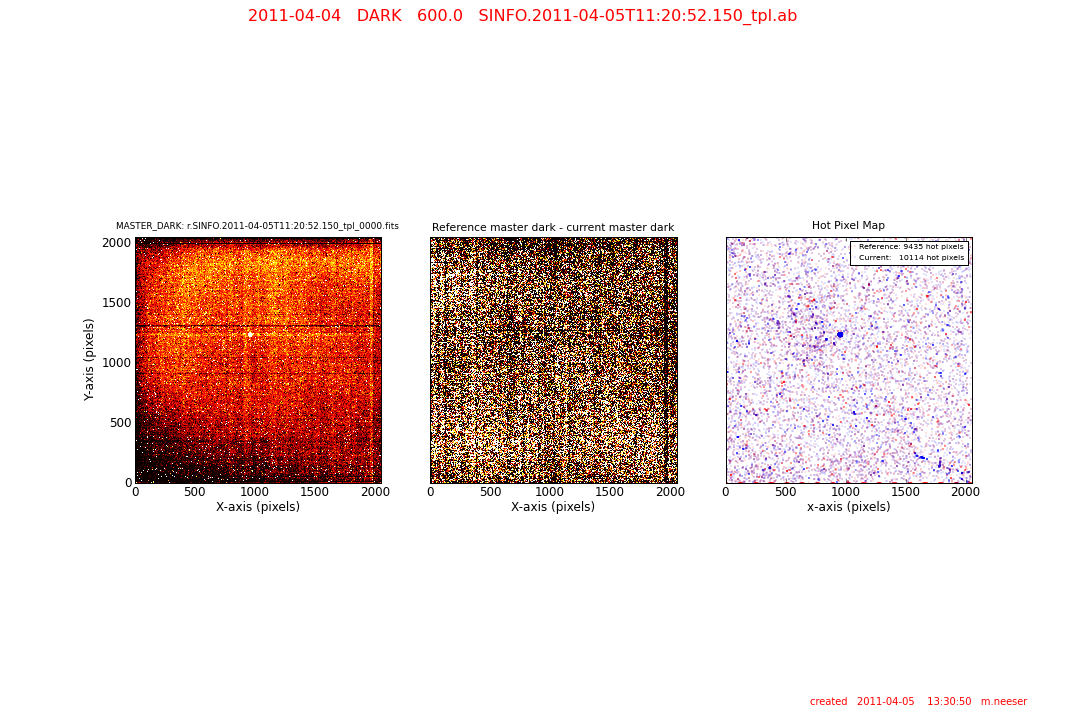

left: Image of current master dark. The plot scale is set to -1.0 sigma to 2.0 sigma (sigma is computed from a Gaussian fit to the histogram of the master dark).
center: Difference image of the reference master dark - current master dark (same DIT). The plot scale is set to -1.0 sigma to 4.0 sigma (sigma is computed as above).
right: Plot of the hot pixels from the current master dark (shown in blue) and the reference master dark (red).

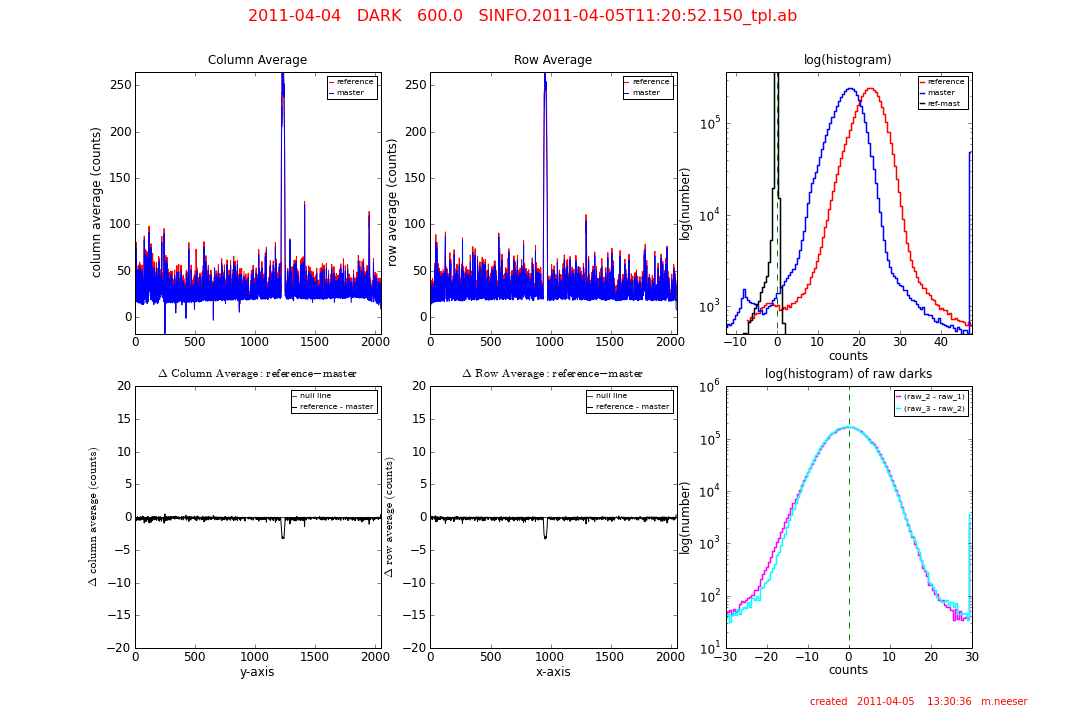

UL: The mean (collapsed) columns of the current master dark (blue) and the reference master dark (red).
UC: The mean (collapsed) rows of the current master dark (blue) and the reference master dark (red).
UR: Logarithmic histograms of the current master dark (blue), the reference master dark (red), and the difference between the two (black).
LL: The difference between the mean (collapsed) columns of the reference master dark - current master dark.
LC: The difference between the mean (collapsed) rows of the reference master dark - current master dark.
LR: Logarithmic histograms of the difference of the raw dark frames. Second raw minus first raw (purple), third raw minus second raw (turquois).
QC1PARAM QC1 parameters written into QC1 table(sinfoni_dark)
SOURCE(header/script)       DBNAME                 value          description

 QC.DARKMED.AVE          qc_darkmed_ave           20.207021    Average of raw darks medians
 QC.DARKMED.STDEV        qc_darkmed_stdev          1.741316    STDEV of raw darks medians
 QC.RONRMS               qc_ronrms               441.092956    RMS on Read Out Noise
 QC.DARKFPN              qc_dark_fpn               2.53823     Fixed Pattern Noise of combined frames
 QC.RON1                 qc_ron1                   3.517257    Read Out Noise from first raw frame pair
 QC.RON2                 qc_ron2                   3.524859    Read Out Noise from second raw frame pair
 QC.BP-MAP.METHOD        qc_bpm_method             Normal      bad pixel map method (here hot pixel map)
 QC.BP-MAP.NBADPIX       qc_bpm_nbadpix          200           number of hot pixels
 QCsinfo_dark.py         qc_oes1                   0.0234      oddeven column stripe of first raw frame
 QCsinfo_dark.py         qc_oes2                   0.0234      oddeven column stripe of second raw frame
 QCsinfo_dark.py         qc_oes3                   0.0234      oddeven column stripe of third raw frame
 QCsinfo_dark.py         qc_gaf_fpn                2.543       Fixed Pattern Noise of combined frames
 QCsinfo_dark.py         qc_slitlet_ratio          0.25        Dark frame persistence check: Ratio of median value of (slit17/slit32) - 1.0
ALGORITHM Description of algorithms:
qc_darkmed_ave : Average of (3) raw darks medians
qc_darkmed_stdev : STDEV of (3) raw darks medians
qc_ronrms : RMS on Read Out Noise
qc_dark_fpn : Use the window of the MASTER_DARK product frame specified by recipe command line parameters dark-qc_fpn_xmin/xmax/ymin/ymax (default is the whole chip). Take dark-qc_fpn_nsamp (default dark-qc_fpn_nsamp = 100) randomly distributed samples of (2 hsize +1)*(2 hsize +1) (default hsize = 4) sample size from MASTER_DARK. Take median of all sample stdev. This is the isaac RON algorithm applied to a master dark to get the fixed pattern noise.
qc_ron1 : Apply the formulae of DARKFPN to the difference of the first two consecutive raw DARK frames. Convert to NDIT=1 and single raw frame (factor of sqrt(2)).
qc_ron2 As RON1 but for second pair of raw frames.
qc_bpm_method: Bad pixel map method
qc_bpm_nbadpix: All pixels above kappa * sigma, where kappa is --bp_noise-thresh_sigma_fct (default = 10)
qc_oes1, (not calculated by pipeline): Of the first dark raw frame, calculate the median of all odd columns and all even columns for slitlet #25 only and derive stdev. This parameter monitors sporadic occurence of odd-even signal in slitlet #25
qc_oes2, not calculated by pipeline): As qc_oes1, but for second raw frame
qc_oes3, (not calculated by pipeline): As qc_oes1, but for third raw frame
qc_gaf_fpn, (not calculated by pipeline) generate histogram of MASTER_DARK and fit Normal distribution, read stdev.
CERTIF Quality diminishing features (not under control, but tolerated) :
- slitlet #25 (the #31th slitlet counted from left) might contain additional oddeven signal
- random hot/cold pixels in slitlet #31 (the #18th counted from left)
Reasons for rejection:
- persistence due to previous exposures (objects or standard stars, typically) with high counts (generally about 10,000 ADU).
See also SINFONI problems page.
COMMENTS
