NAME pionier_darkQC.py
VERSION 1.0 -- 2015-06-06
SYNTAX PYTHON
CALL measureQuality
from $DFS_PRODUCT/DARK_CALIBRATION/$DATE:
 pionier_darkQC.py -a $AB
INSTRUMENT PIONIER
RAWTYPE RAW_DARK_CALIBRATION
PURPOSE a) generates QC reports
PROCINPUT No special input is required:
a) $DATE is read from the input AB
c) frames are implicitly read from the AB.
QC1TABLE trending | table(s) in QC1 database:
pionier_dark
TRENDPLOT trending | HealthCheck plot(s) associated to this procedure:
trend_report_DARK_HC.html
QC1PAGE trending | associated documentation:
det_qc1.html

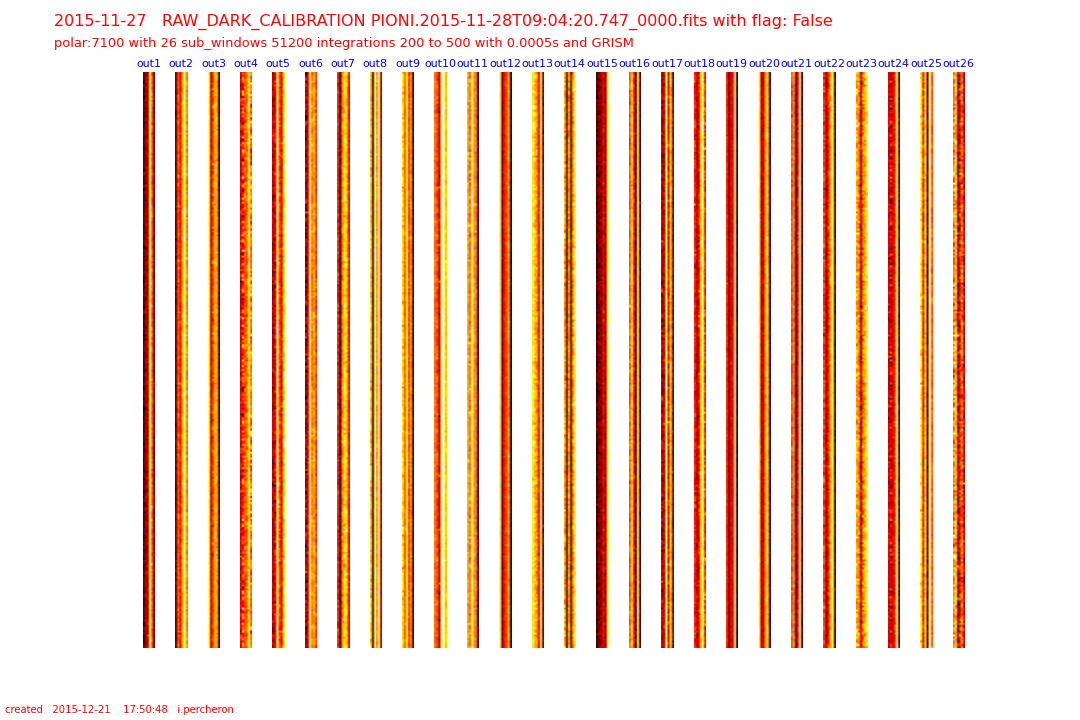

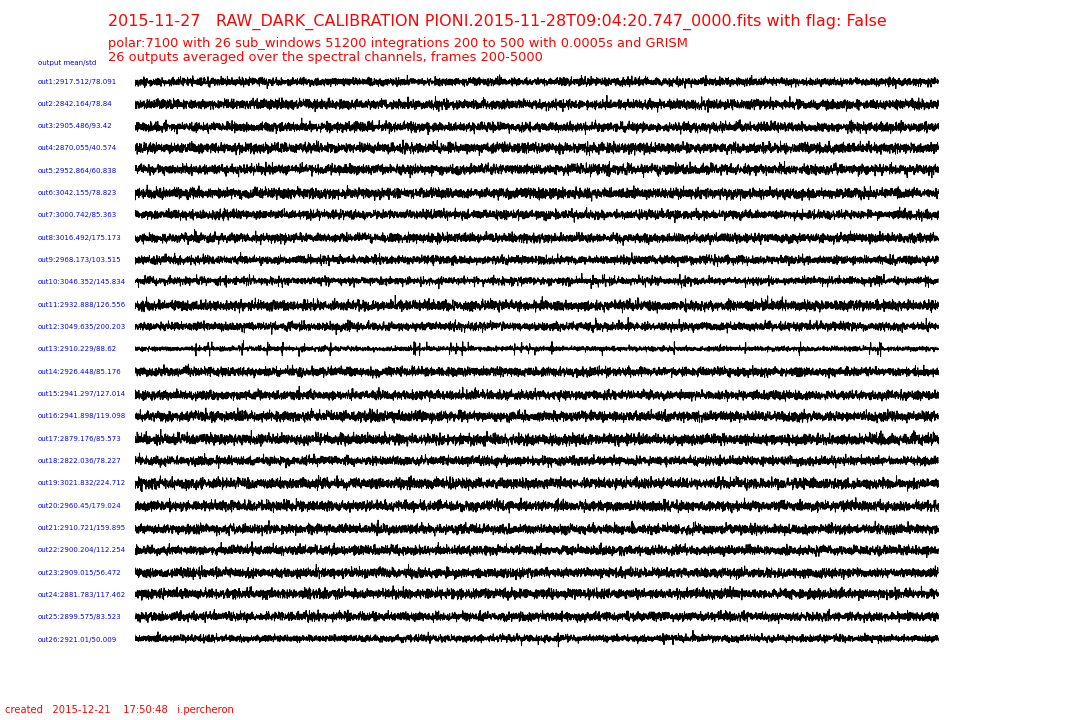

QC1PLOTS
top


QC1PARAM QC1 parameters written into QC1 table :
SOURCE(header/script)       DBNAME                 value          description

 QC.DARK.MED  dark_median 28 dark_in_adu
 QC.DARKRMS.MAX  dark_rms_max 5.4 max_error_of_dark_in_adu
 QC.DARKRMS.MED  dark_rms_med 1.03 median_error_of_dark_in_adu
 QC.NOISE.MED  dark_noise_med 20.3 median_of_noise_in_adu
 QC.NOISE.MAX  dark_noise_max 61.9 max_of_nois_in_adu
ALGORITHM Description of algorithms:
The detector behaviors are characterized by measuring the dark level
and the power spectral density.
data are taken with all shutters closed Data can be taken on sky (used to calibrate sky data).
or on the internal lamp (HC).
Compute the DARK signal as an average over the scan
The DARK value should be stable over the scan : average all points of the scan
CERTIF Products are rejected only if issue with detector
COMMENTS None
