NAME pionier_OIFITS_intfringeQC.py
VERSION 1.0 -- 2015-06-06
SYNTAX Python
CALL measureQuality
from $DFS_PRODUCT/INT_FRINGE/$DATE:
pionier_OIFITS_intfringeQC.py -a $AB
INSTRUMENT PIONIER
RAWTYPE INT_FRINGE
PURPOSE a) generates QC reports
PROCINPUT No special input is required:
a) $DATE is read from the input AB
c) frames are implicitly read from the AB.
QC1TABLE trending | table(s) in QC1 database:
pionier_int_fringe
TRENDPLOT trending | HealthCheck plot(s) associated to this procedure:
trend_report_VIS_intern_HC.html
QC1PAGE trending | associated documentation:
interferometry_qc1.html

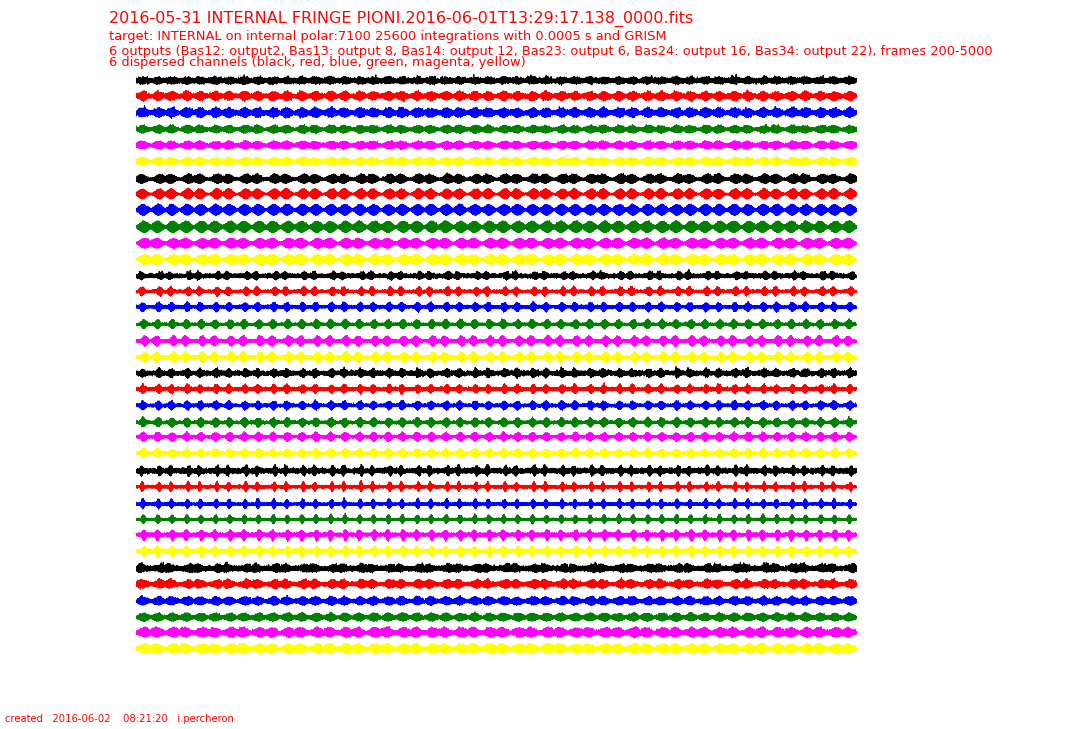

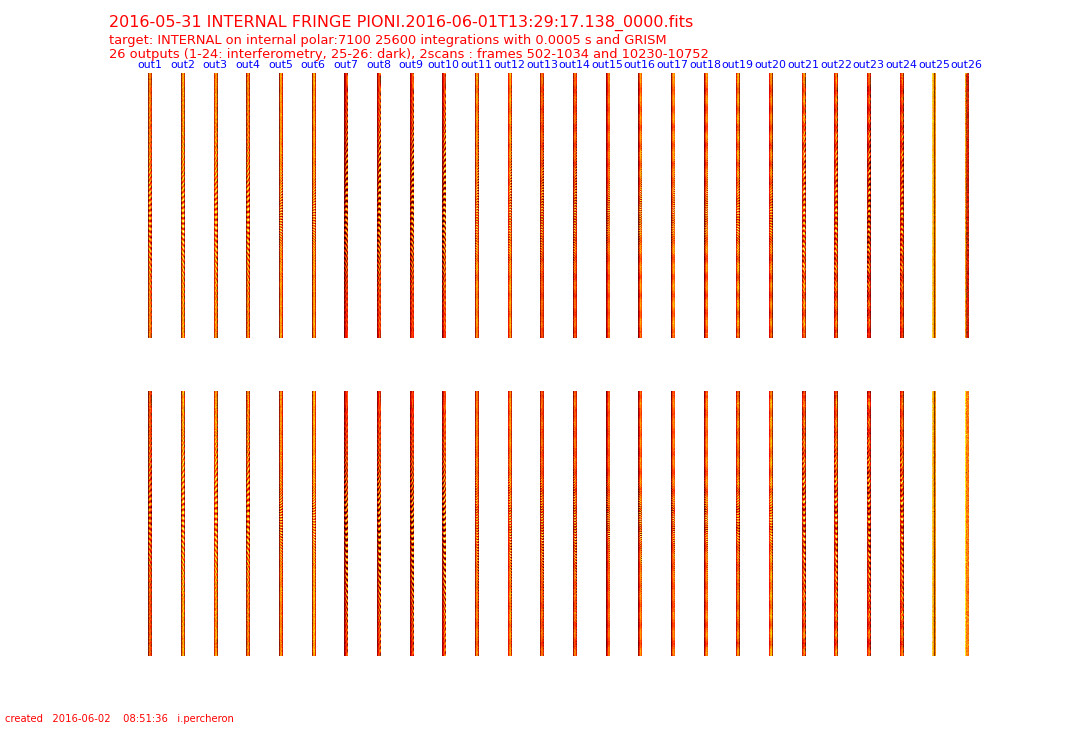

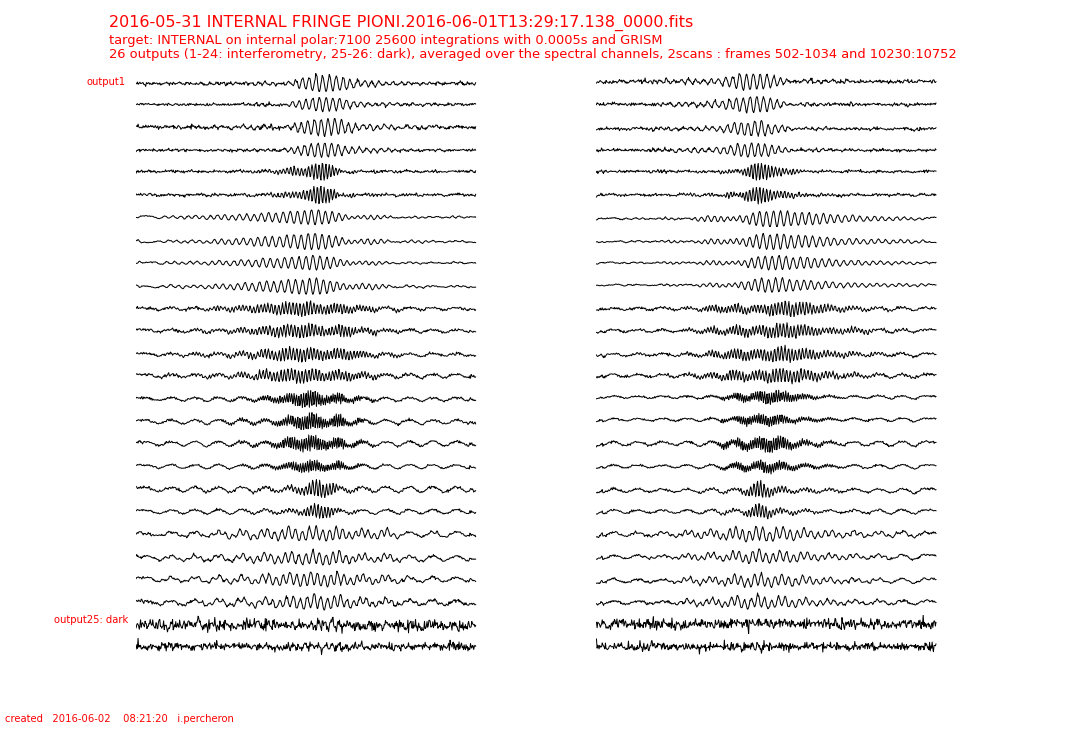

QC1PLOTS
top








QC1PARAM QC1 parameters written into QC1 table :
SOURCE(header/script)       DBNAME                 value          description
QC.FLUX1.AVG flux1_avg 300 flux_optical_train1_in_adu
QC.FLUX1.RMS flux1_rms 10 error_on_flux_optical_train1_in_adu
QC.FLUX2.AVG flux2_avg 300 flux_optical_train2_in_adu
QC.FLUX2.RMS flux2_rms 10 error_on_flux_optical_train2_in_adu
QC.FLUX3.AVG flux3_avg 300 flux_optical_train3_in_adu
QC.FLUX3.RMS flux3_rms 10 error_on_flux_optical_train3_in_adu
QC.FLUX4.AVG flux4_avg 300 flux_optical_train4_in_adu
QC.FLUX4.RMS flux4_rms 10 error_on_flux_optical_train4_in_adu

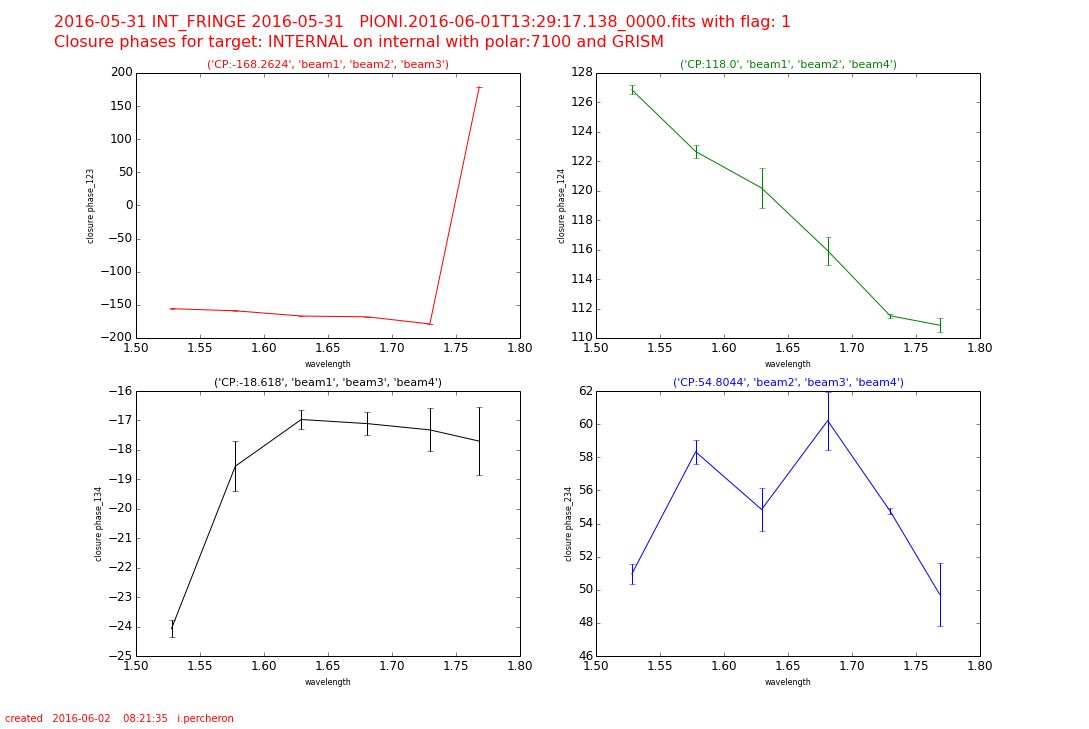

QC.PHI123.AVG phi123_avg Averaged_Closure_phase_baseline123
QC.PHI123.ERR phi123_err error_Closure_phase_baseline123
QC.PHI124.AVG phi124_avg Averaged_Closure_phase_baseline124
QC.PHI124.ERR phi124_err error_Closure_phase_baseline124
QC.PHI134.AVG phi134_avg Averaged_Closure_phase_baseline134
QC.PHI134.ERR phi134_err error_Closure_phase_baseline134
QC.PHI234.AVG phi234_avg Averaged_Closure_phase_baseline234
QC.PHI234.ERR phi234_err error_Closure_phase_baseline234

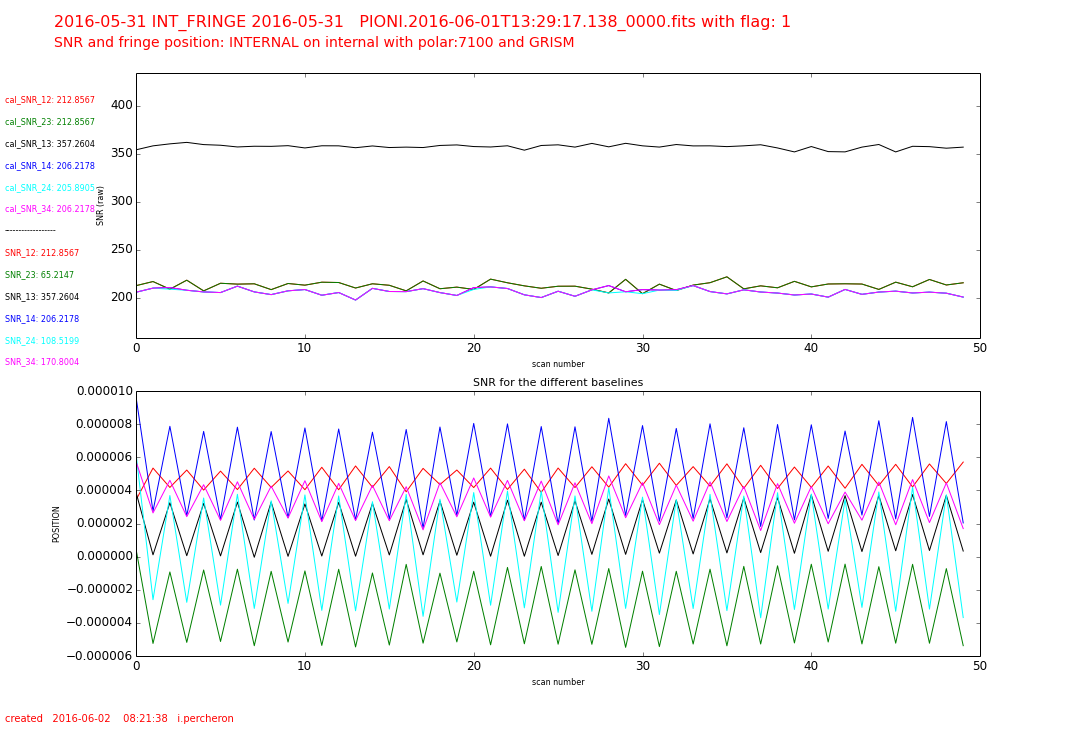

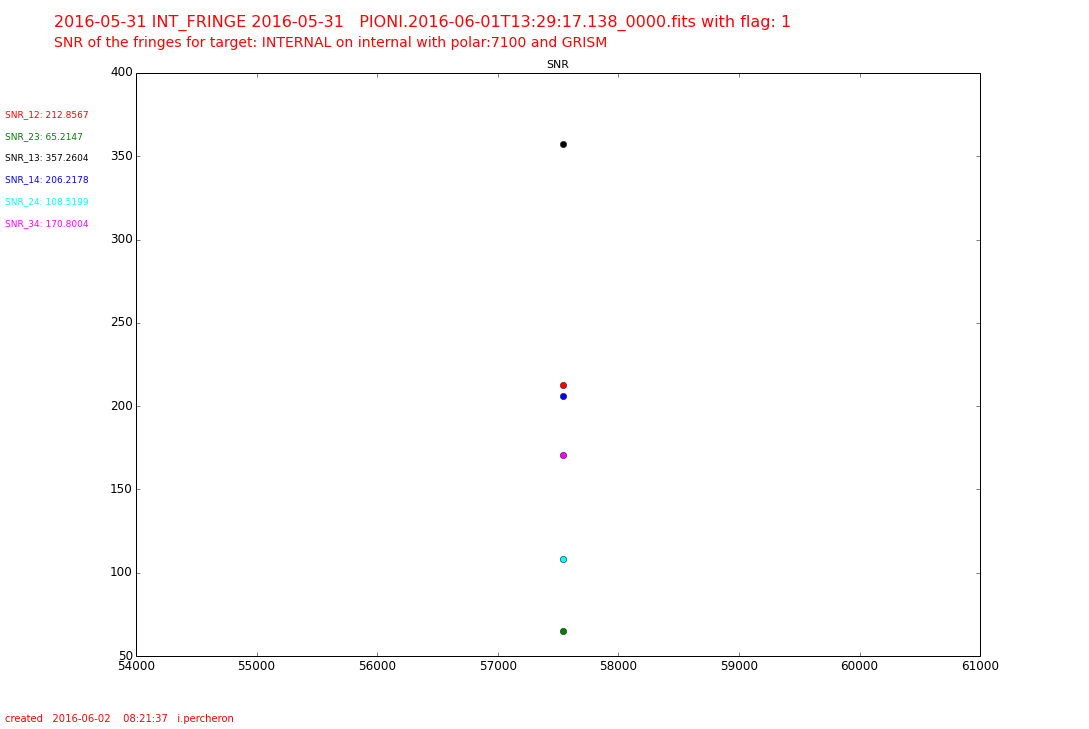

QC.SNR12.AVG snr12_avg 150 averaged_SNR_on_Vis12
QC.SNR12.RMS snr12_rms 10 error_on_SNR_on_Vis12
QC.SNR13.AVG snr13_avg 150 averaged_SNR_on_Vis13
QC.SNR13.RMS snr13_rms 10 error_on_SNR_on_Vis13
QC.SNR14.AVG snr14_avg 150 averaged_SNR_on_Vis14
QC.SNR14.RMS snr14_rms 10 error_on_SNR_on_Vis14
QC.SNR23.AVG snr23_avg 150 averaged_SNR_on_Vis23
QC.SNR23.RMS snr23_rms 10 error_on_SNR_on_Vis23
QC.SNR24.AVG snr24_avg 150 averaged_SNR_on_Vis24
QC.SNR24.RMS snr24_rms 10 error_on_SNR_on_Vis24
QC.SNR34.AVG snr34_avg 150 averaged_SNR_on_Vis34
QC.SNR34.RMS snr34_rms 10 error_on_SNR_on_Vis34

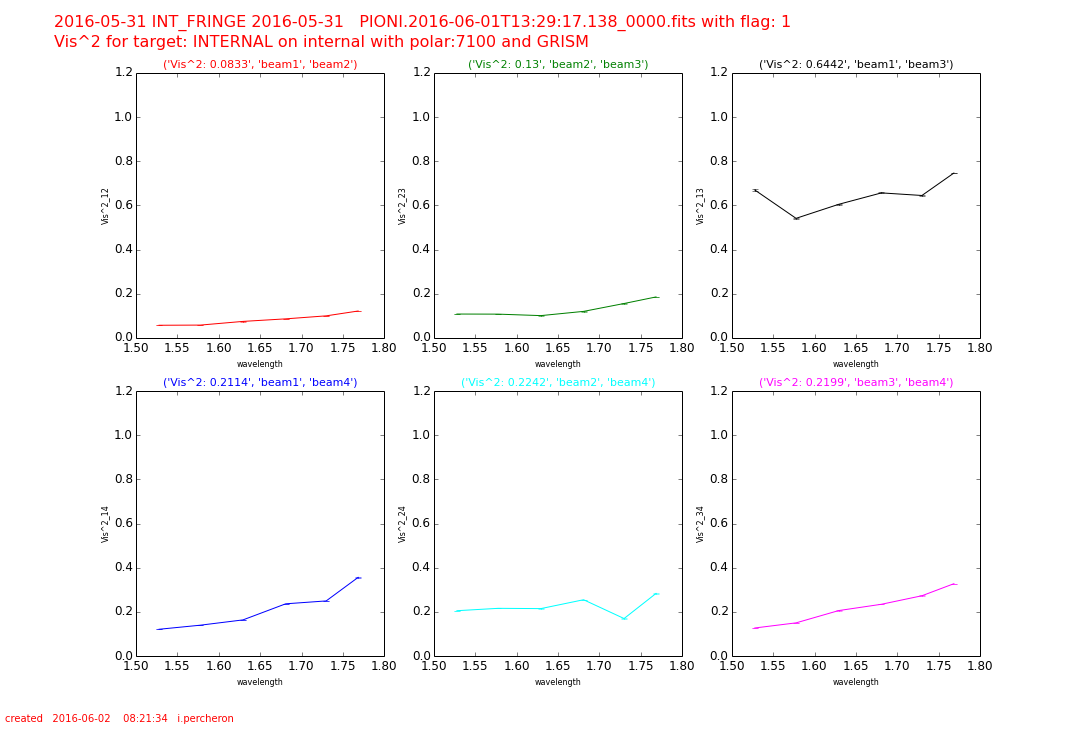

QC.VIS12.AVG vis12_avg 0.6 averaged_Visibility_Baseline12
QC.VIS12.ERR vis12_err 0.001 error_on_Visibility_Baseline12
QC.VIS13.AVG vis13_avg 0.8 averaged_Visibility_Baseline13
QC.VIS13.ERR vis13_err 0.001 error_on_Visibility_Baseline13
QC.VIS14.AVG vis14_avg 0.8 averaged_Visibility_Baseline14
QC.VIS14.ERR vis14_err 0.001 error_on_Visibility_Baseline14
QC.VIS23.AVG vis23_avg 0.8 averaged_Visibility_Baseline23
QC.VIS23.ERR vis23_err 0.001 error_on_Visibility_Baseline23
QC.VIS24.AVG vis24_avg 0.8 averaged_Visibility_Baseline24
QC.VIS24.ERR vis24_err 0.001 error_on_Visibility_Baseline24
QC.VIS34.AVG vis34_avg 0.8 averaged_Visibility_Baseline34
QC.VIS34.ERR vis34_err 0.001 error_on_Visibility_Baseline34
ALGORITHM Description of algorithms:
Uncalibrated dispersed Visibilities are calculated
CERTIF Under dvp
COMMENTS None
