Getting Started

Log-in

Login to a standard ELT machine.

Retrieve and build the Software

If not yet done, retrieve the complete ICS Framework from the SVN repository. Integration area shall be defined in advance.

svn co http://svnhq9.hq.eso.org/p9/tags/EELT/ICS/ifw/Release/1.0.0
cd ifw; waf configure; waf install

Starting Database Server

The present version of the Device Manager uses Redis as the database engine to store run-time configuration (Redis documentation).

Before running the Device Manager is required to start up the DB server executing the following command:

redis-server &

Note

When no port is specified, the Redis DB server uses the port 6379.

The data is stored in the DB using a list of keyword/values. Each keyword has a hierarchical name that helps to idenfify its context, for instance the keys associated to a Device Manager start with the server id.

The ELT development environment provides a DB browser tool (dbbroser) that can be used to monitor the database keywords in an easy way similar to the ccseiDb tool in the VLT project.

alternate text

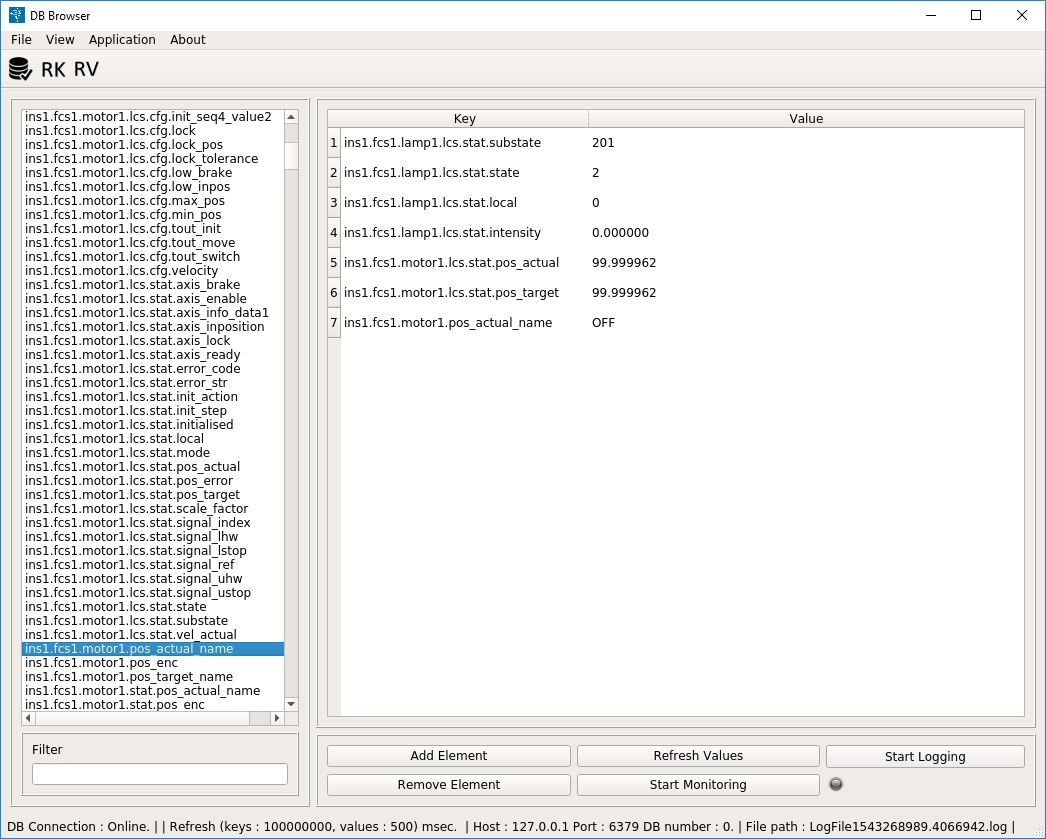

Dbbrowser tool screenshot showing Device Manager attributes.

dbbrowser &

Note

To get list of attributes in the dbbrowser is needed to configure the connection first. Menu Application option Open. Consult the dbbrowser User Manual in case of problems.

Note

The attributes will be populated only when the Device Manager server is started.

Creating a Server Configuration

The Device Server requires a configuration file including all the relevant information for the server to run like the endpoint for the zeroMQ request/reply or the list of supported devices.

An example of a server configuration is provided by the FCF. The configuration includes one shutter that is configured in simulation so no need to have a PLC in order to test the server and its GUI.

Server configuration: devmgr/server/cfg_sim.yml

server_id           : 'ins1.fcs1'
ins1.fcs1:
    req_endpoint    : "tcp://*:5577"
    sub_endpoint    : "tcp://localhost:5567"
    pub_endpoint    : "tcp://*:5567"
    ext_pub_endpoint: "tcp://*:5557"
    ext_sub_endpoint: "tcp://localhost:5557"
    db_endpoint     : "127.0.0.1:6379"
    db_timeout      : 2
    scxml           : "devmgr/server/sm.xml"
    dictionaries    : ['dit/stddid/primary.did', 'devmgr/server/fcf.did']
    fits_prefix     : "FCS1"
    devices         : ['shutter1', 'lamp1', 'motor1']
    cmdtout         : 60000
shutter1:
    type: Shutter
    cfgfile: "devmgr/server/shutter1_sim.yml"

lamp1:
    type: Lamp
    cfgfile: "devmgr/server/lamp1_sim.yml"

motor1:
    type: Motor
    cfgfile: "devmgr/server/motor1_sim.yml"

An example of the Shutter configuration is shown below: devmgr/server/shutter1_sim.yml

shutter1:
   type: Shutter
   interface: Softing
   identifier: PLC1                             # OPCUA Object Identifier
   prefix: MAIN.Shutter1                        # OPCUA attribute prefix
   simulated: true
   ignored: false
   address: opc.tcp://134.171.59.98:4
   simaddr: opc.tcp://127.0.0.1:7576            # Simulation address
   mapfile: "devmgr/server/mapShutter.yml"
   fits_prefix: "SHUT1"
   ctrl_config:
      low_closed:     false
      low_fault:      false                              # If T, signal is active low
      low_open:       false                              # If T, signal is active low
      low_switch:     false                              # If T, signal is active low
      ignore_closed:  false                              # If T, ignore the signal
      ignore_fault:   false                              # If T, ignore the signal
      ignore_open:    false                              # If T, ignore the signal
      initial_state:  false
      timeout:        2000

Starting Device Manager

$ devmgrServer -c devmgr/server/cfg_sim.yml &

The output of the server shall be something like the following:

2019-05-24T11:52:14.955625   INFO Application radServer started.
2019-05-24T11:52:14.959430   INFO CfgFile - req_endpoint = <tcp://*:5577>
2019-05-24T11:52:14.959465   INFO CfgFile - db_endpoint = <127.0.0.1:6379>
2019-05-24T11:52:14.959485   INFO CfgFile - pub_endpoint = <tcp://*:5567>
2019-05-24T11:52:14.959503   INFO CfgFile - sub_endpoint = <tcp://localhost:5567>
2019-05-24T11:52:14.959691   INFO CfgFile - Devices: 3
2019-05-24T11:52:14.959718   INFO shutter1
2019-05-24T11:52:14.959765   INFO lamp1
2019-05-24T11:52:14.959793   INFO motor1
2019-05-24T11:52:15.023469   INFO Internal publishing to: tcp://*:5567
2019-05-24T11:52:15.036885   INFO [shutter1] Warning device simulated !
2019-05-24T11:52:15.037060   INFO Reading configuration keywords for device:shutter1
2019-05-24T11:52:15.039127   INFO [shutter1] Path: MAIN.Shutter1.stat.nSubstate
2019-05-24T11:52:15.039197   INFO [shutter1] Node ID: 4,MAIN.Shutter1.stat.nSubstate
2019-05-24T11:52:15.039224   INFO [shutter1] Path: MAIN.Shutter1.stat.nState
2019-05-24T11:52:15.039246   INFO [shutter1] Node ID: 4,MAIN.Shutter1.stat.nState
2019-05-24T11:52:15.039268   INFO [shutter1] Path: MAIN.Shutter1.stat.bLocal
2019-05-24T11:52:15.039289   INFO [shutter1] Node ID: 4,MAIN.Shutter1.stat.bLocal
2019-05-24T11:52:15.041984   INFO [lamp1] Warning device simulated !
2019-05-24T11:52:15.042116   INFO Reading configuration keywords for device:lamp1
2019-05-24T11:52:15.044052   INFO [lamp1] Path: MAIN.Lamp1.stat.nSubstate
2019-05-24T11:52:15.044088   INFO [lamp1] Node ID: 4,MAIN.Lamp1.stat.nSubstate
2019-05-24T11:52:15.044111   INFO [lamp1] Path: MAIN.Lamp1.stat.nState
2019-05-24T11:52:15.044132   INFO [lamp1] Node ID: 4,MAIN.Lamp1.stat.nState
2019-05-24T11:52:15.044167   INFO [lamp1] Path: MAIN.Lamp1.stat.lrIntensity
2019-05-24T11:52:15.044190   INFO [lamp1] Node ID: 4,MAIN.Lamp1.stat.lrIntensity
2019-05-24T11:52:15.044211   INFO [lamp1] Path: MAIN.Lamp1.stat.bLocal
2019-05-24T11:52:15.044232   INFO [lamp1] Node ID: 4,MAIN.Lamp1.stat.bLocal
2019-05-24T11:52:15.047820   INFO [motor1] Warning device simulated !
2019-05-24T11:52:15.048772   INFO Reading Init Sequence:motor1
2019-05-24T11:52:15.048817   INFO Number of actions: 4
2019-05-24T11:52:15.048934   INFO Init Action:FIND_LHW Params: 4,4
2019-05-24T11:52:15.049017   INFO Init Action:FIND_UHW Params: 4,4
2019-05-24T11:52:15.049089   INFO Init Action:CALIB_ABS Params: 0,0
2019-05-24T11:52:15.049171   INFO Init Action:END Params: 0,0
2019-05-24T11:52:15.049182   INFO Reading name positions:motor1
2019-05-24T11:52:15.049218   INFO Number of named positions: 2
2019-05-24T11:52:15.049385   INFO Reading named position tolerance:motor1
2019-05-24T11:52:15.049424   INFO Named position tolerance: 1
2019-05-24T11:52:15.053370   INFO [motor1] Path: MAIN.Synchro2.stat.nSubstate
2019-05-24T11:52:15.053405   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.nSubstate
2019-05-24T11:52:15.053428   INFO [motor1] Path: MAIN.Synchro2.stat.nState
2019-05-24T11:52:15.053450   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.nState
2019-05-24T11:52:15.053475   INFO [motor1] Path: MAIN.Synchro2.stat.bLocal
2019-05-24T11:52:15.053503   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.bLocal
2019-05-24T11:52:15.053526   INFO [motor1] Path: MAIN.Synchro2.stat.lrPosActual
2019-05-24T11:52:15.053549   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.lrPosActual
2019-05-24T11:52:15.053566   INFO [motor1] Path: MAIN.Synchro2.stat.lrPosTarget
2019-05-24T11:52:15.053587   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.lrPosTarget
2019-05-24T11:52:15.053610   INFO [motor1] Path: MAIN.Synchro2.stat.lrPosError
2019-05-24T11:52:15.053632   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.lrPosError
2019-05-24T11:52:15.053651   INFO [motor1] Path: MAIN.Synchro2.stat.lrVelActual
2019-05-24T11:52:15.053677   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.lrVelActual
2019-05-24T11:52:15.053700   INFO [motor1] Path: MAIN.Synchro2.stat.bInitialised
2019-05-24T11:52:15.053725   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.bInitialised
2019-05-24T11:52:15.053748   INFO [motor1] Path: MAIN.Synchro2.stat.nInitStep
2019-05-24T11:52:15.053773   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.nInitStep
2019-05-24T11:52:15.053800   INFO [motor1] Path: MAIN.Synchro2.stat.nInitAction
2019-05-24T11:52:15.053827   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.nInitAction
2019-05-24T11:52:15.053849   INFO [motor1] Path: MAIN.Synchro2.stat.nMode
2019-05-24T11:52:15.053874   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.nMode
2019-05-24T11:52:15.053902   INFO [motor1] Path: MAIN.Synchro2.stat.nInfoData1
2019-05-24T11:52:15.053931   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.nInfoData1
2019-05-24T11:52:15.053959   INFO [motor1] Path: MAIN.Synchro2.stat.nInfoData2
2019-05-24T11:52:15.053989   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.nInfoData2
2019-05-24T11:52:15.054013   INFO [motor1] Path: MAIN.Synchro2.stat.bAxisReady
2019-05-24T11:52:15.054039   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.bAxisReady
2019-05-24T11:52:15.054064   INFO [motor1] Path: MAIN.Synchro2.stat.bEnabled
2019-05-24T11:52:15.054090   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.bEnabled
2019-05-24T11:52:15.054117   INFO [motor1] Path: MAIN.Synchro2.stat.bBrakeActive
2019-05-24T11:52:15.054158   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.bBrakeActive
2019-05-24T11:52:15.054188   INFO [motor1] Path: MAIN.Synchro2.stat.bLock
2019-05-24T11:52:15.054217   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.bLock
2019-05-24T11:52:15.054247   INFO [motor1] Path: MAIN.Synchro2.stat.bInPosition
2019-05-24T11:52:15.054275   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.bInPosition
2019-05-24T11:52:15.054304   INFO [motor1] Path: MAIN.Synchro2.stat.signals[0].bActive
2019-05-24T11:52:15.054335   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.signals[0].bActive
2019-05-24T11:52:15.054365   INFO [motor1] Path: MAIN.Synchro2.stat.signals[1].bActive
2019-05-24T11:52:15.054397   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.signals[1].bActive
2019-05-24T11:52:15.054427   INFO [motor1] Path: MAIN.Synchro2.stat.signals[2].bActive
2019-05-24T11:52:15.054459   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.signals[2].bActive
2019-05-24T11:52:15.054490   INFO [motor1] Path: MAIN.Synchro2.stat.signals[3].bActive
2019-05-24T11:52:15.054522   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.signals[3].bActive
2019-05-24T11:52:15.054554   INFO [motor1] Path: MAIN.Synchro2.stat.signals[4].bActive
2019-05-24T11:52:15.054589   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.signals[4].bActive
2019-05-24T11:52:15.054622   INFO [motor1] Path: MAIN.Synchro2.stat.signals[5].bActive
2019-05-24T11:52:15.054655   INFO [motor1] Node ID: 4,MAIN.Synchro2.stat.signals[5].bActive
2019-05-24T11:52:15.055480   INFO Internal subscription from: tcp://localhost:5567
2019-05-24T11:52:15.067537   STATE from  to
2019-05-24T11:52:15.067585   STATE from  to
2019-05-24T11:52:15.067610   STATE from  to NotReady/NotOperational/On/
2019-05-24T11:52:15.067851   STATE from NotReady/NotOperational/On/  to NotReady/NotOperational/On/

Note

The server can be started with option -l ERROR to remove the information logs.

Initialising the server

The client application can be used to send commands to the server from the command line:

devmgrClient 5000  localhost 5577 modif.ReqInit ""

The reply from the server shall be something like the following:

[shutter1] Connection failed :Error obtaining endpoints for address: opc.tcp://127.0.0.1:7576

Starting the Simulators

To avoid the above problem, the simulators shall be started. Each simulator is attempting to mimic the interface and behaviour of the corresponding device controller. Each simulator contains an OPC-UA server listening in the specified port. The address space of the OPC-UA server matches the one from the real device.

fcfDevsimLamp --port 7577 --cfg devmgr/server/lamp1_devsim.yml
fcfDevsimShutter --port 7576 --cfg devmgr/server/shutter1_devsim.yml
fcfDevsimMotor --port 7578 --cfg devmgr/server/motor1_devsim.yml

Note

The port number have to match the configuration endpoint in each device configuration.

Now that the simulators are running, the server can be initialised.

devmgrClient 5000  localhost 5577 modif.ReqInit ""

If the initialisation is succesfull, the server will go to NotOperational/Ready. Now it is possible to move it to Operational by sending the command Enable.

devmgrClient 5000  localhost 5577 modif.ReqEnable ""

In Operational, the server accepts the Setup command to control the status of the Shutter (open or close). You can try setting up the Shutter with the Device Manager GUI.

Using the DeviceManager GUI

Starting the GUI

fcfgui -c devmgr/server/cfg_sim.yml &

You can control the Shutter by selecting the action OPEN or CLOSE from the widget and then pressing Setup button.

alternate text

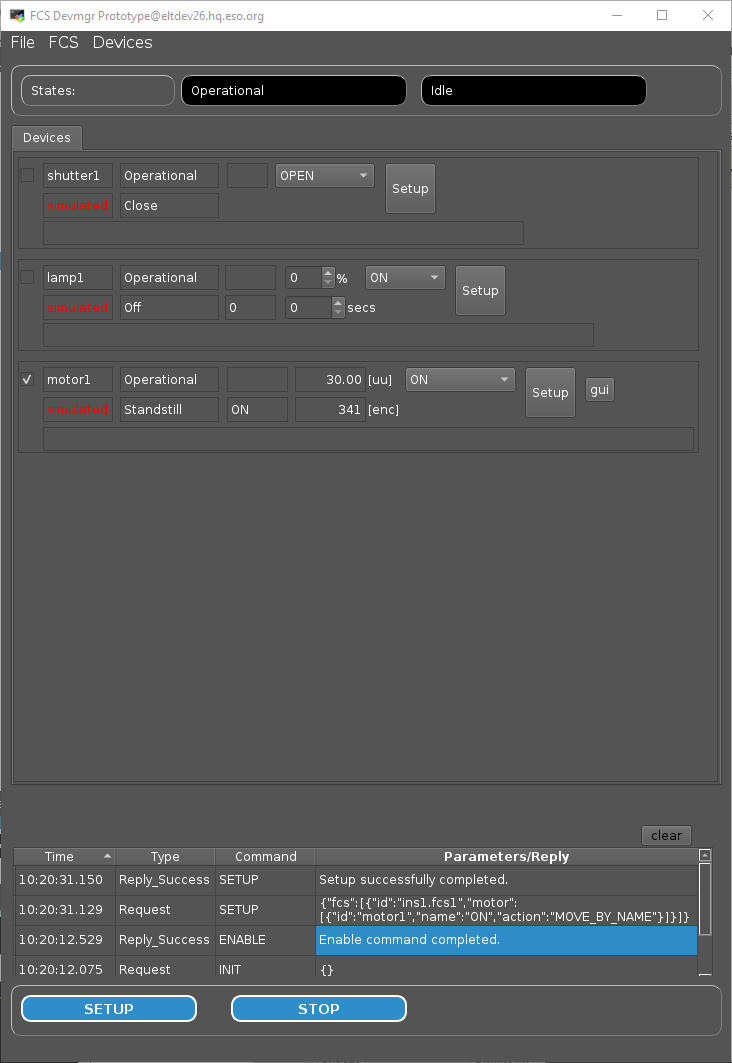

Device Manager Engineering Graphical Interface.

Using the Motor Engineering GUI

Starting the GUI

This GUI can be started from the command line or launched from the fcfgui when clicking with the mouse pointer over the small ‘gui’ button on each motor widget.

pymotgui -d motor1 -a opc.tcp://127.0.0.1:7578 -p MAIN.Synchro2 &
alternate text

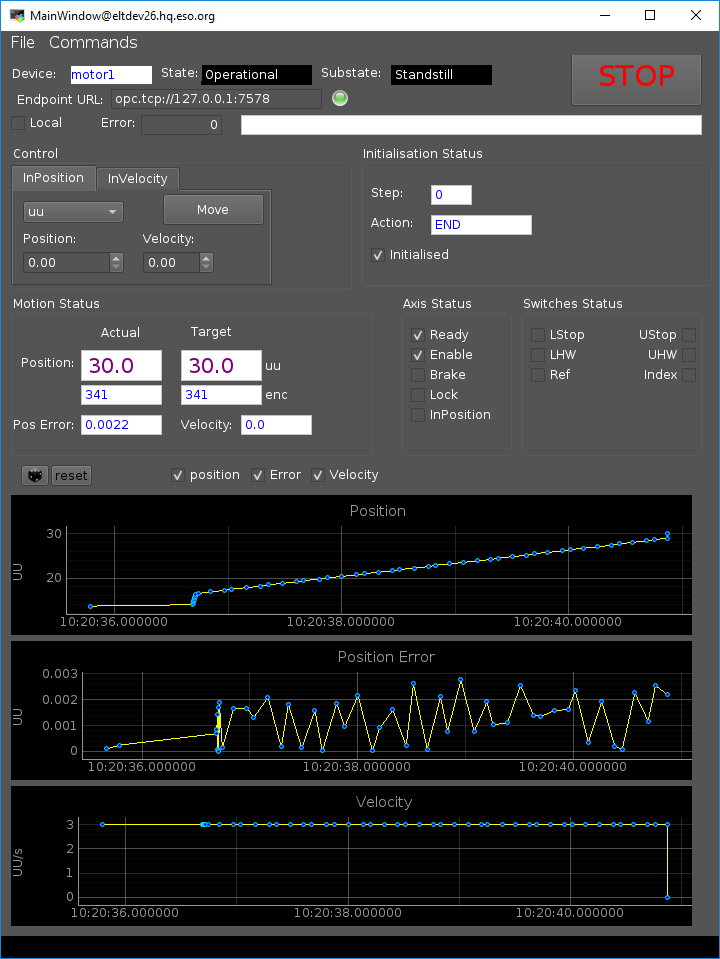

Motor Engineering GUI.

Stopping the Software

Stopping the GUI

The menu File has an option Exit. Please select this option if you want to stop properly the GUIs.

Stopping the Simulator processes

Please kill each process, for the moment we do not have any other mechanism to do it.

Stopping the Device Manager

Please send the command Exit to the server.

devmgrClient 5000  localhost 5577 modif.ReqExit ""

Stopping the Redis Db Server

Please execute the following command line.

redis-cli SHUTDOWN

Note

The above is only valid when server was started with the default port.
