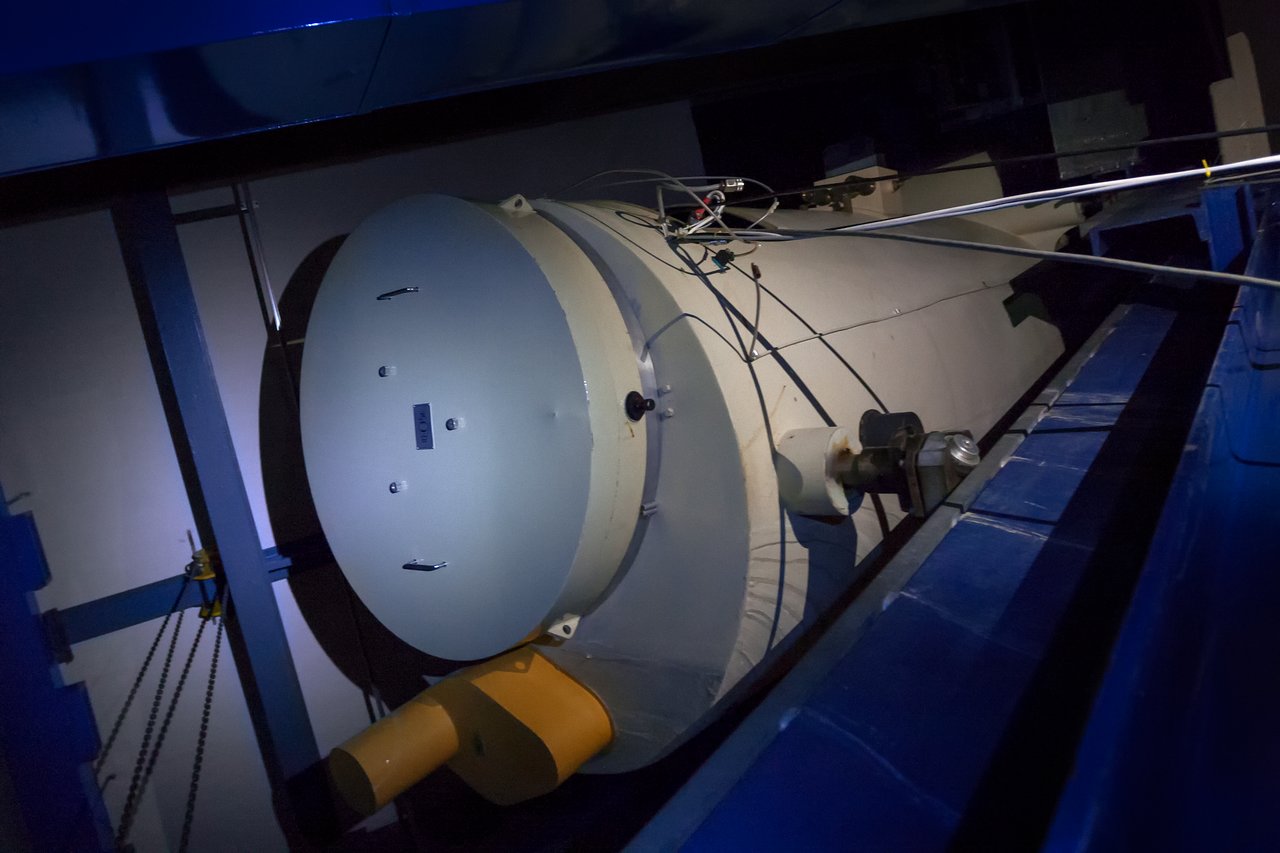

The Coudé Spectrograph

The Coudé Spectrograph was installed on the ESO 1.52-metre telescope coudé focus at La Silla Observatory in early 1969. The first reference spectra were obtained in May 1969.

Different gratings, each one covering a part of the visible and infrared range, on three different cameras were available to this spectrograph. The cameras were equipped with photographic plates as detectors.

The Coudé Spectrograph was decommissioned from the ESO 1.52-metre telescope in mid 1980s.

The Coudé Spectrograph technical specifications

This table lists the global capabilities of the instrument. The authoritative technical specifications as offered for astronomical observations are available from the Science Operations page.

Location: Decommissioned
Telescope: ESO 1.52-metre telescope
Focus: Coudé
Type: Spectrograph
Wavelength range: Total range 320 — 1010 nm on three cameras
Spatial resolution:
Spectral resolution:
First light: May 1969
Science goal:
  • Stellar spectrography
Images taken with the instrument: N/A
Images of the instrument: Link
Press Releases with the instrument: N/A
Consortium:
  • ESO
