#include <fileRuntimeRepoAdapter.hpp>

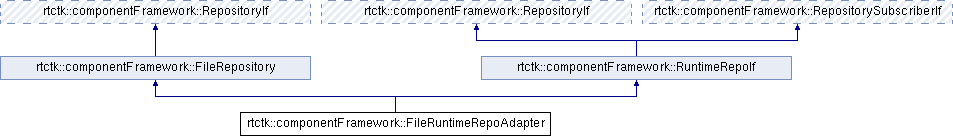

Inheritance diagram for rtctk::componentFramework::FileRuntimeRepoAdapter:

Public Member Functions
	FileRuntimeRepoAdapter ()=delete

	FileRuntimeRepoAdapter (const FileRuntimeRepoAdapter &)=delete

FileRuntimeRepoAdapter &	operator= (const FileRuntimeRepoAdapter &)=delete

	FileRuntimeRepoAdapter (FileRuntimeRepoAdapter &&)=default

FileRuntimeRepoAdapter &	operator= (FileRuntimeRepoAdapter &&)=default

	FileRuntimeRepoAdapter (const elt::mal::Uri &datauri, const int dirdepth=1)
	Constructor to create a Runtime Repository Repository adapter for a simple file based implementation. More...

virtual	~FileRuntimeRepoAdapter ()

RepositoryIf::Response	SendSubscribeRequest (const SubscribeRequest &request) const override
	This is called to asynchronously send a subscription request for datapoints. More...

RepositoryIf::Response	SendUnsubscribeRequest (const UnsubscribeRequest &request) const override
	This is called to asynchronously send a request to unsubscribe from various notifications. More...

Public Member Functions inherited from rtctk::componentFramework::FileRepository
	FileRepository ()=delete

	FileRepository (const FileRepository &)=delete

FileRepository &	operator= (const FileRepository &)=delete

	FileRepository (const elt::mal::Uri &datauri, const int dirdepth)

virtual	~FileRepository () noexcept=default

void	CreateDataPoint (const DataPointPath &path, const std::type_info &type) override
	Creates a new datapoint in the repository with a specified type. More...

void	DeleteDataPoint (const DataPointPath &path) override
	Deletes a datapoint. More...

const std::type_info &	GetDataPointType (const DataPointPath &path) const override
	Fetches the type of the datapoint. More...

size_t	GetDataPointSize (const DataPointPath &path) const override
	Fetches the size of the datapoint's data. More...

bool	DataPointExists (const DataPointPath &path) const override
	Checks for the existence of a datapoint in the repository. More...

std::pair< PathList, PathList >	GetChildren (const DataPointPath &path) const override
	Queries the datapoints and child paths for a given path. More...

Response	SendReadRequest (const ReadRequest &request) const override
	Sends a request to read data from the repository. More...

Response	SendWriteRequest (const WriteRequest &request) override
	Sends a request to write data to the repository. More...

size_t	GetFitsWriteThreshold () const

void	SetFitsWriteThreshold (size_t value)
	Sets the threshold for storing numerical matrices and vectors in FITS files rather than the YAML file. More...

virtual void	CreateDataPoint (const DataPointPath &path, const std::type_info &type)=0
	Creates a new datapoint in the repository with a specified type. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)

Public Member Functions inherited from rtctk::componentFramework::RepositoryIf
virtual	~RepositoryIf ()

template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

template<typename T >
T	GetDataPoint (const DataPointPath &path) const
	Fetches a datapoint from the repository. More...

template<typename T >
void	SetDataPoint (const DataPointPath &path, const T value)
	Sets a datapoint in the repository. More...

template<typename T >
void	ReadDataPoint (const DataPointPath &path, T &buffer) const
	Reads a datapoint from the repository. More...

template<typename T >
void	WriteDataPoint (const DataPointPath &path, const T &buffer)
	Writes a datapoint to the repository. More...

void	WriteDataPoint (const DataPointPath &path, const char *buffer)

template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)

template<>
void	SetDataPoint (const DataPointPath &path, const char *value)

Public Member Functions inherited from rtctk::componentFramework::RuntimeRepoIf
virtual	~RuntimeRepoIf ()=default

Public Member Functions inherited from rtctk::componentFramework::RepositorySubscriberIf
virtual	~RepositorySubscriberIf ()

template<typename T , typename F >
void	Subscribe (const DataPointPath &path, T &buffer, F handler) const
	A convenience template function that will register a callback to receive new datapoint values in a synchronous manner. More...

void	Unsubscribe (const DataPointPath &path) const
	A simple convenience function that will deregister all callbacks for receiving new datapoint values. More...

Additional Inherited Members
Public Types inherited from rtctk::componentFramework::RepositoryIf
using	PathList = std::vector< DataPointPath >

Static Public Member Functions inherited from rtctk::componentFramework::RuntimeRepoIf
static std::unique_ptr< RuntimeRepoIf >	CreateAdapter (const elt::mal::Uri &uri)
	Factory method used to create the appropriate Runtime Configuration Repository adapter depending on the URI scheme. More...

Constructor & Destructor Documentation

◆ FileRuntimeRepoAdapter() [1/4]

rtctk::componentFramework::FileRuntimeRepoAdapter::FileRuntimeRepoAdapter ( )

delete

◆ FileRuntimeRepoAdapter() [2/4]

rtctk::componentFramework::FileRuntimeRepoAdapter::FileRuntimeRepoAdapter ( const FileRuntimeRepoAdapter & )

delete

◆ FileRuntimeRepoAdapter() [3/4]

rtctk::componentFramework::FileRuntimeRepoAdapter::FileRuntimeRepoAdapter ( FileRuntimeRepoAdapter && )

default

◆ FileRuntimeRepoAdapter() [4/4]

rtctk::componentFramework::FileRuntimeRepoAdapter::FileRuntimeRepoAdapter	(	const elt::mal::Uri &	datauri,
		const int	dirdepth = `1`
	)

explicit

Constructor to create a Runtime Repository Repository adapter for a simple file based implementation.

Parameters

[in]	datauri	Must be a file scheme URI with the path indicating the location of the repository YAML files.
[in]	dirdepth	Indicates how deep the directory structure should be. The default value is 1, which means the first component of a datapoint path is used as the name of the YAML file.

◆ ~FileRuntimeRepoAdapter()

rtctk::componentFramework::FileRuntimeRepoAdapter::~FileRuntimeRepoAdapter ( )

virtual

Member Function Documentation

◆ operator=() [1/2]

FileRuntimeRepoAdapter& rtctk::componentFramework::FileRuntimeRepoAdapter::operator= ( const FileRuntimeRepoAdapter & )

delete

◆ operator=() [2/2]

FileRuntimeRepoAdapter& rtctk::componentFramework::FileRuntimeRepoAdapter::operator= ( FileRuntimeRepoAdapter && )

default

◆ SendSubscribeRequest()

RepositoryIf::Response rtctk::componentFramework::FileRuntimeRepoAdapter::SendSubscribeRequest ( const SubscribeRequest & request ) const

overridevirtual

This is called to asynchronously send a subscription request for datapoints.

One or more datapoints can be subscribed to by constructing a SubscribeRequest object and sending it to the repository service with this method. A typical usage is indicated in the following code sample:

void OnRemoved(const DataPointPath& path) {
  ...
}
void OnNewValue(const DataPointPath& path, int64_t& buffer) {
  ...
}

RepositorySubscriberIf& repo = ...;
int64_t buffer = ...;
SubscribeRequest request;
request.AddRemoveHandler("/test/datapoint"_dppath, OnRemoved);
request.AddNewValueHandler("/test/datapoint"_dppath, buffer, OnNewValue);
auto response = repo.SendSubscribeRequest(request);
  ... can do some work here ...
response.Wait();

Note: One must not access the buffers added to a SubscribeRequest object once SendSubscribeRequest has been invoked. At least not without using some form of synchronisation, e.g. a mutex, since the buffers will be updated asynchronously in different threads to the one used by the caller.

Parameters

[in] request The subscription request to send to the repository.

Returns: A response object (a future) that is used to wait for completion of the request.

Thread Safety: thread-safe

Exception Safety: basic

Implements rtctk::componentFramework::RepositorySubscriberIf.

◆ SendUnsubscribeRequest()

RepositoryIf::Response rtctk::componentFramework::FileRuntimeRepoAdapter::SendUnsubscribeRequest ( const UnsubscribeRequest & request ) const

overridevirtual

This is called to asynchronously send a request to unsubscribe from various notifications.

One can stop receiving notifications for one or more datapoints by constructing a UnsubscribeRequest object and sending it to the repository service with this method. A typical usage is indicated in the following code sample:

void OnRemoved(const DataPointPath& path) {
  ...
}
void OnNewValue(const DataPointPath& path, int64_t& buffer) {
  ...
}

RepositorySubscriberIf& repo = ...;
UnsubscribeRequest request;
request.AddRemoveHandler("/test/datapoint"_dppath);
request.AddNewValueHandler("/test/datapoint"_dppath);
auto response = repo.SendUnsubscribeRequest(request);
  ... can do some work here ...
response.Wait();

Parameters

[in] request The request to send to the repository.

Returns: A response object (a future) that is used to wait for completion of the request.

Thread Safety: thread-safe

Exception Safety: basic

Implements rtctk::componentFramework::RepositorySubscriberIf.

The documentation for this class was generated from the following files:

componentFramework/services/runtimeRepo/src/include/rtctk/componentFramework/fileRuntimeRepoAdapter.hpp
componentFramework/services/runtimeRepo/src/fileRuntimeRepoAdapter.cpp
