bulkdata::BulkDataSender Interface Reference

import "bulkDataSender.idl";

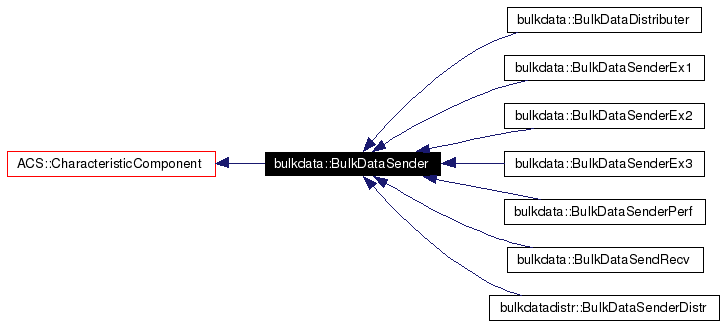

Inheritance diagram for bulkdata::BulkDataSender:

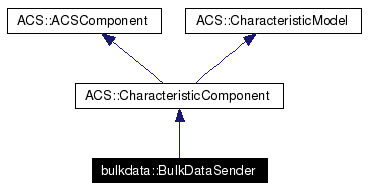

[legend]Collaboration diagram for bulkdata::BulkDataSender:

[legend]List of all members.

Public Member Functions
void	connect (in BulkDataReceiver receiver) raises (ACSBulkDataError::AVConnectErrorEx)
void	disconnect () raises (ACSBulkDataError::AVDisconnectErrorEx)
void	startSend () raises (ACSBulkDataError::AVStartSendErrorEx)
void	paceData () raises (ACSBulkDataError::AVPaceDataErrorEx)
void	stopSend () raises (ACSBulkDataError::AVStopSendErrorEx)

---

Detailed Description

Defines the interface for the Bulk Data Sender Component.

---

Member Function Documentation

void bulkdata::BulkDataSender::connect (  in BulkDataReceiver  receiver  )  raises (ACSBulkDataError::AVConnectErrorEx)

Initializes the TAO A/V, and creates the Sender Stream End Point and Flow End Point. It retrieves the Receiver Stream End Point and binds the two streams. Parameters: receiver  reference of the Receiver Component. Returns: void

void bulkdata::BulkDataSender::disconnect (   )  raises (ACSBulkDataError::AVDisconnectErrorEx)

Disconnect // TBD Returns: void

void bulkdata::BulkDataSender::paceData (   )  raises (ACSBulkDataError::AVPaceDataErrorEx)

Sends data to the Receiver calling the receive_frame() method on the Receiver side. This method must be overriden by the user to send his own data. Parameters: size  buffer size of the sent data. Returns: void

void bulkdata::BulkDataSender::startSend (   )  raises (ACSBulkDataError::AVStartSendErrorEx)

Calls the Receiver handle_start() method once the connection is established. Returns: void

void bulkdata::BulkDataSender::stopSend (   )  raises (ACSBulkDataError::AVStopSendErrorEx)

Calls the Receiver handle_stop() method. Returns: void

---

The documentation for this interface was generated from the following file:

• bulkDataSender.idl

---
