bulkdata::BulkDataReceiver Interface Reference

import "bulkDataReceiver.idl";

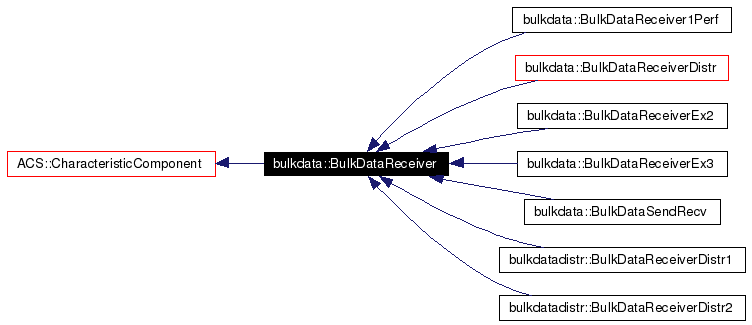

Inheritance diagram for bulkdata::BulkDataReceiver:

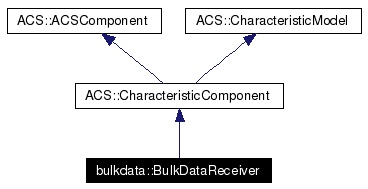

[legend]Collaboration diagram for bulkdata::BulkDataReceiver:

[legend]List of all members.

Public Member Functions
void	openReceiver () raises (ACSBulkDataError::AVOpenReceiverErrorEx)
BulkDataReceiverConfig	getReceiverConfig () raises (ACSBulkDataError::AVReceiverConfigErrorEx)
void	closeReceiver () raises (ACSBulkDataError::AVCloseReceiverErrorEx)
ACSErr::Completion	getCbStatus (in unsigned long flowNumber) raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx)
void	setTimeout (in unsigned long flowNumber, in unsigned long timeout) raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx)
void	setRecvName (in string recvName) raises (ACSBulkDataError::AVSetReceiverNameErrorEx)
void	subscribeNotification (in ACS::CBvoid notifCb) raises (ACSBulkDataError::AVNotificationMechanismErrorEx)

---

Detailed Description

Defines the interface for the Bulk Data Receiver Component

---

Member Function Documentation

void bulkdata::BulkDataReceiver::closeReceiver (   )  raises (ACSBulkDataError::AVCloseReceiverErrorEx)

Closes connection....... Returns: void

ACSErr::Completion bulkdata::BulkDataReceiver::getCbStatus (  in unsigned long  flowNumber  )  raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx)

Get callback status Returns: ACSErr::Completion

BulkDataReceiverConfig bulkdata::BulkDataReceiver::getReceiverConfig (   )  raises (ACSBulkDataError::AVReceiverConfigErrorEx)

This property is the Receiver Steam End Point.

void bulkdata::BulkDataReceiver::openReceiver (   )  raises (ACSBulkDataError::AVOpenReceiverErrorEx)

Opens connection creating an out-of-bound channel using TAO A/V services. It creates the Receiver Stream End Point and Flow End Point for the connection with the Sender. The Receiver Stream End Point can be retrieved as an attribute. Returns: void

void bulkdata::BulkDataReceiver::setRecvName (  in string  recvName  )  raises (ACSBulkDataError::AVSetReceiverNameErrorEx)

Set receiver name in receiver callback Parameters: recName  receiver name. Returns: void

void bulkdata::BulkDataReceiver::setTimeout (  in unsigned long  flowNumber, in unsigned long  timeout )  raises (ACSBulkDataError::AVInvalidFlowNumberEx, ACSBulkDataError::AVFlowEndpointErrorEx)

Set receiver timeout Returns: void

void bulkdata::BulkDataReceiver::subscribeNotification (  in ACS::CBvoid  notifCb  )  raises (ACSBulkDataError::AVNotificationMechanismErrorEx)

Subscribe to the Notification Mechanism Parameters: notifCb  receiver name. Returns: void

---

The documentation for this interface was generated from the following file:

• bulkDataReceiver.idl

---
