VISIR trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-11-23T02:00:52 (UT)
  | now: 2024-11-23T07:59:56 (UT) muc03 QC pipeline: visir-4.4.3 (installed 2023-04-27)
same group: read-noise dark det-temp
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
VISIR news:
Report news: 2022-12-13 PR-183817 RON SPEC_DET consistently high. Threshold adapted to reflect, and make the scoring of anomalous relevant again. [wdewit@eso.org]
DATE*: [?] 2024-11-16
report | NLT 		2024-11-17
report | NLT 		2024-11-18
report | NLT 		2024-11-19
report | NLT 		2024-11-20
report | NLT 		2024-11-21
report | NLT 		2024-11-22
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 13.8 ADU VAL10,20 90 ron2 this | last_yr | all read-out-noise of the imaging detector
2 •QC1DB MEDIAN 18.5 ADU VAL11,26.2 89 ron2 this | last_yr | all read-out-noise of the spectroscopic detector
*Data sources: QC1DB: QC1 database; LOCAL: local data source

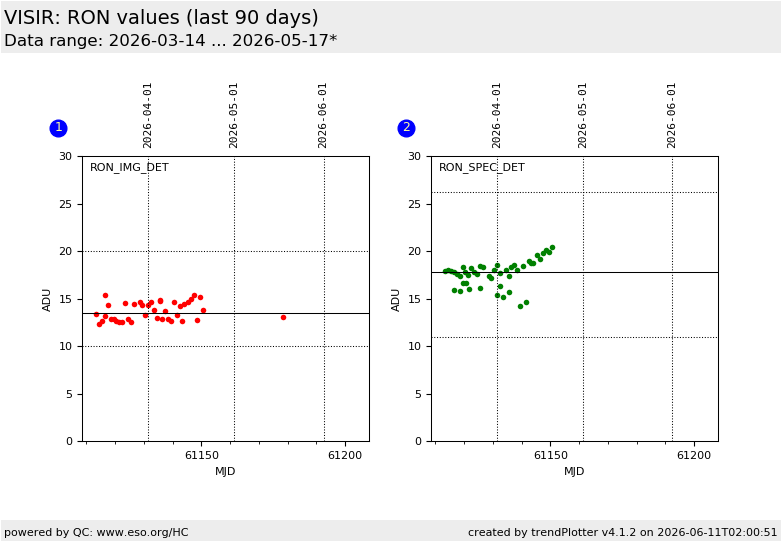

Plot 1
scores: 9|
data source:visir_dark_img
(QC1 database)
dataset:ron2•
median:13.8ADU
fixed thresholds:10...20ADU
N_data plotted:90
[click plot for closeup]
Plot 2
scores: 8|
data source:visir_dark_spc
(QC1 database)
dataset:ron2•
median:18.5ADU
fixed thresholds:11...26.2ADU
N_data plotted:89
[click plot for closeup]
This plot

Trending plot monitoring the read-out-noise (RON) measured from the raw(3)-raw(2) difference frame.

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
