| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | kmos_wave.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- October 2013 1.0.1 -- usage of funtion get_keyval (2013-12-11) 1.0.2 -- create all 2D plots only on demand, option --all (2014-01-10) 1.0.3 -- usage of qc_imaovw instead of kmos_mstovw (2014-01-28) 1.0.4 -- usage of argparse module (2014-03-07) 1.0.5 -- count number of failures of wavelength solution (2014-03-24) | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/WAVE/$DATE /home/python/kmos_wave.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | KMOS | |||||||||||||||||||||||||||
| RAWTYPE | WAVE | |||||||||||||||||||||||||||
| PURPOSE | QC check of raw and product arc-lamp exposures | |||||||||||||||||||||||||||
| PROCINPUT | raw and product arc-lamp frames | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: kmos_wave | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_FWHM_Ar_IZ_HC.html | trend_report_FWHM_Ar_YJ_HC.html | trend_report_FWHM_Ar_H_HC.html | trend_report_FWHM_Ar_HK_HC.html | trend_report_FWHM_Ar_K_HC.html | trend_report_FWHM_Ne_IZ_HC.html | trend_report_FWHM_Ne_YJ_HC.html | trend_report_FWHM_Ne_H_HC.html | trend_report_FWHM_Ne_HK_HC.html | trend_report_FWHM_Ne_K_HC.html | trend_report_WAVEPOS_IZ_HC.html | trend_report_WAVEPOS_YJ_HC.html | trend_report_WAVEPOS_H_HC.html | trend_report_WAVEPOS_HK_HC.html | trend_report_WAVEPOS_K_HC.html | trend_report_ARCLAMP_Ar_HC.html | trend_report_ARCLAMP_Ne_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: wave_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

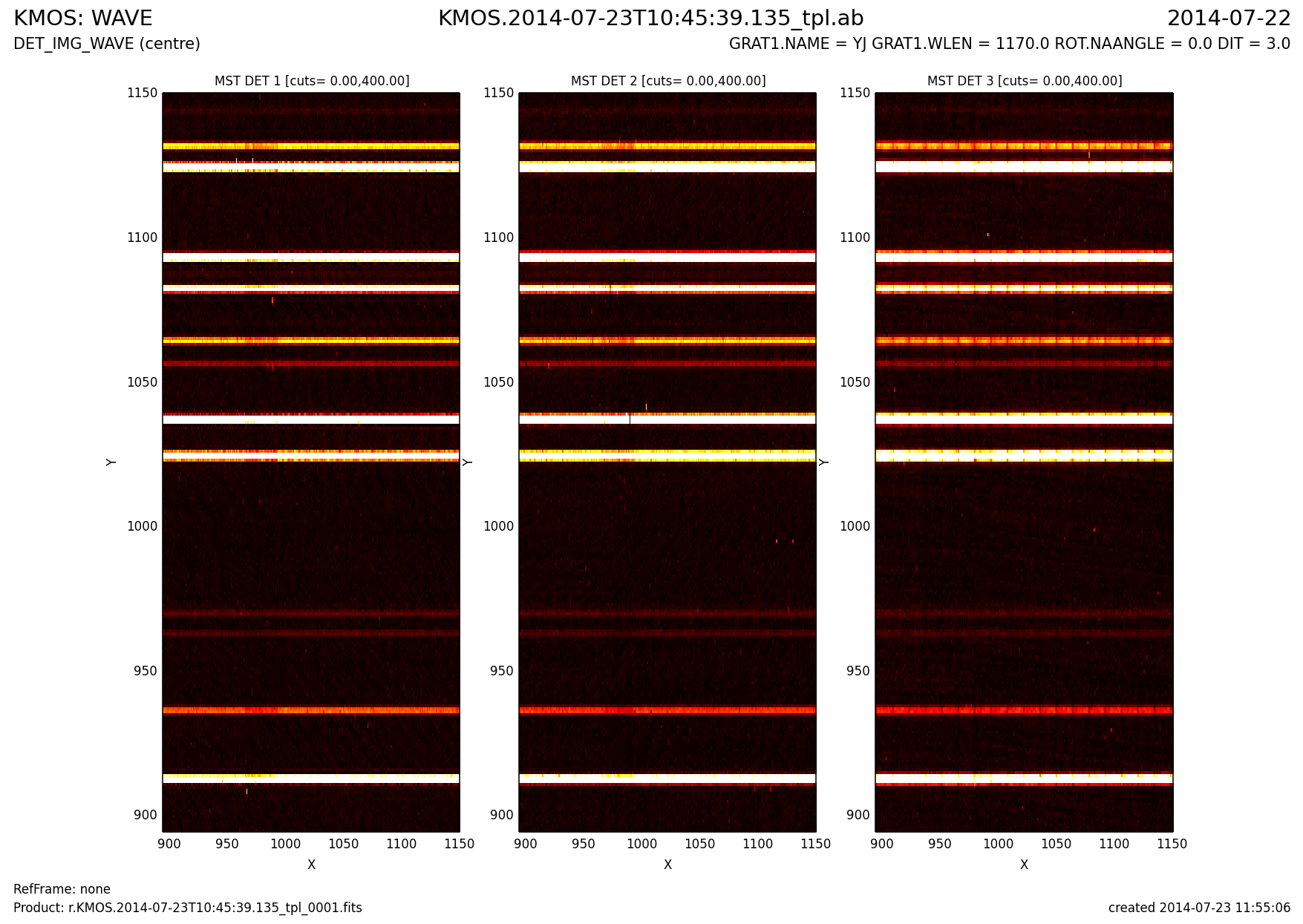

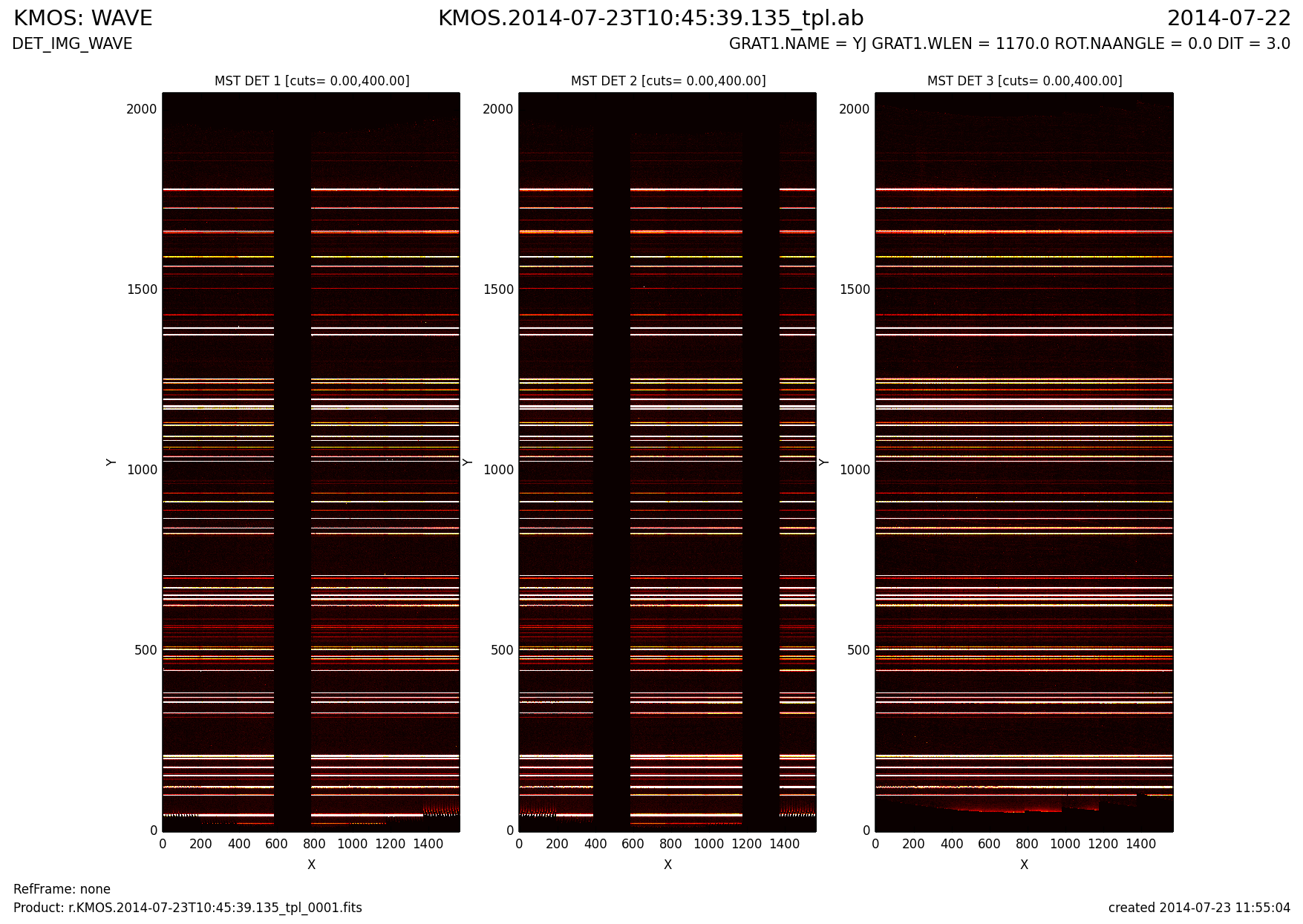

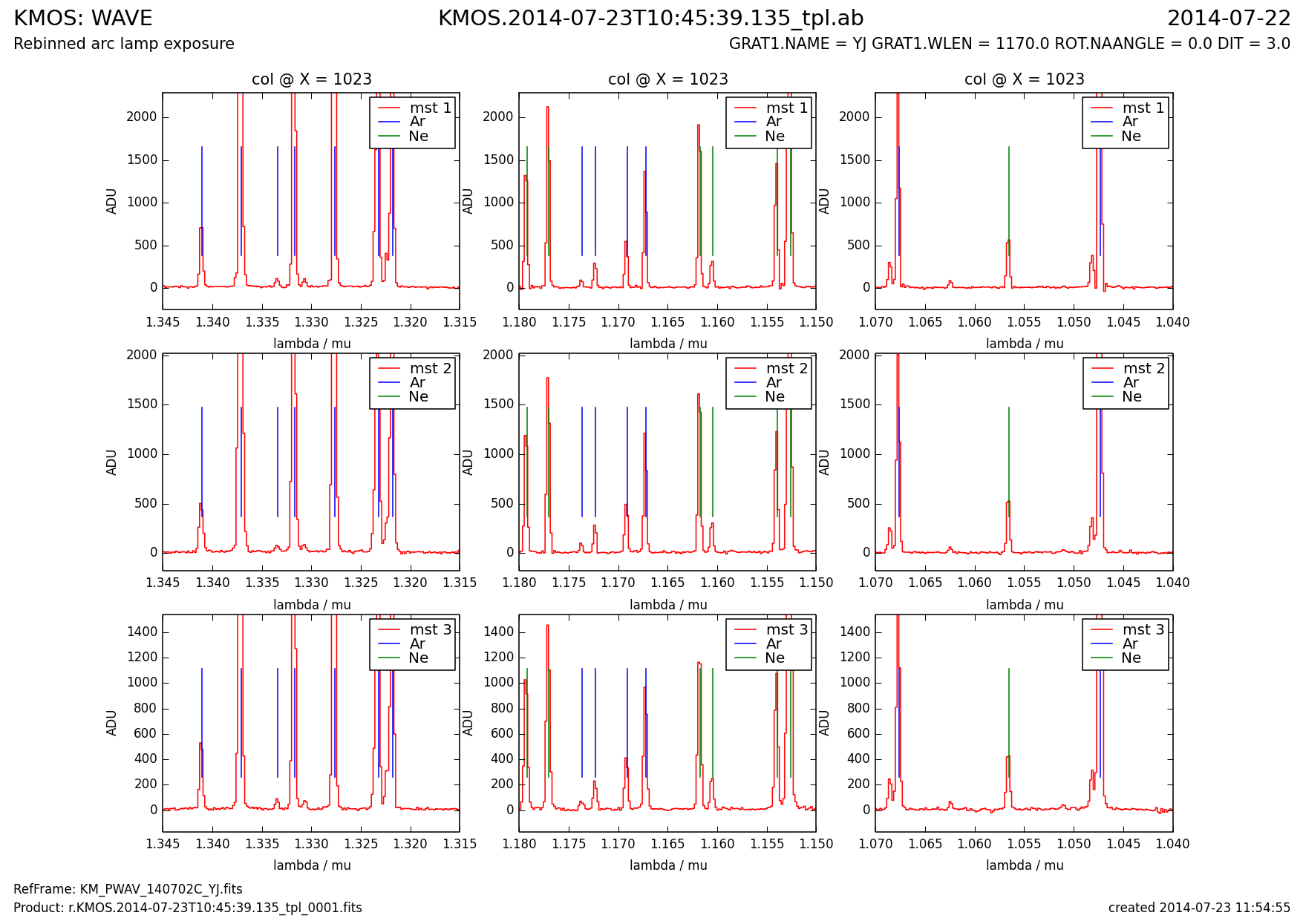

wave0.png Overview plot for all detectors and up to six rotator angles showing calibrated and rebinned arc-lamp exposures. Missing IFUs and deviating wavelength solutions can be easily detected. wave1.png calibrated and rebinned arc-lamp exposures for detectors 1, 2, and 3 Note: In this example plot, IFUs 4, 11, and 15 were not operational. wave2.png central area of calibrated and rebinned arc-lamp exposures for detectors 1, 2, and 3 wave3.png left column: cut in Y direction of calibrated arc-lamp images middle column: same, central area; including reference frame if found right column: histograms of raw frames wave4.png cut in Y direction of calibrated arc-lamp images with overplotted line positions wave5.png same, but for three enlarged areas | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: saturated_n | ar_eff_n | ne_eff_n | ar_fwhm_mean_n | ar_fwhm_stddev_n | ne_fwhm_mean_n | ne_fwhm_stddev_n | ar_pos_mean_n | ar_pos_maxdiff_n | ar_pos_maxdiff_id_n | ar_pos_stddev_n | ne_pos_mean_n | ne_pos_maxdiff_n | ne_pos_maxdiff_id_n | ne_pos_stddev_n | rot_angle_n, with n = 0, 1, ..., 6. KMOS waves are usually taken at six different rotator angles. These fill the QC parameters n = 1, ..., 6. The actual angles can be found in rot_angle_n. n = 0 is reserved for the measurement at 0 degree rotator angle. | |||||||||||||||||||||||||||
| ALGORITHM |
saturated_n: number of saturated pixels ar_eff_n: flux in e-/s of Ar lamp ne_eff_n: flux in e-/s of Ne lamp ar_fwhm_mean_n: mean FWHM of Ar lines [km/s] ar_fwhm_stddev_n: standard deviation of FWHM of Ar lines [km/s] ne_fwhm_mean_n: mean FWHM of Ne lines [km/s] ne_fwhm_stddev_n: standard deviation of FWHM of Ne lines [km/s] ar_pos_mean_n: mean position offset of Ar lines [km/s] ar_pos_maxdiff_n: maximum deviating mean position offset of Ar lines [km/s] ar_pos_maxdiff_id_n: IFU ID with maximum deviating mean position offset ar_pos_stddev_n: mean standard deviation of position offsets [km/s] ne_pos_mean_n: mean position offset of Ne lines [km/s] ne_pos_maxdiff_n: maximum deviating mean position offset of Ne lines [km/s] ne_pos_maxdiff_id_n: IFU ID with maximum deviating mean position offset ne_pos_stddev_n: mean standard deviation of position offsets [km/s] rot_angle_n: rotator angle | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: low flux of arc-lamp lines | |||||||||||||||||||||||||||
| COMMENTS | None | |||||||||||||||||||||||||||
