| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | kmos_acq.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- October 2013 1.0.1 -- suppress QC1 parameters from sky IFUs of STD acquisitions (2013-10-10) 1.0.2 -- add num_obj QC1 parameter (2013-10-21) 1.0.3 -- only use QC1 parameters from IFUs that are actually used for acquisition; avoid plotting of sky IFUs (2013-10-30) 1.0.4 -- suppress fit values outside FOV and from fake objects with very low intensity (2013-11-12) 1.0.5 -- write FIT.RADIUS.X and FIT.RADIUS.Y values into ASCII table for testing (2013-11-13) 1.0.6 -- usage of qc_imaovw instead of kmos_ifudsp (2014-01-28) 1.0.7 -- usage of argparse module (2014-03-10) 1.0.8 -- set dpr_catg=ACQUISITION for database table (2014-08-08) 1.0.9 -- take centroids from ARM.TYPE 'R' and also from 'O' (2014-08-13) | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/ACQUISITION/$DATE /home/python/kmos_acq.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | KMOS | |||||||||||||||||||||||||||
| RAWTYPE | ACQUISITION | |||||||||||||||||||||||||||
| PURPOSE | QC check of acquisition exposures | |||||||||||||||||||||||||||
| PROCINPUT | reconstructed acquisition frames | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: kmos_acq | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_ACQ_XCENT_1_HC.html | trend_report_ACQ_XCENT_2_HC.html | trend_report_ACQ_XCENT_3_HC.html | trend_report_ACQ_YCENT_1_HC.html | trend_report_ACQ_YCENT_2_HC.html | trend_report_ACQ_YCENT_3_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: acq_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

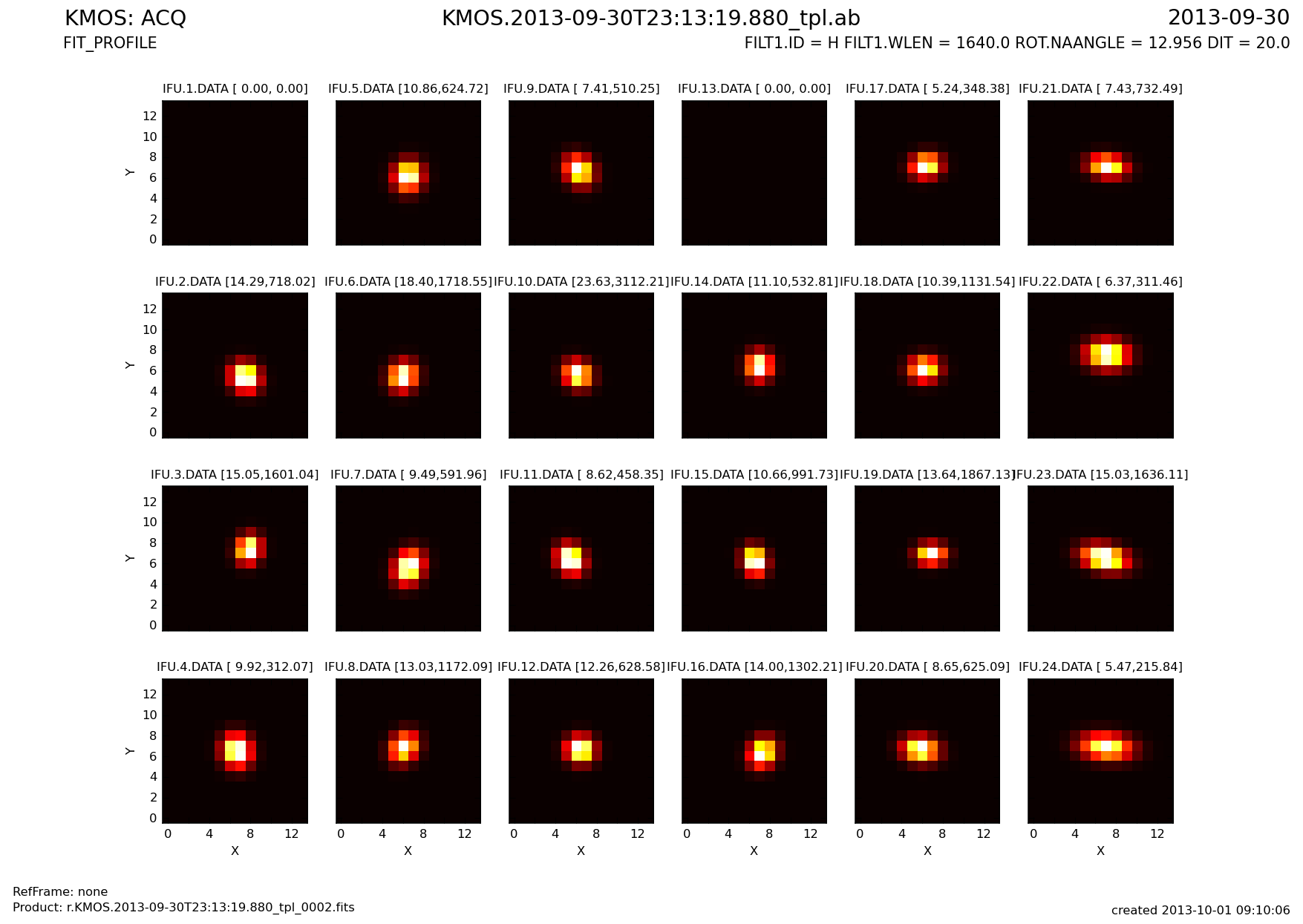

acq1.png reconstructed images for 24 IFUs; not all IFUs are always used for acquisition | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: fit_xcent_ifu01 | ... | fit_xcent_ifu24 fit_ycent_ifu01 | ... | fit_ycent_ifu24 | |||||||||||||||||||||||||||
| ALGORITHM |
fit_xcent_ifun: x centroid of target in IFUn fit_ycent_ifun: y centroid of target in IFUn | |||||||||||||||||||||||||||
| CERTIF | Acquisition frames are processed for trending purposes. Only frames without any targets or with an obvious malfunctioning of the instrument would be rejected and the QC1 parameters hidden. | |||||||||||||||||||||||||||
| COMMENTS | None | |||||||||||||||||||||||||||
