| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | kmos_std.py | |||||||||||||||||||||||||||
| VERSION |
1.0 -- October 2013 1.0.1 -- change order of plots (2013-10-22) 1.0.2 -- ingest FWHM of PSF in QC1 database (2013-11-12) 1.0.3 -- only ingest throughput values from observatory standards (2013-11-18) 1.0.4 -- usage of qc_imaovw instead of kmos_ifudsp (2014-01-28) 1.0.5 -- usage of argparse module (2014-03-10) 1.0.6 -- allow 60.A-9452(A) also as observatory STD for re-processing (2015-04-29) | |||||||||||||||||||||||||||
| SYNTAX | PYTHON | |||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/STD/$DATE /home/python/kmos_std.py -i -a $AB | |||||||||||||||||||||||||||
| INSTRUMENT | KMOS | |||||||||||||||||||||||||||
| RAWTYPE | STD | |||||||||||||||||||||||||||
| PURPOSE | QC check of raw and product standard star exposures | |||||||||||||||||||||||||||
| PROCINPUT | raw and product standard star frames | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: kmos_std | |||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_STD_MED_HC.html | trend_report_STD_IFU_HC.html | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: dark_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

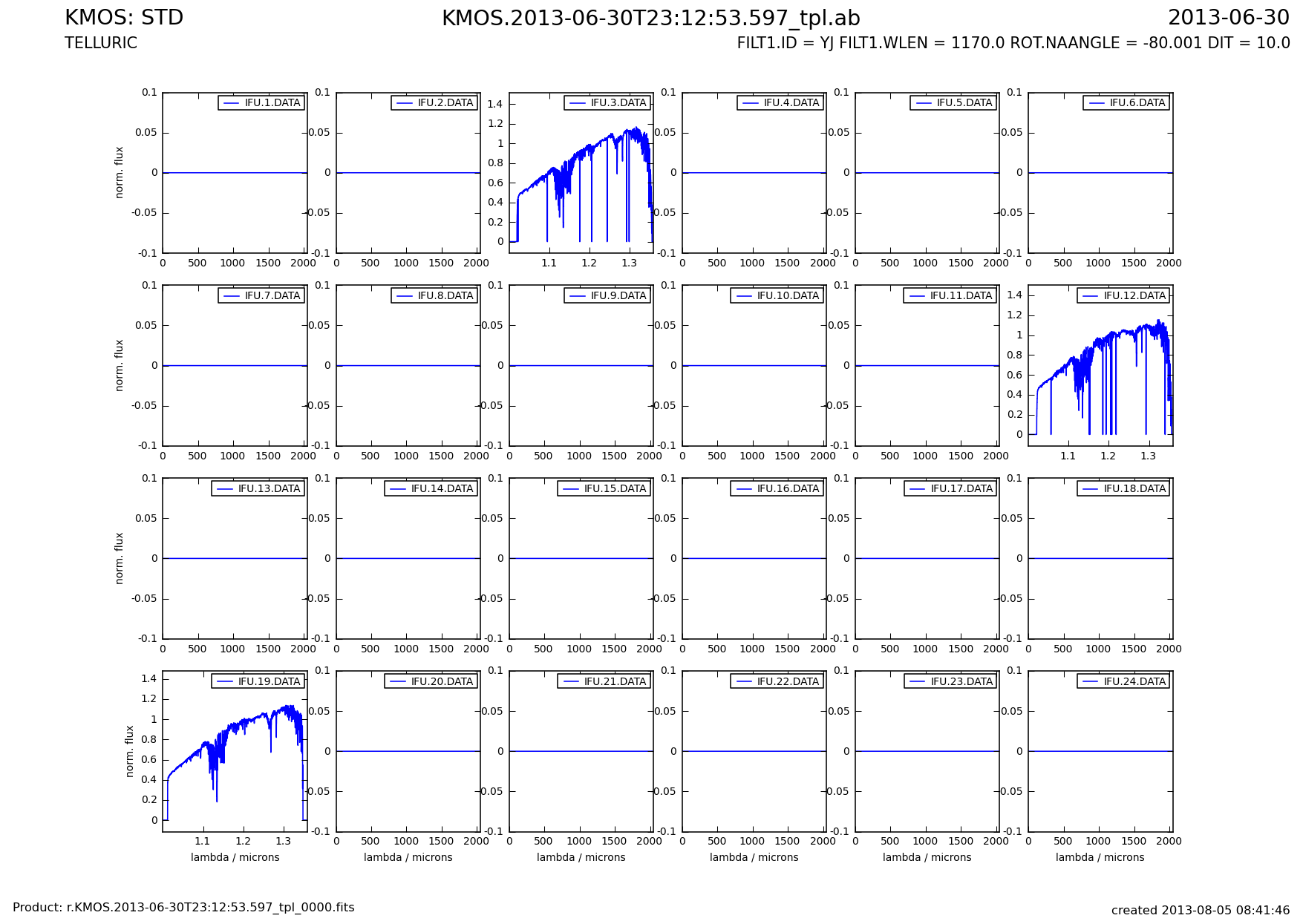

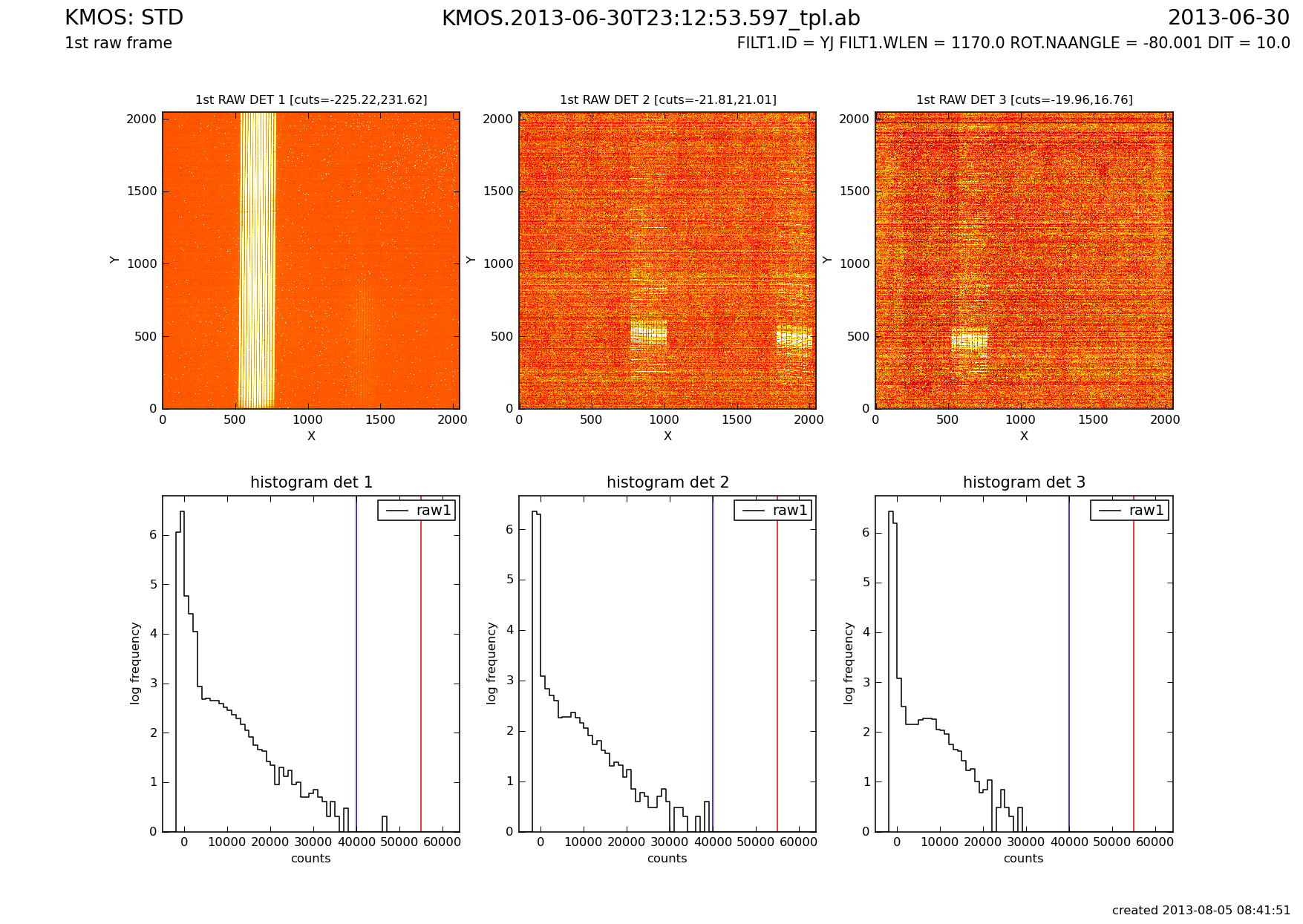

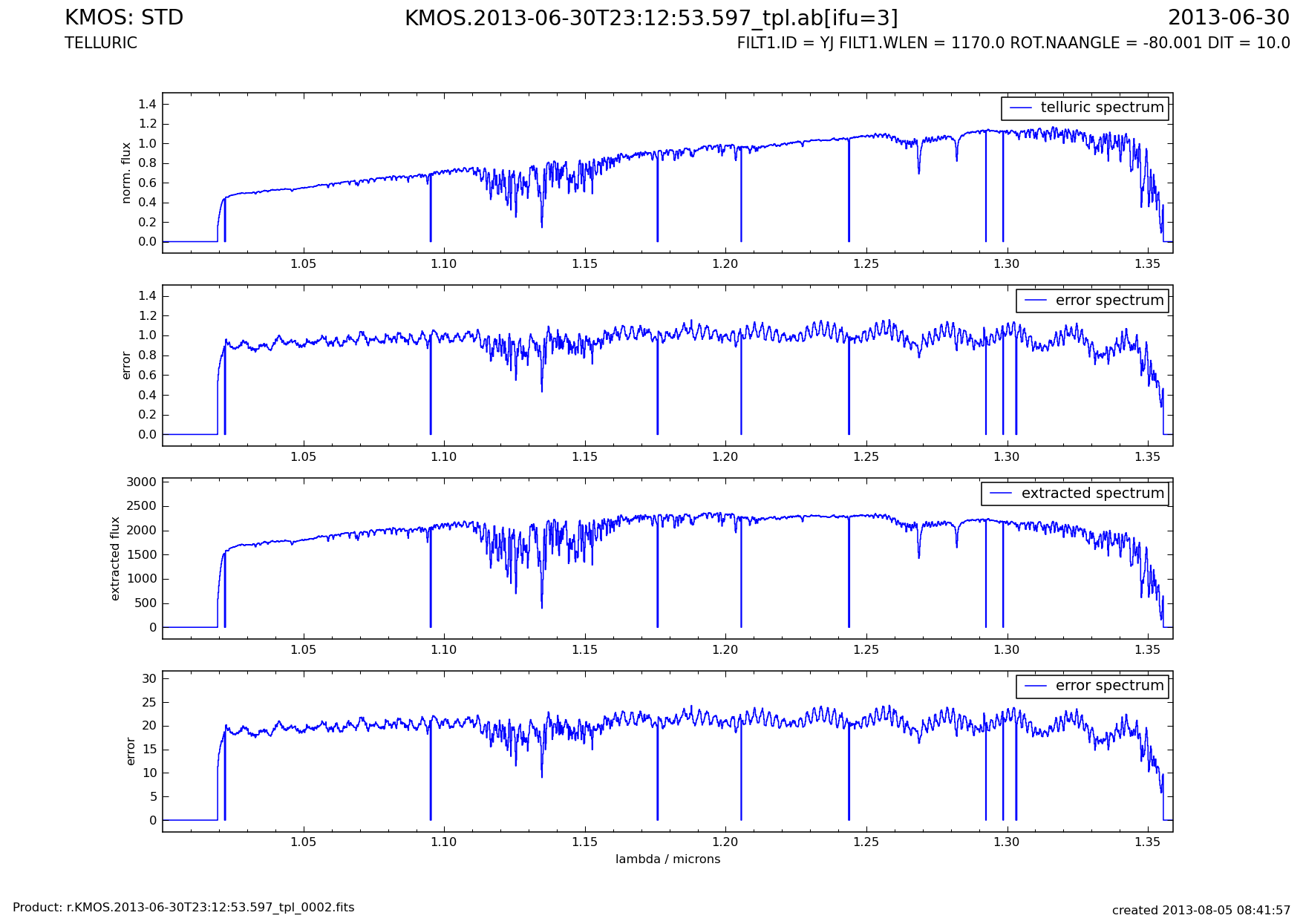

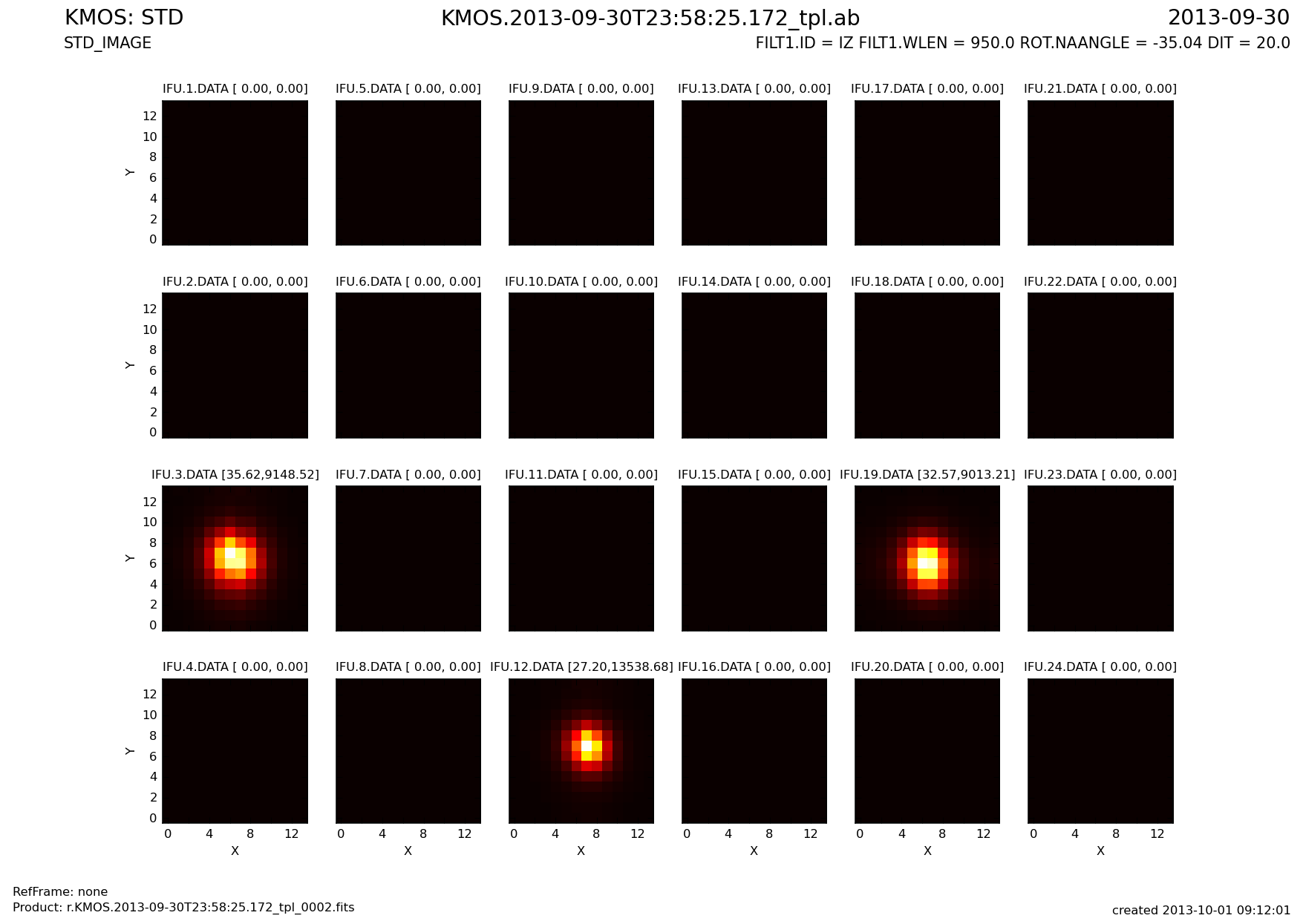

std1.png extracted and normalized spectrum from all 24 IFUs; only three IFUs are used in a typical observing sequence std2.png reconstructed images for all 24 IFUs std3.png top: first raw frame for detectors 1, 2, and 3 bottom: histograms of raw frames std4.png One plot per IFU (if IFU is used in the observation) top: normalized flux spectrum and associated errors bottom: extracted flux spectrum and associated errors | |||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: num_stars | saturated | saturation_level | through_mean | through_stddev | throughput_ifu01 | ... | throughput_ifu24 | zeropoint_ifu01 | ... | zeropoint_ifu24 | psf_fwhm_ifu01 | ... | psf_fwhm_ifu24 | |||||||||||||||||||||||||||
| ALGORITHM |
num_stars: number of standard stars in exposure sequence saturated: largest number of saturated pixels on one detector saturation_level: threshold used for saturation through_mean: throughput everaged over all active IFUs through_stddev: standard deviation of throughput values throughput_ifun: throughput for IFU n zeropoint_ifun: zeropoint for IFU n psf_fwhm_ifun: average FWHM of PSF in reconstructed image for IFU n | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: underexposed or overexposed frames | |||||||||||||||||||||||||||
| COMMENTS | None | |||||||||||||||||||||||||||
