| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | gravi_std.py | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- October 2016 1.0.1 -- changes for gravity-0.9.8 (2016-10-28) | ||||||||||||||||||||||||||||
| SYNTAX | PYTHON | ||||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/STD_SINGLE/$DATE or from $DFS_PRODUCT/STD_DUAL/$DATE /home/vimos/python/vimos_std.py -i -a $AB | ||||||||||||||||||||||||||||
| INSTRUMENT | GRAVITY | ||||||||||||||||||||||||||||
| RAWTYPE | STD_SINGLE | ||||||||||||||||||||||||||||
| PURPOSE | QC check on raw and product frames from calibrators | ||||||||||||||||||||||||||||
| PROCINPUT | raw calibrator observations and visibility product | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: gravity_vis | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_VISAMP_AT_MED_SPLIT_HC.html | trend_report_T3PHI_AT_MED_SPLIT_HC.html | trend_report_CAL_PHASEDIFF_MED_HC.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: std_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

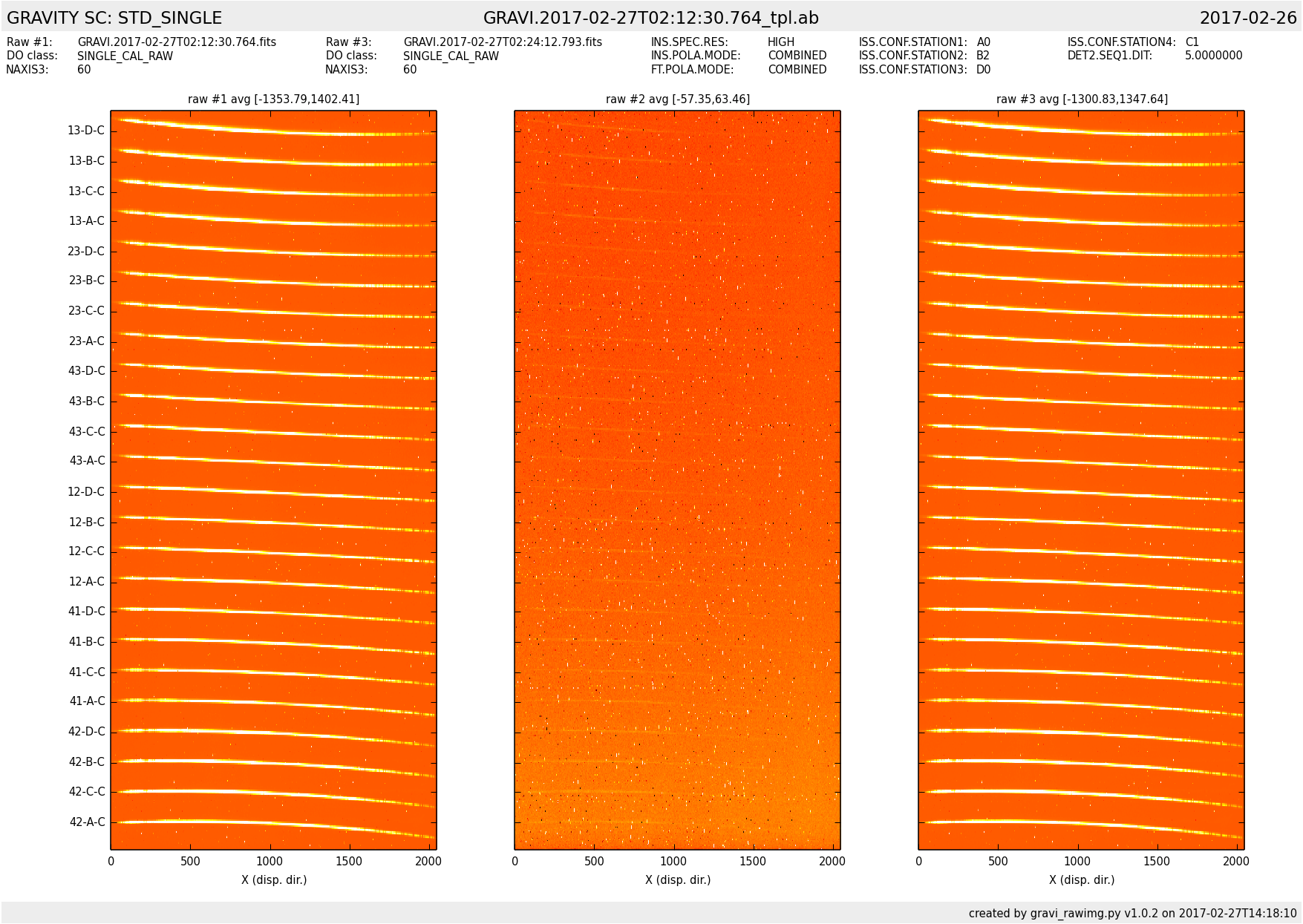

std1.png overview of raw frames, usually a sequence of object and sky exposures, e.g. object-sky-object std2.png left panels: squared visibilities over wavelength from the SC detector for the six baselines right panels: same for the FT std3.png left panels: flux from each telescope over wavelength from the SC detector right panels: same for the FT | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written in QC1 database: QC1 DB names: tf_vis2_ft12_p1/p2, etc. | tf_vis2_sc12_p1/p2, etc. | tf_visamp_ft12_p1, etc. | tf_visamp_sc12_p1, etc. | t3_phi_ft123_p1, etc. | t3_phi_sc123_p1, etc. | phasediff_ft12, etc. | phasediff_sc12, etc. | fluxrate_ft1_p1/p2, etc. | fluxrate_sc1_p1/p2, etc. | trans_ft1/2/3/4 | trans_sc1/2/3/4 All parameters are calculated by the pipeline recipe. | ||||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: tf_vis2: median transfer function squared visibilities for FT and SC, respectively, and for the six baselines, 12, 13, 14, 23, 24, and 34, and for the two polarimetric beams tf_visamp: averaged transfer function visibility amplitudes for FT and SC, respectively, for the six baselines, 12, 13, 14, 23, 24, and 34; only for P1 polarimetric beam t3_phi: closure phase, i.e. sum of the phases of three baselines inside a triangle; for the four telescope triangles 123, 124, 134, and 234, and for FT and SC, averaged over wavelength; only for P1 beam phasediff: average phase difference of the two polarimetric beams, only in case of split polarimetry fluxrate: flux in e/s from per telescope, separate for FT and SC and for the polarimetric beams trans: transmission from target to detector (e/photon), per telescope and for FT and SC | ||||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: unusual low visibility or visibility >> 1, no flux from one or more telescopes | ||||||||||||||||||||||||||||
| COMMENTS | Same script for both raw types STD_SINGLE and STD_DUAL. | ||||||||||||||||||||||||||||
