| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | |||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| bottom plots | contact | |||||||||||||||||||||||||||||
| NAME | gravi_dark.py | ||||||||||||||||||||||||||||
| VERSION |
1.0 -- October 2016 1.0.1 -- changes for gravity-0.9.8 (2016-10-26) 1.0.2 -- introduced num_overexp (2017-01-15) | ||||||||||||||||||||||||||||
| SYNTAX | PYTHON | ||||||||||||||||||||||||||||
| CALL |
processQC from $DFS_PRODUCT/P2VM/$DATE /home/vimos/python/gravi_p2vm.py -i -a $AB | ||||||||||||||||||||||||||||
| INSTRUMENT | GRAVITY | ||||||||||||||||||||||||||||
| RAWTYPE | P2VM | ||||||||||||||||||||||||||||
| PURPOSE | QC check on flat, wave, and P2VM raw and product frames | ||||||||||||||||||||||||||||
| PROCINPUT | raw FLAT, WAVE, WAVESC, and P2VM frames; associated products | ||||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: gravity_p2vm | ||||||||||||||||||||||||||||
| TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure: trend_report_P2VM_LOW_HC.html | trend_report_P2VM_MED_HC.html | trend_report_P2VM_HIGH_HC.html | trend_report_FLAT_LOW_HC.html | trend_report_PROFILE_LOW_HC.html | trend_report_FLUX_LOW_HC.htm | trend_report_WAVEPOS_LOW_HC.html | ||||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: flat_qc1.html | wave_qc1.html | p2vm_qc1.html | ||||||||||||||||||||||||||||
| QC1PLOTS top |

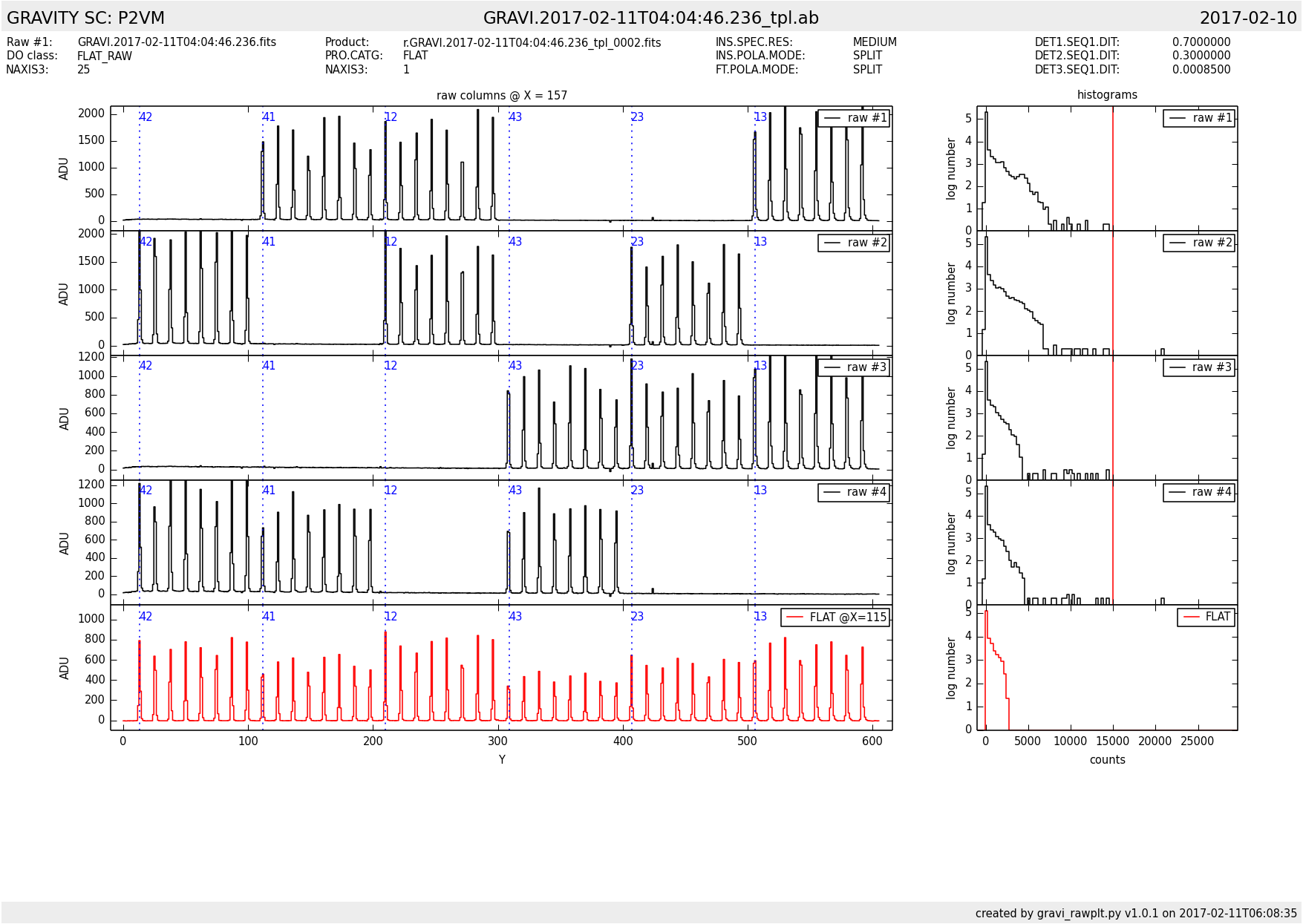

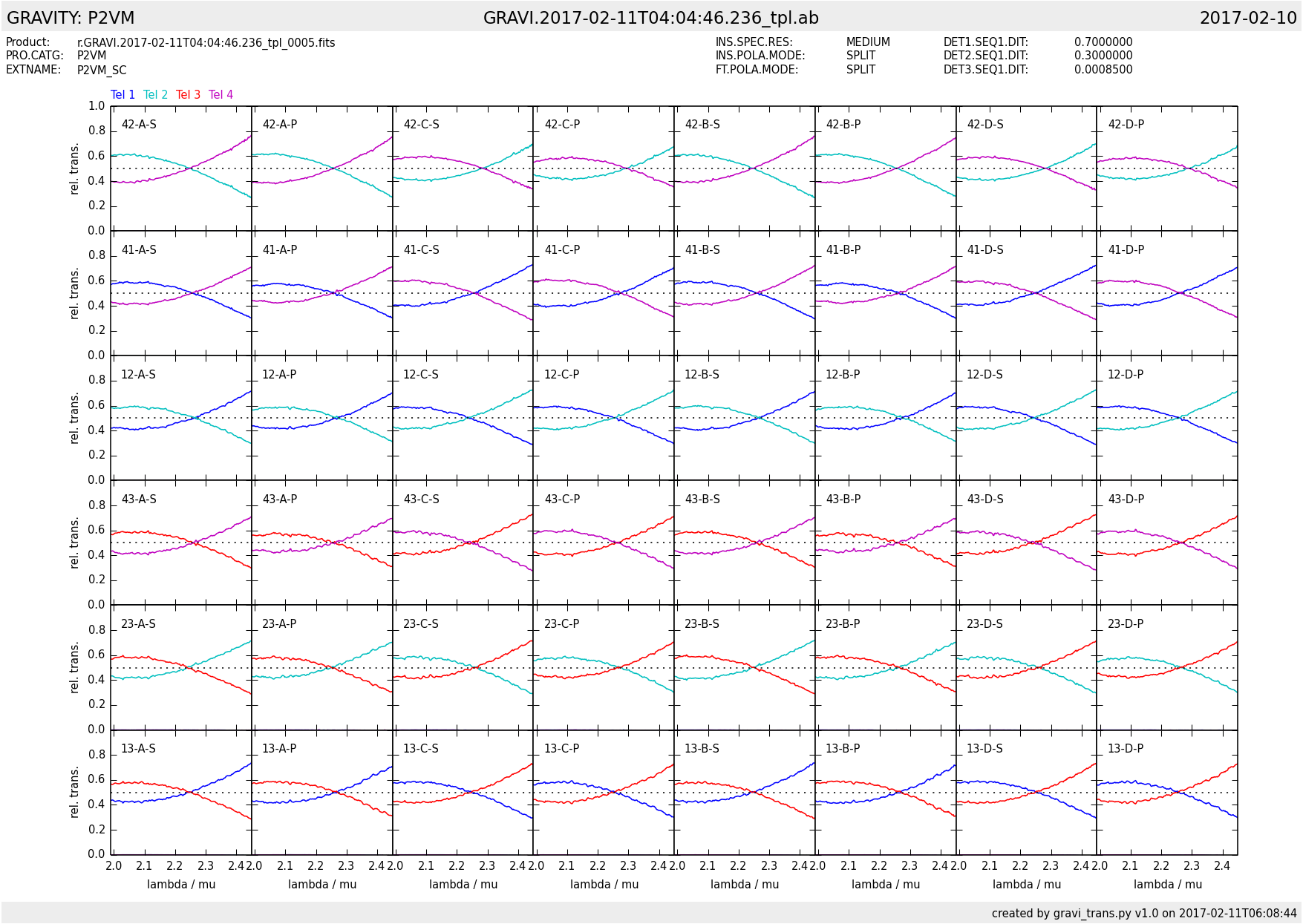

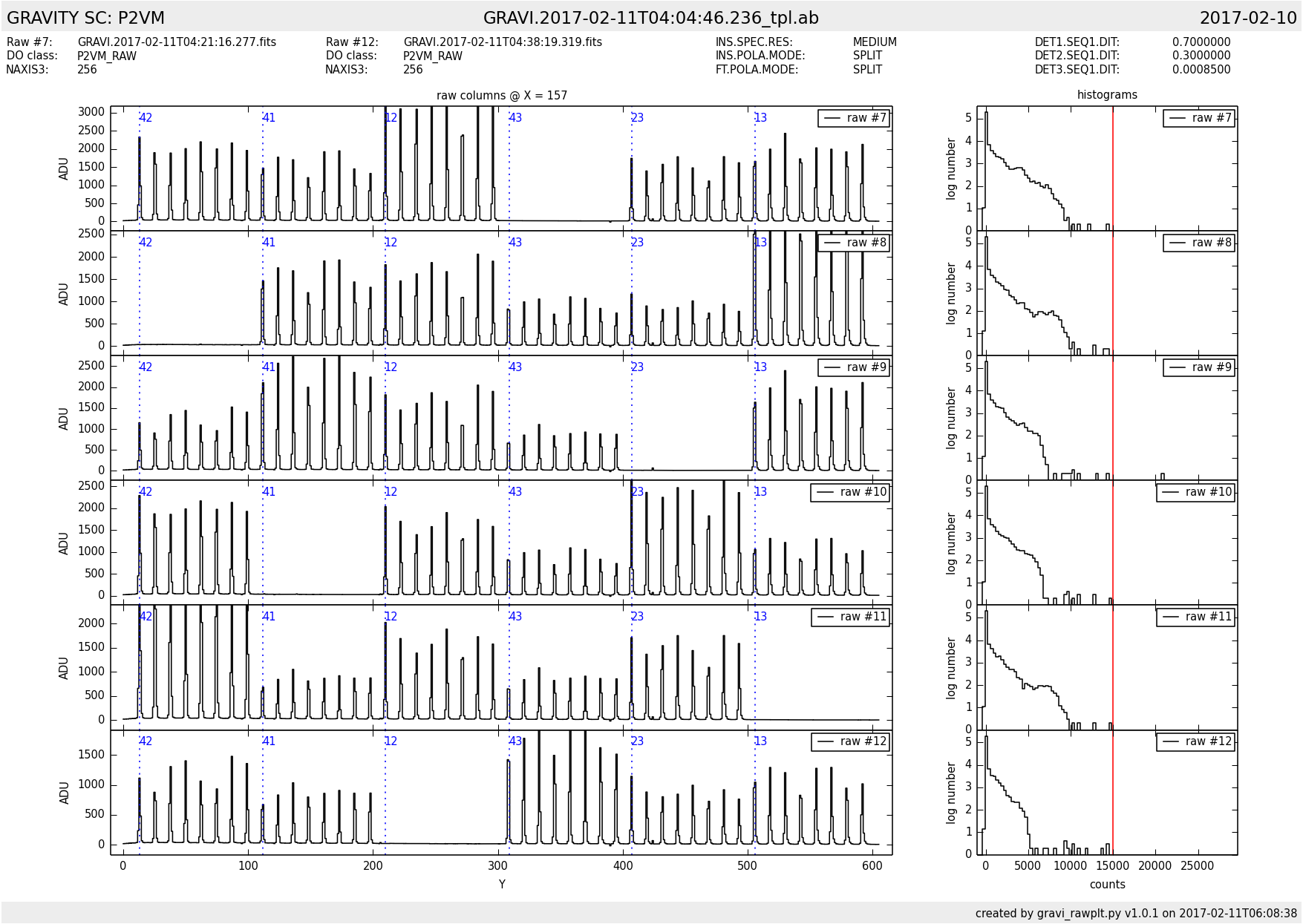

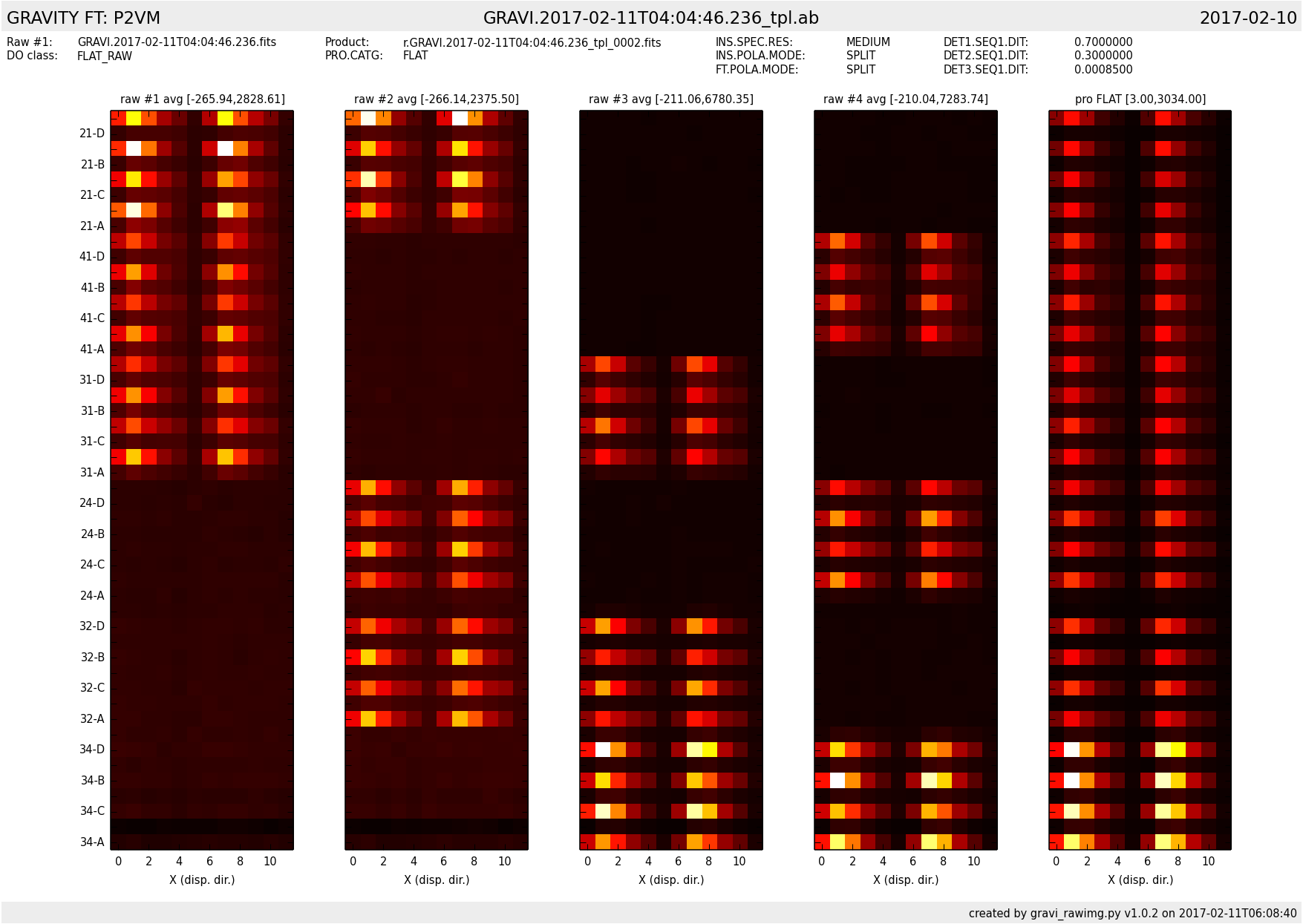

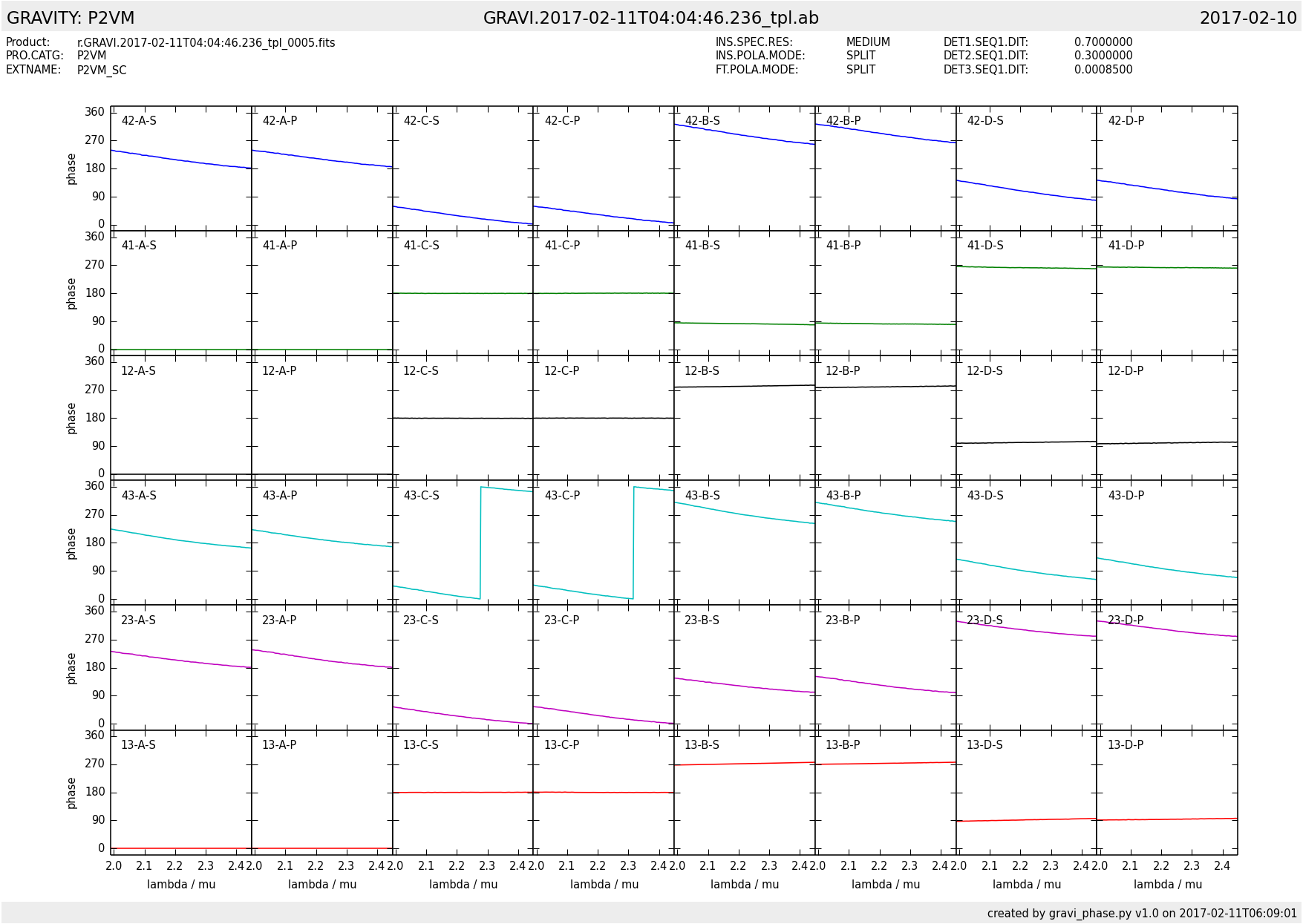

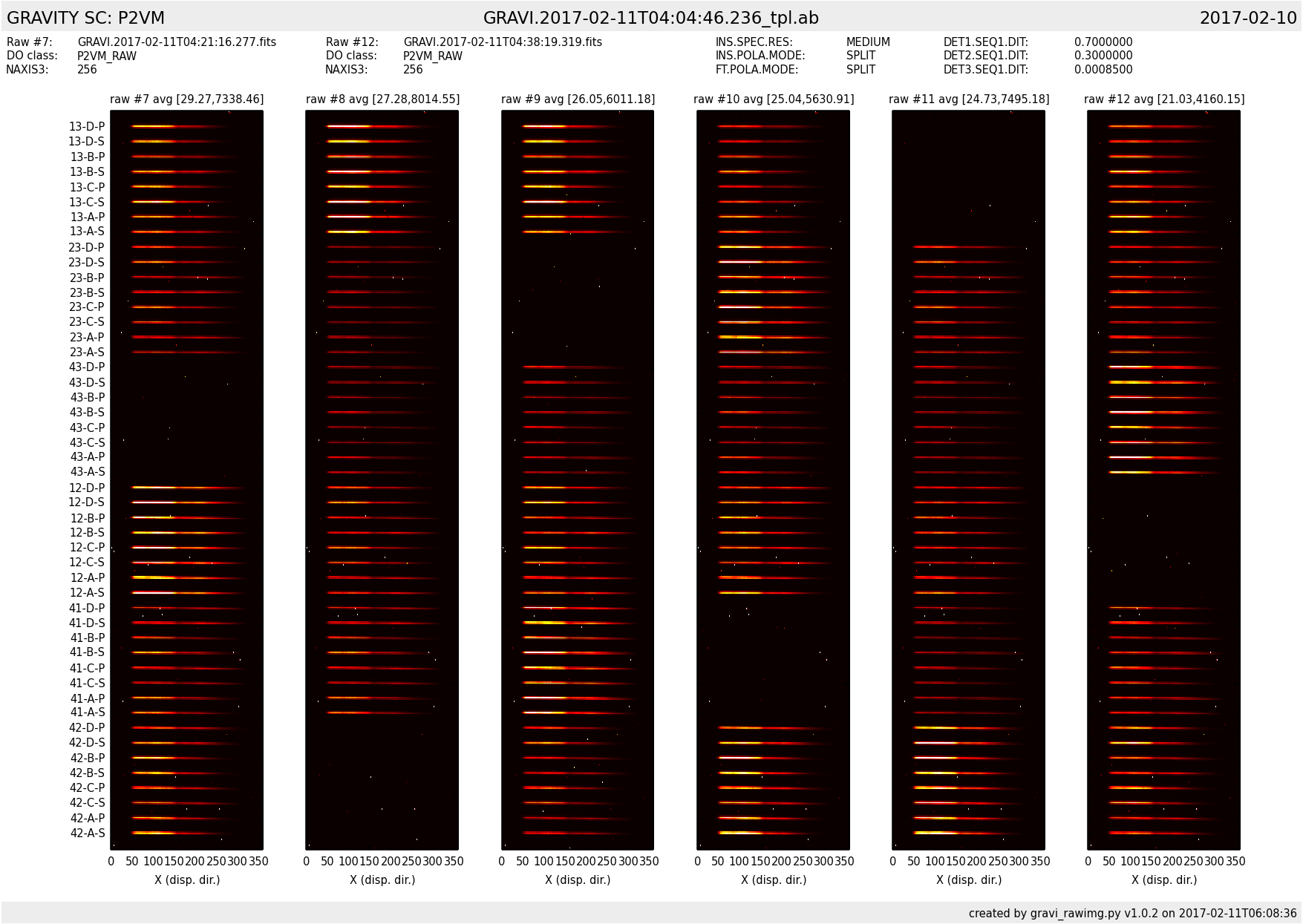

p2vm1.png panels 1 to 4: SC detector, averages of input raw flats panel 5: SC detector, combined master flat p2vm2.png top panels 1 to 4: SC detector, cuts in Y direction through input raw flats, histograms of raw frames lower panel: SC detector, cut in Y direction through master flat, histograms of master p2vm3.png panels 1 to 6: SC detector, averages of input raw P2VM frames p2vm4.png panels 1 to 6: SC detector, cuts in Y direction through input raw frames, associated histograms p2vm5.png panels 1 to 4: FT detector, averages of input raw flats panel 5: FT detector, combined master flat p2vm6.png panels 1 to 6: FT detector, averages of input raw P2VM frames p2vm7.png Relative transmission over wavelength of the two inputs for each of the six baselines, per phase (A, B, C, or D), and per polarization (S or P beam in split mode, C in combined). Similar plots for SC and FT. p2vm8.png Normalized coherence over wavelength for each of the six baselines, per phase (A, B, C, or D), and per polarization (S or P beam in split mode, C in combined). Similar plots for SC and FT. p2vm9.png Phase over wavelength for each of the six baselines, per phase (A, B, C, or D), and per polarization (S or P beam in split mode, C in combined). Similar plots for SC and FT. | ||||||||||||||||||||||||||||
| QC1PARAM |
QC1 parameters written into QC1 database (selection): QC1 DB names: badpix_ft/sc | fluxavg_ft1/2/3/4 | fluxavg_sc1/2/3/4 | refpos1_ft1/sc1 | refpos2_ft1/sc1 | coherence_avg_ft/sc | phaserms_ft/sc | coherence_ft12/sc12 | mincoher_ft12/sc12 | ||||||||||||||||||||||||||||
| ALGORITHM |
Description of algorithms: badpix_ft/sc: A pixel is regarded as bad if its dark current fulfills the condition: dark_current > meandark + threshold x darkrms. fluxavg_ft1/2/3/4 and fluxavg_sc1/2/3/4: Flux from calibration unit in e-/s. Separated for FT and SC data, and for inputs 1 to 4. The two polarimetric beams in split polarimetry are added. refpos1_ft1/sc1 and refpos2_ft1/sc1: Position of the reference wavelength 1 (2.099 um) or 2 (2.313 um) on the detector in the 1st (lowest) spectrum, for FT and SC, respectively. Same for the 24th and 48th (only for split polarimetry) spectrum. coherence_avg_ft/sc: Coherence for FT and SC, averaged over the six baselines. phaserms_ft/sc: RMS of the fringe phase for FT and SC. coherence_ft12/sc12: Wavelength-averaged coherence for FT and SC, respectively, for the six baselines, 12, 13, 14, 23, 24, and 34. mincoher_ft12/sc12: Minimum coherence over the wavelength range for FT and SC, respectively, and for the six baselines. | ||||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: A good P2VM calibration should have normalized coherence above 0.85 for all baselines and wavelengths (according to consortium). The fringe phase over wavelength should be smooth. (A jump from 0 to 360 is normal.) | ||||||||||||||||||||||||||||
| COMMENTS | None | ||||||||||||||||||||||||||||
