Implements the Telemetry Subscriber business logic. More...

#include <businessLogic.hpp>

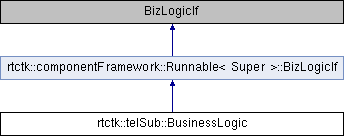

Inheritance diagram for rtctk::telSub::BusinessLogic:

Public Types
using	ComponentType = LifeCycle

using	OperationalLogicFactory = std::function< std::unique_ptr< OperationalLogicIf >(OperationalLogicFactoryParams const &)>

Public Member Functions
	BusinessLogic (const std::string &name, componentFramework::ServiceContainer &services, OperationalLogicFactory factory)

void	ActivityStarting (componentFramework::StopToken st) override
	Deletes the operational logic if the object exists. More...

void	ActivityInitialising (componentFramework::StopToken st) override
	Main tasks: More...

void	ActivityEnabling (componentFramework::StopToken st) override
	Main tasks: More...

void	ActivityDisabling (componentFramework::StopToken st) override
	Main tasks: More...

void	ActivityGoingRunning (componentFramework::StopToken st) override
	Main tasks: More...

void	ActivityGoingIdle (componentFramework::StopToken st) override
	Main tasks: More...

void	ActivityRunning (componentFramework::StopToken st) override
	TBC if we have anything to do here. More...


void	ActivityUpdating (componentFramework::StopToken st, componentFramework::Payload args) override
	TBD what, if anything can be updated? I can't think of anything that does not require reinitialization. More...

bool	GuardUpdatingAllowed (componentFramework::Payload args) override

Public Member Functions inherited from rtctk::componentFramework::Runnable< Super >::BizLogicIf
virtual void	ActivityRecovering (StopToken st)

Protected Member Functions
template<typename T >
void	GetParam (const rtctk::componentFramework::DataPointPath &path, T &value)
	Helper method to fetch and log datapoint values loaded from the Runtime Repository. More...

template<typename T >
bool	GetOptionalParam (const rtctk::componentFramework::DataPointPath &path, T &value)
	Helper method similar to GetParam, except no exceptions are thrown if the path does not exit and the value is not modified. More...

std::optional< numapp::NumaPolicies >	LoadNumaPolicies (const rtctk::componentFramework::DataPointPath &path)
	Helper method that builds full path and logs loaded configuration. More...

Protected Attributes
std::string	m_name

rtctk::componentFramework::RuntimeRepoIf &	m_rtr

OperationalLogicFactory	m_operational_logic_factory

std::unique_ptr< OperationalLogicIf >	m_operational_logic
	Operational logic constructed during Initialization with parameters from configuration. More...

Detailed Description

Implements the Telemetry Subscriber business logic.

Member Typedef Documentation

◆ ComponentType

using rtctk::telSub::BusinessLogic::ComponentType = LifeCycle

◆ OperationalLogicFactory

using rtctk::telSub::BusinessLogic::OperationalLogicFactory = std::function<std::unique_ptr<OperationalLogicIf>(OperationalLogicFactoryParams const&)>

Constructor & Destructor Documentation

◆ BusinessLogic()

BusinessLogic::BusinessLogic	(	const std::string &	name,
		componentFramework::ServiceContainer &	services,
		OperationalLogicFactory	factory
	)

Member Function Documentation

◆ ActivityDisabling()

void BusinessLogic::ActivityDisabling ( componentFramework::StopToken st )

override

Main tasks:

Deletes OperationalLogic

Requires re-initialization to re-enter Operational.

◆ ActivityEnabling()

void BusinessLogic::ActivityEnabling ( componentFramework::StopToken st )

override

Main tasks:

Starts subscribing to DDS topics (but discards any received samples) (TBC, might be already done in Initializing to simplify).

◆ ActivityGoingIdle()

void BusinessLogic::ActivityGoingIdle ( componentFramework::StopToken st )

overridevirtual

Main tasks:

Delegate to OperationalLogic that it should pause.

Reimplemented from rtctk::componentFramework::Runnable< Super >::BizLogicIf.

◆ ActivityGoingRunning()

void BusinessLogic::ActivityGoingRunning ( componentFramework::StopToken st )

overridevirtual

Main tasks:

Delegate to OperationalLogic that it should run.

Reimplemented from rtctk::componentFramework::Runnable< Super >::BizLogicIf.

◆ ActivityInitialising()

void BusinessLogic::ActivityInitialising ( componentFramework::StopToken st )

override

Main tasks:

Loads configuration.
Creates OperationalLogic using provided factory.

◆ ActivityRunning()

void BusinessLogic::ActivityRunning ( componentFramework::StopToken st )

overridevirtual

TBC if we have anything to do here.

Reimplemented from rtctk::componentFramework::Runnable< Super >::BizLogicIf.

◆ ActivityStarting()

void BusinessLogic::ActivityStarting ( componentFramework::StopToken st )

override

Deletes the operational logic if the object exists.

When the Reset command is received and the Starting activity is executed, we need to delete the operational logic object that might already exist, because the component has already been initialised. If the component is starting for the first time then there is nothing to do.

Parameters

st	This parameter is ignored.

◆ ActivityUpdating()

void BusinessLogic::ActivityUpdating	(	componentFramework::StopToken	st,
		componentFramework::Payload	args
	)

override

TBD what, if anything can be updated? I can't think of anything that does not require reinitialization.

◆ GetOptionalParam()

template<typename T >

bool rtctk::telSub::BusinessLogic::GetOptionalParam	(	const rtctk::componentFramework::DataPointPath &	path,
		T &	value
	)

inlineprotected

Helper method similar to GetParam, except no exceptions are thrown if the path does not exit and the value is not modified.

Returns: true if the datapoint exists and false otherwise.

◆ GetParam()

template<typename T >

void rtctk::telSub::BusinessLogic::GetParam	(	const rtctk::componentFramework::DataPointPath &	path,
		T &	value
	)

inlineprotected

Helper method to fetch and log datapoint values loaded from the Runtime Repository.

◆ GuardUpdatingAllowed()

bool BusinessLogic::GuardUpdatingAllowed ( componentFramework::Payload args )

override

◆ LoadNumaPolicies()

std::optional< numapp::NumaPolicies > BusinessLogic::LoadNumaPolicies ( const rtctk::componentFramework::DataPointPath & path )

protected

Helper method that builds full path and logs loaded configuration.

Member Data Documentation

◆ m_name

std::string rtctk::telSub::BusinessLogic::m_name

protected

◆ m_operational_logic

std::unique_ptr<OperationalLogicIf> rtctk::telSub::BusinessLogic::m_operational_logic

protected

Operational logic constructed during Initialization with parameters from configuration.

◆ m_operational_logic_factory

OperationalLogicFactory rtctk::telSub::BusinessLogic::m_operational_logic_factory

protected

◆ m_rtr

rtctk::componentFramework::RuntimeRepoIf& rtctk::telSub::BusinessLogic::m_rtr

protected

The documentation for this class was generated from the following files:

reusableComponents/telSub/lib/src/include/rtctk/telSub/businessLogic.hpp
reusableComponents/telSub/lib/src/businessLogic.cpp
