rtctk::componentFramework::RepositorySubscriberIf Class Reference

Abstract interface providing subscription facilities for a repository. More...

#include <repositorySubscriberIf.hpp>

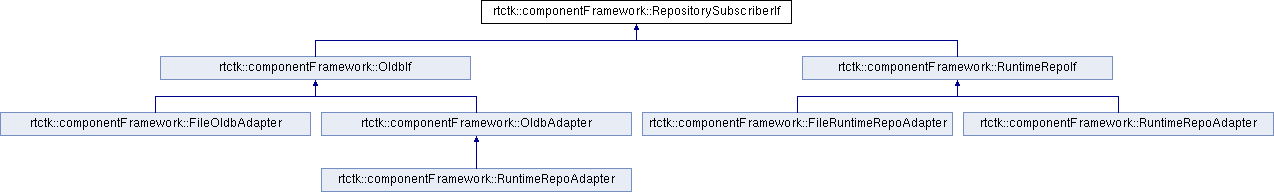

Inheritance diagram for rtctk::componentFramework::RepositorySubscriberIf:

Classes
class	SubscribeRequest
	A request object to pass information about datapoints to subscribe to. More...
class	UnsubscribeRequest
	A request object to pass information about datapoints to unsubscribe from. More...

Public Member Functions
virtual	~RepositorySubscriberIf ()
virtual RepositoryIf::Response	SendSubscribeRequest (const SubscribeRequest &request) const =0
	This is called to asynchronously send a subscription request for datapoints. More...
virtual RepositoryIf::Response	SendUnsubscribeRequest (const UnsubscribeRequest &request) const =0
	This is called to asynchronously send a request to unsubscribe from various notifications. More...
template<typename T , typename F >
void	Subscribe (const DataPointPath &path, T &buffer, F handler) const
	A convenience template function that will register a callback to receive new datapoint values in a synchronous manner. More...
void	Unsubscribe (const DataPointPath &path) const
	A simple convenience function that will deregister all callbacks for receiving new datapoint values. More...

Detailed Description

Abstract interface providing subscription facilities for a repository.

Thread Safety

thread-safe

Constructor & Destructor Documentation

~RepositorySubscriberIf()

rtctk::componentFramework::RepositorySubscriberIf::~RepositorySubscriberIf ( )

virtual

Member Function Documentation

SendSubscribeRequest()

virtual RepositoryIf::Response rtctk::componentFramework::RepositorySubscriberIf::SendSubscribeRequest ( const SubscribeRequest &  request ) const

pure virtual

This is called to asynchronously send a subscription request for datapoints.

One or more datapoints can be subscribed to by constructing a SubscribeRequest object and sending it to the repository service with this method. A typical usage is indicated in the following code sample:

void OnRemoved(const DataPointPath& path) {
  ...
}
void OnNewValue(const DataPointPath& path, int64_t& buffer) {
  ...
}

RepositorySubscriberIf& repo = ...;
int64_t buffer = ...;
SubscribeRequest request;
request.AddRemoveHandler("/test/datapoint"_dppath, OnRemoved);
request.AddNewValueHandler("/test/datapoint"_dppath, buffer, OnNewValue);
auto response = repo.SendSubscribeRequest(request);
  ... can do some work here ...
response.Wait();

Note

One must not access the buffers added to a SubscribeRequest object once SendSubscribeRequest has been invoked. At least not without using some form of synchronisation, e.g. a mutex, since the buffers will be updated asynchronously in different threads to the one used by the caller.

Parameters

[in]

request

The subscription request to send to the repository.

Returns

A response object (a future) that is used to wait for completion of the request.

Thread Safety

thread-safe

Exception Safety

basic

Implemented in rtctk::componentFramework::FileRuntimeRepoAdapter, rtctk::componentFramework::OldbAdapter, and rtctk::componentFramework::FileOldbAdapter.

SendUnsubscribeRequest()

virtual RepositoryIf::Response rtctk::componentFramework::RepositorySubscriberIf::SendUnsubscribeRequest ( const UnsubscribeRequest &  request ) const

pure virtual

This is called to asynchronously send a request to unsubscribe from various notifications.

One can stop receiving notifications for one or more datapoints by constructing a UnsubscribeRequest object and sending it to the repository service with this method. A typical usage is indicated in the following code sample:

void OnRemoved(const DataPointPath& path) {
  ...
}
void OnNewValue(const DataPointPath& path, int64_t& buffer) {
  ...
}

RepositorySubscriberIf& repo = ...;
UnsubscribeRequest request;
request.AddRemoveHandler("/test/datapoint"_dppath);
request.AddNewValueHandler("/test/datapoint"_dppath);
auto response = repo.SendUnsubscribeRequest(request);
  ... can do some work here ...
response.Wait();

Parameters

[in]

request

The request to send to the repository.

Returns

A response object (a future) that is used to wait for completion of the request.

Thread Safety

thread-safe

Exception Safety

basic

Implemented in rtctk::componentFramework::FileRuntimeRepoAdapter, rtctk::componentFramework::OldbAdapter, and rtctk::componentFramework::FileOldbAdapter.

Subscribe()

template<typename T , typename F >

void rtctk::componentFramework::RepositorySubscriberIf::Subscribe	(	const DataPointPath &	path,
		T &	buffer,
		F	handler
	)		const

A convenience template function that will register a callback to receive new datapoint values in a synchronous manner.

This function can be used for simple cases to register a callback function that will be called when a new datapoint value is received. The buffer will be filled with the new value before invoking the callback. For a large number of datapoints it is better to use the SendSubscribeRequest method.

Note

This method blocks until the registration has been completed for the datapoint.

Parameters

[in]	path	The path of the datapoint to subscribe to.
[in]	handler	A handler function, lambda or functional to invoke. It must have a signature compatible with void(const DataPointPath& path) .

Thread Safety

thread-safe

Exception Safety

basic

Unsubscribe()

void rtctk::componentFramework::RepositorySubscriberIf::Unsubscribe

(

const DataPointPath &

path

)

const

A simple convenience function that will deregister all callbacks for receiving new datapoint values.

This function can be used for simple cases to deregister all callback functions in a synchronous manner. For a large number of unsubscriptions it is better to use the SendUnsubscribeRequest method.

Note

This method blocks until the deregistration has been completed for the datapoint.

Parameters

[in]

path

The path of the datapoint to unsubscribe from.

Thread Safety

thread-safe

Exception Safety

basic

---

The documentation for this class was generated from the following files:

• componentFramework/services/common/src/include/rtctk/componentFramework/repositorySubscriberIf.hpp
• componentFramework/services/common/src/repositorySubscriberIf.cpp
