Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
0.0808 |
none |
VAL | 0.04,0.15 |
6 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 1:1 |
| 1 |
• | QC1DB |
none |
|
none |
none | |
0 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 2:1 |
| 2 |
• | QC1DB |
MEDIAN |
0.13 |
none |
VAL | 0.04,0.15 |
6 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 1:1 |
| 2 |
• | QC1DB |
none |
|
none |
none | |
0 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 2:1 |
| 3 |
• | QC1DB |
MEDIAN |
0.0878 |
none |
VAL | 0.04,0.15 |
6 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 1:1 |
| 3 |
• | QC1DB |
none |
|
none |
none | |
0 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 2:1 |
| 4 |
• | QC1DB |
MEDIAN |
0.11 |
none |
VAL | 0.04,0.15 |
6 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 1:1 |
| 4 |
• | QC1DB |
none |
|
none |
none | |
0 |
efficiency3 |
this |
last_yr |
all
|
efficiency at 4500A, IFU mag 2:1 |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1
scores:  1|
| | data source: | vimos_ifu_std
(QC1 database) |
dataset:
(numbers below apply to this dataset) | efficiency3 | • |
| median: | 0.0808 | none |
| fixed thresholds: | 0.04...0.15 | none |
| N_data plotted: | 6 |
| [click plot for closeup] |
Plot 2
scores: 1|
| | data source: | vimos_ifu_std
(QC1 database) |
dataset:
(numbers below apply to this dataset) | efficiency3 | • |
| median: | 0.13 | none |
| fixed thresholds: | 0.04...0.15 | none |
| N_data plotted: | 6 |
| [click plot for closeup] |
Plot 3
scores: 1|
| | data source: | vimos_ifu_std
(QC1 database) |
dataset:
(numbers below apply to this dataset) | efficiency3 | • |
| median: | 0.0878 | none |
| fixed thresholds: | 0.04...0.15 | none |
| N_data plotted: | 6 |
| [click plot for closeup] |
Plot 4
scores: 1|
| | data source: | vimos_ifu_std
(QC1 database) |
dataset:
(numbers below apply to this dataset) | efficiency3 | • |
| median: | 0.11 | none |
| fixed thresholds: | 0.04...0.15 | none |
| N_data plotted: | 6 |
| [click plot for closeup] |

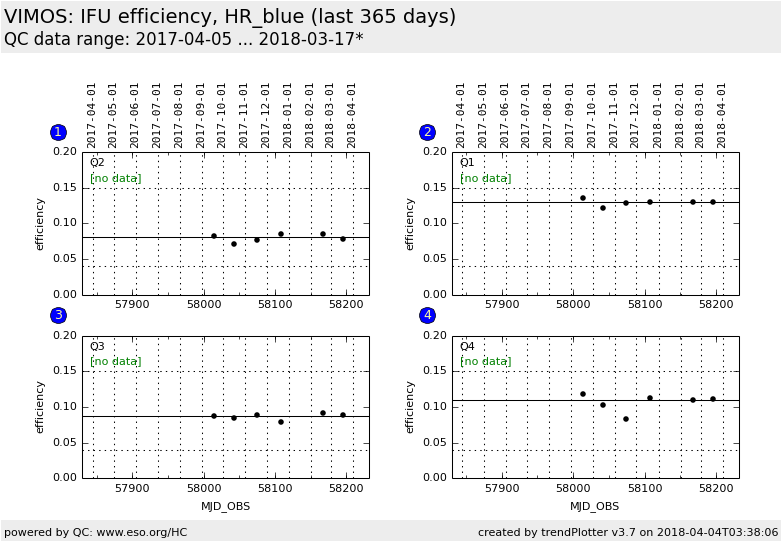

Trending plot for the overall IFU efficiency, measured using spectrophotometric standard stars.
The following settings are used:
LR_blue grism + OS-blue filter
LR_red grism + OS-red filter
MR grism + GG475 filter
HR_blue grism (without filter)
HR_orange grism + GG435 filter
HR_red grism + GG475 filter
For the MR and HR grisms, both IFU magnification configurations (1:1, 2:1) are
plotted but only 1:1 is scored.
The thresholds for scoring are set for monitoring the quality of the
individual calibration. Outliers could indicate that the measurement was done
through (thin) clouds or that background subtraction could not be done
properly due to high sky brightness in early twilight. Such measurements should be repeated.
Template ID: ifu_cal_Specphot. Pipeline recipe: vmifustandard.
Plots that show the efficiency vs. wavelength have been created by averaging
several standard star measurements. They show the efficiency
before
and
after
the 2010 instrument upgrade.
Measurements with the new HR_blue grism after
April 2012 are included
here.
