SPHERE trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2021-05-17T04:45:15 (UT)
  | now: 2024-06-30T16:24:08 (UT) muc03 QC pipeline: spher-0.42.0b (installed 2021-03-01)
same group: ResolvPow_GRI ResolvPow_PRI ArcLinFlu_GRI ArcLinFlu_PRI   Dispersion
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
The links to KMOS, UVES, and ESPRESSO have been moved to a new section (qcFlow operational) at the lower part of the navigation bar.
SPHERE news: Note that the current Health Check monitor runs with an incomplete pipeline and an incomplete set of QC1 parameters. QCG can currently not guarantee completeness and significance at the usual level.
Report news:
DATE*: [?] 2024-06-23
report | NLT 		2024-06-24
report | NLT 		2024-06-25
report | NLT 		2024-06-26
report | NLT 		2024-06-27
report | NLT 		2024-06-28
report | NLT 		2024-06-29
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 212.239 unitless none  3 respow1 this | last_yr | all slit=WL (0.12'') grism resolving power in 2.01533 mu first reddest arc line (the lowest one in the raw frame)
1 •QC1DB none   unitless none  0 respow1 this | last_yr | all slit=NL (0.09'') grism resolving power in 2.01533 mu
2 •QC1DB MEDIAN 197.654 unitless none  3 respow2 this | last_yr | all slit=WL (0.12'') grism resolving power in 1.73023 mu second arc line
2 •QC1DB none   unitless none  0 respow2 this | last_yr | all slit=NL (0.09'') grism resolving power in 1.73023 mu
3 •QC1DB MEDIAN 178.071 unitless none  3 respow3 this | last_yr | all slit=WL (0.12'') grism resolving power in 1.5451 mu third arc line
3 •QC1DB none   unitless none  0 respow3 this | last_yr | all slit=NL (0.09'') grism resolving power in 1.5451 mu
4 •QC1DB MEDIAN 149.737 unitless none  3 respow4 this | last_yr | all slit=WL (0.12'') grism resolving power in 1.3094 mu fourth arc line
4 •QC1DB none   unitless none  0 respow4 this | last_yr | all slit=NL (0.09'') grism resolving power in 1.3094 mu
5 •QC1DB MEDIAN 127.827 unitless none  3 respow5 this | last_yr | all slit=WL (0.12'') grism resolving power in 1.12371 mu fifth arc line
5 •QC1DB none   unitless none  0 respow5 this | last_yr | all slit=NL (0.09'') grism resolving power in 1.12371 mu
6 •QC1DB MEDIAN 111.827 unitless none  3 respow6 this | last_yr | all slit=WL (0.12'') grism resolving power in 0.98772 mu last (bluest) arc line
6 •QC1DB none   unitless none  0 respow6 this | last_yr | all slit=NL (0.09'') grism resolving power in 0.98772 mu
*Data sources: QC1DB: QC1 database; LOCAL: local data source

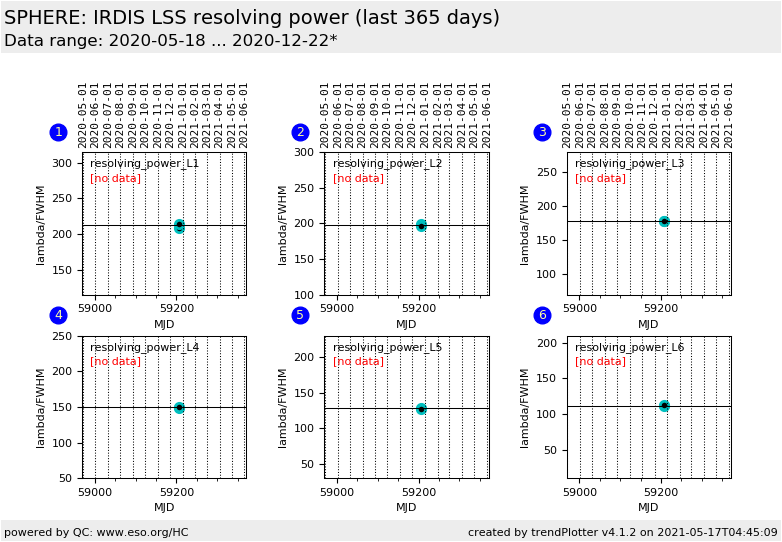

Plot 1
scores: not implemented
data source:sphere_irdis_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)		respow1•
median:212.239unitless
thresholds:none
N_data plotted:3
[click plot for closeup]
Plot 2
scores: not implemented
data source:sphere_irdis_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)		respow2•
median:197.654unitless
thresholds:none
N_data plotted:3
[click plot for closeup]
Plot 3
scores: not implemented
data source:sphere_irdis_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)		respow3•
median:178.071unitless
thresholds:none
N_data plotted:3
[click plot for closeup]
Plot 4
scores: not implemented
data source:sphere_irdis_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)		respow4•
median:149.737unitless
thresholds:none
N_data plotted:3
[click plot for closeup]
Plot 5
scores: not implemented
data source:sphere_irdis_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)		respow5•
median:127.827unitless
thresholds:none
N_data plotted:3
[click plot for closeup]
Plot 6
scores: not implemented
data source:sphere_irdis_wave
(QC1 database)
dataset:
(numbers below apply to this dataset)		respow6•
median:111.827unitless
thresholds:none
N_data plotted:3
[click plot for closeup]
This plot

For plots LSS_WAVE2 (arc line fluxes from the IRDIS LSS grism setup) and IRDIS_LSS_WAVE4 (arc line fluxes for the IRDIS LSS prism setup), the FULL version of box 3 shows the long-term behavior of the L3=1.545 mu lamp. In addition the scaled long-term behaviour of flux of the same lamp as registered in the much more frequently acquired IFS WAVE calibrations is shown, to visualize deviations of the LSS L3=1.545mu flux from the known long-term behavior.
