HAWKI trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-11-17T07:37:48 (UT)
  | now: 2024-11-17T08:19:28 (UT) muc04 QC pipeline: hawki-2.4.12 (installed 2023-06-22)
same group: Median_Dark Mean_RON Reset_Anomaly RON_vs_DIT
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
HAWKI news:
Report news:
DATE*: [?] 2024-11-10
report | NLT 		2024-11-11
no data | NLT 		2024-11-12
no data | NLT 		2024-11-13
report | NLT 		2024-11-14
report | NLT 		2024-11-15
report | NLT 		2024-11-16
report | NLT
r...
Raw CAL displays:
raw no CAL raw files no CAL raw files raw raw raw raw
P...
CAL product quality:
products no CAL products no CAL products products products products products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...                 daily/often; important to check     [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • bi-modal distribution in chip 1.
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN -0.279 ADU VAL-1,1 85 qc_dark_med this | last_yr | all median dark level, chip 4, DIT=2.0
2 •QC1DB MEDIAN -0.744 ADU VAL-1.7,0.7 85 qc_dark_med this | last_yr | all median dark level, chip 3, DIT=2.0
3 •QC1DB MEDIAN 29.1 ADU VAL-10,110 87 qc_dark_med this | last_yr | all median dark level, chip 4, DIT=300
4 •QC1DB MEDIAN 36 ADU VAL0,110 87 qc_dark_med this | last_yr | all median dark level, chip 3, DIT=300
5 •QC1DB MEDIAN 0.609 ADU VAL0.,4. 85 qc_dark_med this | last_yr | all median dark level, chip 1, DIT=2.0
6 •QC1DB MEDIAN -0.646 ADU VAL-1.3,1 85 qc_dark_med this | last_yr | all median dark level, chip 2, DIT=2.0
7 •QC1DB MEDIAN 39.5 ADU VAL10,115 87 qc_dark_med this | last_yr | all median dark level, chip 1, DIT=300
8 •QC1DB MEDIAN 27.1 ADU VAL-10,110 87 qc_dark_med this | last_yr | all median dark level, chip 2, DIT=300
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 5
scores: 6|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:0.609ADU
fixed thresholds:0.0...4.0ADU
N_data plotted:85
[click plot for closeup]
Plot 6
scores: 6|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:-0.646ADU
fixed thresholds:-1.3...1ADU
N_data plotted:85
[click plot for closeup]
Plot 2
scores: 6|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:-0.744ADU
fixed thresholds:-1.7...0.7ADU
N_data plotted:85
[click plot for closeup]
Plot 1
scores: 6|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:-0.279ADU
fixed thresholds:-1...1ADU
N_data plotted:85
[click plot for closeup]
Plot 7
scores: 5|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:39.5ADU
fixed thresholds:10...115ADU
N_data plotted:87
[click plot for closeup]
Plot 8
scores: 5|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:27.1ADU
fixed thresholds:-10...110ADU
N_data plotted:87
[click plot for closeup]
Plot 4
scores: 5|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:36ADU
fixed thresholds:0...110ADU
N_data plotted:87
[click plot for closeup]
Plot 3
scores: 5|
data source:hawki_dark
(QC1 database)
dataset:qc_dark_med•
median:29.1ADU
fixed thresholds:-10...110ADU
N_data plotted:87
[click plot for closeup]

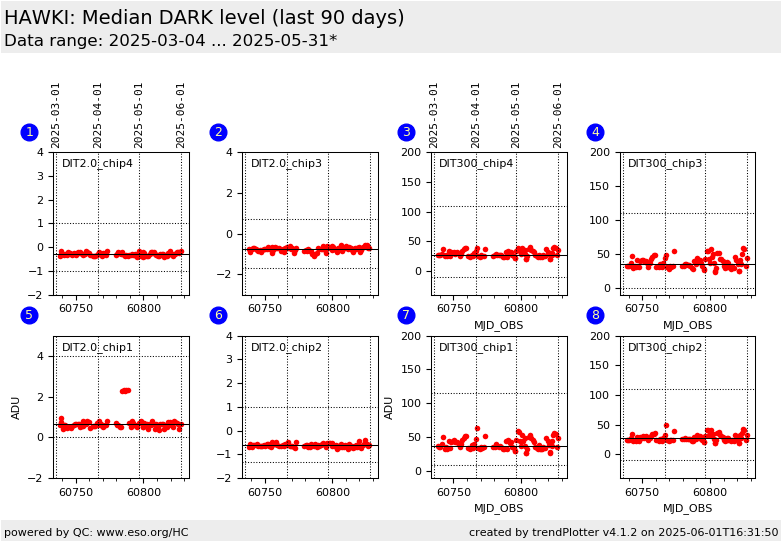

This plot

Trending report for median value across master dark.
QC parameter is derived for each detector of the raw dark frames.

On 2016-11-19 (blue vertical line) new CASU pipeline was adopted.

Name:
Fits header: QC.RAW.MEDIAN.MEAN,
QC1 DB: qc_dark_med

Description:
The mean of the raw dark medians. Setup:
DET.DIT=2.0
DET.DIT=300.0

These plots describe:
Fig. 1. chip4: The QC parameter for DIT=2.0 for chip #4.
Fig. 2. chip3: The QC parameter for DIT=2.0 for chip #3.
Fig. 3. chip4: The QC parameter for DIT=300.0 for chip #4.
Fig. 4. chip3: The QC parameter for DIT=300.0 for chip #3.
Fig. 5. chip1: The QC parameter for DIT=2.0 for chip #1.
Fig. 6. chip2: The QC parameter for DIT=2.0 for chip #2.
Fig. 7. chip1: The QC parameter for DIT=300.0 for chip #1.
Fig. 8. chip2: The QC parameter for DIT=300.0 for chip #2.

Find more information on the HAWKI DARK calibration tutorial page.



General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
