tcsVcc.h File Reference

#include "slamac.h"
#include "ccs.h"

Include dependency graph for tcsVcc.h:

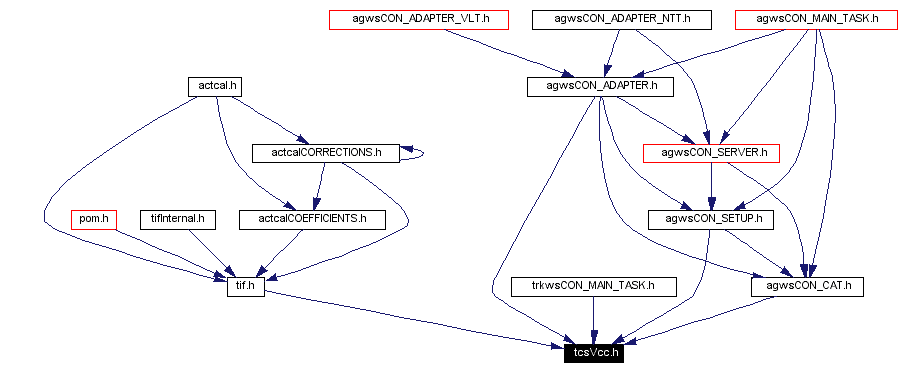

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	tcsEPOCH_SYSTEM { tcsEpochB1950, tcsEpochJ2000 }
enum	tcsCOORD_TYPE { tcsCoordMean, tcsCoordApparent }
Functions
void	tcsH2a (double p, double h, double d, double *al, double *az)
void	tcsH2f (double ph, double h, double d, double *p)
void	tcsSplitHms (double angle, double *h, double *m, double *s)
void	tcsSplitSec (double sec, double *h, double *m, double *s)
int	tcsCheckHms (double angle)
int	tcsCheckDms (double angle)
double	tcsHms2rad (double angle)
double	tcsDms2rad (double angle)
double	tcsRad2Hms (double angle)
double	tcsRad2Dms (double angle)
double	tcsD2r (double deg)
double	tcsR2d (double rad)
void	tcsJ2B (double alphaIn, double deltaIn, double epochIn, double equinoxIn, double pmaIn, double pmdIn, double radvelIn, double parallaxIn, double epochObserved, double equinoxObserved, double *alphaOut, double *deltaOut, double *pmaOut, double *pmdOut, double *radVelOut, double *parallaxOut)
void	tcsB2J (double alphain, double deltaIn, double epochIn, double equinoxIn, double pmaIn, double pmdIn, double radvelIn, double parallaxIn, double epochObserved, double equinoxObserved, double *alphaMean, double *deltaMean, double *pmaOut, double *pmdOut, double *radVelOut, double *parallaxOut)
void	tcsCoord2AltAz (double alpha, double delta, tcsEPOCH_SYSTEM epochSystem, double epoch, double equinox, double pma, double pmd, double radvel, double parallax, tcsCOORD_TYPE coordType, double envTemp, double envPressure, double envHumidity, double envLapseRate, double siteLat, double siteLong, double siteHeight, double sitePolmx, double sitePolmy, double timeDut1, double wavelength, double mjd, double *alt, double *az)
void	tcsAltAz2Coord (double alt, double az, tcsEPOCH_SYSTEM epochSystem, double epoch, double equinox, double pma, double pmd, double radvel, double parallax, tcsCOORD_TYPE coordType, double envTemp, double envPressure, double envHumidity, double envLapseRate, double siteLat, double siteLong, double siteHeight, double sitePolmx, double sitePolmy, double timeDut1, double wavelength, double mjd, double *alphaOut, double *deltaOut)

---

Enumeration Type Documentation

enum tcsEPOCH_SYSTEM

Enumeration values: tcsEpochB1950  tcsEpochJ2000

enum tcsCOORD_TYPE

Enumeration values: tcsCoordMean  tcsCoordApparent

---

Function Documentation

void tcsH2a (  double    p, double    h, double    d, double *    al, double *    az )

void tcsH2f (  double    ph, double    h, double    d, double *    p )

void tcsSplitHms (  double    angle, double *    h, double *    m, double *    s )

void tcsSplitSec (  double    sec, double *    h, double *    m, double *    s )

int tcsCheckHms (  double    angle )

int tcsCheckDms (  double    angle )

double tcsHms2rad (  double    angle )

double tcsDms2rad (  double    angle )

double tcsRad2Hms (  double    angle )

double tcsRad2Dms (  double    angle )

double tcsD2r (  double    deg )

double tcsR2d (  double    rad )

void tcsJ2B (  double    alphaIn, double    deltaIn, double    epochIn, double    equinoxIn, double    pmaIn, double    pmdIn, double    radvelIn, double    parallaxIn, double    epochObserved, double    equinoxObserved, double *    alphaOut, double *    deltaOut, double *    pmaOut, double *    pmdOut, double *    radVelOut, double *    parallaxOut )

void tcsB2J (  double    alphain, double    deltaIn, double    epochIn, double    equinoxIn, double    pmaIn, double    pmdIn, double    radvelIn, double    parallaxIn, double    epochObserved, double    equinoxObserved, double *    alphaMean, double *    deltaMean, double *    pmaOut, double *    pmdOut, double *    radVelOut, double *    parallaxOut )

void tcsCoord2AltAz (  double    alpha, double    delta, tcsEPOCH_SYSTEM    epochSystem, double    epoch, double    equinox, double    pma, double    pmd, double    radvel, double    parallax, tcsCOORD_TYPE    coordType, double    envTemp, double    envPressure, double    envHumidity, double    envLapseRate, double    siteLat, double    siteLong, double    siteHeight, double    sitePolmx, double    sitePolmy, double    timeDut1, double    wavelength, double    mjd, double *    alt, double *    az )

void tcsAltAz2Coord (  double    alt, double    az, tcsEPOCH_SYSTEM    epochSystem, double    epoch, double    equinox, double    pma, double    pmd, double    radvel, double    parallax, tcsCOORD_TYPE    coordType, double    envTemp, double    envPressure, double    envHumidity, double    envLapseRate, double    siteLat, double    siteLong, double    siteHeight, double    sitePolmx, double    sitePolmy, double    timeDut1, double    wavelength, double    mjd, double *    alphaOut, double *    deltaOut )

---
