tacAnalogTFBlock.h File Reference

#include "tacStdBlock.h"
#include "tacDigitalTFBlock.h"

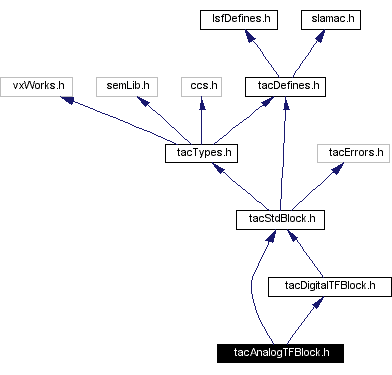

Include dependency graph for tacAnalogTFBlock.h:

Go to the source code of this file.

Defines
#define	tacANALOGTF_1ST_ORDER_EXPECTED_PARAM   4
#define	tacANALOGTF_2ND_ORDER_EXPECTED_PARAM   6
#define	tacANALOGTF_3RD_ORDER_EXPECTED_PARAM   8
#define	tacANALOGTF_4TH_ORDER_EXPECTED_PARAM   10
Enumerations
enum	tacANALOGTF_1ST_ORDER_PARAMETER_INDEX {   tacANALOGTF_1ST_ORDER_NUMERATOR1 = 0, tacANALOGTF_1ST_ORDER_NUMERATOR0, tacANALOGTF_1ST_ORDER_DENOMINATOR1, tacANALOGTF_1ST_ORDER_DENOMINATOR0,   tacANALOGTF_1ST_ORDER_PARAMETER_NUMBER }
enum	tacANALOGTF_2ND_ORDER_PARAMETER_INDEX {   tacANALOGTF_2ND_ORDER_NUMERATOR2 = 0, tacANALOGTF_2ND_ORDER_NUMERATOR1, tacANALOGTF_2ND_ORDER_NUMERATOR0, tacANALOGTF_2ND_ORDER_DENOMINATOR2,   tacANALOGTF_2ND_ORDER_DENOMINATOR1, tacANALOGTF_2ND_ORDER_DENOMINATOR0, tacANALOGTF_2ND_ORDER_PARAMETER_NUMBER }
enum	tacANALOGTF_3RD_ORDER_PARAMETER_INDEX {   tacANALOGTF_3RD_ORDER_NUMERATOR3 = 0, tacANALOGTF_3RD_ORDER_NUMERATOR2, tacANALOGTF_3RD_ORDER_NUMERATOR1, tacANALOGTF_3RD_ORDER_NUMERATOR0,   tacANALOGTF_3RD_ORDER_DENOMINATOR3, tacANALOGTF_3RD_ORDER_DENOMINATOR2, tacANALOGTF_3RD_ORDER_DENOMINATOR1, tacANALOGTF_3RD_ORDER_DENOMINATOR0,   tacANALOGTF_3RD_ORDER_PARAMETER_NUMBER }
enum	tacANALOGTF_4TH_ORDER_PARAMETER_INDEX {   tacANALOGTF_4TH_ORDER_NUMERATOR4 = 0, tacANALOGTF_4TH_ORDER_NUMERATOR3, tacANALOGTF_4TH_ORDER_NUMERATOR2, tacANALOGTF_4TH_ORDER_NUMERATOR1,   tacANALOGTF_4TH_ORDER_NUMERATOR0, tacANALOGTF_4TH_ORDER_DENOMINATOR4, tacANALOGTF_4TH_ORDER_DENOMINATOR3, tacANALOGTF_4TH_ORDER_DENOMINATOR2,   tacANALOGTF_4TH_ORDER_DENOMINATOR1, tacANALOGTF_4TH_ORDER_DENOMINATOR0, tacANALOGTF_4TH_ORDER_PARAMETER_NUMBER }
Functions
STATUS	tacAnalogTFBlockConstructor (tacSTDBLOCK *pSelf, tacSTDBLOCK_PARAM *parameter, tacERROR *error)
STATUS	tacAnalogTFBlockSetParameter (tacSTDBLOCK *pSelf, tacSTDBLOCK_PARAM *parameter, tacERROR *error)
void	tacAnalogTFBlockReset (tacSTDBLOCK *pSelf)
void	tacAnalogTFBlockDestructor (tacSTDBLOCK *pSelf)

---

Define Documentation

#define tacANALOGTF_1ST_ORDER_EXPECTED_PARAM   4

#define tacANALOGTF_2ND_ORDER_EXPECTED_PARAM   6

#define tacANALOGTF_3RD_ORDER_EXPECTED_PARAM   8

#define tacANALOGTF_4TH_ORDER_EXPECTED_PARAM   10

---

Enumeration Type Documentation

enum tacANALOGTF_1ST_ORDER_PARAMETER_INDEX

Enumeration values: tacANALOGTF_1ST_ORDER_NUMERATOR1  tacANALOGTF_1ST_ORDER_NUMERATOR0  tacANALOGTF_1ST_ORDER_DENOMINATOR1  tacANALOGTF_1ST_ORDER_DENOMINATOR0  tacANALOGTF_1ST_ORDER_PARAMETER_NUMBER

enum tacANALOGTF_2ND_ORDER_PARAMETER_INDEX

Enumeration values: tacANALOGTF_2ND_ORDER_NUMERATOR2  tacANALOGTF_2ND_ORDER_NUMERATOR1  tacANALOGTF_2ND_ORDER_NUMERATOR0  tacANALOGTF_2ND_ORDER_DENOMINATOR2  tacANALOGTF_2ND_ORDER_DENOMINATOR1  tacANALOGTF_2ND_ORDER_DENOMINATOR0  tacANALOGTF_2ND_ORDER_PARAMETER_NUMBER

enum tacANALOGTF_3RD_ORDER_PARAMETER_INDEX

Enumeration values: tacANALOGTF_3RD_ORDER_NUMERATOR3  tacANALOGTF_3RD_ORDER_NUMERATOR2  tacANALOGTF_3RD_ORDER_NUMERATOR1  tacANALOGTF_3RD_ORDER_NUMERATOR0  tacANALOGTF_3RD_ORDER_DENOMINATOR3  tacANALOGTF_3RD_ORDER_DENOMINATOR2  tacANALOGTF_3RD_ORDER_DENOMINATOR1  tacANALOGTF_3RD_ORDER_DENOMINATOR0  tacANALOGTF_3RD_ORDER_PARAMETER_NUMBER

enum tacANALOGTF_4TH_ORDER_PARAMETER_INDEX

Enumeration values: tacANALOGTF_4TH_ORDER_NUMERATOR4  tacANALOGTF_4TH_ORDER_NUMERATOR3  tacANALOGTF_4TH_ORDER_NUMERATOR2  tacANALOGTF_4TH_ORDER_NUMERATOR1  tacANALOGTF_4TH_ORDER_NUMERATOR0  tacANALOGTF_4TH_ORDER_DENOMINATOR4  tacANALOGTF_4TH_ORDER_DENOMINATOR3  tacANALOGTF_4TH_ORDER_DENOMINATOR2  tacANALOGTF_4TH_ORDER_DENOMINATOR1  tacANALOGTF_4TH_ORDER_DENOMINATOR0  tacANALOGTF_4TH_ORDER_PARAMETER_NUMBER

---

Function Documentation

STATUS tacAnalogTFBlockConstructor (  tacSTDBLOCK *    pSelf, tacSTDBLOCK_PARAM *    parameter, tacERROR *    error )

STATUS tacAnalogTFBlockSetParameter (  tacSTDBLOCK *    pSelf, tacSTDBLOCK_PARAM *    parameter, tacERROR *    error )

void tacAnalogTFBlockReset (  tacSTDBLOCK *    pSelf )

void tacAnalogTFBlockDestructor (  tacSTDBLOCK *    pSelf )

---
