ccd.h File Reference

#include "CCS.h"
#include "cai.h"
#include "ccdDbPublic.h"
#include "ccdErrors.h"
#include "ccdObj.h"

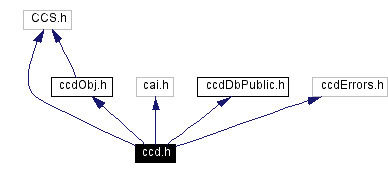

Include dependency graph for ccd.h:

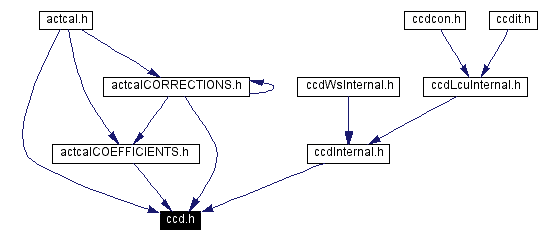

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Compounds

struct ccdIPEXPOSURE

struct ccdIPWINDOW

struct ccdIPSETUP

struct ccdIPRESULT

struct ccdIPIMAGE

struct ccdCONFCHIP

struct ccdCONFOUTPUT

struct ccdCONFCLOCK

struct ccdCONFSHUTTER

struct ccdCAMERA

struct ccdCONFIG

struct ccdWINDOW

struct ccdPROCESS

struct ccdSETUP

struct ccdSETUPRES

Defines

#define ccdMODULE   "ccd"

#define ccdENV_LENV   "CCDLENV"

#define ccdENV_DID   "CCDDID"

#define ccdDID   "CCDDCS"

#define ccdCAT   slxDETECTOR

#define ccdEXP_NEXT   -1

#define ccdEXP_LAST   0

#define ccdCAMERANAME_LEN   8

#define ccdMAXLENFILE   63

#define ccdMAXBINX   8

#define ccdMAXBINY   8

#define ccdFITSHIERSUFF   "det"

#define ccdFITSDATASUFF   "fits"

#define ccdDCSHEADLINES   21

#define ccdDCSXTNDLINES   22

#define ccdCMD_ABORT   "ABORT"

#define ccdCMD_BIAS   "BIAS"

#define ccdCMD_CONTINUE   "CONT"

#define ccdCMD_DISPLAY   "DISPLAY"

#define ccdCMD_DUMP   "DUMP"

#define ccdCMD_END   "END"

#define ccdCMD_EXIT   "EXIT"

#define ccdCMD_FLAT   "FLAT"

#define ccdCMD_GRAB   "GRAB"

#define ccdCMD_INIT   "INIT"

#define ccdCMD_OFF   "OFF"

#define ccdCMD_ONLINE   "ONLINE"

#define ccdCMD_OPERATE   "OPERATE"

#define ccdCMD_PAUSE   "PAUSE"

#define ccdCMD_PDOWN   "PDOWN"

#define ccdCMD_SETUP   "SETUP"

#define ccdCMD_STAND_ALONE   "STANDAL"

#define ccdCMD_STANDBY   "STANDBY"

#define ccdCMD_START   "START"

#define ccdCMD_STARTAG   "STARTAG"

#define ccdCMD_STARTLP   "STARTLP"

#define ccdCMD_START_WIPE   "STARTWP"

#define ccdCMD_STARTTL   "STARTTL"

#define ccdCMD_STARTTM   "STARTTM"

#define ccdCMD_STATUS   "STATUS"

#define ccdCMD_STOP   "STOP"

#define ccdCMD_STOP_WAIT   "STPWAIT"

#define ccdCMD_STOP_WIPE   "STOPWP"

#define ccdCMD_STOPTL   "STOPTL"

#define ccdCMD_STOPTM   "STOPTM"

#define ccdCMD_VERS   "VERSION"

#define ccdCMD_WAIT   "WAIT"

#define ccdCMD_DISABLE   "DISABLE"

#define ccdCMD_ENABLE   "ENABLE"

#define ccdCMD_ENHANCE   "ENHANCE"

#define ccdCMD_PROCESS   "PROCESS"

#define ccdCMD_PXQUERY   "PXQUERY"

#define ccdCMD_SELFTST   "SELFTST"

#define ccdCMD_VERBOSE   "VERBOSE"

#define ccdCMD_CONFIG   "CONFIG"

#define ccdCMD_SIM   "SIM"

#define ccdCMD_STOPSIM   "STOPSIM"

#define ccdPAR_STATUS_EXPOID   "expoId"

#define ccdPAR_STATUS_FUNCTION   "function"

#define ccdALL   "all"

#define ccdGLOBAL   "global"

#define ccdKEY_OPMODE   "DET.MODE"

#define ccdKEY_OPSTATE   "DET.STATE"

#define ccdKEY_SHTSTAT   "DET.SHUT"

#define ccdKEY_TMPSTAT   "DET.TEMP"

#define ccdKEY_TELSTAT   "DET.TELE"

#define ccdPAR_STATUS_EXPSTATUS   "expStatus"

#define ccdPAR_STATUS_FUNCSTATUS   "funcStatus"

#define ccdPAR_SETUP_EXPOID   "expoId"

#define ccdPAR_SETUP_FILE   "file"

#define ccdPAR_SETUP_FUNCTION   "function"

#define ccdPAR_SETUP_CHECK   "check"

#define ccdPAR_START_AT   "at"

#define ccdEXP_TYPE   "DET.EXP.TYPE"

#define ccdEXP_STEP_DEF   "DET.WIN1.NDIT"

#define ccdTIME_DEF_IDEM   "DET.WIN1.ASUIT1"

#define ccdTIME_DEF_BASE   "DET.WIN1.UIT"

#define ccdTIME_DEFi   "DET.WIN1.UIT%i"

#define ccdTIME_DEF   "DET.WIN1.UIT1"

#define ccdREPEAT_DEF   "DET.EXP.NREP"

#define ccdDO_WIPE   "DET.EXP.WIPETIM"

#define ccdTIME_REP   "DET.EXP.TIMEREP"

#define ccdFILE_UNC   "DET.FRAM.FITSUNC"

#define ccdDISK_SAVE   "DET.FRAM.FITSMTD"

#define ccdXFER_SYNC   "DET.FRAM.XFERSYN"

#define ccdSAMPLE   "DET.FRAM.SAMPLE"

#define ccdDISPLAY   "DET.DISPLAY"

#define ccdREAD_CLOCK   "DET.READ.CLKIND"

#define ccdREAD_GAIN   "DET.OUT1.GAININD"

#define ccdREAD_FRAME_TYPE   "DET.FRAM.TYPE"

#define ccdREAD_SHIFT_TYPE   "DET.READ.SHIFTYP"

#define ccdREAD_SHIFT_BASE   "DET.READ.SHIFT"

#define ccdREAD_SHIFTi   "DET.READ.SHIFT%i"

#define ccdREAD_IMAGE_SIM   "DET.READ.SIMIMG"

#define ccdREAD_WIN1_BIN_X   "DET.WIN1.BINX"

#define ccdREAD_WIN1_BIN_Y   "DET.WIN1.BINY"

#define ccdREAD_WIN1_ENAB   "DET.WIN1.ST"

#define ccdREAD_WIN1_FIR_X   "DET.WIN1.STRX"

#define ccdREAD_WIN1_DIM_X   "DET.WIN1.NX"

#define ccdREAD_WIN1_FIR_Y   "DET.WIN1.STRY"

#define ccdREAD_WIN1_DIM_Y   "DET.WIN1.NY"

#define ccdPROC_WIN1_MINMAX   "DET.WIN1.MINMAX"

#define ccdPROC_WIN1_BIAS   "DET.WIN1.BIAS"

#define ccdPROC_WIN1_FLAT   "DET.WIN1.FLATF"

#define ccdPROC_WIN1_CENTROID   "DET.WIN1.CENTROID"

#define ccdPROC_WIN1_REF_X   "DET.WIN1.REFX"

#define ccdPROC_WIN1_REF_Y   "DET.WIN1.REFY"

#define ccdPROC_WIN1_USERFUNC   "DET.WIN1.IPFUNC"

#define ccdPROC_WIN1_USERBUFF   "DET.WIN1.IPBUFF"

#define ccdPROC_WIN1_THRMIN   "DET.WIN1.THRMIN"

#define ccdPROC_WIN1_THRMAX   "DET.WIN1.THRMAX"

#define ccdPROC_WIN1_BACKGND   "DET.WIN1.BACKGND"

#define ccdPROC_WIN1_IPLLX   "DET.WIN1.IPLLX"

#define ccdPROC_WIN1_IPLLY   "DET.WIN1.IPLLY"

#define ccdPROC_WIN1_IPURX   "DET.WIN1.IPURX"

#define ccdPROC_WIN1_IPURY   "DET.WIN1.IPURY"

#define ccdREAD_WIN2_BIN_X   "DET.WIN2.BINX"

#define ccdREAD_WIN2_BIN_Y   "DET.WIN2.BINY"

#define ccdREAD_WIN2_ENAB   "DET.WIN2.ST"

#define ccdREAD_WIN2_FIR_X   "DET.WIN2.STRX"

#define ccdREAD_WIN2_DIM_X   "DET.WIN2.NX"

#define ccdREAD_WIN2_FIR_Y   "DET.WIN2.STRY"

#define ccdREAD_WIN2_DIM_Y   "DET.WIN2.NY"

#define ccdPROC_WIN2_MINMAX   "DET.WIN2.MINMAX"

#define ccdPROC_WIN2_BIAS   "DET.WIN2.BIAS"

#define ccdPROC_WIN2_FLAT   "DET.WIN2.FLATF"

#define ccdPROC_WIN2_CENTROID   "DET.WIN2.CENTROID"

#define ccdPROC_WIN2_REF_X   "DET.WIN2.REFX"

#define ccdPROC_WIN2_REF_Y   "DET.WIN2.REFY"

#define ccdPROC_WIN2_USERFUNC   "DET.WIN2.IPFUNC"

#define ccdPROC_WIN2_USERBUFF   "DET.WIN2.IPBUFF"

#define ccdPROC_WIN2_THRMIN   "DET.WIN2.THRMIN"

#define ccdPROC_WIN2_THRMAX   "DET.WIN2.THRMAX"

#define ccdPROC_WIN2_BACKGND   "DET.WIN2.BACKGND"

#define ccdPROC_WIN2_IPLLX   "DET.WIN2.IPLLX"

#define ccdPROC_WIN2_IPLLY   "DET.WIN2.IPLLY"

#define ccdPROC_WIN2_IPURX   "DET.WIN2.IPURX"

#define ccdPROC_WIN2_IPURY   "DET.WIN2.IPURY"

#define ccdREADPIX   "DET.READ.NO"

#define ccdMPPMODE   "DET.READ.MODE"

#define ccdFILE_COM   "DET.FRAM.FITSCMP"

#define ccdPAR_START_EXPOID   "expoId"

#define ccdPAR_VERS_CCDVERS   "ccdVersion"

#define ccdPAR_STANDAL_ON   "on"

#define ccdPAR_STANDAL_ARC   "archive"

#define ccdEXP_NONE   0

#define ccdEXP_INACTIVE   1

#define ccdEXP_PENDING   2

#define ccdEXP_INTEGRATING   4

#define ccdEXP_PAUSED   8

#define ccdEXP_READING   16

#define ccdEXP_PROCESSING   32

#define ccdEXP_TRANSFERING   64

#define ccdEXP_COMPLETED   128

#define ccdEXP_FAILED   256

#define ccdEXP_ABORTED   512

#define ccdEXP_LOOP_FINITE   1024

#define ccdEXP_LOOP_INFINITE   2048

#define ccdEXP_DONE   (ccdEXP_COMPLETED | ccdEXP_FAILED | ccdEXP_ABORTED)

#define ccdEXP_RUNNING

#define ccdEXP_LOOP   (ccdEXP_LOOP_FINITE | ccdEXP_LOOP_INFINITE)

#define ccdREPEAT_FOREVER   0

#define ccdNO_DISPLAY   -1

#define ccdWAIT_SINGLE   0

#define ccdWAIT_GLOBAL   1

#define ccdWAIT_SINGLE_STR   "Single"

#define ccdWAIT_GLOBAL_STR   "Global"

#define ccdEXP_NORMAL_STR   "Normal"

#define ccdEXP_DARK_STR   "Dark"

#define ccdEXP_MULTI_STR   "Multiple"

#define ccdOPERATING   ccsSTATE_ONLINE

#define ccdDISK_NONE_STR   "None"

#define ccdDISK_COMPRESS_STR   "Compress"

#define ccdDISK_UNCOMPRESS_STR   "Uncompress"

#define ccdDISK_BOTH_STR   "Both"

#define ccdFRAME_NORMAL   "Normal"

#define ccdFRAME_BIAS   "Bias"

#define ccdFRAME_DARK   "Dark"

#define ccdFRAME_FLAT   "FF"

#define ccdEXPTIME_IDEM   ccsTRUE

#define ccdEXPTIME_LIST   ccsFALSE

#define ccdLINE_SHIFT_ALT_STR   "alternate"

#define ccdLINE_SHIFT_IDEM_STR   "idem"

#define ccdLINE_SHIFT_LIST_STR   "list"

#define ccdCEN_NONE_STR   "none"

#define ccdCEN_STANDARD_STR   "standard"

#define ccdCEN_THRESHOLD_STR   "threshold"

#define ccdTHRMIN_3SIGMA_WINDOW_SELF   -3

#define ccdTHRMIN_3SIGMA_WINDOW_PREV   -13

#define ccdTHRMIN_5SIGMA_WINDOW_SELF   -5

#define ccdTHRMIN_5SIGMA_WINDOW_PREV   -15

#define ccdBCKGND_FLUX_WINDOW_SELF   -1

#define ccdBCKGND_FLUX_WINDOW_PREV   -11

#define ccdIP_NO_USER_FUN   "None"

#define ccdIP_NO_USER_BUF   "None"

Typedefs

typedef char ccdCAMERANAME [ccdCAMERANAME_LEN+1]

typedef ccsCOMPL_STAT(* ccdIPUSERFUNC )(ccdIPIMAGE *, void *, ccsERROR *)

Enumerations

enum ccdEXPTYPE { ccdEXP_NORMAL = 1, ccdEXP_DARK, ccdEXP_MULTI }

enum ccdOPMODE {
  ccdNOT_AVAILABLE = 1, ccdNORMAL, ccdSIM_WS, ccdSIM_LCU,
  ccdSIM_ACE
}

enum ccdSTATE {
  ccdUNKNOWN = ccsSTATE_UNK, ccdOFF = ccsSTATE_OFF, ccdLOADED = ccsSTATE_LOADED, ccdSTANDBY = ccsSTATE_STANDBY,
  ccdONLINE = ccsSTATE_ONLINE
}

enum ccdSHT_STATUS {
  ccdSHT_ERROR = -1, ccdSHT_CLOSED, ccdSHT_OPENED, ccdSHT_CLOSING,
  ccdSHT_OPENING
}

enum ccdDISKSAVE { ccdDISK_NONE = 0, ccdDISK_COMPRESS, ccdDISK_UNCOMPRESS, ccdDISK_BOTH }

enum ccdFRMTYPE { ccdFRM_NORMAL = 0, ccdFRM_BIAS, ccdFRM_DARK, ccdFRM_FLAT }

enum ccdLINESHIFT_TYPE { ccdLINE_SHIFT_ALT = -1, ccdLINE_SHIFT_IDEM = 0, ccdLINE_SHIFT_LIST = 1 }

enum ccdCENTYPE { ccdCENTROID_NONE = 0, ccdCENTROID_STANDARD, ccdCENTROID_THRESHOLD }

enum ccdIMAGE_REP { ccdIMAGE_CHAR = 0, ccdIMAGE_INT, ccdIMAGE_FLOAT }

Functions

ccsCOMPL_STAT ccdGetConf (ccdCAMERA *camera, ccdCONFIG *config, ccsERROR *error)

ccsCOMPL_STAT ccdCheckSetup (ccdCONFIG *config, ccdSETUP *setup, ccdSETUPRES *results, ccsERROR *error)

ccsCOMPL_STAT ccdCheckSetupWindow (ccdCONFIG *config, ccdSETUP *setup, ccdSETUPRES *results, ccsERROR *error)

void ccdGetCIName (ccdCAMERANAME camera, ccsPROCNAME procName)

vltINT32 ccdGetIndexFromId (vltINT32 expId)

Define Documentation

#define ccdMODULE "ccd"

#define ccdENV_LENV "CCDLENV"

#define ccdENV_DID "CCDDID"

#define ccdDID "CCDDCS"

#define ccdCAT slxDETECTOR

#define ccdEXP_NEXT -1

#define ccdEXP_LAST 0

#define ccdCAMERANAME_LEN 8

#define ccdMAXLENFILE 63

#define ccdMAXBINX 8

#define ccdMAXBINY 8

#define ccdFITSHIERSUFF "det"

#define ccdFITSDATASUFF "fits"

#define ccdDCSHEADLINES 21

#define ccdDCSXTNDLINES 22

#define ccdCMD_ABORT "ABORT"

#define ccdCMD_BIAS "BIAS"

#define ccdCMD_CONTINUE "CONT"

#define ccdCMD_DISPLAY "DISPLAY"

#define ccdCMD_DUMP "DUMP"

#define ccdCMD_END "END"

#define ccdCMD_EXIT "EXIT"

#define ccdCMD_FLAT "FLAT"

#define ccdCMD_GRAB "GRAB"

#define ccdCMD_INIT "INIT"

#define ccdCMD_OFF "OFF"

#define ccdCMD_ONLINE "ONLINE"

#define ccdCMD_OPERATE "OPERATE"

#define ccdCMD_PAUSE "PAUSE"

#define ccdCMD_PDOWN "PDOWN"

#define ccdCMD_SETUP "SETUP"

#define ccdCMD_STAND_ALONE "STANDAL"

#define ccdCMD_STANDBY "STANDBY"

#define ccdCMD_START "START"

#define ccdCMD_STARTAG "STARTAG"

#define ccdCMD_STARTLP "STARTLP"

#define ccdCMD_START_WIPE "STARTWP"

#define ccdCMD_STARTTL "STARTTL"

#define ccdCMD_STARTTM "STARTTM"

#define ccdCMD_STATUS "STATUS"

#define ccdCMD_STOP "STOP"

#define ccdCMD_STOP_WAIT "STPWAIT"

#define ccdCMD_STOP_WIPE "STOPWP"

#define ccdCMD_STOPTL "STOPTL"

#define ccdCMD_STOPTM "STOPTM"

#define ccdCMD_VERS "VERSION"

#define ccdCMD_WAIT "WAIT"

#define ccdCMD_DISABLE "DISABLE"

#define ccdCMD_ENABLE "ENABLE"

#define ccdCMD_ENHANCE "ENHANCE"

#define ccdCMD_PROCESS "PROCESS"

#define ccdCMD_PXQUERY "PXQUERY"

#define ccdCMD_SELFTST "SELFTST"

#define ccdCMD_VERBOSE "VERBOSE"

#define ccdCMD_CONFIG "CONFIG"

#define ccdCMD_SIM "SIM"

#define ccdCMD_STOPSIM "STOPSIM"

#define ccdPAR_STATUS_EXPOID "expoId"

#define ccdPAR_STATUS_FUNCTION "function"

#define ccdALL "all"

#define ccdGLOBAL "global"

#define ccdKEY_OPMODE "DET.MODE"

#define ccdKEY_OPSTATE "DET.STATE"

#define ccdKEY_SHTSTAT "DET.SHUT"

#define ccdKEY_TMPSTAT "DET.TEMP"

#define ccdKEY_TELSTAT "DET.TELE"

#define ccdPAR_STATUS_EXPSTATUS "expStatus"

#define ccdPAR_STATUS_FUNCSTATUS "funcStatus"

#define ccdPAR_SETUP_EXPOID "expoId"

#define ccdPAR_SETUP_FILE "file"

#define ccdPAR_SETUP_FUNCTION "function"

#define ccdPAR_SETUP_CHECK "check"

#define ccdPAR_START_AT "at"

#define ccdEXP_TYPE "DET.EXP.TYPE"

#define ccdEXP_STEP_DEF "DET.WIN1.NDIT"

#define ccdTIME_DEF_IDEM "DET.WIN1.ASUIT1"

#define ccdTIME_DEF_BASE "DET.WIN1.UIT"

#define ccdTIME_DEFi "DET.WIN1.UIT%i"

#define ccdTIME_DEF "DET.WIN1.UIT1"

#define ccdREPEAT_DEF "DET.EXP.NREP"

#define ccdDO_WIPE "DET.EXP.WIPETIM"

#define ccdTIME_REP "DET.EXP.TIMEREP"

#define ccdFILE_UNC "DET.FRAM.FITSUNC"

#define ccdDISK_SAVE "DET.FRAM.FITSMTD"

#define ccdXFER_SYNC "DET.FRAM.XFERSYN"

#define ccdSAMPLE "DET.FRAM.SAMPLE"

#define ccdDISPLAY "DET.DISPLAY"

#define ccdREAD_CLOCK "DET.READ.CLKIND"

#define ccdREAD_GAIN "DET.OUT1.GAININD"

#define ccdREAD_FRAME_TYPE "DET.FRAM.TYPE"

#define ccdREAD_SHIFT_TYPE "DET.READ.SHIFTYP"

#define ccdREAD_SHIFT_BASE "DET.READ.SHIFT"

#define ccdREAD_SHIFTi "DET.READ.SHIFT%i"

#define ccdREAD_IMAGE_SIM "DET.READ.SIMIMG"

#define ccdREAD_WIN1_BIN_X "DET.WIN1.BINX"

#define ccdREAD_WIN1_BIN_Y "DET.WIN1.BINY"

#define ccdREAD_WIN1_ENAB "DET.WIN1.ST"

#define ccdREAD_WIN1_FIR_X "DET.WIN1.STRX"

#define ccdREAD_WIN1_DIM_X "DET.WIN1.NX"

#define ccdREAD_WIN1_FIR_Y "DET.WIN1.STRY"

#define ccdREAD_WIN1_DIM_Y "DET.WIN1.NY"

#define ccdPROC_WIN1_MINMAX "DET.WIN1.MINMAX"

#define ccdPROC_WIN1_BIAS "DET.WIN1.BIAS"

#define ccdPROC_WIN1_FLAT "DET.WIN1.FLATF"

#define ccdPROC_WIN1_CENTROID "DET.WIN1.CENTROID"

#define ccdPROC_WIN1_REF_X "DET.WIN1.REFX"

#define ccdPROC_WIN1_REF_Y "DET.WIN1.REFY"

#define ccdPROC_WIN1_USERFUNC "DET.WIN1.IPFUNC"

#define ccdPROC_WIN1_USERBUFF "DET.WIN1.IPBUFF"

#define ccdPROC_WIN1_THRMIN "DET.WIN1.THRMIN"

#define ccdPROC_WIN1_THRMAX "DET.WIN1.THRMAX"

#define ccdPROC_WIN1_BACKGND "DET.WIN1.BACKGND"

#define ccdPROC_WIN1_IPLLX "DET.WIN1.IPLLX"

#define ccdPROC_WIN1_IPLLY "DET.WIN1.IPLLY"

#define ccdPROC_WIN1_IPURX "DET.WIN1.IPURX"

#define ccdPROC_WIN1_IPURY "DET.WIN1.IPURY"

#define ccdREAD_WIN2_BIN_X "DET.WIN2.BINX"

#define ccdREAD_WIN2_BIN_Y "DET.WIN2.BINY"

#define ccdREAD_WIN2_ENAB "DET.WIN2.ST"

#define ccdREAD_WIN2_FIR_X "DET.WIN2.STRX"

#define ccdREAD_WIN2_DIM_X "DET.WIN2.NX"

#define ccdREAD_WIN2_FIR_Y "DET.WIN2.STRY"

#define ccdREAD_WIN2_DIM_Y "DET.WIN2.NY"

#define ccdPROC_WIN2_MINMAX "DET.WIN2.MINMAX"

#define ccdPROC_WIN2_BIAS "DET.WIN2.BIAS"

#define ccdPROC_WIN2_FLAT "DET.WIN2.FLATF"

#define ccdPROC_WIN2_CENTROID "DET.WIN2.CENTROID"

#define ccdPROC_WIN2_REF_X "DET.WIN2.REFX"

#define ccdPROC_WIN2_REF_Y "DET.WIN2.REFY"

#define ccdPROC_WIN2_USERFUNC "DET.WIN2.IPFUNC"

#define ccdPROC_WIN2_USERBUFF "DET.WIN2.IPBUFF"

#define ccdPROC_WIN2_THRMIN "DET.WIN2.THRMIN"

#define ccdPROC_WIN2_THRMAX "DET.WIN2.THRMAX"

#define ccdPROC_WIN2_BACKGND "DET.WIN2.BACKGND"

#define ccdPROC_WIN2_IPLLX "DET.WIN2.IPLLX"

#define ccdPROC_WIN2_IPLLY "DET.WIN2.IPLLY"

#define ccdPROC_WIN2_IPURX "DET.WIN2.IPURX"

#define ccdPROC_WIN2_IPURY "DET.WIN2.IPURY"

#define ccdREADPIX "DET.READ.NO"

#define ccdMPPMODE "DET.READ.MODE"

#define ccdFILE_COM "DET.FRAM.FITSCMP"

#define ccdPAR_START_EXPOID "expoId"

#define ccdPAR_VERS_CCDVERS "ccdVersion"

#define ccdPAR_STANDAL_ON "on"

#define ccdPAR_STANDAL_ARC "archive"

#define ccdEXP_NONE 0

#define ccdEXP_INACTIVE 1

#define ccdEXP_PENDING 2

#define ccdEXP_INTEGRATING 4

#define ccdEXP_PAUSED 8

#define ccdEXP_READING 16

#define ccdEXP_PROCESSING 32

#define ccdEXP_TRANSFERING 64

#define ccdEXP_COMPLETED 128

#define ccdEXP_FAILED 256

#define ccdEXP_ABORTED 512

#define ccdEXP_LOOP_FINITE 1024

#define ccdEXP_LOOP_INFINITE 2048

#define ccdEXP_DONE (ccdEXP_COMPLETED | ccdEXP_FAILED | ccdEXP_ABORTED)

#define ccdEXP_LOOP (ccdEXP_LOOP_FINITE | ccdEXP_LOOP_INFINITE)

#define ccdREPEAT_FOREVER 0

#define ccdNO_DISPLAY -1

#define ccdWAIT_SINGLE 0

#define ccdWAIT_GLOBAL 1

#define ccdWAIT_SINGLE_STR "Single"

#define ccdWAIT_GLOBAL_STR "Global"

#define ccdEXP_NORMAL_STR "Normal"

#define ccdEXP_DARK_STR "Dark"

#define ccdEXP_MULTI_STR "Multiple"

#define ccdOPERATING ccsSTATE_ONLINE

#define ccdDISK_NONE_STR "None"

#define ccdDISK_COMPRESS_STR "Compress"

#define ccdDISK_UNCOMPRESS_STR "Uncompress"

#define ccdDISK_BOTH_STR "Both"

#define ccdFRAME_NORMAL "Normal"

#define ccdFRAME_BIAS "Bias"

#define ccdFRAME_DARK "Dark"

#define ccdFRAME_FLAT "FF"

#define ccdEXPTIME_IDEM ccsTRUE

#define ccdEXPTIME_LIST ccsFALSE

#define ccdLINE_SHIFT_ALT_STR "alternate"

#define ccdLINE_SHIFT_IDEM_STR "idem"

#define ccdLINE_SHIFT_LIST_STR "list"

#define ccdCEN_NONE_STR "none"

#define ccdCEN_STANDARD_STR "standard"

#define ccdCEN_THRESHOLD_STR "threshold"

#define ccdTHRMIN_3SIGMA_WINDOW_SELF -3

#define ccdTHRMIN_3SIGMA_WINDOW_PREV -13

#define ccdTHRMIN_5SIGMA_WINDOW_SELF -5

#define ccdTHRMIN_5SIGMA_WINDOW_PREV -15

#define ccdBCKGND_FLUX_WINDOW_SELF -1

#define ccdBCKGND_FLUX_WINDOW_PREV -11

#define ccdIP_NO_USER_FUN "None"

#define ccdIP_NO_USER_BUF "None"

Typedef Documentation

typedef char ccdCAMERANAME[ccdCAMERANAME_LEN + 1]

typedef ccsCOMPL_STAT(* ccdIPUSERFUNC)(ccdIPIMAGE *,void *,ccsERROR *)

Enumeration Type Documentation

enum ccdEXPTYPE

Enumeration values:

ccdEXP_NORMAL

ccdEXP_DARK

ccdEXP_MULTI

enum ccdOPMODE

Enumeration values:

ccdNOT_AVAILABLE

ccdNORMAL

ccdSIM_WS

ccdSIM_LCU

ccdSIM_ACE

enum ccdSTATE

Enumeration values:

ccdUNKNOWN

ccdOFF

ccdLOADED

ccdSTANDBY

ccdONLINE

enum ccdSHT_STATUS

Enumeration values:

ccdSHT_ERROR

ccdSHT_CLOSED

ccdSHT_OPENED

ccdSHT_CLOSING

ccdSHT_OPENING

enum ccdDISKSAVE

Enumeration values:

ccdDISK_NONE

ccdDISK_COMPRESS

ccdDISK_UNCOMPRESS

ccdDISK_BOTH

enum ccdFRMTYPE

Enumeration values:

ccdFRM_NORMAL

ccdFRM_BIAS

ccdFRM_DARK

ccdFRM_FLAT

enum ccdLINESHIFT_TYPE

Enumeration values:

ccdLINE_SHIFT_ALT

ccdLINE_SHIFT_IDEM

ccdLINE_SHIFT_LIST

enum ccdCENTYPE

Enumeration values:

ccdCENTROID_NONE

ccdCENTROID_STANDARD

ccdCENTROID_THRESHOLD

enum ccdIMAGE_REP

Enumeration values:

ccdIMAGE_CHAR

ccdIMAGE_INT

ccdIMAGE_FLOAT

Function Documentation

ccsCOMPL_STAT ccdGetConf ( ccdCAMERA * camera,

ccdCONFIG * config,

ccsERROR * error

)

ccsCOMPL_STAT ccdCheckSetup ( ccdCONFIG * config,

ccdSETUP * setup,

ccdSETUPRES * results,

ccsERROR * error

)

ccsCOMPL_STAT ccdCheckSetupWindow ( ccdCONFIG * config,

ccdSETUP * setup,

ccdSETUPRES * results,

ccsERROR * error

)

void ccdGetCIName ( ccdCAMERANAME camera,

ccsPROCNAME procName

)

vltINT32 ccdGetIndexFromId ( vltINT32 expId )

Generated on Wed Dec 3 14:54:00 2003 for ATCS API by

Compounds
struct	ccdIPEXPOSURE
struct	ccdIPWINDOW
struct	ccdIPSETUP
struct	ccdIPRESULT
struct	ccdIPIMAGE
struct	ccdCONFCHIP
struct	ccdCONFOUTPUT
struct	ccdCONFCLOCK
struct	ccdCONFSHUTTER
struct	ccdCAMERA
struct	ccdCONFIG
struct	ccdWINDOW
struct	ccdPROCESS
struct	ccdSETUP
struct	ccdSETUPRES
Defines
#define	ccdMODULE "ccd"
#define	ccdENV_LENV "CCDLENV"
#define	ccdENV_DID "CCDDID"
#define	ccdDID "CCDDCS"
#define	ccdCAT slxDETECTOR
#define	ccdEXP_NEXT -1
#define	ccdEXP_LAST 0
#define	ccdCAMERANAME_LEN 8
#define	ccdMAXLENFILE 63
#define	ccdMAXBINX 8
#define	ccdMAXBINY 8
#define	ccdFITSHIERSUFF "det"
#define	ccdFITSDATASUFF "fits"
#define	ccdDCSHEADLINES 21
#define	ccdDCSXTNDLINES 22
#define	ccdCMD_ABORT "ABORT"
#define	ccdCMD_BIAS "BIAS"
#define	ccdCMD_CONTINUE "CONT"
#define	ccdCMD_DISPLAY "DISPLAY"
#define	ccdCMD_DUMP "DUMP"
#define	ccdCMD_END "END"
#define	ccdCMD_EXIT "EXIT"
#define	ccdCMD_FLAT "FLAT"
#define	ccdCMD_GRAB "GRAB"
#define	ccdCMD_INIT "INIT"
#define	ccdCMD_OFF "OFF"
#define	ccdCMD_ONLINE "ONLINE"
#define	ccdCMD_OPERATE "OPERATE"
#define	ccdCMD_PAUSE "PAUSE"
#define	ccdCMD_PDOWN "PDOWN"
#define	ccdCMD_SETUP "SETUP"
#define	ccdCMD_STAND_ALONE "STANDAL"
#define	ccdCMD_STANDBY "STANDBY"
#define	ccdCMD_START "START"
#define	ccdCMD_STARTAG "STARTAG"
#define	ccdCMD_STARTLP "STARTLP"
#define	ccdCMD_START_WIPE "STARTWP"
#define	ccdCMD_STARTTL "STARTTL"
#define	ccdCMD_STARTTM "STARTTM"
#define	ccdCMD_STATUS "STATUS"
#define	ccdCMD_STOP "STOP"
#define	ccdCMD_STOP_WAIT "STPWAIT"
#define	ccdCMD_STOP_WIPE "STOPWP"
#define	ccdCMD_STOPTL "STOPTL"
#define	ccdCMD_STOPTM "STOPTM"
#define	ccdCMD_VERS "VERSION"
#define	ccdCMD_WAIT "WAIT"
#define	ccdCMD_DISABLE "DISABLE"
#define	ccdCMD_ENABLE "ENABLE"
#define	ccdCMD_ENHANCE "ENHANCE"
#define	ccdCMD_PROCESS "PROCESS"
#define	ccdCMD_PXQUERY "PXQUERY"
#define	ccdCMD_SELFTST "SELFTST"
#define	ccdCMD_VERBOSE "VERBOSE"
#define	ccdCMD_CONFIG "CONFIG"
#define	ccdCMD_SIM "SIM"
#define	ccdCMD_STOPSIM "STOPSIM"
#define	ccdPAR_STATUS_EXPOID "expoId"
#define	ccdPAR_STATUS_FUNCTION "function"
#define	ccdALL "all"
#define	ccdGLOBAL "global"
#define	ccdKEY_OPMODE "DET.MODE"
#define	ccdKEY_OPSTATE "DET.STATE"
#define	ccdKEY_SHTSTAT "DET.SHUT"
#define	ccdKEY_TMPSTAT "DET.TEMP"
#define	ccdKEY_TELSTAT "DET.TELE"
#define	ccdPAR_STATUS_EXPSTATUS "expStatus"
#define	ccdPAR_STATUS_FUNCSTATUS "funcStatus"
#define	ccdPAR_SETUP_EXPOID "expoId"
#define	ccdPAR_SETUP_FILE "file"
#define	ccdPAR_SETUP_FUNCTION "function"
#define	ccdPAR_SETUP_CHECK "check"
#define	ccdPAR_START_AT "at"
#define	ccdEXP_TYPE "DET.EXP.TYPE"
#define	ccdEXP_STEP_DEF "DET.WIN1.NDIT"
#define	ccdTIME_DEF_IDEM "DET.WIN1.ASUIT1"
#define	ccdTIME_DEF_BASE "DET.WIN1.UIT"
#define	ccdTIME_DEFi "DET.WIN1.UIT%i"
#define	ccdTIME_DEF "DET.WIN1.UIT1"
#define	ccdREPEAT_DEF "DET.EXP.NREP"
#define	ccdDO_WIPE "DET.EXP.WIPETIM"
#define	ccdTIME_REP "DET.EXP.TIMEREP"
#define	ccdFILE_UNC "DET.FRAM.FITSUNC"
#define	ccdDISK_SAVE "DET.FRAM.FITSMTD"
#define	ccdXFER_SYNC "DET.FRAM.XFERSYN"
#define	ccdSAMPLE "DET.FRAM.SAMPLE"
#define	ccdDISPLAY "DET.DISPLAY"
#define	ccdREAD_CLOCK "DET.READ.CLKIND"
#define	ccdREAD_GAIN "DET.OUT1.GAININD"
#define	ccdREAD_FRAME_TYPE "DET.FRAM.TYPE"
#define	ccdREAD_SHIFT_TYPE "DET.READ.SHIFTYP"
#define	ccdREAD_SHIFT_BASE "DET.READ.SHIFT"
#define	ccdREAD_SHIFTi "DET.READ.SHIFT%i"
#define	ccdREAD_IMAGE_SIM "DET.READ.SIMIMG"
#define	ccdREAD_WIN1_BIN_X "DET.WIN1.BINX"
#define	ccdREAD_WIN1_BIN_Y "DET.WIN1.BINY"
#define	ccdREAD_WIN1_ENAB "DET.WIN1.ST"
#define	ccdREAD_WIN1_FIR_X "DET.WIN1.STRX"
#define	ccdREAD_WIN1_DIM_X "DET.WIN1.NX"
#define	ccdREAD_WIN1_FIR_Y "DET.WIN1.STRY"
#define	ccdREAD_WIN1_DIM_Y "DET.WIN1.NY"
#define	ccdPROC_WIN1_MINMAX "DET.WIN1.MINMAX"
#define	ccdPROC_WIN1_BIAS "DET.WIN1.BIAS"
#define	ccdPROC_WIN1_FLAT "DET.WIN1.FLATF"
#define	ccdPROC_WIN1_CENTROID "DET.WIN1.CENTROID"
#define	ccdPROC_WIN1_REF_X "DET.WIN1.REFX"
#define	ccdPROC_WIN1_REF_Y "DET.WIN1.REFY"
#define	ccdPROC_WIN1_USERFUNC "DET.WIN1.IPFUNC"
#define	ccdPROC_WIN1_USERBUFF "DET.WIN1.IPBUFF"
#define	ccdPROC_WIN1_THRMIN "DET.WIN1.THRMIN"
#define	ccdPROC_WIN1_THRMAX "DET.WIN1.THRMAX"
#define	ccdPROC_WIN1_BACKGND "DET.WIN1.BACKGND"
#define	ccdPROC_WIN1_IPLLX "DET.WIN1.IPLLX"
#define	ccdPROC_WIN1_IPLLY "DET.WIN1.IPLLY"
#define	ccdPROC_WIN1_IPURX "DET.WIN1.IPURX"
#define	ccdPROC_WIN1_IPURY "DET.WIN1.IPURY"
#define	ccdREAD_WIN2_BIN_X "DET.WIN2.BINX"
#define	ccdREAD_WIN2_BIN_Y "DET.WIN2.BINY"
#define	ccdREAD_WIN2_ENAB "DET.WIN2.ST"
#define	ccdREAD_WIN2_FIR_X "DET.WIN2.STRX"
#define	ccdREAD_WIN2_DIM_X "DET.WIN2.NX"
#define	ccdREAD_WIN2_FIR_Y "DET.WIN2.STRY"
#define	ccdREAD_WIN2_DIM_Y "DET.WIN2.NY"
#define	ccdPROC_WIN2_MINMAX "DET.WIN2.MINMAX"
#define	ccdPROC_WIN2_BIAS "DET.WIN2.BIAS"
#define	ccdPROC_WIN2_FLAT "DET.WIN2.FLATF"
#define	ccdPROC_WIN2_CENTROID "DET.WIN2.CENTROID"
#define	ccdPROC_WIN2_REF_X "DET.WIN2.REFX"
#define	ccdPROC_WIN2_REF_Y "DET.WIN2.REFY"
#define	ccdPROC_WIN2_USERFUNC "DET.WIN2.IPFUNC"
#define	ccdPROC_WIN2_USERBUFF "DET.WIN2.IPBUFF"
#define	ccdPROC_WIN2_THRMIN "DET.WIN2.THRMIN"
#define	ccdPROC_WIN2_THRMAX "DET.WIN2.THRMAX"
#define	ccdPROC_WIN2_BACKGND "DET.WIN2.BACKGND"
#define	ccdPROC_WIN2_IPLLX "DET.WIN2.IPLLX"
#define	ccdPROC_WIN2_IPLLY "DET.WIN2.IPLLY"
#define	ccdPROC_WIN2_IPURX "DET.WIN2.IPURX"
#define	ccdPROC_WIN2_IPURY "DET.WIN2.IPURY"
#define	ccdREADPIX "DET.READ.NO"
#define	ccdMPPMODE "DET.READ.MODE"
#define	ccdFILE_COM "DET.FRAM.FITSCMP"
#define	ccdPAR_START_EXPOID "expoId"
#define	ccdPAR_VERS_CCDVERS "ccdVersion"
#define	ccdPAR_STANDAL_ON "on"
#define	ccdPAR_STANDAL_ARC "archive"
#define	ccdEXP_NONE 0
#define	ccdEXP_INACTIVE 1
#define	ccdEXP_PENDING 2
#define	ccdEXP_INTEGRATING 4
#define	ccdEXP_PAUSED 8
#define	ccdEXP_READING 16
#define	ccdEXP_PROCESSING 32
#define	ccdEXP_TRANSFERING 64
#define	ccdEXP_COMPLETED 128
#define	ccdEXP_FAILED 256
#define	ccdEXP_ABORTED 512
#define	ccdEXP_LOOP_FINITE 1024
#define	ccdEXP_LOOP_INFINITE 2048
#define	ccdEXP_DONE (ccdEXP_COMPLETED \| ccdEXP_FAILED \| ccdEXP_ABORTED)
#define	ccdEXP_RUNNING
#define	ccdEXP_LOOP (ccdEXP_LOOP_FINITE \| ccdEXP_LOOP_INFINITE)
#define	ccdREPEAT_FOREVER 0
#define	ccdNO_DISPLAY -1
#define	ccdWAIT_SINGLE 0
#define	ccdWAIT_GLOBAL 1
#define	ccdWAIT_SINGLE_STR "Single"
#define	ccdWAIT_GLOBAL_STR "Global"
#define	ccdEXP_NORMAL_STR "Normal"
#define	ccdEXP_DARK_STR "Dark"
#define	ccdEXP_MULTI_STR "Multiple"
#define	ccdOPERATING ccsSTATE_ONLINE
#define	ccdDISK_NONE_STR "None"
#define	ccdDISK_COMPRESS_STR "Compress"
#define	ccdDISK_UNCOMPRESS_STR "Uncompress"
#define	ccdDISK_BOTH_STR "Both"
#define	ccdFRAME_NORMAL "Normal"
#define	ccdFRAME_BIAS "Bias"
#define	ccdFRAME_DARK "Dark"
#define	ccdFRAME_FLAT "FF"
#define	ccdEXPTIME_IDEM ccsTRUE
#define	ccdEXPTIME_LIST ccsFALSE
#define	ccdLINE_SHIFT_ALT_STR "alternate"
#define	ccdLINE_SHIFT_IDEM_STR "idem"
#define	ccdLINE_SHIFT_LIST_STR "list"
#define	ccdCEN_NONE_STR "none"
#define	ccdCEN_STANDARD_STR "standard"
#define	ccdCEN_THRESHOLD_STR "threshold"
#define	ccdTHRMIN_3SIGMA_WINDOW_SELF -3
#define	ccdTHRMIN_3SIGMA_WINDOW_PREV -13
#define	ccdTHRMIN_5SIGMA_WINDOW_SELF -5
#define	ccdTHRMIN_5SIGMA_WINDOW_PREV -15
#define	ccdBCKGND_FLUX_WINDOW_SELF -1
#define	ccdBCKGND_FLUX_WINDOW_PREV -11
#define	ccdIP_NO_USER_FUN "None"
#define	ccdIP_NO_USER_BUF "None"
Typedefs
typedef char	ccdCAMERANAME [ccdCAMERANAME_LEN+1]
typedef ccsCOMPL_STAT(*	ccdIPUSERFUNC )(ccdIPIMAGE , void , ccsERROR *)
Enumerations
enum	ccdEXPTYPE { ccdEXP_NORMAL = 1, ccdEXP_DARK, ccdEXP_MULTI }
enum	ccdOPMODE { ccdNOT_AVAILABLE = 1, ccdNORMAL, ccdSIM_WS, ccdSIM_LCU, ccdSIM_ACE }
enum	ccdSTATE { ccdUNKNOWN = ccsSTATE_UNK, ccdOFF = ccsSTATE_OFF, ccdLOADED = ccsSTATE_LOADED, ccdSTANDBY = ccsSTATE_STANDBY, ccdONLINE = ccsSTATE_ONLINE }
enum	ccdSHT_STATUS { ccdSHT_ERROR = -1, ccdSHT_CLOSED, ccdSHT_OPENED, ccdSHT_CLOSING, ccdSHT_OPENING }
enum	ccdDISKSAVE { ccdDISK_NONE = 0, ccdDISK_COMPRESS, ccdDISK_UNCOMPRESS, ccdDISK_BOTH }
enum	ccdFRMTYPE { ccdFRM_NORMAL = 0, ccdFRM_BIAS, ccdFRM_DARK, ccdFRM_FLAT }
enum	ccdLINESHIFT_TYPE { ccdLINE_SHIFT_ALT = -1, ccdLINE_SHIFT_IDEM = 0, ccdLINE_SHIFT_LIST = 1 }
enum	ccdCENTYPE { ccdCENTROID_NONE = 0, ccdCENTROID_STANDARD, ccdCENTROID_THRESHOLD }
enum	ccdIMAGE_REP { ccdIMAGE_CHAR = 0, ccdIMAGE_INT, ccdIMAGE_FLOAT }
Functions
ccsCOMPL_STAT	ccdGetConf (ccdCAMERA camera, ccdCONFIG config, ccsERROR *error)
ccsCOMPL_STAT	ccdCheckSetup (ccdCONFIG config, ccdSETUP setup, ccdSETUPRES results, ccsERROR error)
ccsCOMPL_STAT	ccdCheckSetupWindow (ccdCONFIG config, ccdSETUP setup, ccdSETUPRES results, ccsERROR error)
void	ccdGetCIName (ccdCAMERANAME camera, ccsPROCNAME procName)
vltINT32	ccdGetIndexFromId (vltINT32 expId)
