#include <runtimeRepoAdapter.hpp>

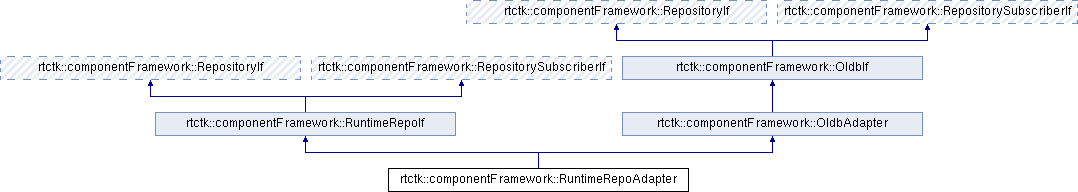

Inheritance diagram for rtctk::componentFramework::RuntimeRepoAdapter:

Public Member Functions
	RuntimeRepoAdapter ()=delete
	Do not allow construction with no arguments. More...

	RuntimeRepoAdapter (const RuntimeRepoAdapter &)=delete
	This class cannot be copy constructed. More...

RuntimeRepoAdapter &	operator= (const RuntimeRepoAdapter &)=delete
	This class cannot be copy assigned. More...

	RuntimeRepoAdapter (RuntimeRepoAdapter &&)=default
	Objects of this class can be moved. More...

RuntimeRepoAdapter &	operator= (RuntimeRepoAdapter &&)=default
	Objects of this class can be moved with the move assignment operator. More...

	RuntimeRepoAdapter (const elt::mal::Uri &baseuri)
	Constructs an adapter for the Runtime Configuration Repository service using the OLDB backend. More...

	RuntimeRepoAdapter (const elt::mal::Uri &baseuri, const std::shared_ptr< elt::oldb::CiiOldb > &oldb)
	Constructs an adapter for the Runtime Configuration Repository service with a specific OLDB API interface. More...

virtual	~RuntimeRepoAdapter ()=default

Public Member Functions inherited from rtctk::componentFramework::RuntimeRepoIf
virtual	~RuntimeRepoIf ()=default

Public Member Functions inherited from rtctk::componentFramework::RepositoryIf
virtual	~RepositoryIf ()

template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

template<typename T >
T	GetDataPoint (const DataPointPath &path) const
	Fetches a datapoint from the repository. More...

template<typename T >
void	SetDataPoint (const DataPointPath &path, const T value)
	Sets a datapoint in the repository. More...

template<typename T >
void	ReadDataPoint (const DataPointPath &path, T &buffer) const
	Reads a datapoint from the repository. More...

template<typename T >
void	WriteDataPoint (const DataPointPath &path, const T &buffer)
	Writes a datapoint to the repository. More...

void	WriteDataPoint (const DataPointPath &path, const char *buffer)

template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)

template<>
void	SetDataPoint (const DataPointPath &path, const char *value)

Public Member Functions inherited from rtctk::componentFramework::RepositorySubscriberIf
virtual	~RepositorySubscriberIf ()

template<typename T , typename F >
void	Subscribe (const DataPointPath &path, T &buffer, F handler) const
	A convenience template function that will register a callback to receive new datapoint values in a synchronous manner. More...

void	Unsubscribe (const DataPointPath &path) const
	A simple convenience function that will deregister all callbacks for receiving new datapoint values. More...

Public Member Functions inherited from rtctk::componentFramework::OldbAdapter
	OldbAdapter ()=delete
	Do not allow construction with no arguments. More...

	OldbAdapter (const OldbAdapter &)=delete
	This class cannot be copy constructed. More...

OldbAdapter &	operator= (const OldbAdapter &)=delete
	This class cannot be copy assigned. More...

	OldbAdapter (OldbAdapter &&)=default
	Objects of this class can be moved. More...

OldbAdapter &	operator= (OldbAdapter &&)=default
	Objects of this class can be moved with the move assignment operator. More...

	OldbAdapter (const elt::mal::Uri &baseuri)
	Constructs an adapter for the OLDB service with the default OLDB API interface. More...

	OldbAdapter (const elt::mal::Uri &baseuri, const std::shared_ptr< elt::oldb::CiiOldb > &oldb)
	Constructs an adapter for the OLDB service with a specific OLDB API interface. More...

virtual	~OldbAdapter ()
	Destroys the adapter for the OLDB service releasing allocated resources. More...

void	CreateDataPoint (const DataPointPath &path, const std::type_info &type) override
	Creates a new datapoint in the OLDB. More...

void	DeleteDataPoint (const DataPointPath &path) override
	Deletes a datapoint in the OLDB. More...

const std::type_info &	GetDataPointType (const DataPointPath &path) const override
	Retrieves the corresponding C++ type for the datapoint from the OLDB. More...

std::size_t	GetDataPointSize (const DataPointPath &path) const override
	Returns the size of a datapoint in the OLDB. More...

bool	DataPointExists (const DataPointPath &path) const override
	Checks for the existence of a datapoint in the repository. More...

std::pair< StringList, StringList >	GetChildren (const DataPointPath &path) const override
	Queries the datapoints and child paths for a given path. More...

Response	SendReadRequest (const Request &request) const override
	Sends a request to read data from the repository. More...

Response	SendWriteRequest (const Request &request) override
	Sends a request to write data to the repository. More...

Response	SendSubscribeRequest (const SubscribeRequest &request) const override
	This is called to asynchronously send a subscription request for datapoints. More...

Response	SendUnsubscribeRequest (const UnsubscribeRequest &request) const override
	This is called to asynchronously send a request to unsubscribe from various notifications. More...

template<typename T , typename U , typename V >
void	CastAndRegisterSubscription (const SubscribeRequest::Parameters &params, const std::shared_ptr< CiiOldbTypedDataBase > &datapoint, std::function< void(T *, const std::shared_ptr< CiiOldbDpValue< U >> &)> write_function) const

virtual void	CreateDataPoint (const DataPointPath &path, const std::type_info &type)=0
	Creates a new datapoint in the repository with a specified type. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)

Public Member Functions inherited from rtctk::componentFramework::OldbIf
virtual	~OldbIf ()=default

Additional Inherited Members
Public Types inherited from rtctk::componentFramework::RepositoryIf
using	StringList = std::vector< std::string >

Static Public Member Functions inherited from rtctk::componentFramework::RuntimeRepoIf
static std::unique_ptr< RuntimeRepoIf >	CreateAdapter (const elt::mal::Uri &uri)
	Factory method used to create the appropriate Runtime Configuration Repository adapter depending on the URI scheme. More...

Static Public Member Functions inherited from rtctk::componentFramework::OldbIf
static std::unique_ptr< OldbIf >	CreateAdapter (const elt::mal::Uri &uri)
	Factory method used to create the appropriate OLDB adapter depending on the URI scheme. More...

Protected Member Functions inherited from rtctk::componentFramework::OldbAdapter
void	SetMetadataInstanceMap (const std::map< std::type_index, std::string > &map)
	Sets the type_index to OLDB metadata instance name map. More...

void	SetTypeInfoMap (const std::map< std::string, const std::type_info & > &map)
	Sets the OLDB metadata instance name to type_info map. More...

Constructor & Destructor Documentation

◆ RuntimeRepoAdapter() [1/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( )

delete

Do not allow construction with no arguments.

◆ RuntimeRepoAdapter() [2/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( const RuntimeRepoAdapter & )

delete

This class cannot be copy constructed.

◆ RuntimeRepoAdapter() [3/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( RuntimeRepoAdapter && )

default

Objects of this class can be moved.

◆ RuntimeRepoAdapter() [4/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( const elt::mal::Uri & baseuri )

explicit

Constructs an adapter for the Runtime Configuration Repository service using the OLDB backend.

Parameters

[in] baseuri The URI containing a base path where the datapoints are stored. The URI must use the cii.oldb scheme.

◆ RuntimeRepoAdapter() [5/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter	(	const elt::mal::Uri &	baseuri,
		const std::shared_ptr< elt::oldb::CiiOldb > &	oldb
	)

explicit

Constructs an adapter for the Runtime Configuration Repository service with a specific OLDB API interface.

Parameters

[in]	baseuri	The URI containing a base path where the datapoints are stored. The URI must use the cii.oldb scheme.
[in]	oldb	The OLDB API client object to use under the hood.

◆ ~RuntimeRepoAdapter()

virtual rtctk::componentFramework::RuntimeRepoAdapter::~RuntimeRepoAdapter ( )

virtualdefault

Member Function Documentation

◆ operator=() [1/2]

RuntimeRepoAdapter& rtctk::componentFramework::RuntimeRepoAdapter::operator= ( const RuntimeRepoAdapter & )

delete

This class cannot be copy assigned.

◆ operator=() [2/2]

RuntimeRepoAdapter& rtctk::componentFramework::RuntimeRepoAdapter::operator= ( RuntimeRepoAdapter && )

default

Objects of this class can be moved with the move assignment operator.

The documentation for this class was generated from the following files:

componentFramework/services/runtimeRepo/src/include/rtctk/componentFramework/runtimeRepoAdapter.hpp
componentFramework/services/runtimeRepo/src/runtimeRepoAdapter.cpp
