#include <runtimeRepoAdapter.hpp>

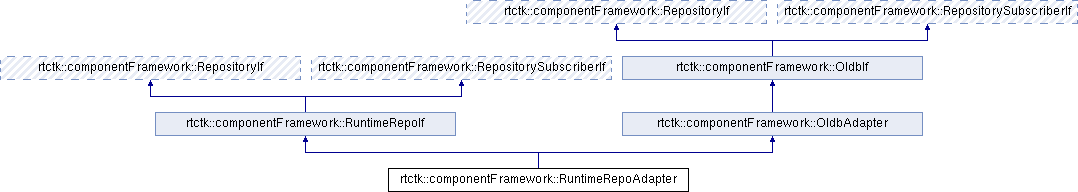

Inheritance diagram for rtctk::componentFramework::RuntimeRepoAdapter:

Public Member Functions
	RuntimeRepoAdapter ()=delete
	Do not allow construction with no arguments. More...

	RuntimeRepoAdapter (const RuntimeRepoAdapter &)=delete
	This class cannot be copy constructed. More...

RuntimeRepoAdapter &	operator= (const RuntimeRepoAdapter &)=delete
	This class cannot be copy assigned. More...

	RuntimeRepoAdapter (RuntimeRepoAdapter &&)=default
	Objects of this class can be moved. More...

RuntimeRepoAdapter &	operator= (RuntimeRepoAdapter &&)=default
	Objects of this class can be moved with the move assignment operator. More...

	RuntimeRepoAdapter (const elt::mal::Uri &baseuri)
	Constructs an adapter for the Runtime Configuration Repository service using the OLDB backend. More...

	RuntimeRepoAdapter (const elt::mal::Uri &baseuri, const std::shared_ptr< elt::oldb::CiiOldb > &oldb)
	Constructs an adapter for the Runtime Configuration Repository service with a specific OLDB API interface. More...

virtual	~RuntimeRepoAdapter ()=default

Public Member Functions inherited from rtctk::componentFramework::RuntimeRepoIf
virtual	~RuntimeRepoIf ()=default

Public Member Functions inherited from rtctk::componentFramework::RepositoryIf
virtual	~RepositoryIf ()

template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

template<typename T >
T	GetDataPoint (const DataPointPath &path) const
	Fetches a datapoint from the repository. More...

template<typename T >
void	SetDataPoint (const DataPointPath &path, const T value)
	Sets a datapoint in the repository. More...

template<typename T >
void	ReadDataPoint (const DataPointPath &path, T &buffer) const
	Reads a datapoint from the repository. More...

template<typename T >
void	WriteDataPoint (const DataPointPath &path, const T &buffer)
	Writes a datapoint to the repository. More...

void	WriteDataPoint (const DataPointPath &path, const char *buffer)

template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)

template<>
void	SetDataPoint (const DataPointPath &path, const char *value)

Public Member Functions inherited from rtctk::componentFramework::RepositorySubscriberIf
virtual	~RepositorySubscriberIf ()

template<typename T , typename F >
void	Subscribe (const DataPointPath &path, T &buffer, F handler) const
	A convenience template function that will register a callback to receive new datapoint values in a synchronous manner. More...

void	Unsubscribe (const DataPointPath &path) const
	A simple convenience function that will deregister all callbacks for receiving new datapoint values. More...

Public Member Functions inherited from rtctk::componentFramework::OldbAdapter
	OldbAdapter ()=delete
	Do not allow construction with no arguments. More...

	OldbAdapter (const OldbAdapter &)=delete
	This class cannot be copy constructed. More...

OldbAdapter &	operator= (const OldbAdapter &)=delete
	This class cannot be copy assigned. More...

	OldbAdapter (OldbAdapter &&)=default
	Objects of this class can be moved. More...

OldbAdapter &	operator= (OldbAdapter &&)=default
	Objects of this class can be moved with the move assignment operator. More...

	OldbAdapter (const elt::mal::Uri &baseuri)
	Constructs an adapter for the OLDB service with the default OLDB API interface. More...

	OldbAdapter (const elt::mal::Uri &baseuri, const std::shared_ptr< elt::oldb::CiiOldb > &oldb)
	Constructs an adapter for the OLDB service with a specific OLDB API interface. More...

virtual	~OldbAdapter ()
	Destroys the adapter for the OLDB service releasing allocated resources. More...

void	CreateDataPoint (const DataPointPath &path, const std::type_info &type) override
	Creates a new datapoint in the OLDB. More...

void	DeleteDataPoint (const DataPointPath &path) override
	Deletes a datapoint in the OLDB. More...

const std::type_info &	GetDataPointType (const DataPointPath &path) const override
	Retrieves the corresponding C++ type for the datapoint from the OLDB. More...

std::size_t	GetDataPointSize (const DataPointPath &path) const override
	Returns the size of a datapoint in the OLDB. More...

bool	DataPointExists (const DataPointPath &path) const override
	Checks for the existence of a datapoint in the repository. More...

std::pair< PathList, PathList >	GetChildren (const DataPointPath &path) const override
	Queries the datapoints and child paths for a given path. More...

Response	SendReadRequest (const ReadRequest &request) const override
	Sends a request to read data from the repository. More...

Response	SendWriteRequest (const WriteRequest &request) override
	Sends a request to write data to the repository. More...

Response	SendSubscribeRequest (const SubscribeRequest &request) const override
	This is called to asynchronously send a subscription request for datapoints. More...

Response	SendUnsubscribeRequest (const UnsubscribeRequest &request) const override
	This is called to asynchronously send a request to unsubscribe from various notifications. More...

template<typename T , typename U , typename V >
void	CastAndRegisterSubscription (const SubscribeRequest::Parameters &params, const std::shared_ptr< CiiOldbTypedDataBase > &datapoint, std::function< void(T *, const std::shared_ptr< CiiOldbDpValue< U >> &)> write_function) const

virtual void	CreateDataPoint (const DataPointPath &path, const std::type_info &type)=0
	Creates a new datapoint in the repository with a specified type. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...

template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...

template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)

Public Member Functions inherited from rtctk::componentFramework::OldbIf
virtual	~OldbIf ()=default

Static Public Member Functions
static void	InitMetadata ()
	Initialises the type metadata in the CII configuration service for the Runtime Configuration Repository. More...

Static Public Member Functions inherited from rtctk::componentFramework::RuntimeRepoIf
static std::unique_ptr< RuntimeRepoIf >	CreateAdapter (const elt::mal::Uri &uri)
	Factory method used to create the appropriate Runtime Configuration Repository adapter depending on the URI scheme. More...

Static Public Member Functions inherited from rtctk::componentFramework::OldbAdapter
static void	InitMetadata ()
	Initialises the type metadata in the CII configuration service for the OLDB. More...

Static Public Member Functions inherited from rtctk::componentFramework::OldbIf
static std::unique_ptr< OldbIf >	CreateAdapter (const elt::mal::Uri &uri)
	Factory method used to create the appropriate OLDB adapter depending on the URI scheme. More...

Additional Inherited Members
Public Types inherited from rtctk::componentFramework::RepositoryIf
using	PathList = std::vector< DataPointPath >

Protected Member Functions inherited from rtctk::componentFramework::OldbAdapter
void	SetMetadataInstanceMap (const std::map< std::type_index, std::string > &map)
	Sets the type_index to OLDB metadata instance name map. More...

void	SetTypeInfoMap (const std::map< std::string, const std::type_info & > &map)
	Sets the OLDB metadata instance name to type_info map. More...

Constructor & Destructor Documentation

◆ RuntimeRepoAdapter() [1/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( )

delete

Do not allow construction with no arguments.

◆ RuntimeRepoAdapter() [2/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( const RuntimeRepoAdapter & )

delete

This class cannot be copy constructed.

◆ RuntimeRepoAdapter() [3/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( RuntimeRepoAdapter && )

default

Objects of this class can be moved.

◆ RuntimeRepoAdapter() [4/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter ( const elt::mal::Uri & baseuri )

explicit

Constructs an adapter for the Runtime Configuration Repository service using the OLDB backend.

Parameters

[in] baseuri The URI containing a base path where the datapoints are stored. The URI must use the cii.oldb scheme.

◆ RuntimeRepoAdapter() [5/5]

rtctk::componentFramework::RuntimeRepoAdapter::RuntimeRepoAdapter	(	const elt::mal::Uri &	baseuri,
		const std::shared_ptr< elt::oldb::CiiOldb > &	oldb
	)

explicit

Constructs an adapter for the Runtime Configuration Repository service with a specific OLDB API interface.

Parameters

[in]	baseuri	The URI containing a base path where the datapoints are stored. The URI must use the cii.oldb scheme.
[in]	oldb	The OLDB API client object to use under the hood.

◆ ~RuntimeRepoAdapter()

virtual rtctk::componentFramework::RuntimeRepoAdapter::~RuntimeRepoAdapter ( )

virtualdefault

Member Function Documentation

◆ InitMetadata()

void rtctk::componentFramework::RuntimeRepoAdapter::InitMetadata ( )

static

Initialises the type metadata in the CII configuration service for the Runtime Configuration Repository.

Metadata related to various data types needs to be initialised in the CII configuration service before the RuntimeRepoAdapter can be used with the standard types supported by the RTC Toolkit. This function will initialise the needed metadata if it is missing. If the metadata for the types already exists then this function will reset it to the default initial values.

Exceptions

InitialisationException For any error that occurs in the CII system.

◆ operator=() [1/2]

RuntimeRepoAdapter& rtctk::componentFramework::RuntimeRepoAdapter::operator= ( const RuntimeRepoAdapter & )

delete

This class cannot be copy assigned.

◆ operator=() [2/2]

RuntimeRepoAdapter& rtctk::componentFramework::RuntimeRepoAdapter::operator= ( RuntimeRepoAdapter && )

default

Objects of this class can be moved with the move assignment operator.

The documentation for this class was generated from the following files:

componentFramework/services/runtimeRepo/src/include/rtctk/componentFramework/runtimeRepoAdapter.hpp
componentFramework/services/runtimeRepo/src/runtimeRepoAdapter.cpp
