rtctk::componentFramework::FilePersistentRepoAdapter Class Reference

Implements a file based Persistent Configuration Repository adapter that can be used for testing. More...

#include <filePersistentRepoAdapter.hpp>

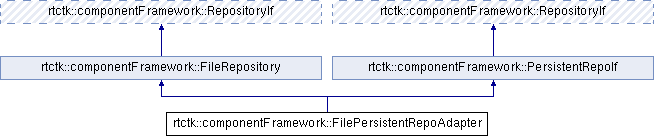

Inheritance diagram for rtctk::componentFramework::FilePersistentRepoAdapter:

Public Member Functions
	FilePersistentRepoAdapter ()=delete
	FilePersistentRepoAdapter (const FilePersistentRepoAdapter &)=delete
FilePersistentRepoAdapter &	operator= (const FilePersistentRepoAdapter &)=delete
	FilePersistentRepoAdapter (FilePersistentRepoAdapter &&)=default
FilePersistentRepoAdapter &	operator= (FilePersistentRepoAdapter &&)=default
	FilePersistentRepoAdapter (const elt::mal::Uri &datauri, const int dirdepth=1)
	Constructor to create a Persistent Configuration Repository adapter for a simple file based implementation. More...
virtual	~FilePersistentRepoAdapter ()
Public Member Functions inherited from rtctk::componentFramework::FileRepository
	FileRepository ()=delete
	FileRepository (const FileRepository &)=delete
FileRepository &	operator= (const FileRepository &)=delete
	FileRepository (const elt::mal::Uri &datauri, const int dirdepth)
virtual	~FileRepository () noexcept=default
void	CreateDataPoint (const DataPointPath &path, const std::type_info &type) override
	Creates a new datapoint in the repository with a specified type. More...
void	DeleteDataPoint (const DataPointPath &path) override
	Deletes a datapoint. More...
const std::type_info &	GetDataPointType (const DataPointPath &path) const override
	Fetches the type of the datapoint. More...
size_t	GetDataPointSize (const DataPointPath &path) const override
	Fetches the size of the datapoint's data. More...
bool	DataPointExists (const DataPointPath &path) const override
	Checks for the existence of a datapoint in the repository. More...
std::pair< PathList, PathList >	GetChildren (const DataPointPath &path) const override
	Queries the datapoints and child paths for a given path. More...
Response	SendReadRequest (const ReadRequest &request) const override
	Sends a request to read data from the repository. More...
Response	SendWriteRequest (const WriteRequest &request) override
	Sends a request to write data to the repository. More...
size_t	GetFitsWriteThreshold () const
void	SetFitsWriteThreshold (size_t value)
	Sets the threshold for storing numerical matrices and vectors in FITS files rather than the YAML file. More...
virtual void	CreateDataPoint (const DataPointPath &path, const std::type_info &type)=0
	Creates a new datapoint in the repository with a specified type. More...
template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...
template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...
template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)
Public Member Functions inherited from rtctk::componentFramework::RepositoryIf
virtual	~RepositoryIf ()
template<typename T >
void	CreateDataPoint (const DataPointPath &path)
	Creates a new datapoint in the repository. More...
template<typename T >
void	CreateDataPoint (const DataPointPath &path, const T default_value)
	Creates a new datapoint in the repository and sets a default value. More...
template<typename T >
T	GetDataPoint (const DataPointPath &path) const
	Fetches a datapoint from the repository. More...
template<typename T >
void	SetDataPoint (const DataPointPath &path, const T value)
	Sets a datapoint in the repository. More...
template<typename T >
void	ReadDataPoint (const DataPointPath &path, T &buffer) const
	Reads a datapoint from the repository. More...
template<typename T >
void	WriteDataPoint (const DataPointPath &path, const T &buffer)
	Writes a datapoint to the repository. More...
void	WriteDataPoint (const DataPointPath &path, const char *buffer)
template<>
void	CreateDataPoint (const DataPointPath &path, const char *default_value)
template<>
void	SetDataPoint (const DataPointPath &path, const char *value)
Public Member Functions inherited from rtctk::componentFramework::PersistentRepoIf
virtual	~PersistentRepoIf ()=default

Additional Inherited Members
Public Types inherited from rtctk::componentFramework::RepositoryIf
using	PathList = std::vector< DataPointPath >
Static Public Member Functions inherited from rtctk::componentFramework::PersistentRepoIf
static std::unique_ptr< PersistentRepoIf >	CreateAdapter (const elt::mal::Uri &uri)
	Factory method used to create the appropriate Persistent Configuration Repository adapter depending on the URI scheme. More...

Detailed Description

Implements a file based Persistent Configuration Repository adapter that can be used for testing.

Thread Safety

thread-safe – File based locking is used to make all read/write methods synchronous between all processes and threads, in addition to mutex locking to protect the structures of this class.

Constructor & Destructor Documentation

FilePersistentRepoAdapter() [1/4]

rtctk::componentFramework::FilePersistentRepoAdapter::FilePersistentRepoAdapter ( )

delete

FilePersistentRepoAdapter() [2/4]

rtctk::componentFramework::FilePersistentRepoAdapter::FilePersistentRepoAdapter ( const FilePersistentRepoAdapter &  )

delete

FilePersistentRepoAdapter() [3/4]

rtctk::componentFramework::FilePersistentRepoAdapter::FilePersistentRepoAdapter ( FilePersistentRepoAdapter &&  )

default

FilePersistentRepoAdapter() [4/4]

rtctk::componentFramework::FilePersistentRepoAdapter::FilePersistentRepoAdapter ( const elt::mal::Uri &  datauri, const int  dirdepth = 1  )

explicit

Constructor to create a Persistent Configuration Repository adapter for a simple file based implementation.

Parameters

[in]	datauri	Must be a file scheme URI with the path indicating the location of the repository YAML files.
[in]	dirdepth	Indicates how deep the directory structure should be. The default value is 1, which means the first component of a datapoint path is used as the name of the YAML file.

~FilePersistentRepoAdapter()

rtctk::componentFramework::FilePersistentRepoAdapter::~FilePersistentRepoAdapter ( )

virtual

Member Function Documentation

operator=() [1/2]

FilePersistentRepoAdapter& rtctk::componentFramework::FilePersistentRepoAdapter::operator= ( const FilePersistentRepoAdapter &  )

delete

operator=() [2/2]

FilePersistentRepoAdapter& rtctk::componentFramework::FilePersistentRepoAdapter::operator= ( FilePersistentRepoAdapter &&  )

default

---

The documentation for this class was generated from the following files:

• componentFramework/services/persistentRepo/src/include/rtctk/componentFramework/filePersistentRepoAdapter.hpp
• componentFramework/services/persistentRepo/src/filePersistentRepoAdapter.cpp
