Basic sequencer node. More...

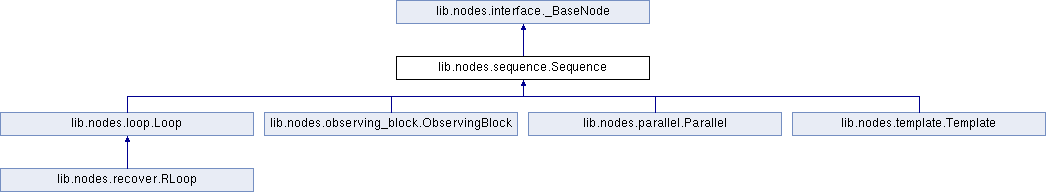

Inheritance diagram for lib.nodes.sequence.Sequence:

Public Member Functions
def	__attrs_post_init__ (self)
	Assigns node's name and id. More...

def	__iter__ (self)

def	start_step (self)
	Standard sequence's start step. More...

def	end_step (self)
	Standard sequence's end step. More...

def	append (self, s)
	Appends a node to the Sequence. More...

def	make_sequence (self, parent_tpl=None)
	Builds this sequence execution graph. More...

def	create_node_tasks (self, resume=False)
	Creates Task object associated to this node. More...

def	reschedule_node (self, node_id)
	Reschedule a node for execution. More...

def	start (self, make_sequence=True, resume=False)
	This is the entry point for Sequence execution. More...

def	run (self)
	Runs the node – This executes the task. More...

def	execute (self, resume=False, propagate=False)
	Executes this just creates the asyncio task. More...

def	resume (self)
	Resume node execution. More...

def	main_task (self)
	Returns the objective node of the sequence – the end node. More...

def	__call__ (self, resume=False)

def	abort (self)
	Aborts the sequence. More...

def	nodes (self)
	Return nodes from Graph. More...

def	get_node (self, node_id)
	Get node by id. More...

def	get_task (self, node_id)
	Get task by node_id. More...

def	par (self, k)
	Get a parameter value. More...

def	set (self, p)
	Sets the value of a parameter. More...

Public Member Functions inherited from lib.nodes.interface._BaseNode
def	make_sequence (self)
	does nothing More...

def	make_task (self, node, input_list, resume)
	Creates the task object that executes the node. More...

def	pause (self)

Static Public Member Functions
def	get_context ()

def	create (args, *kw)
	Sequence node constructor. More...

Public Attributes
	name

	id

	in_error

	runtime_flags

	t_start

	skip

	exception

	t_end

Static Public Attributes
	graph = attr.ib(init=False, default=attr.Factory(nx.DiGraph), repr=False)

	debug = attr.ib(init=False, default=False, repr=False)

	current_seq = cv.ContextVar("current_seq", default=None)

	root = cv.ContextVar("root", default=None)

Static Public Attributes inherited from lib.nodes.interface._BaseNode
	id = attr.ib(default=None, kw_only=True)

	name = attr.ib(default=None, kw_only=True)

	runtime_flags = attr.ib(default=0, kw_only=True)

	deps = attr.ib(default=attr.Factory(list), repr=False, kw_only=True, init=False)

	description = attr.ib(default="", kw_only=True)

	exception = attr.ib(init=False, default=None, repr=False)

	can_skip = attr.ib(default=True, init=False)

	hide = attr.ib(default=False, init=False)

	t_start = attr.ib(init=False, default=None, repr=False)

	t_end = attr.ib(init=False, default=None, repr=False)

	running_checkpoint

	serial_number = attr.ib(init=False)

Properties
	context = property
	Get context dictionary, preferably from root node. More...

	seq = property
	Retrieves the sequence list. More...

	G = property
	returns the graph object More...

	start_node = property
	Returns the start node. More...

	end_node = property
	Returns the end node. More...

	parameters = property
	Return parameters. More...

	state = property
	node state More...

	full_state = property

Properties inherited from lib.nodes.interface._BaseNode
	result = property
	Node's result. More...

	end_node = property

	start_node = property

	state = property
	Gets the node state. More...

	full_state = property
	Gets the node state. More...

	in_error = property

	skip = property

Detailed Description

Basic sequencer node.

Use :meth:create to properly build :class:Sequence objects.

Table 1
Context Variables
---------------------------------------------
Name        |  Desc
-           | -
current_seq | The parent of the current node
root        | Top level DAG's root
-           | -

Examples

>>> s = Sequence.create(a,b, name="my sequence")
# execute Sequence
>>> await s.start()
# Get running Sequence from Inside function a():
>>> def a():
...     current_seq = Sequence.current_seq
...     # now current_seq is the node s

... assert current_seq == s

Member Function Documentation

◆ __attrs_post_init__()

def lib.nodes.sequence.Sequence.__attrs_post_init__ ( self )

Assigns node's name and id.

Reimplemented in lib.nodes.template.Template, lib.nodes.recover.RLoop, lib.nodes.parallel.Parallel, lib.nodes.observing_block.ObservingBlock, and lib.nodes.loop.Loop.

◆ call()

def lib.nodes.sequence.Sequence.__call__	(	self,
		resume = `False`
	)

◆ iter()

def lib.nodes.sequence.Sequence.__iter__ ( self )

◆ abort()

def lib.nodes.sequence.Sequence.abort ( self )

Aborts the sequence.

   Goes trough the full graph and aborts the tasks associated to nodes (if any).
   Do not allow nodes to run by taking away its running_checkpoint attribute.

◆ append()

def lib.nodes.sequence.Sequence.append	(	self,
		s
	)

Appends a node to the Sequence.

◆ create()

def lib.nodes.sequence.Sequence.create	(	*	args,
		**	kw
	)

static

Sequence node constructor.

        *args: Variable length list of nodes or coroutines that compose the

Parameters

sequence.
id	Node id
name	node name

Reimplemented in lib.nodes.parallel.Parallel, and lib.nodes.loop.Loop.

◆ create_node_tasks()

def lib.nodes.sequence.Sequence.create_node_tasks	(	self,
		resume = `False`
	)

Creates Task object associated to this node.

◆ end_step()

def lib.nodes.sequence.Sequence.end_step ( self )

Standard sequence's end step.

   Evaluates the sequence's final state.
   Collects node's result and put them in the sequence's result attribute.

Reimplemented in lib.nodes.loop.Loop.

◆ execute()

def lib.nodes.sequence.Sequence.execute	(	self,
		resume = `False`,
		propagate = `False`
	)

Executes this just creates the asyncio task.

Reimplemented in lib.nodes.template.Template.

◆ get_context()

def lib.nodes.sequence.Sequence.get_context ( )

static

◆ get_node()

def lib.nodes.sequence.Sequence.get_node	(	self,
		node_id
	)

Get node by id.

Reimplemented in lib.nodes.loop.Loop.

◆ get_task()

def lib.nodes.sequence.Sequence.get_task	(	self,
		node_id
	)

Get task by node_id.

◆ main_task()

def lib.nodes.sequence.Sequence.main_task ( self )

Returns the objective node of the sequence – the end node.

◆ make_sequence()

def lib.nodes.sequence.Sequence.make_sequence	(	self,
		parent_tpl = `None`
	)

Builds this sequence execution graph.

Joins the Sequence's nodes together.

Reimplemented in lib.nodes.template.Template, lib.nodes.parallel.Parallel, and lib.nodes.loop.Loop.

◆ nodes()

def lib.nodes.sequence.Sequence.nodes ( self )

Return nodes from Graph.

Reimplemented in lib.nodes.loop.Loop.

◆ par()

def lib.nodes.sequence.Sequence.par	(	self,
		k
	)

Get a parameter value.

◆ reschedule_node()

def lib.nodes.sequence.Sequence.reschedule_node	(	self,
		node_id
	)

Reschedule a node for execution.

◆ resume()

def lib.nodes.sequence.Sequence.resume ( self )

Resume node execution.

Reimplemented from lib.nodes.interface._BaseNode.

◆ run()

def lib.nodes.sequence.Sequence.run ( self )

Runs the node – This executes the task.

◆ set()

def lib.nodes.sequence.Sequence.set	(	self,
		p
	)

Sets the value of a parameter.

◆ start()

def lib.nodes.sequence.Sequence.start	(	self,
		make_sequence = `True`,
		resume = `False`
	)

This is the entry point for Sequence execution.

Returns: Returns the :class:SeqTask object that executes the sequence

Exceptions

Exception Any exception received is re-raised and the sequence is aborted.

◆ start_step()

def lib.nodes.sequence.Sequence.start_step ( self )

Standard sequence's start step.

   Sets the sequence's state to RUNNING

Member Data Documentation

◆ current_seq

lib.nodes.sequence.Sequence.current_seq = cv.ContextVar("current_seq", default=None)

static

◆ debug

lib.nodes.sequence.Sequence.debug = attr.ib(init=False, default=False, repr=False)

static

◆ exception

lib.nodes.sequence.Sequence.exception

◆ graph

lib.nodes.sequence.Sequence.graph = attr.ib(init=False, default=attr.Factory(nx.DiGraph), repr=False)

static

◆ id

lib.nodes.sequence.Sequence.id

◆ in_error

lib.nodes.sequence.Sequence.in_error

◆ name

lib.nodes.sequence.Sequence.name

◆ root

lib.nodes.sequence.Sequence.root = cv.ContextVar("root", default=None)

static

◆ runtime_flags

lib.nodes.sequence.Sequence.runtime_flags

◆ skip

lib.nodes.sequence.Sequence.skip

◆ t_end

lib.nodes.sequence.Sequence.t_end

◆ t_start

lib.nodes.sequence.Sequence.t_start

Property Documentation

◆ context

lib.nodes.sequence.Sequence.context = property

static

Get context dictionary, preferably from root node.

◆ end_node

lib.nodes.sequence.Sequence.end_node = property

static

Returns the end node.

   If it does not exist, it creates it.

◆ full_state

lib.nodes.sequence.Sequence.full_state = property

static

◆ G

lib.nodes.sequence.Sequence.G = property

static

returns the graph object

◆ parameters

lib.nodes.sequence.Sequence.parameters = property

static

Return parameters.

◆ seq

lib.nodes.sequence.Sequence.seq = property

static

Retrieves the sequence list.

   :meta private:

◆ start_node

lib.nodes.sequence.Sequence.start_node = property

static

Returns the start node.

   If it does not exist, it creates it.

◆ state

lib.nodes.sequence.Sequence.state = property

static

node state

The documentation for this class was generated from the following file:

seq/seqlib/src/seq/lib/nodes/sequence.py
