lib.nodes.action.Action Class Reference

Action ctor. More...

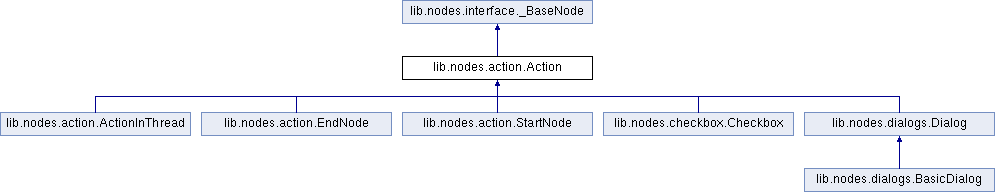

Inheritance diagram for lib.nodes.action.Action:

Public Member Functions
def	__attrs_post_init__ (self)
	setup object. More...
def	make_sequence (self, parent_tpl=None)
	Not much to do here. More...
def	__call__ (self, resume=False)
	Executes node action. More...
Public Member Functions inherited from lib.nodes.interface._BaseNode
def	make_sequence (self)
	does nothing More...
def	make_task (self, node, input_list, resume)
	Creates the task object that executes the node. More...
def	pause (self)
def	resume (self)

Public Attributes
	name
	id
	description
	runtime_flags
	in_error
	t_start
	skip
	t_end
	result
	exception

Static Public Attributes
	f = attr.ib(default=None, repr=False)
	parent_tpl = attr.ib(default=None, repr=False)
	current_node = cv.ContextVar("current_node", default=None)
Static Public Attributes inherited from lib.nodes.interface._BaseNode
	id = attr.ib(default=None, kw_only=True)
	name = attr.ib(default=None, kw_only=True)
	runtime_flags = attr.ib(default=0, kw_only=True)
	deps = attr.ib(default=attr.Factory(list), repr=False, kw_only=True, init=False)
	description = attr.ib(default="", kw_only=True)
	exception = attr.ib(init=False, default=None, repr=False)
	can_skip = attr.ib(default=True, init=False)
	hide = attr.ib(default=False, init=False)
	t_start = attr.ib(init=False, default=None, repr=False)
	t_end = attr.ib(init=False, default=None, repr=False)
	running_checkpoint
	serial_number = attr.ib(init=False)

Properties
	context = property
	Get context from the running Sequence. More...
	state = property
	full_state = property
Properties inherited from lib.nodes.interface._BaseNode
	result = property
	Node's result. More...
	end_node = property
	start_node = property
	state = property
	Gets the node state. More...
	full_state = property
	Gets the node state. More...
	in_error = property
	skip = property

Detailed Description

Action ctor.

Action nodes executes coroutines in a Sequencer script.

Parameters

f	The coroutine the node will execute
id	Unique id. If not provided an unique identifier is assigned.
name	Node name. If not provided a name is assigned.

Exceptions

TypeError

is f is not a coroutine.

Member Function Documentation

__attrs_post_init__()

def lib.nodes.action.Action.__attrs_post_init__

(

self

)

setup object.

Sets name, id and allows node to run.

Reimplemented in lib.nodes.dialogs.BasicDialog, and lib.nodes.checkbox.Checkbox.

__call__()

def lib.nodes.action.Action.__call__	(		self,
			resume = False
	)

Executes node action.

   If the action is a coroutine a task is created and passed to
   the asyncio loop for execution.

Reimplemented in lib.nodes.dialogs.BasicDialog, lib.nodes.checkbox.Checkbox, and lib.nodes.action.ActionInThread.

make_sequence()

def lib.nodes.action.Action.make_sequence	(		self,
			parent_tpl = None
	)

Not much to do here.

Link back to Template object (if any) Get runtime flags from controller object.

Member Data Documentation

current_node

lib.nodes.action.Action.current_node = cv.ContextVar("current_node", default=None)

static

description

lib.nodes.action.Action.description

exception

lib.nodes.action.Action.exception

f

lib.nodes.action.Action.f = attr.ib(default=None, repr=False)

static

id

lib.nodes.action.Action.id

in_error

lib.nodes.action.Action.in_error

name

lib.nodes.action.Action.name

parent_tpl

lib.nodes.action.Action.parent_tpl = attr.ib(default=None, repr=False)

static

result

lib.nodes.action.Action.result

runtime_flags

lib.nodes.action.Action.runtime_flags

skip

lib.nodes.action.Action.skip

t_end

lib.nodes.action.Action.t_end

t_start

lib.nodes.action.Action.t_start

Property Documentation

context

lib.nodes.action.Action.context = property

static

Get context from the running Sequence.

full_state

lib.nodes.action.Action.full_state = property

static

state

lib.nodes.action.Action.state = property

static

---

The documentation for this class was generated from the following file:

• seq/seqlib/src/seq/lib/nodes/action.py
