rad::ThreadActivity Class Reference

#include <activity.hpp>

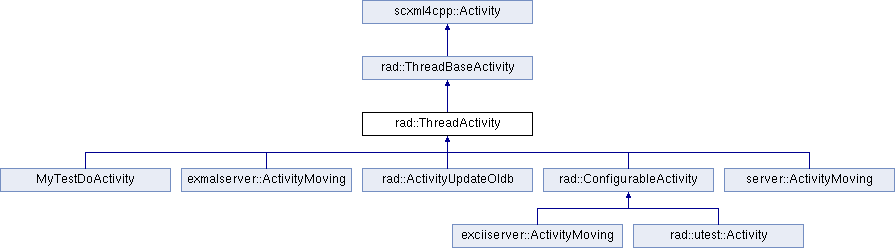

Inheritance diagram for rad::ThreadActivity:

Public Member Functions
	ThreadActivity (const ThreadActivity &)=delete
ThreadActivity &	operator= (const ThreadActivity &)=delete
virtual void	Run ()=0
pthread_t	GetNativeHandle () const override
bool	IsThreadJoined () const override
std::string	GetName ()
int	SetName (const std::string &name)
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
Public Member Functions inherited from rad::ThreadBaseActivity
	ThreadBaseActivity (ThreadBaseActivity const &)=delete
void	start (scxml4cpp::Context *c) override
void	stop (scxml4cpp::Context *c) override
bool	IsStopRequested () const
Public Member Functions inherited from scxml4cpp::Activity
	Activity (const std::string &id)
virtual	~Activity ()
std::string	getId () const
void	setId (const std::string &id)

Protected Member Functions
void	StartThread () override
void	JoinThread () override

Detailed Description

This class is the base class for thread-based do-activities.

User should use IsStopRequested() to check for when to stop the activity.

Example implementation:

 class MyActivity : public ThreadActivity {
     void Run() override {
         while(!IsStopRequested()) {
             // do work
             ...
         }
     }
 };

Attention

methods of this class are not thread safe. It is assumed that the activity thread attributes cannot be modified by other threads. If thread safety is needed, the developer will subclass and add protection.

Constructor & Destructor Documentation

ThreadActivity()

rad::ThreadActivity::ThreadActivity ( const ThreadActivity &  )

delete

Member Function Documentation

GetName()

std::string rad::ThreadActivity::GetName

(

)

Returns

The name of the do-activity thread.

GetNativeHandle()

pthread_t rad::ThreadActivity::GetNativeHandle ( ) const

overridevirtual

Returns

A handle to the native thread implementation.

TODO review whether 'const' is needed.

Implements rad::ThreadBaseActivity.

IsThreadJoined()

bool rad::ThreadActivity::IsThreadJoined ( ) const

overridevirtual

Returns

true if the thread is not running, false otherwise.

Implements rad::ThreadBaseActivity.

JoinThread()

void rad::ThreadActivity::JoinThread ( )

overrideprotectedvirtual

Helper method to stop a do-activity thread.

Implements rad::ThreadBaseActivity.

operator=()

ThreadActivity& rad::ThreadActivity::operator= ( const ThreadActivity &  )

delete

Run()

virtual void rad::ThreadActivity::Run ( )

pure virtual

Interface to be implemented by child classes to implement the activity thread.

Implemented in MyTestDoActivity, rad::ActivityUpdateOldb, server::ActivityMoving, exmalserver::ActivityMoving, exciiserver::ActivityMoving, and rad::utest::Activity.

SetName()

int rad::ThreadActivity::SetName

(

const std::string &

name

)

Set thread name.

Parameters

[in]

name

for the thread. Maximum length is 15 characters (excluding null terminator).

Returns

error code or 0 if successful.

StartThread()

void rad::ThreadActivity::StartThread ( )

overrideprotectedvirtual

Helper method to start a do-activity thread.

Implements rad::ThreadBaseActivity.

ThreadBaseActivity()

rad::ThreadBaseActivity::ThreadBaseActivity

delete

---

The documentation for this class was generated from the following files:

• rad/cpp/sm/src/include/rad/activity.hpp
• rad/cpp/sm/src/activity.cpp
