DeviceWdg Class Reference

#include <device.h>

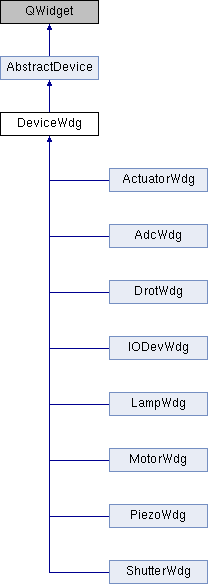

Inheritance diagram for DeviceWdg:

Public Slots
void	SetActive (int index)
void	UpdateState (int state)
bool	UpdateSubstate (int substate)
void	UpdateSpinner (int substate)
void	UpdateErrorMsg (std::string msg)
void	HandleSetupButton ()

Signals
void	TriggerSetup (QString)

Public Member Functions
	DeviceWdg (QWidget *parent, std::unique_ptr< utils::bat::DbInterface > &dbinterface, const std::string &name, const int &cmd_timeout)
virtual	~DeviceWdg ()
std::string	GetName ()
void	Select ()
void	Deselect ()
bool	IsSelected ()
virtual void	Stop ()
virtual void	GetDbAttributes ()
virtual void	UpdateData ()
virtual void	SetEnable (bool flag)
Public Member Functions inherited from AbstractDevice
virtual void	StartSubscription ()=0
virtual void	GetMessage (std::shared_ptr<::elt::mal::Mal > mal, std::vector< std::shared_ptr<::fcfif::SetupElem >> &setup_buffer, bool ignoreChecked=false)=0

Protected Member Functions
void	SetupCommonUi ()
void	SetupInfoUi (const std::string &overview, const std::string &desc)
bool	IsSimulated ()
void	SetProperty (QPushButton *button, std::string property, bool flag)
void	SetProperty (QRadioButton *button, std::string property, bool flag)
void	SetProperty (QLabel *label, std::string property, bool flag)
void	SetProperty (QComboBox *combo, std::string property, bool flag)
void	SetProperty (QSpinBox *spin, std::string property, bool flag)
void	SetProperty (QDoubleSpinBox *spin, std::string property, bool flag)

Protected Attributes
QTimer *	m_spinner_timer
std::unique_ptr< utils::bat::DbInterface > &	m_dbinterface
std::string	m_name
int	m_cmd_timeout
bool	m_simulated
std::string	m_lcs_prefix
std::string	m_cfg_prefix
QString	m_error_text {""}
QString	m_error_tooltip {""}
std::vector< std::string >	m_dbattribute_vector
CommonUi	m_ui

Constructor & Destructor Documentation

DeviceWdg()

DeviceWdg::DeviceWdg ( QWidget *  parent, std::unique_ptr< utils::bat::DbInterface > &  dbinterface, const std::string &  name, const int &  cmd_timeout  )

explicit

~DeviceWdg()

DeviceWdg::~DeviceWdg ( )

virtual

Member Function Documentation

Deselect()

void DeviceWdg::Deselect ( )

virtual

Implements AbstractDevice.

GetDbAttributes()

void DeviceWdg::GetDbAttributes ( )

virtual

Implements AbstractDevice.

Reimplemented in ShutterWdg, PiezoWdg, MotorWdg, LampWdg, IODevWdg, DrotWdg, AdcWdg, and ActuatorWdg.

GetName()

std::string DeviceWdg::GetName

(

)

HandleSetupButton

void DeviceWdg::HandleSetupButton ( )

slot

IsSelected()

bool DeviceWdg::IsSelected ( )

virtual

Implements AbstractDevice.

IsSimulated()

bool DeviceWdg::IsSimulated ( )

protected

Select()

void DeviceWdg::Select ( )

virtual

Implements AbstractDevice.

SetActive

void DeviceWdg::SetActive ( int  index )

slot

SetEnable()

void DeviceWdg::SetEnable ( bool  flag )

virtual

Reimplemented in ShutterWdg, PiezoWdg, MotorWdg, LampWdg, IODevWdg, DrotWdg, AdcWdg, and ActuatorWdg.

SetProperty() [1/6]

void DeviceWdg::SetProperty ( QComboBox *  combo, std::string  property, bool  flag  )

protected

SetProperty() [2/6]

void DeviceWdg::SetProperty ( QDoubleSpinBox *  spin, std::string  property, bool  flag  )

protected

SetProperty() [3/6]

void DeviceWdg::SetProperty ( QLabel *  label, std::string  property, bool  flag  )

protected

SetProperty() [4/6]

void DeviceWdg::SetProperty ( QPushButton *  button, std::string  property, bool  flag  )

protected

SetProperty() [5/6]

void DeviceWdg::SetProperty ( QRadioButton *  button, std::string  property, bool  flag  )

protected

SetProperty() [6/6]

void DeviceWdg::SetProperty ( QSpinBox *  spin, std::string  property, bool  flag  )

protected

SetupCommonUi()

void DeviceWdg::SetupCommonUi ( )

protected

SetupInfoUi()

void DeviceWdg::SetupInfoUi ( const std::string &  overview, const std::string &  desc  )

protected

Stop()

void DeviceWdg::Stop ( )

virtual

Implements AbstractDevice.

TriggerSetup

void DeviceWdg::TriggerSetup ( QString  )

signal

UpdateData()

void DeviceWdg::UpdateData ( )

virtual

Implements AbstractDevice.

Reimplemented in ShutterWdg, PiezoWdg, MotorWdg, LampWdg, IODevWdg, DrotWdg, AdcWdg, and ActuatorWdg.

UpdateErrorMsg

void DeviceWdg::UpdateErrorMsg ( std::string  msg )

slot

UpdateSpinner

void DeviceWdg::UpdateSpinner ( int  substate )

slot

UpdateState

void DeviceWdg::UpdateState ( int  state )

slot

UpdateSubstate

bool DeviceWdg::UpdateSubstate ( int  substate )

slot

Member Data Documentation

m_cfg_prefix

std::string DeviceWdg::m_cfg_prefix

protected

m_cmd_timeout

int DeviceWdg::m_cmd_timeout

protected

m_dbattribute_vector

std::vector<std::string> DeviceWdg::m_dbattribute_vector

protected

m_dbinterface

std::unique_ptr<utils::bat::DbInterface>& DeviceWdg::m_dbinterface

protected

m_error_text

QString DeviceWdg::m_error_text {""}

protected

m_error_tooltip

QString DeviceWdg::m_error_tooltip {""}

protected

m_lcs_prefix

std::string DeviceWdg::m_lcs_prefix

protected

m_name

std::string DeviceWdg::m_name

protected

m_simulated

bool DeviceWdg::m_simulated

protected

m_spinner_timer

QTimer* DeviceWdg::m_spinner_timer

protected

m_ui

CommonUi DeviceWdg::m_ui

protected

---

The documentation for this class was generated from the following files:

• gui/wdglib/src/include/fcf/gui/wdglib/device.h
• gui/wdglib/src/device.cpp
