ddt::DdtProducerConsumerBase Class Reference

#include <ddtProducerConsumerBase.hpp>

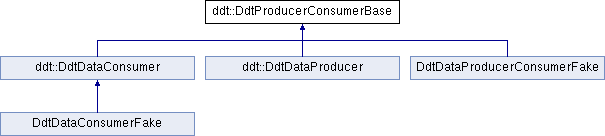

Inheritance diagram for ddt::DdtProducerConsumerBase:

Public Types
enum	NotificationType { NEW_DATA, PUB_REG, PUB_UNREG, SHM_DEL }

Public Member Functions
	DdtProducerConsumerBase (DdtLogger *ddt_logger)
virtual	~DdtProducerConsumerBase ()
virtual void	Notify (NotificationType type)=0

Protected Member Functions
void	Init (DdtLogger *ddt_logger)
void	LoadDefaults ()
void	ReadIni ()
void	PrintConfigValues ()
int32_t	GetFreePort () const

Protected Attributes
int32_t	min_port
int32_t	max_port
DdtLogger *	logger
const int	MIN_PORT_DEFAULT = 5100
const int	MAX_PORT_DEFAULT = 5500
const int	MIN_RANGE = 3
const int	LINE_LENGTH = 256

Detailed Description

This class serves as a base class for DdtDataProducer and DdtDataConsumer classes. It provides the ReadIni() and GetFreePort() functions for derived classes.

Member Enumeration Documentation

NotificationType

enum ddt::DdtProducerConsumerBase::NotificationType

There are different types of notifications: NEW_DATA: New data is available PUB_REG: Publisher has registered PUB_UNREG: Publisher will unregister SHM_DEL: SHM gets deleted

Enumerator
NEW_DATA	New data notification
PUB_REG	Publisher registration
PUB_UNREG	Publisher unregisters
SHM_DEL	Shared memory deleted

Constructor & Destructor Documentation

DdtProducerConsumerBase()

DdtProducerConsumerBase::DdtProducerConsumerBase ( DdtLogger *  ddt_logger )

explicit

Constructor

~DdtProducerConsumerBase()

DdtProducerConsumerBase::~DdtProducerConsumerBase ( )

virtualdefault

Destructor

Member Function Documentation

GetFreePort()

int32_t DdtProducerConsumerBase::GetFreePort ( ) const

protected

Reads /proc/net/tcp and returns a free port from the port range specified in databroker.ini.

iterate over port range check each iteration if port is in use break and return the port if it is free

Init()

void DdtProducerConsumerBase::Init ( DdtLogger *  ddt_logger )

protected

Initializes member variables.

LoadDefaults()

void DdtProducerConsumerBase::LoadDefaults ( )

protected

Loads default values for configuration parameters.

Notify()

virtual void ddt::DdtProducerConsumerBase::Notify ( NotificationType  type )

pure virtual

Sends a notification to local subscribers.

Implemented in ddt::DdtDataProducer, ddt::DdtDataConsumer, and DdtDataProducerConsumerFake.

PrintConfigValues()

void DdtProducerConsumerBase::PrintConfigValues ( )

protected

Prints the values of configuration parameters.

ReadIni()

void DdtProducerConsumerBase::ReadIni ( )

protected

Reads the databroker configuration file.

Member Data Documentation

LINE_LENGTH

const int ddt::DdtProducerConsumerBase::LINE_LENGTH = 256

protected

logger

DdtLogger* ddt::DdtProducerConsumerBase::logger

protected

Logger object

max_port

int32_t ddt::DdtProducerConsumerBase::max_port

protected

configurable upper boundary of the port range used for notifications

MAX_PORT_DEFAULT

const int ddt::DdtProducerConsumerBase::MAX_PORT_DEFAULT = 5500

protected

min_port

int32_t ddt::DdtProducerConsumerBase::min_port

protected

configurable lower boundary of the port range used for notifications

MIN_PORT_DEFAULT

const int ddt::DdtProducerConsumerBase::MIN_PORT_DEFAULT = 5100

protected

MIN_RANGE

const int ddt::DdtProducerConsumerBase::MIN_RANGE = 3

protected

---

The documentation for this class was generated from the following files:

• datatransfer/databrokerlib/src/include/ddt/ddtProducerConsumerBase.hpp
• datatransfer/databrokerlib/src/ddtProducerConsumerBase.cpp
