DdtDialog Class Reference

#include <ddtDialog.hpp>

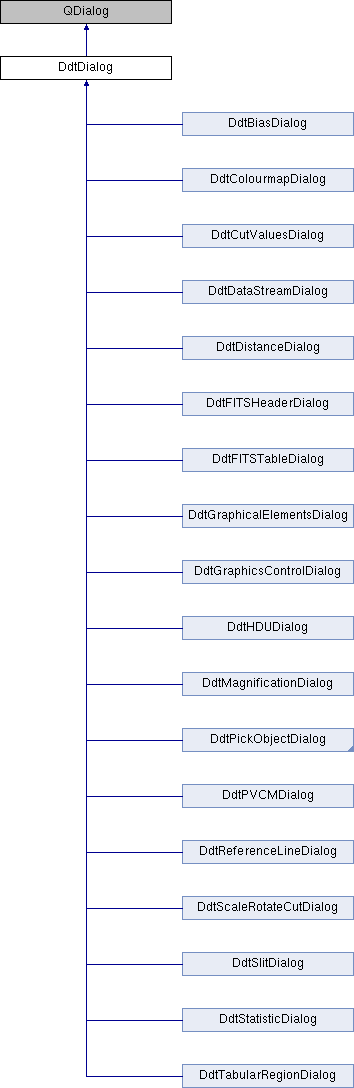

Inheritance diagram for DdtDialog:

Public Slots
virtual void	ConfirmPressed ()
virtual void	CancelPressed ()
virtual void	QuitPressed ()
virtual void	SetChangedParameter (const QString param_id, const QVariant parameter)

Signals
void	ParameterChanged (const QString dialog_id, const QString param_id, const QVariant parameter)

Public Member Functions
	DdtDialog (QWidget *parent=nullptr)
virtual	~DdtDialog ()
virtual void	SetInitialParameter (const QString parameter_id, const QVariant parameter)=0
virtual QString	GetDialogName ()=0

Protected Member Functions
virtual void	CreateDialog ()=0
virtual void	AddDefaultButtonsToLayout (QBoxLayout *layout, bool show_confirm_button, bool show_quit_button, bool show_cancel_button)
virtual QLayout *	GetMainLayout ()

Protected Attributes
QLayout *	main_layout

Detailed Description

Base class for the DDT Dialogs

Constructor & Destructor Documentation

DdtDialog()

DdtDialog::DdtDialog ( QWidget *  parent = nullptr )

explicit

Constructor

Parameters

parent

Pointer to the parent widget

~DdtDialog()

DdtDialog::~DdtDialog ( )

virtualdefault

Destructor

Member Function Documentation

AddDefaultButtonsToLayout()

void DdtDialog::AddDefaultButtonsToLayout ( QBoxLayout *  layout, bool  show_confirm_button, bool  show_quit_button, bool  show_cancel_button  )

protectedvirtual

Add the default buttons to the dialog layout

CancelPressed

void DdtDialog::CancelPressed ( )

virtualslot

Slot called when the cancel button was pressed. Default behavior is to close the dialog.

ConfirmPressed

void DdtDialog::ConfirmPressed ( )

virtualslot

Slot called when the confirm button was pressed. Default behavior is to close the dialog.

CreateDialog()

virtual void DdtDialog::CreateDialog ( )

protectedpure virtual

Method to setup the dialog elements

Implemented in DdtScaleRotateCutDialog, DdtMagnificationDialog, DdtGraphicsControlDialog, DdtFITSTableDialog, DdtDistanceDialog, DdtDataStreamDialog, DdtTabularRegionDialog, DdtStatisticDialog, DdtSlitDialog, DdtReferenceLineDialog, DdtPVCMDialog, DdtPickObjectDialog, DdtHDUDialog, DdtGraphicalElementsDialog, DdtFITSHeaderDialog, DdtCutValuesDialog, DdtColourmapDialog, and DdtBiasDialog.

GetDialogName()

virtual QString DdtDialog::GetDialogName ( )

pure virtual

Method which return a human readable name for the dialog which can be used e.g. in a context menu

Returns

Name of the dialog

Implemented in DdtTabularRegionDialog, DdtStatisticDialog, DdtSlitDialog, DdtScaleRotateCutDialog, DdtReferenceLineDialog, DdtPVCMDialog, DdtPickObjectDialog, DdtMagnificationDialog, DdtHDUDialog, DdtGraphicsControlDialog, DdtGraphicalElementsDialog, DdtFITSTableDialog, DdtFITSHeaderDialog, DdtDistanceDialog, DdtDataStreamDialog, DdtCutValuesDialog, DdtColourmapDialog, and DdtBiasDialog.

GetMainLayout()

QLayout * DdtDialog::GetMainLayout ( )

protectedvirtual

Method to access the main layout, e.g. for extending the dialog

Returns

Pointer to main layout

ParameterChanged

void DdtDialog::ParameterChanged ( const QString  dialog_id, const QString  param_id, const QVariant  parameter  )

signal

Paramter of dialog has changed

QuitPressed

void DdtDialog::QuitPressed ( )

virtualslot

Slot called when the quit button was pressed. Default behavior is to close the dialog.

SetChangedParameter

void DdtDialog::SetChangedParameter ( const QString  param_id, const QVariant  parameter  )

virtualslot

Slot called when a value of the dialog needs to be updated

Reimplemented in DdtStatisticDialog, DdtSlitDialog, DdtReferenceLineDialog, DdtPVCMDialog, DdtHDUDialog, and DdtDistanceDialog.

SetInitialParameter()

virtual void DdtDialog::SetInitialParameter ( const QString  parameter_id, const QVariant  parameter  )

pure virtual

Method to set initial parameters that should be selected in a dialog at startup

Parameters

parameter_id	ID of the parameter to set
parameter	QVariant of the value to set

Implemented in DdtFITSHeaderDialog, DdtTabularRegionDialog, DdtStatisticDialog, DdtSlitDialog, DdtScaleRotateCutDialog, DdtReferenceLineDialog, DdtPVCMDialog, DdtPickObjectDialog, DdtMagnificationDialog, DdtHDUDialog, DdtGraphicsControlDialog, DdtGraphicalElementsDialog, DdtFITSTableDialog, DdtDistanceDialog, DdtDataStreamDialog, DdtCutValuesDialog, DdtColourmapDialog, and DdtBiasDialog.

Member Data Documentation

main_layout

QLayout* DdtDialog::main_layout

protected

Main layout of dialog

---

The documentation for this class was generated from the following files:

• datavisualisation/widgetsdialogs/src/include/ddt/dialogs/ddtDialog.hpp
• datavisualisation/widgetsdialogs/src/dialogs/ddtDialog.cpp
