Basic sequencer node. More...

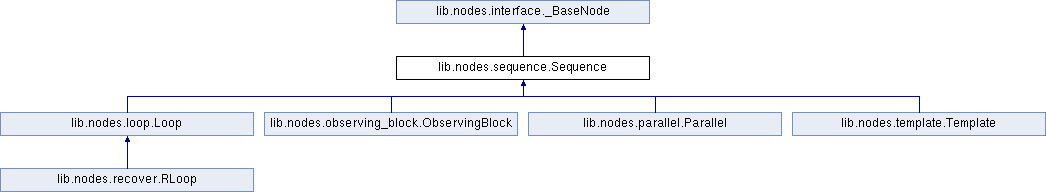

Inheritance diagram for lib.nodes.sequence.Sequence:

Public Member Functions
def	__attrs_post_init__ (self)
	Assigns node's name and id. More...

def	__iter__ (self)

def	context (self)
	Get context dictionary, preferably from root node. More...

def	context (self, ctx)

def	seq (self)
	Retrieves the sequence list. More...

def	seq (self, s)
	List used to create the Sequence's graph. More...

def	G (self)
	returns the graph object More...

def	start_step (self)

def	end_step (self)

def	start_node (self)
	Returns the start node. More...

def	end_node (self)
	Returns the end node. More...

def	append (self, s)
	Appends a node to the Sequence. More...

def	make_sequence (self)
	Builds this sequence execution graph. More...

def	create_node_tasks (self, resume=False)
	Creates Task object associated to this node. More...

def	reschedule_node (self, node_id)
	Reschedule a node for execution. More...

def	start (self, make_sequence=True, resume=False)
	This is the entry point for Sequence execution. More...

def	run (self)

def	execute (self, resume=False)

def	resume (self)

def	main_task (self)
	Returns the objective node of the sequence – the end node. More...

def	__call__ (self, resume=False)

def	abort (self)
	Aborts the sequence. More...

def	nodes (self)
	Return nodes from Graph. More...

def	get_node (self, node_id)
	Get node by id. More...

def	get_task (self, node_id)
	Get task by node_id. More...

def	state (self)
	Gets the node state. More...

def	state (self, value)
	Sets the node state. More...

def	publish_state (self)

def	state (self, value)
	Sets the node state. More...

Public Member Functions inherited from lib.nodes.interface._BaseNode
def	result (self)
	Node's result. More...

def	result (self, val)

def	full_state (self)
	Gets the node state. More...

def	in_error (self)

def	skip (self)

def	skip (self, flag=True)

def	in_error (self, flag=True)

def	make_task (self, node, input_list, resume)
	Creates the task object that executes the node. More...

def	pause (self)

Static Public Member Functions
def	get_context ()

def	create (args, *kw)
	Sequence node constructor. More...

Public Attributes
	name

	id

	serial_number

	state
	node state More...

	in_error

	runtime_flags

	t_start

	skip

	exception

	t_end

Static Public Attributes
	graph = attr.ib(init=False, default=attr.Factory(nx.DiGraph), repr=False)

	debug = attr.ib(init=False, default=False, repr=False)

	current_tpl = cv.ContextVar("current_tpl", default=None)

	root = cv.ContextVar("root", default=None)

Static Public Attributes inherited from lib.nodes.interface._BaseNode
	serial_number = attr.ib(default=0, kw_only=True)

	id = attr.ib(default=None, kw_only=True)

	name = attr.ib(default=None, kw_only=True)

	runtime_flags = attr.ib(default=0, init=False)

	deps = attr.ib(default=attr.Factory(list), repr=False, kw_only=True, init=False)

	description = attr.ib(default="", kw_only=True)

	exception = attr.ib(init=False, default=None, repr=False)

	can_skip = attr.ib(default=True, init=False)

	hide = attr.ib(default=False, init=False)

	t_start = attr.ib(init=False, default=None, repr=False)

	t_end = attr.ib(init=False, default=None, repr=False)

	running_checkpoint

Detailed Description

Basic sequencer node.

Use :meth:create to build poperly :class:Sequence objects.

============ ===============================

Context Variables

Name Desc ============ =============================== current_tpl The parent of the current node root Top level DAG's root ============ ===============================

Examples

>>> s = Sequence.create(a,b, name="my sequence")
# execute Sequence
>>> await s.start()
# Get running Sequence from Inside function a():
>>> def a():

... current_tpl = Sequence.current_tpl

... # now current_tpl is the node s

... assert current_tpl == s

Member Function Documentation

◆ __attrs_post_init__()

def lib.nodes.sequence.Sequence.__attrs_post_init__ ( self )

Assigns node's name and id.

Reimplemented in lib.nodes.template.Template, lib.nodes.recover.RLoop, lib.nodes.parallel.Parallel, lib.nodes.observing_block.ObservingBlock, and lib.nodes.loop.Loop.

◆ call()

def lib.nodes.sequence.Sequence.__call__	(	self,
		resume = `False`
	)

◆ iter()

def lib.nodes.sequence.Sequence.__iter__ ( self )

◆ abort()

def lib.nodes.sequence.Sequence.abort ( self )

Aborts the sequence.

   Goes trough the full graph and aborts the tasks associated to nodes (if any).

◆ append()

def lib.nodes.sequence.Sequence.append	(	self,
		s
	)

Appends a node to the Sequence.

◆ context() [1/2]

def lib.nodes.sequence.Sequence.context ( self )

Get context dictionary, preferably from root node.

◆ context() [2/2]

def lib.nodes.sequence.Sequence.context	(	self,
		ctx
	)

◆ create()

def lib.nodes.sequence.Sequence.create	(	*	args,
		**	kw
	)

static

Sequence node constructor.

        *args: Variable length list of nodes or coroutines that compose the

Parameters

sequence.
id	Node id
name	node name

Reimplemented in lib.nodes.parallel.Parallel, and lib.nodes.loop.Loop.

◆ create_node_tasks()

def lib.nodes.sequence.Sequence.create_node_tasks	(	self,
		resume = `False`
	)

Creates Task object associated to this node.

◆ end_node()

def lib.nodes.sequence.Sequence.end_node ( self )

Returns the end node.

   If it does not exist, it creates it.

Reimplemented from lib.nodes.interface._BaseNode.

◆ end_step()

def lib.nodes.sequence.Sequence.end_step ( self )

Standard sequence's end step.

 Evaluates the sequence's final state.
 Collects node's result and put them in the sequence's result attribute.

Reimplemented in lib.nodes.loop.Loop.

◆ execute()

def lib.nodes.sequence.Sequence.execute	(	self,
		resume = `False`
	)

Executes node -- this just creates the asyncio task

Reimplemented in lib.nodes.template.Template.

◆ G()

def lib.nodes.sequence.Sequence.G ( self )

returns the graph object

◆ get_context()

def lib.nodes.sequence.Sequence.get_context ( )

static

◆ get_node()

def lib.nodes.sequence.Sequence.get_node	(	self,
		node_id
	)

Get node by id.

Reimplemented in lib.nodes.loop.Loop.

◆ get_task()

def lib.nodes.sequence.Sequence.get_task	(	self,
		node_id
	)

Get task by node_id.

◆ main_task()

def lib.nodes.sequence.Sequence.main_task ( self )

Returns the objective node of the sequence – the end node.

◆ make_sequence()

def lib.nodes.sequence.Sequence.make_sequence ( self )

Builds this sequence execution graph.

Reimplemented from lib.nodes.interface._BaseNode.

Reimplemented in lib.nodes.parallel.Parallel, and lib.nodes.loop.Loop.

◆ nodes()

def lib.nodes.sequence.Sequence.nodes ( self )

Return nodes from Graph.

Reimplemented in lib.nodes.loop.Loop.

◆ publish_state()

def lib.nodes.sequence.Sequence.publish_state ( self )

◆ reschedule_node()

def lib.nodes.sequence.Sequence.reschedule_node	(	self,
		node_id
	)

Reschedule a node for execution.

◆ resume()

def lib.nodes.sequence.Sequence.resume ( self )

Resume node execution

Reimplemented from lib.nodes.interface._BaseNode.

◆ run()

def lib.nodes.sequence.Sequence.run ( self )

Runs the node -- This executes the task

◆ seq() [1/2]

def lib.nodes.sequence.Sequence.seq ( self )

Retrieves the sequence list.

   :meta private:

◆ seq() [2/2]

def lib.nodes.sequence.Sequence.seq	(	self,
		s
	)

List used to create the Sequence's graph.

   Parameters
   -----------

s Sequence list.

Members of 's' represents sequence nodes. If they are coroutines
they are automagically converted to :class:'Action' nodes.

◆ start()

def lib.nodes.sequence.Sequence.start	(	self,
		make_sequence = `True`,
		resume = `False`
	)

This is the entry point for Sequence execution.

Returns: Returns the :class:SeqTask object that executes the sequence

Exceptions

Exception Any exception received is re-raised and the sequence is aborted.

◆ start_node()

def lib.nodes.sequence.Sequence.start_node ( self )

Returns the start node.

   If it does not exist, it creates it.

Reimplemented from lib.nodes.interface._BaseNode.

◆ start_step()

def lib.nodes.sequence.Sequence.start_step ( self )

Standard sequence's start step.

Sets the sequence's state to RUNNING

◆ state() [1/3]

def lib.nodes.sequence.Sequence.state ( self )

Gets the node state.

Reimplemented from lib.nodes.interface._BaseNode.

◆ state() [2/3]

def lib.nodes.sequence.Sequence.state	(	self,
		value
	)

Sets the node state.

Reimplemented from lib.nodes.interface._BaseNode.

◆ state() [3/3]

def lib.nodes.sequence.Sequence.state	(	self,
		value
	)

Sets the node state.

Reimplemented from lib.nodes.interface._BaseNode.

Member Data Documentation

◆ current_tpl

lib.nodes.sequence.Sequence.current_tpl = cv.ContextVar("current_tpl", default=None)

static

◆ debug

lib.nodes.sequence.Sequence.debug = attr.ib(init=False, default=False, repr=False)

static

◆ exception

lib.nodes.sequence.Sequence.exception

◆ graph

lib.nodes.sequence.Sequence.graph = attr.ib(init=False, default=attr.Factory(nx.DiGraph), repr=False)

static

◆ id

lib.nodes.sequence.Sequence.id

◆ in_error

lib.nodes.sequence.Sequence.in_error

◆ name

lib.nodes.sequence.Sequence.name

◆ root

lib.nodes.sequence.Sequence.root = cv.ContextVar("root", default=None)

static

◆ runtime_flags

lib.nodes.sequence.Sequence.runtime_flags

◆ serial_number

lib.nodes.sequence.Sequence.serial_number

◆ skip

lib.nodes.sequence.Sequence.skip

◆ state

lib.nodes.sequence.Sequence.state

node state

◆ t_end

lib.nodes.sequence.Sequence.t_end

◆ t_start

lib.nodes.sequence.Sequence.t_start

The documentation for this class was generated from the following file:

seq/seqlib/src/seq/lib/nodes/sequence.py
