baci::RecoverableObject Class Reference

#include <baciRecoverableObject.h>

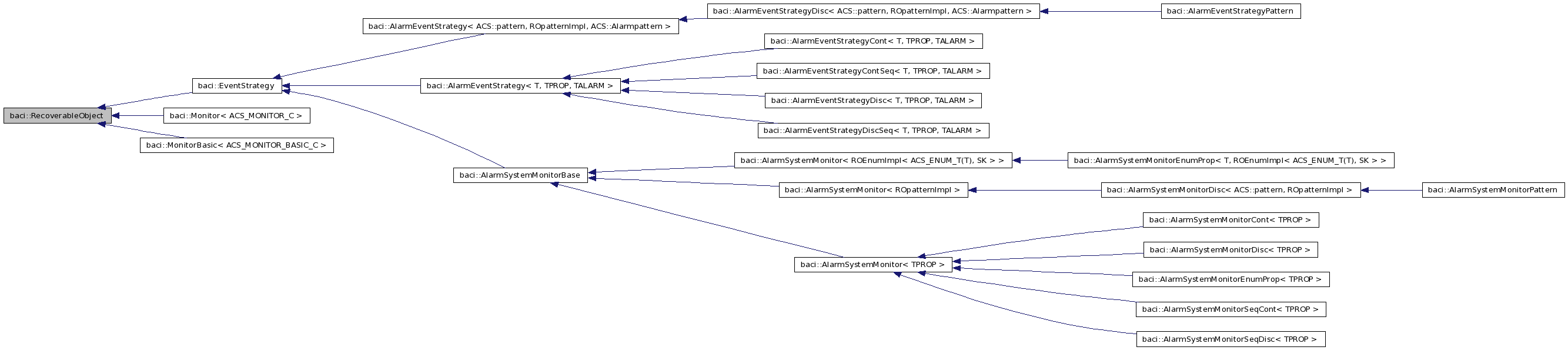

Inheritance diagram for baci::RecoverableObject:

[legend]

List of all members.

Public Member Functions
virtual	~RecoverableObject ()
virtual int	getId (void)=0
virtual const char *	getName (void)=0
virtual char *	getObjectState (void)=0
virtual void	setObjectState (const char *state)=0

---

Detailed Description

Interface which recoverable classes must implement This interface provides all methods needed by BACIRecoveryManager to create unique stringified data containing object state.

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

See also:

BACIRecoveryManager

---

Constructor & Destructor Documentation

virtual baci::RecoverableObject::~RecoverableObject

(

)

[inline, virtual]

Destructor

---

Member Function Documentation

virtual int baci::RecoverableObject::getId

(

void

)

[pure virtual]

Get object's "recovery" id; each object type sould have unique id

Returns:

object's id

Implemented in baci::AlarmEventStrategy< T, TPROP, TALARM >, baci::AlarmSystemMonitorBase, baci::EventStrategy, baci::Monitor< ACS_MONITOR_C >, baci::MonitorBasic< ACS_MONITOR_BASIC_C >, and baci::AlarmEventStrategy< ACS::pattern, ROpatternImpl, ACS::Alarmpattern >.

virtual const char* baci::RecoverableObject::getName

(

void

)

[pure virtual]

Returns objects name; each instance should have unique name

Returns:

object's name

Implemented in baci::AlarmEventStrategy< T, TPROP, TALARM >, baci::AlarmSystemMonitorBase, baci::EventStrategy, baci::Monitor< ACS_MONITOR_C >, baci::MonitorBasic< ACS_MONITOR_BASIC_C >, and baci::AlarmEventStrategy< ACS::pattern, ROpatternImpl, ACS::Alarmpattern >.

virtual char* baci::RecoverableObject::getObjectState

(

void

)

[pure virtual]

Get object's state represented as string

Returns:

pointer to stringified object's state

Implemented in baci::AlarmEventStrategy< T, TPROP, TALARM >, baci::AlarmSystemMonitorBase, baci::EventStrategy, baci::Monitor< ACS_MONITOR_C >, baci::MonitorBasic< ACS_MONITOR_BASIC_C >, and baci::AlarmEventStrategy< ACS::pattern, ROpatternImpl, ACS::Alarmpattern >.

virtual void baci::RecoverableObject::setObjectState

(

const char *

state

)

[pure virtual]

Set object's state stored in given string

Parameters:

stringified

object's state

Implemented in baci::AlarmEventStrategy< T, TPROP, TALARM >, baci::AlarmSystemMonitorBase, baci::EventStrategy, baci::Monitor< ACS_MONITOR_C >, baci::MonitorBasic< ACS_MONITOR_BASIC_C >, and baci::AlarmEventStrategy< ACS::pattern, ROpatternImpl, ACS::Alarmpattern >.

---

The documentation for this class was generated from the following file:

• baciRecoverableObject.h
