baci::BACIMonitor Class Reference

#include <baciBACIMonitor.h>

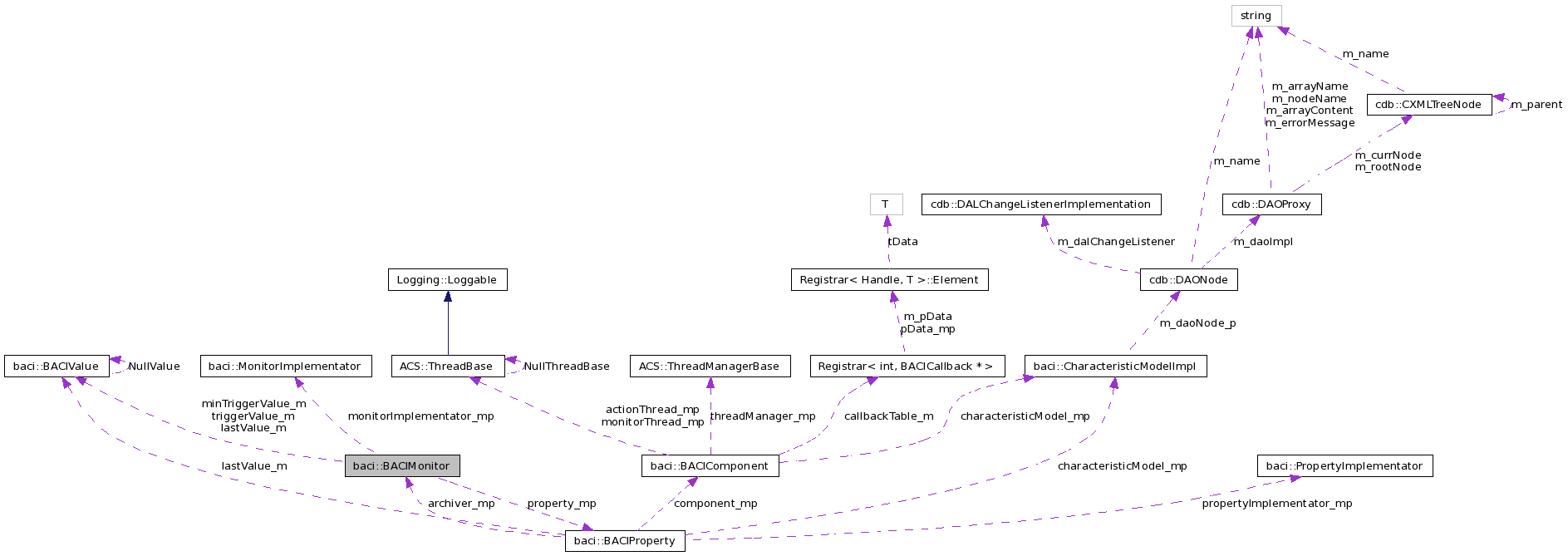

Collaboration diagram for baci::BACIMonitor:

[legend]

List of all members.

Public Types
enum	UpdateMode { mumNull = 0, mumLast = 1, mumTrunc = 2 }
Public Member Functions
	BACIMonitor (const ACE_CString &_name, int _callbackID, MonitorImplementator *monitorImplementator_p, const ACS::TimeInterval &_triggerTime, const BACIValue &_triggerValue, const ACS::TimeInterval &_minTriggerTime, const BACIValue &_minTriggerValue, BACIProperty *_property, const ACS::TimeInterval &_transmitTime=0, const UpdateMode &_updateMode=mumLast, const bool _achivingMonitor=false, const bool _suspended=false, const bool _deltaValueAndTimerInteraction=false, const unsigned int _priority=3)
void	destroy ()
	Destroys monitor. Proxy for ~BACIMonitor.
void	suspend ()
void	resume ()
void	setLastTime (const ACS::TimeInterval &_lastTime)
void	setTriggerValue (const BACIValue &_triggerValue)
void	setMinTriggerValue (const BACIValue &_minTriggerValue)
void	setLastValue (const BACIValue &_lastValue)
void	setTriggerOnValue (bool enable)
const char *	getName () const
bool	isSuspended () const
BACIMonitor &	operator= (const BACIMonitor &mon)
bool	operator== (const BACIMonitor &mon) const
UpdateMode	getUpdateMode () const
int	getCallbackID () const
ACS::TimeInterval	getTriggerTime () const
ACS::TimeInterval	getMinTriggerTime () const
ACS::TimeInterval	getLastTime () const
ACS::TimeInterval	getTransmitTime () const
BACIValue	getTriggerValue () const
BACIValue	getMinTriggerValue () const
BACIValue	getLastValue () const
bool	getTriggerOnValue () const
void	setUpdateMode (const UpdateMode &_updateMode)
void	setTriggerTime (const ACS::TimeInterval &_triggerTime)
void	setMinTriggerTime (const ACS::TimeInterval &_minTriggerTime)
void	setTransmitTime (const ACS::TimeInterval &_transmitTime)
void	monitorStateChanged ()
MonitorImplementator *	getMonitorImplementator () const
BACIProperty *	getProperty () const
bool	isInDestructionState () const
bool	isArchivingMonitor () const
bool	isDeltaValueAndTimerInteraction () const
unsigned int	getPriority () const
Private Member Functions
	~BACIMonitor ()
void	internalDestroy ()
Private Attributes
ACE_CString	name_m
int	callbackID_m
MonitorImplementator *	monitorImplementator_mp
UpdateMode	updateMode_m
ACS::TimeInterval	triggerTime_m
ACS::TimeInterval	minTriggerTime_m
ACS::TimeInterval	transmitTime_m
bool	userControlledTransmitTime_m
ACS::TimeInterval	lastTime_m
BACIValue	triggerValue_m
BACIValue	minTriggerValue_m
BACIValue	lastValue_m
bool	triggerOnValue_m
BACIProperty *	property_mp
bool	archivingMonitor_m
bool	suspended_m
bool	deltaValueAndTimerInteraction_m
unsigned int	priority_m
bool	inDestructionState_m
bool	destroyed_m
Friends
class	BACIProperty

---

Detailed Description

Class represeting BACI Monitor It provides monitoring capability triggered on time or value change, clients are notified using callbacks

Author:

Matej Sekoranja, Jozef Stefan Institute, Slovenia

---

Member Enumeration Documentation

enum baci::BACIMonitor::UpdateMode

Monitor update mode To have synchorinzed monitors mumLast (default) mode has to be used. BACI Monitors support 2 modes: mumLast, mumTrunc Example:

  monitorThreadSleepTime=100
  monitor1TriggerTime=30
  monitor2TriggerTime=140
  pollInterval=10

  Time        mumLast                      mumTrunc

  0                M1 (0), M2 (0)               M1 (0), M2 (0)
  100              M1 (90)                      M1 (0+90)
  200              M1 (180), M2 (140)           M1 (100+90), M2 (0+140)
  300              M1 (300), M2 (280)           M1 (200+90)
  400              M1 (390)                     M1 (300+90), M2 (200+140)
  500              M1 (480), M2 (420)           M1 (400+90)
  600              M1 (600), M2 (560)           M1 (500+90), M2 (400+140)
  700              M1 (690)                     M1 (600+90)


Enumerator:

mumNull
mumLast
mumTrunc

---

Constructor & Destructor Documentation

baci::BACIMonitor::BACIMonitor	(	const ACE_CString &	_name,
		int	_callbackID,
		MonitorImplementator *	monitorImplementator_p,
		const ACS::TimeInterval &	_triggerTime,
		const BACIValue &	_triggerValue,
		const ACS::TimeInterval &	_minTriggerTime,
		const BACIValue &	_minTriggerValue,
		BACIProperty *	_property,
		const ACS::TimeInterval &	_transmitTime = 0,
		const UpdateMode &	_updateMode = mumLast,
		const bool	_achivingMonitor = false,
		const bool	_suspended = false,
		const bool	_deltaValueAndTimerInteraction = false,
		const unsigned int	_priority = 3
	)

Constructor

baci::BACIMonitor::~BACIMonitor

(

)

[private]

Destructor Do not call it directly, call internalDestroy() method instead.

See also:

destroy

---

Member Function Documentation

void baci::BACIMonitor::destroy

(

)

Destroys monitor. Proxy for ~BACIMonitor.

int baci::BACIMonitor::getCallbackID

(

)

const [inline]

ACS::TimeInterval baci::BACIMonitor::getLastTime

(

)

const [inline]

BACIValue baci::BACIMonitor::getLastValue

(

)

const [inline]

ACS::TimeInterval baci::BACIMonitor::getMinTriggerTime

(

)

const [inline]

BACIValue baci::BACIMonitor::getMinTriggerValue

(

)

const [inline]

MonitorImplementator* baci::BACIMonitor::getMonitorImplementator

(

)

const [inline]

const char* baci::BACIMonitor::getName

(

void

)

const [inline]

unsigned int baci::BACIMonitor::getPriority

(

)

const [inline]

BACIProperty* baci::BACIMonitor::getProperty

(

)

const [inline]

ACS::TimeInterval baci::BACIMonitor::getTransmitTime

(

)

const [inline]

bool baci::BACIMonitor::getTriggerOnValue

(

)

const [inline]

ACS::TimeInterval baci::BACIMonitor::getTriggerTime

(

)

const [inline]

BACIValue baci::BACIMonitor::getTriggerValue

(

)

const [inline]

UpdateMode baci::BACIMonitor::getUpdateMode

(

)

const [inline]

void baci::BACIMonitor::internalDestroy

(

)

[private]

bool baci::BACIMonitor::isArchivingMonitor

(

)

const [inline]

bool baci::BACIMonitor::isDeltaValueAndTimerInteraction

(

)

const [inline]

bool baci::BACIMonitor::isInDestructionState

(

)

const [inline]

bool baci::BACIMonitor::isSuspended

(

)

const [inline]

void baci::BACIMonitor::monitorStateChanged

(

)

[inline]

Notify monitor implementator about monitor state change

References ACS_TRACE.

BACIMonitor& baci::BACIMonitor::operator=

(

const BACIMonitor &

mon

)

[inline]

References archivingMonitor_m, callbackID_m, deltaValueAndTimerInteraction_m, destroyed_m, inDestructionState_m, lastTime_m, lastValue_m, minTriggerTime_m, minTriggerValue_m, monitorImplementator_mp, name_m, priority_m, property_mp, suspended_m, transmitTime_m, triggerOnValue_m, triggerTime_m, triggerValue_m, updateMode_m, and userControlledTransmitTime_m.

bool baci::BACIMonitor::operator==

(

const BACIMonitor &

mon

)

const [inline]

References callbackID_m.

void baci::BACIMonitor::resume

(

)

void baci::BACIMonitor::setLastTime

(

const ACS::TimeInterval &

_lastTime

)

void baci::BACIMonitor::setLastValue

(

const BACIValue &

_lastValue

)

void baci::BACIMonitor::setMinTriggerTime

(

const ACS::TimeInterval &

_minTriggerTime

)

void baci::BACIMonitor::setMinTriggerValue

(

const BACIValue &

_minTriggerValue

)

void baci::BACIMonitor::setTransmitTime

(

const ACS::TimeInterval &

_transmitTime

)

[inline]

void baci::BACIMonitor::setTriggerOnValue

(

bool

enable

)

void baci::BACIMonitor::setTriggerTime

(

const ACS::TimeInterval &

_triggerTime

)

void baci::BACIMonitor::setTriggerValue

(

const BACIValue &

_triggerValue

)

void baci::BACIMonitor::setUpdateMode

(

const UpdateMode &

_updateMode

)

void baci::BACIMonitor::suspend

(

)

---

Friends And Related Function Documentation

friend class BACIProperty [friend]

---

Member Data Documentation

bool baci::BACIMonitor::archivingMonitor_m [private]

Referenced by operator=().

int baci::BACIMonitor::callbackID_m [private]

Referenced by operator=(), and operator==().

bool baci::BACIMonitor::deltaValueAndTimerInteraction_m [private]

Referenced by operator=().

bool baci::BACIMonitor::destroyed_m [private]

Referenced by operator=().

bool baci::BACIMonitor::inDestructionState_m [private]

Referenced by operator=().

ACS::TimeInterval baci::BACIMonitor::lastTime_m [private]

Referenced by operator=().

BACIValue baci::BACIMonitor::lastValue_m [private]

Referenced by operator=().

ACS::TimeInterval baci::BACIMonitor::minTriggerTime_m [private]

Referenced by operator=().

BACIValue baci::BACIMonitor::minTriggerValue_m [private]

Referenced by operator=().

MonitorImplementator* baci::BACIMonitor::monitorImplementator_mp [private]

Referenced by operator=().

ACE_CString baci::BACIMonitor::name_m [private]

Referenced by operator=().

unsigned int baci::BACIMonitor::priority_m [private]

Referenced by operator=().

BACIProperty* baci::BACIMonitor::property_mp [private]

Referenced by operator=().

bool baci::BACIMonitor::suspended_m [private]

Referenced by operator=().

ACS::TimeInterval baci::BACIMonitor::transmitTime_m [private]

Referenced by operator=().

bool baci::BACIMonitor::triggerOnValue_m [private]

Referenced by operator=().

ACS::TimeInterval baci::BACIMonitor::triggerTime_m [private]

Referenced by operator=().

BACIValue baci::BACIMonitor::triggerValue_m [private]

Referenced by operator=().

UpdateMode baci::BACIMonitor::updateMode_m [private]

Referenced by operator=().

bool baci::BACIMonitor::userControlledTransmitTime_m [private]

Referenced by operator=().

---

The documentation for this class was generated from the following file:

• baciBACIMonitor.h
