BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback > Class Template Reference

#include <bulkDataSendRecvImpl.h>

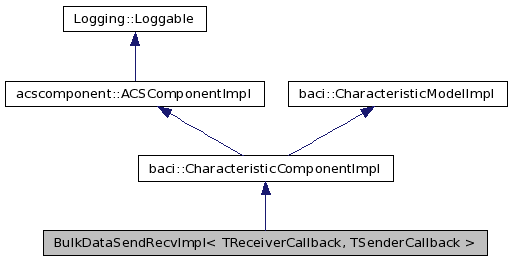

Inheritance diagram for BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >:

[legend]

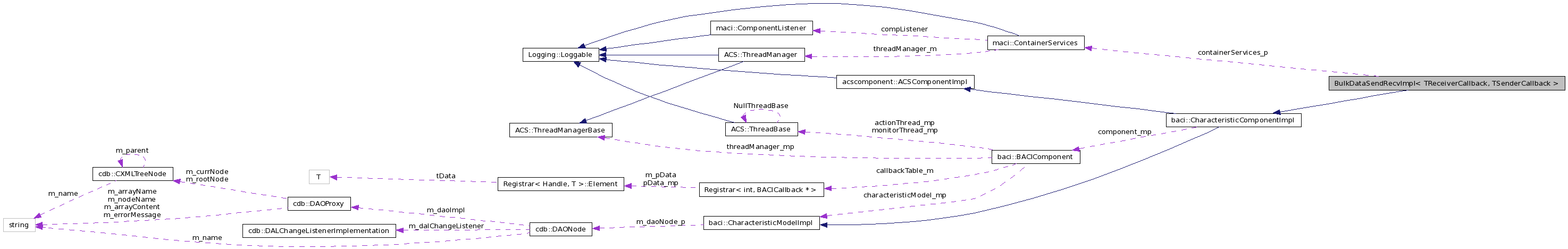

Collaboration diagram for BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >:

[legend]

List of all members.

Public Member Functions
	BulkDataSendRecvImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~BulkDataSendRecvImpl ()
void	cleanUp ()
virtual void	connect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	disconnect ()
virtual void	startSend ()
virtual void	paceData ()
virtual void	stopSend ()
virtual void	openReceiver ()
bulkdata::BulkDataReceiverConfig *	getReceiverConfig ()
virtual void	closeReceiver ()
virtual ACSErr::Completion *	getCbStatus (CORBA::ULong flowNumber)
virtual void	setTimeout (CORBA::ULong flowNumber, CORBA::ULong timeout)
virtual void	setRecvName (const char *recvName)
virtual void	subscribeNotification (ACS::CBvoid_ptr notifCb)
Private Attributes
AcsBulkdata::BulkDataSender < TSenderCallback >	sender
AcsBulkdata::BulkDataReceiver < TReceiverCallback >	receiver
maci::ContainerServices *	containerServices_p
CDB::DAL_ptr	dal_p
CDB::DAO_ptr	dao_p

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>
class BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >

---

Constructor & Destructor Documentation

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::BulkDataSendRecvImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	poa which will activate this and also all other components
	name	component name

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::~BulkDataSendRecvImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::cleanUp

(

)

[virtual]

Called after the last functional call to the component has finished. The component should then orderly release resources etc. If this method is overwritten in a subclass, the developer has to make sure that all cleanup performed by the implementation of the base class take place. The best way to do this is to call the implementation of the base itself explicitly, as would be done implicitly in a destructor chain.

Returns:

void

---

Reimplemented from acscomponent::ACSComponentImpl.

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::closeReceiver

(

)

[virtual]

Exceptions:

ACSBulkDataError::AVCloseReceiverErrorEx

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::connect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

Negotiate and initialize connection with the SendRecv object.

Parameters:

receiver

reference of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::disconnect

(

)

[virtual]

Exceptions:

ACSBulkDataError::AVDisconnectErrorEx

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual ACSErr::Completion* BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::getCbStatus

(

CORBA::ULong

flowNumber

)

[inline, virtual]

Exceptions:

ACSBulkDataError::AVInvalidFlowNumberEx

References ACS_TRACE.

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

bulkdata::BulkDataReceiverConfig* BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::getReceiverConfig

(

)

Exceptions:

ACSBulkDataError::AVReceiverConfigErrorEx

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::openReceiver

(

)

[virtual]

Opens connection creating an out-of-bound channel using TAO A/V services. It creates the Receiver Stream End Point and Flow End Point for the connection with the Sender. The Receiver Stream End Point can be retrieved as an attribute.

Exceptions:

ACSBulkDataError::AVOpenReceiverErrorEx

Returns:

void

---

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::paceData

(

)

[virtual]

Sends data to the Receiver calling the receive_frame() method on the Receiver side. This method must be overriden by the user to send his own data.

Parameters:

size

buffer size of the sent data.

Exceptions:

ACSBulkDataError::AVPaceDataErrorEx

Returns:

void

---

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::setRecvName

(

const char *

recvName

)

[inline, virtual]

Exceptions:

ACSBulkDataError::AVSetReceiverNameErrorEx

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::setTimeout	(	CORBA::ULong	flowNumber,
		CORBA::ULong	timeout
	)			[inline, virtual]

Exceptions:

ACSBulkDataError::AVInvalidFlowNumberEx

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::startSend

(

)

[virtual]

Calls the Receiver handle_start() method once the connection is established.

Exceptions:

ACSBulkDataError::AVStartSendErrorEx

Returns:

void

---

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::stopSend

(

)

[virtual]

Calls the Receiver handle_stop() method.

Exceptions:

ACSBulkDataError::AVStopSendErrorEx

Returns:

void

---

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::subscribeNotification

(

ACS::CBvoid_ptr

notifCb

)

[inline, virtual]

Exceptions:

ACSBulkDataError::AVNotificationMechanismErrorEx

---

Member Data Documentation

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

maci::ContainerServices* BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::containerServices_p [private]

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

CDB::DAL_ptr BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::dal_p [private]

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

CDB::DAO_ptr BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::dao_p [private]

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

AcsBulkdata::BulkDataReceiver<TReceiverCallback> BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::receiver [private]

template<class TReceiverCallback , class TSenderCallback = BulkDataSenderDefaultCallback>

AcsBulkdata::BulkDataSender<TSenderCallback> BulkDataSendRecvImpl< TReceiverCallback, TSenderCallback >::sender [private]

---

The documentation for this class was generated from the following file:

• bulkDataSendRecvImpl.h
