BulkDataDistributerImpl< TReceiverCallback, TSenderCallback > Class Template Reference

#include <bulkDataDistributerImpl.h>

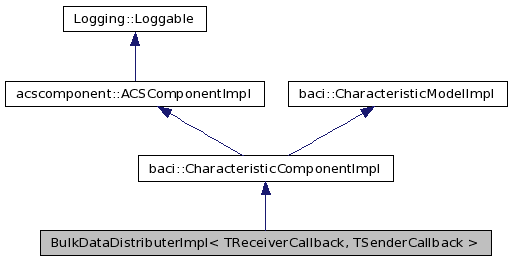

Inheritance diagram for BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >:

[legend]

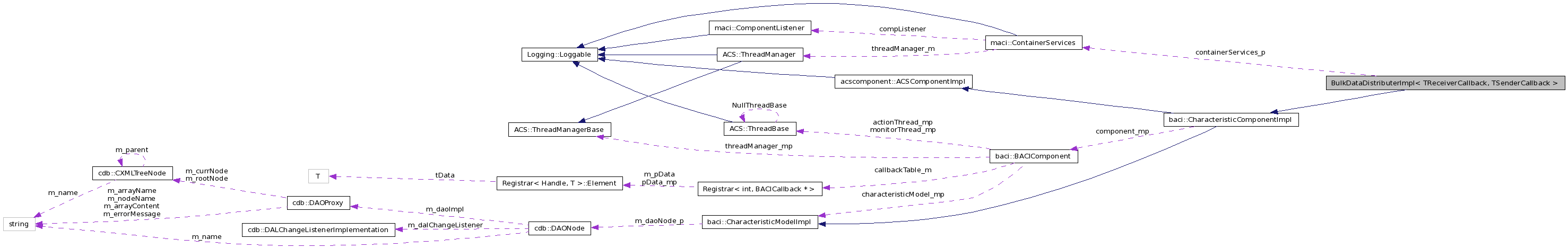

Collaboration diagram for BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >:

[legend]

List of all members.

Public Member Functions
	BulkDataDistributerImpl (const ACE_CString &name, maci::ContainerServices *containerServices)
virtual	~BulkDataDistributerImpl ()
virtual void	initialize ()
virtual void	cleanUp ()
virtual void	connect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	multiConnect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	connectByName (const char *receiverName_p)
virtual void	disconnect ()
virtual void	multiDisconnect (bulkdata::BulkDataReceiver_ptr receiverObj_p)
virtual void	disconnectByName (const char *receiverName_p)
virtual void	startSend ()
virtual void	paceData ()
virtual void	stopSend ()
virtual void	openReceiver ()
bulkdata::BulkDataReceiverConfig *	getReceiverConfig ()
virtual void	closeReceiver ()
virtual void	setReceiver (const bulkdata::BulkDataReceiverConfig &receiverConfig)
virtual AcsBulkdata::BulkDataDistributer < TReceiverCallback, TSenderCallback > *	getDistributer ()
virtual ACSErr::Completion *	getCbStatus (CORBA::ULong flowNumber)
virtual ACSErr::Completion *	getReceiverCbStatus (const char *recvName, CORBA::ULong flowNumber)
virtual void	setTimeout (CORBA::ULong flowNumber, CORBA::ULong timeout)
virtual void	setRecvName (const char *recvName)
virtual void	subscribeNotification (ACS::CBvoid_ptr notifCb)
Private Types
typedef ACE_Pair < bulkdata::BulkDataReceiver_ptr, AcsBulkdata::BulkDataSender < TSenderCallback > * >	Sender_Map_Pair
typedef ACE_Hash_Map_Manager < ACE_CString, Sender_Map_Pair, ACE_Null_Mutex >	Sender_Map
typedef ACE_Hash_Map_Entry < ACE_CString, Sender_Map_Pair >	Sender_Map_Entry
typedef ACE_Hash_Map_Iterator < ACE_CString, Sender_Map_Pair,ACE_Null_Mutex >	Sender_Map_Iterator
Private Member Functions
void	rmEntryFromSenderMap (bulkdata::BulkDataReceiver_ptr receiverObj_p)
void	rmEntryFromSenderMap (const char *receiverName_p)
Private Attributes
maci::ContainerServices *	containerServices_p
CDB::DAL_ptr	dal_p
AcsBulkdata::BulkDataDistributer < TReceiverCallback, TSenderCallback >	distributer

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>
class BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >

---

Member Typedef Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Hash_Map_Manager<ACE_CString, Sender_Map_Pair, ACE_Null_Mutex> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Hash_Map_Entry<ACE_CString, Sender_Map_Pair > BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map_Entry [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Hash_Map_Iterator<ACE_CString, Sender_Map_Pair ,ACE_Null_Mutex> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map_Iterator [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

typedef ACE_Pair< bulkdata::BulkDataReceiver_ptr, AcsBulkdata::BulkDataSender<TSenderCallback> *> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::Sender_Map_Pair [private]

---

Constructor & Destructor Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::BulkDataDistributerImpl	(	const ACE_CString &	name,
		maci::ContainerServices *	containerServices
	)

Constructor

Parameters:

	poa	Poa which will activate this and also all other Components.
	name	component name.

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::~BulkDataDistributerImpl

(

)

[virtual]

Destructor

---

Member Function Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::cleanUp

(

)

[virtual]

Called after the last functional call to the component has finished. The component should then orderly release resources etc. If this method is overwritten in a subclass, the developer has to make sure that all cleanup performed by the implementation of the base class take place. The best way to do this is to call the implementation of the base itself explicitly, as would be done implicitly in a destructor chain.

Returns:

void

---

Reimplemented from acscomponent::ACSComponentImpl.

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::closeReceiver

(

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::connect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

Negotiate and initialize connection with the Sender object.

Parameters:

receiverObj_p

reference of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::connectByName

(

const char *

receiverName_p

)

[virtual]

Negotiate and initialize connection with the Sender object.

Parameters:

receiverName_p

name of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::disconnect

(

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::disconnectByName

(

const char *

receiverName_p

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual ACSErr::Completion* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getCbStatus

(

CORBA::ULong

flowNumber

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual AcsBulkdata::BulkDataDistributer<TReceiverCallback, TSenderCallback>* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getDistributer

(

)

[inline, virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual ACSErr::Completion* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getReceiverCbStatus	(	const char *	recvName,
		CORBA::ULong	flowNumber
	)			[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

bulkdata::BulkDataReceiverConfig* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::getReceiverConfig

(

)

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::initialize

(

)

[virtual]

Called to give the component time to initialize itself. For instance, the component could retrieve connections, read in configuration files/parameters, build up in-memory tables, ... Called before execute. In fact, this method might be called quite some time before functional requests can be sent to the component. Must be implemented as a synchronous (blocking) call.

Returns:

void

---

Reimplemented from acscomponent::ACSComponentImpl.

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::multiConnect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

Negotiate and initialize connection with the Sender object.

Parameters:

receiverObj_p

reference of the Receiver Component.

Exceptions:

ACSBulkDataError::AVConnectErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::multiDisconnect

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::openReceiver

(

)

[virtual]

Opens connection creating an out-of-bound channel using TAO A/V services. It creates the Receiver Stream End Point and Flow End Point for the connection with the Sender. The Receiver Stream End Point can be retrieved as an attribute.

Exceptions:

ACSBulkDataError::AVOpenReceiverErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::paceData

(

)

[virtual]

Sends data to the Receiver calling the receive_frame() method on the Receiver side. This method must be overriden by the user to send his own data.

Parameters:

size

buffer size of the sent data.

Exceptions:

ACSBulkDataError::AVPaceDataErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::rmEntryFromSenderMap

(

const char *

receiverName_p

)

[private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::rmEntryFromSenderMap

(

bulkdata::BulkDataReceiver_ptr

receiverObj_p

)

[private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::setReceiver

(

const bulkdata::BulkDataReceiverConfig &

receiverConfig

)

[virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::setRecvName

(

const char *

recvName

)

[inline, virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::setTimeout	(	CORBA::ULong	flowNumber,
		CORBA::ULong	timeout
	)			[inline, virtual]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::startSend

(

)

[virtual]

Calls the Receiver handle_start() method once the connection is established.

Exceptions:

ACSBulkDataError::AVStartSendErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::stopSend

(

)

[virtual]

Calls the Receiver handle_stop() method.

Exceptions:

ACSBulkDataError::AVStopSendErrorEx

Returns:

void

---

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

virtual void BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::subscribeNotification

(

ACS::CBvoid_ptr

notifCb

)

[virtual]

---

Member Data Documentation

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

maci::ContainerServices* BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::containerServices_p [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

CDB::DAL_ptr BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::dal_p [private]

template<class TReceiverCallback, class TSenderCallback = BulkDataSenderDefaultCallback>

AcsBulkdata::BulkDataDistributer<TReceiverCallback, TSenderCallback> BulkDataDistributerImpl< TReceiverCallback, TSenderCallback >::distributer [private]

Referenced by BulkDataDistributerImpl< BulkDataDistributerStreamCb >::getDistributer().

---

The documentation for this class was generated from the following file:

• bulkDataDistributerImpl.h
