RampedPS::RampedPowerSupply Interface Reference

import "acsexmplRampedPowerSupply.idl";

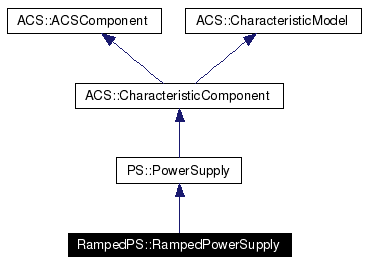

Inheritance diagram for RampedPS::RampedPowerSupply:

[legend]Collaboration diagram for RampedPS::RampedPowerSupply:

[legend]List of all members.

Public Member Functions
void	startRamping (in long rampingSteps, in ACS::CBvoid cb, in ACS::CBDescIn desc)
void	stopRamping (in ACS::CBvoid cb, in ACS::CBDescIn desc)
Public Attributes
readonly attribute ACS::RWstring	rampingStatus
readonly attribute ACS::ROlong	rampingStep

---

Detailed Description

Interface RampedPowerSupply also implements PowerSupply.

---

Member Function Documentation

void RampedPS::RampedPowerSupply::startRamping (  in long  rampingSteps, in ACS::CBvoid  cb, in ACS::CBDescIn  desc )

Starts ramping asynchronously. That is, we are notified by the callback when the method really completes. Parameters: rampingSteps  cb  callback when ramping is started. desc  is used to negotiate timeouts between client and sever. See the BACI specifications for more details. Returns: void * *

void RampedPS::RampedPowerSupply::stopRamping (  in ACS::CBvoid  cb, in ACS::CBDescIn  desc )

Stops ramping asynchronously. That is, we are notified by the callback when the method really completes. Parameters: cb  callback when ramping has stopped. desc  is used to negotiate timeouts between client and sever. See the BACI specifications for more details. Returns: void * *

---

Member Data Documentation

readonly attribute ACS::RWstring RampedPS::RampedPowerSupply::rampingStatus

This property states whether the power supply is ramping or not.

readonly attribute ACS::ROlong RampedPS::RampedPowerSupply::rampingStep

This property holds the current ramping step.

---

The documentation for this interface was generated from the following file:

• acsexmplRampedPowerSupply.idl

---
